ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного
ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного

ZSOUND с двумя 10-дюймовый 3way колонки аудиосистемы звук линейного


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.94 $* 0.29 $*
Aug-20-2025 0.27 $* 0.75 $*
Jul-20-2025 0.16 $* 0.50 $*
Jun-20-2025 0.28 $* 0.38 $*
May-20-2025 0.99 $* 0.67 $*
Apr-20-2025 0.60 $* 0.93 $*
Mar-20-2025 0.81 $* 0.89 $*
Feb-20-2025 0.74 $* 0.11 $*
Jan-20-2025 0.88 $* 0.92 $*

Характеристики

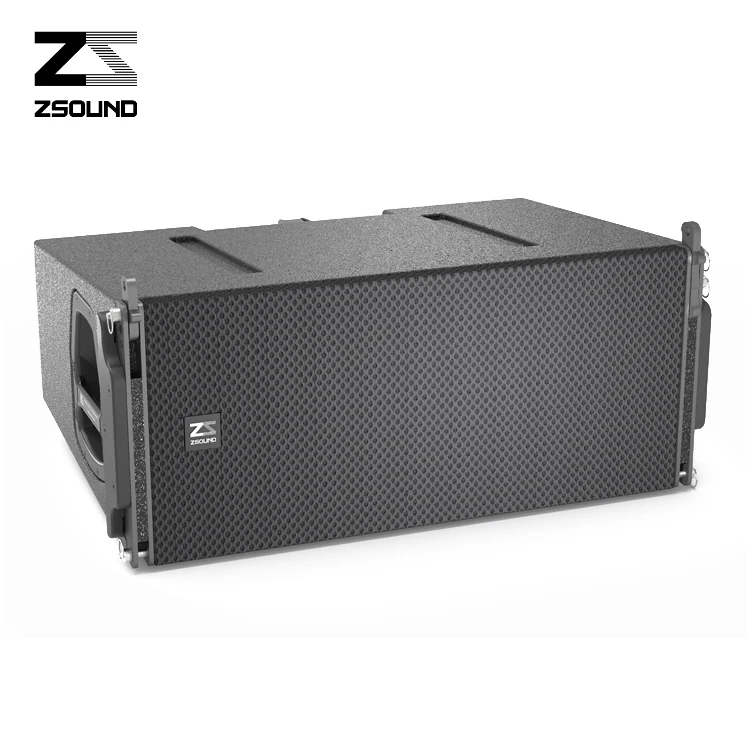

ZSOUND VCM Dual 10inch 3 Way Line Array Speaker

Feature:
1. MF and HF coaxial structure.
2. HIFI class, low frequency elasticity, soft and slim high frequency.
3. Presettable angle on the ground adjustable angle with manual hoister in the air.






Dimensions




Frequency Response Phase Response LF Impedance





VCM Technical specifications:
Frequency response:
50 Hz-16 kHz(±3 dB) 40 Hz-18 kHz(-10 dB)
Nominal coverage:
100°(H) adjustable
Sensitivity (1W/1m):
HF:112 dB SPL /MF:106 dB SPL /LF:96 dB SPL
Power rating:
HF/MF/LF:120W/130W/800W(AES)
Nominal impedance:
HF/MF/LF:16/16/16 ohm
Maximum SPL:
HF:138 dB SPL peak
MF:133 dB SPL peak
LF:131 dB SPL peak
Drivers:
LF 2x10" woofer(75mm voice coil)
MF:1x8'' mid bass(50mm voice coil)
HF 2x1.75''neodymium compression
driver(44mm voice coil)
Physical data:
Dimension(HXWXD):
303 x 700 x 496mm / 12"x28"x20"
Weight:
35 kg / 77 lbs
Connectors:
2 x NL8 connectors
Speaker cables
1+1-…LF, 2+2-…MF, 3+3-…HF,4+4-...N/C
Materials:
15mm 18mm Baltic birch plywood
Finish:
Black Polyurea paintings
Grille
Black epoxy mesh grille with acoustically reticulated cloth
Rigging:
0,1 ,2,3,4,5,6,7,8,9,10degree adjustable

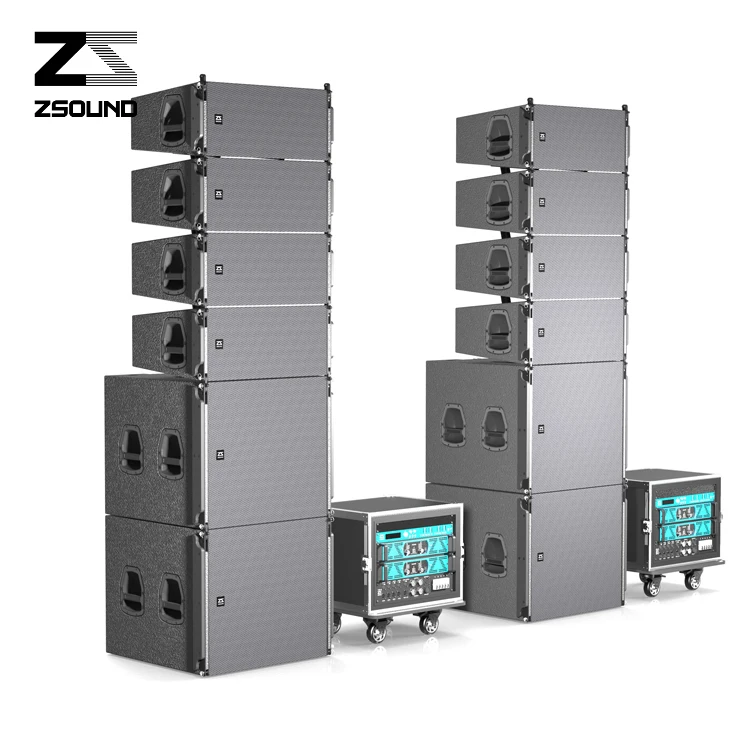

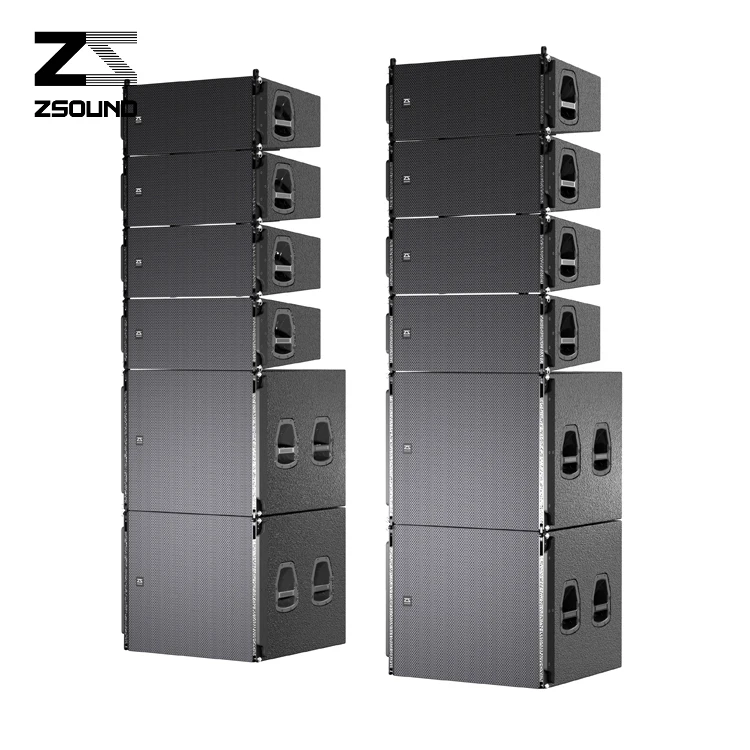

Working with VCS & SS2 Subwoofer

Widely used in:

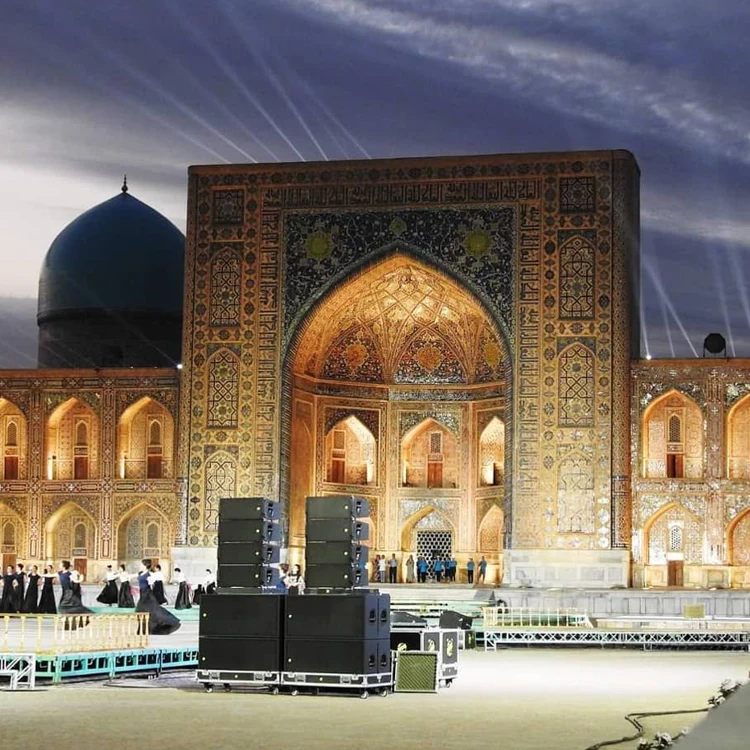

Middle and large touring performance, stadium, theatre, concert etc...
















ZSOUND Pro Audio Technology Co.,Ltd was founded in 2008, which is located in Guangzhou with convenient transportation access. We are one of the world’s top sound equipment system designer, manufacturer, supplier, renter and installer.
ZSOUND has earned rewards and distributes the finest audio equipment and systems which are found at the famous Concert Stages, Crusades, Festivals, Rallies, Clubs, Airports, Restaurants, Arenas, Auditoriums, Museums, Theme Parks, Churches, Mosques and many more venues around the world...




ZSOUND FACTORY IN GUAGNZHOU, CHINA
















1. What’s your MOQ?
ZS: No MOQ, 1PC OK.

2. What’s your delivery time and what kind of the shipping?
ZS: Within 5 days for sample orders, 7-15 working days for bulk order.
DHL, TNT, Fedex and sea freight for your choice.
3. What's your payment methods?
ZS: By T/T, L/C, Western Union, Credit card transfer by ALIBABA trade assurance etc

4. What’s your guarantee period ?
ZS: At least 2 years or more !!

5. May I be ZSOUND distributor in my region?
ZS: ZSOUND Have distributors in Korea, India, Thailand, Myanmar, Laos, Vietnam, Uzbekistan, Kazakhstan, Orlando, Portugal, Mexico and Tanzania. If you want to be ZSOUND distributor, please contact us for advanced communication.

6 . Do you provide OEM and ODM service?
ZS: Yes, we have more than 50 R&D Engineer to ensure good service for your ODM and OEM order.

7. Do you have CE, FCC, ICE, KC, ROHS and SGS certificates?
ZS: YES, we have.
