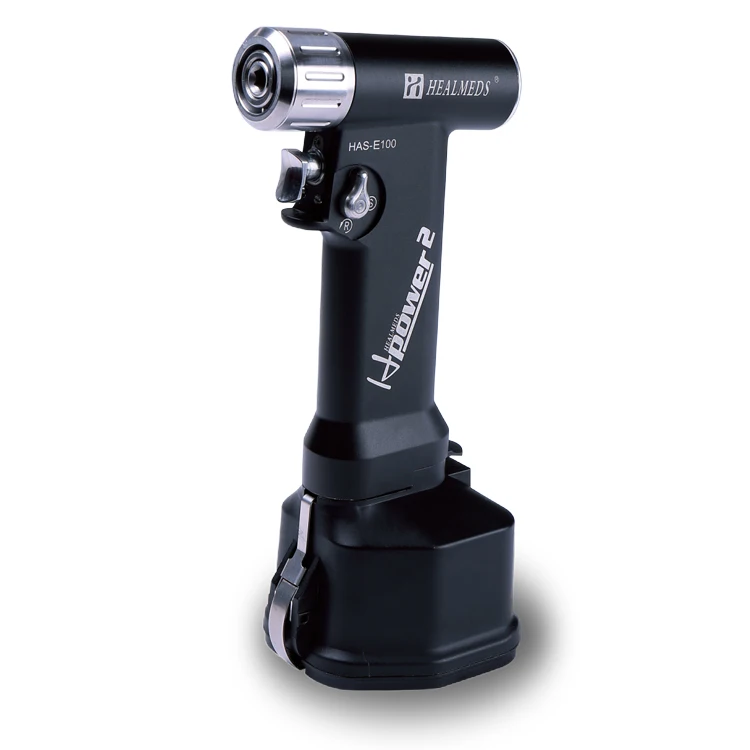

Hall Orthopedic Drill High Speed Orthopedic Drills

Product Description

Multi Function Drill E-100
No.	Item	Values
1	Speed Range(Key Chuck attachment)	0-1200rpm
2	Torque(Key Chuck attachment)	3.5N.m
3	Speed Range(Reaming Attachment)	0-400rpm
4	Torque(Reaming Attachment)	10N.m
5	Operation(V) voltage	9.6V
6	Radial circle run-out	≤0.1mm
7	Axial movement	≤0.5mm
8	Battery Volumn	2100mAh
9	Biggest drill bit diameter	8mm
10	Diameter of Cannulation	6.5mm

Key Chuck
1. Speed Range 0-1200 Rpm

2. Torque 3.5Nm

3. Noise ≤40

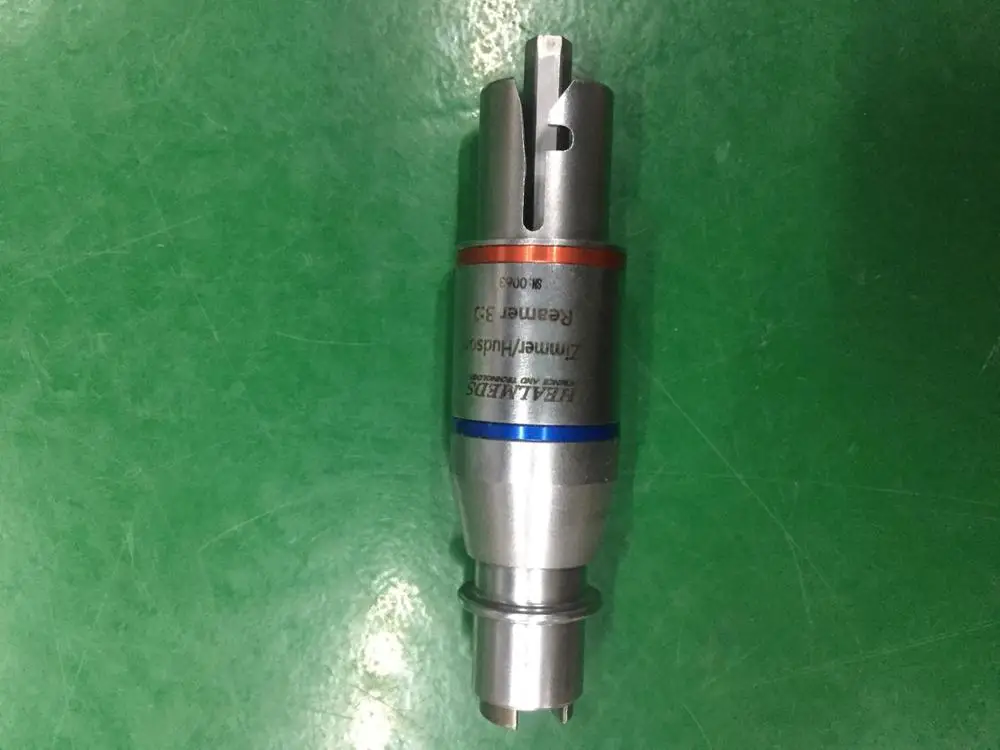

Reaming Attachment
1. Speed Range 0-400 Rpm

2. Torque 10Nm

3. Noise ≤40

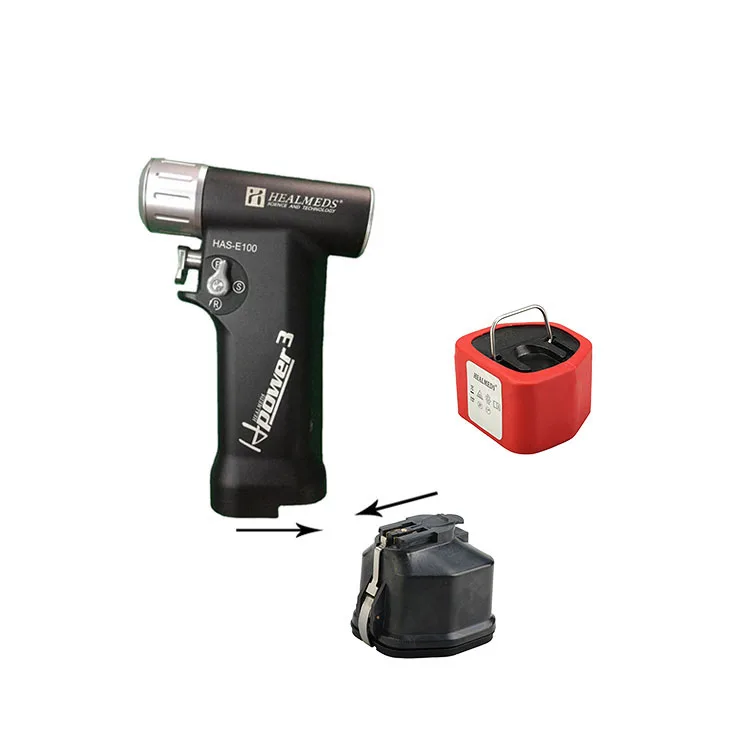

e100 with adapters-1 E100 multi use E100 packing

2. System Features:

1. USA brushless Motor

2.No Limit speed-changing

3.High Coaxiality, Low-Noise

4.Super lightweight: E100 drill handpiece is only 0.8kg, E150 saw handpiece is 0.95kg.

5.The warranty fo for whole machine is 2 years.

6.Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa

3.Standard Configuration:

Orthopedic Multi Function Drill	Quantity
handpiece	1
battery	1
charger	1
Key chuck or reaming Attachment	1
sterilizing channel	1
aluminum alloy case	1

4.Warranty:

Warranty for whole machine is 2 years, for motor is 2 years, for the battery and other fast consumption items is 3 months.

5.Notes:

1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.

2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.

3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.

4. The battery cannot be sterilized ,it is not autoclavable.

5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.

6. The battery space in the handpiece of the tool should not have any water,after sterilization.

7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is easy to be attrite,we suggest each blade only use for 1 surgery.
