Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
90 градусов стальная труба с двойной головкой автоматический гидравлический гибочный станок для
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Henan,Wadley,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.39 $* | 0.59 $* |
| Aug-16-2025 | 0.3 $* | 0.16 $* |
| Jul-16-2025 | 0.80 $* | 0.14 $* |
| Jun-16-2025 | 0.31 $* | 0.19 $* |
| May-16-2025 | 0.71 $* | 0.24 $* |
| Apr-16-2025 | 0.45 $* | 0.50 $* |
| Mar-16-2025 | 0.87 $* | 0.23 $* |
| Feb-16-2025 | 0.23 $* | 0.71 $* |
| Jan-16-2025 | 0.42 $* | 0.11 $* |
Характеристики
Product Description

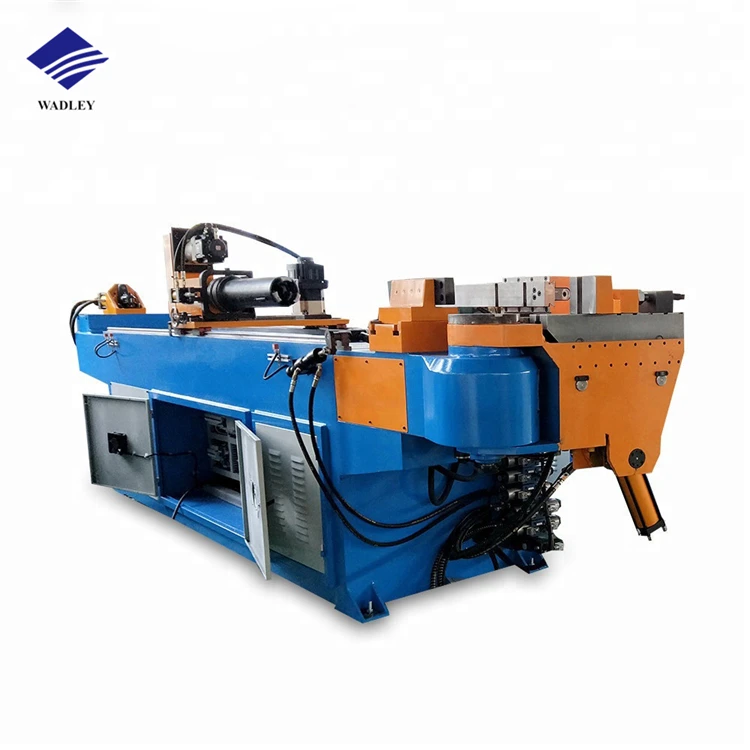

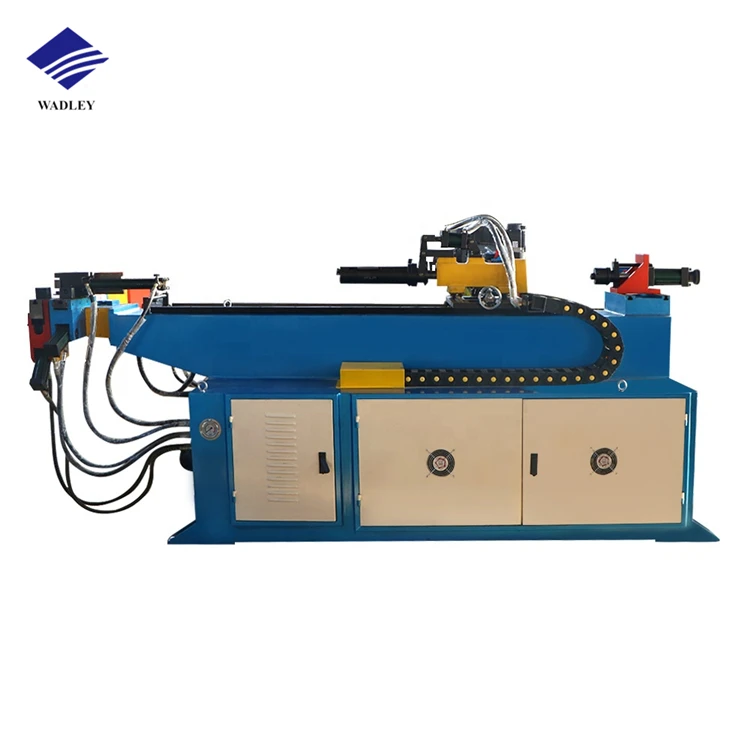

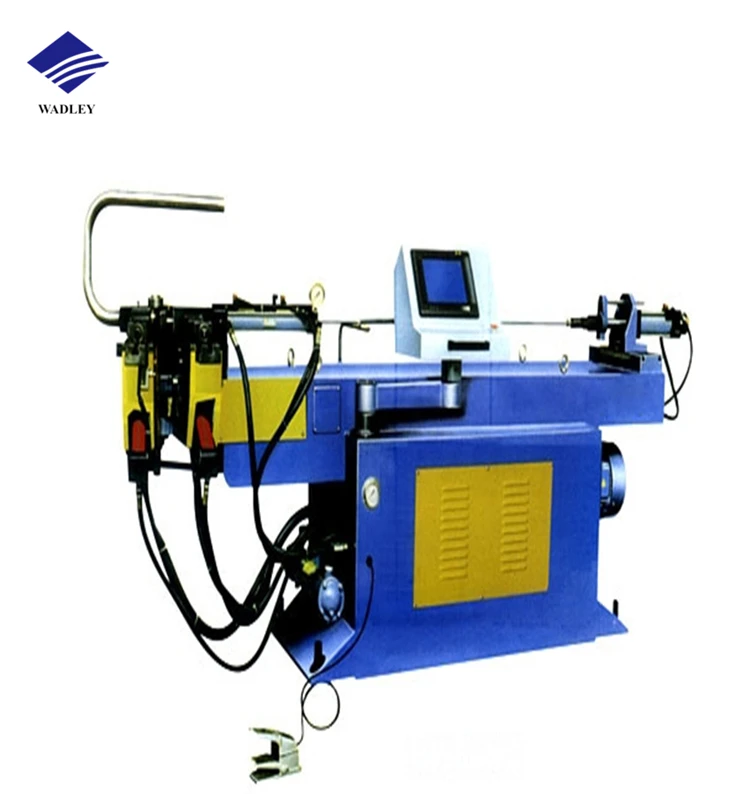

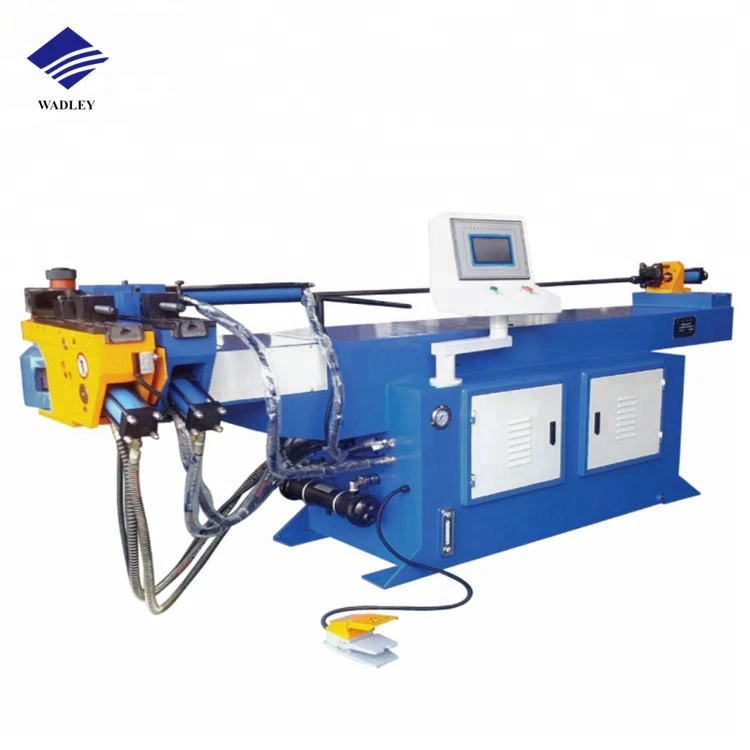

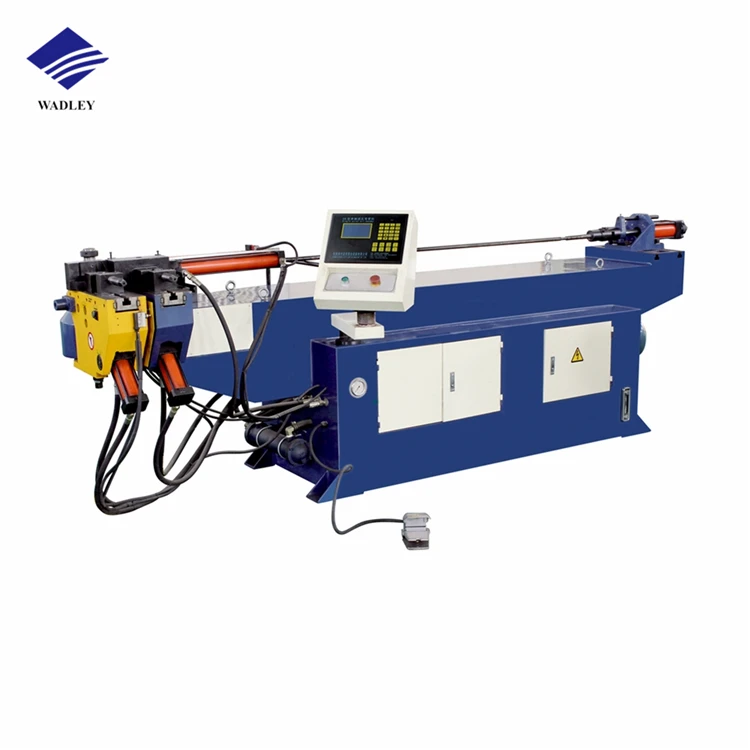

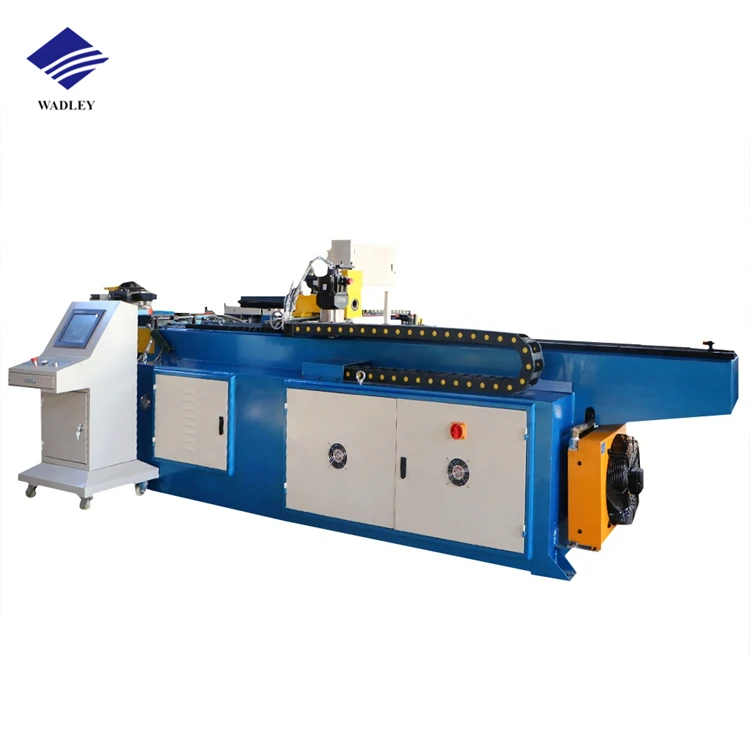

90 degrees double head steel pipe Automatic hydraulic pipe bending machine
Detailed Images
Size Information
Model | CNC50 | CNC63 | CNC80 | ||
Max.Tube O.D &W.T | Mild steel(mm) | φ50.8*2.5 | φ63.5*3.0 | φ80*3.5 | |
S.S Tube(mm) | φ45*2.0 | φ50.8*2.0 | φ65*2.5 | ||
Rectangle Tube(mm) | φ45*2.0 | φ50*2.5 | φ63*3.0 | ||
Max. Draw Bending Radiuss(mm) | 200 | 250 | 350 | ||
Max. Bending Angle(°) | 200 | 200 | 190 | ||
Max Effective Distance Of Mandrel(mm) | 2500 | 3000 | 3500 | ||
Bending | Accuracy | ±0.05 | ±0.05 | ±0.05 | |
Speed (per sec.) | 110° | 100° | 65° | ||
Feeding | Accuracy | ±0.05 | ±0.05 | ±0.05 | |
Speed (per sec.) | 1000mm | 1000mm | 750mm | ||
Rotaion | Accuracy | ±0.05 | ±0.05 | ±0.05 | |
Speed (per sec.) | 200° | 200° | 180° | ||
Max. Distance between 2 R | 60 | 65 | 70 | ||
Size(mm) | 5100*1600*1700 | 6000*1700*1700 | 6300*2150*1700 | ||
Weight(kgs) | 4500 | 5500 | 8000 | ||
Company Introduction
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
