Характеристики



Product Description


 Basical Specification

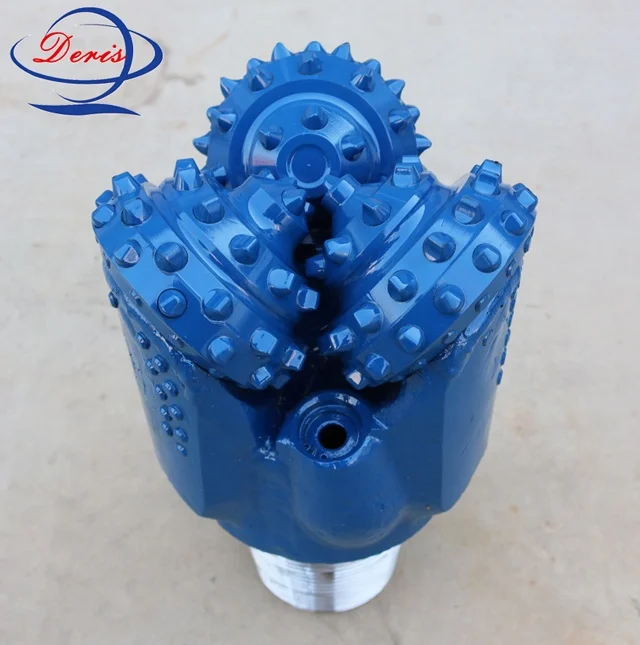

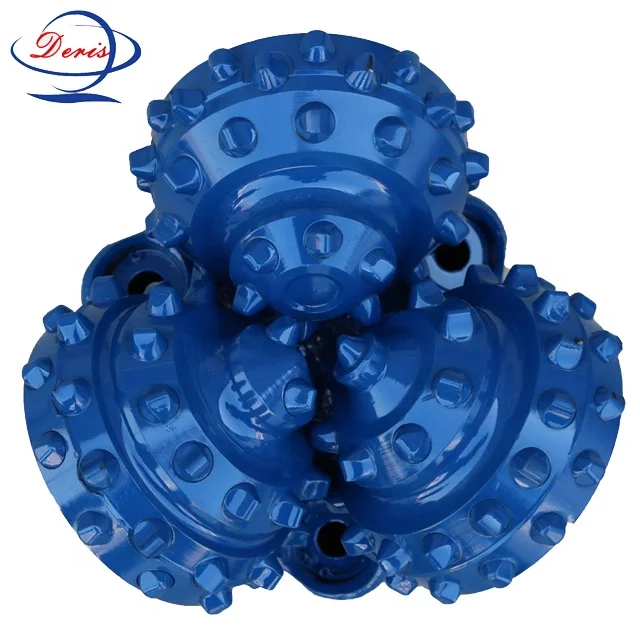

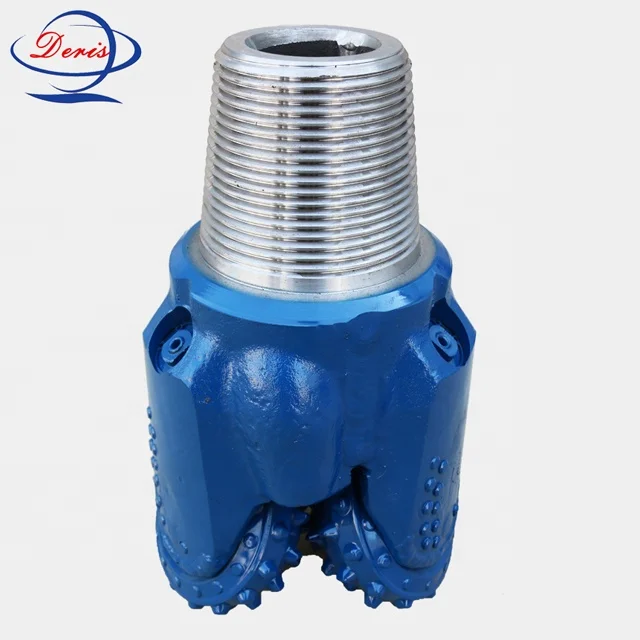

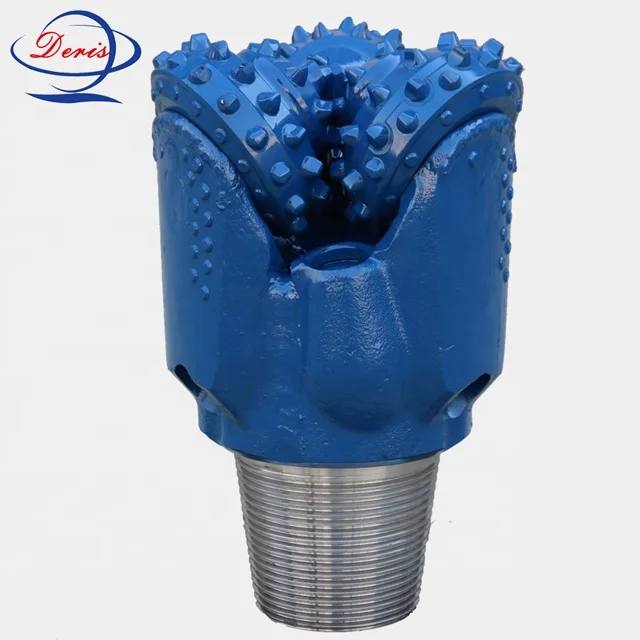

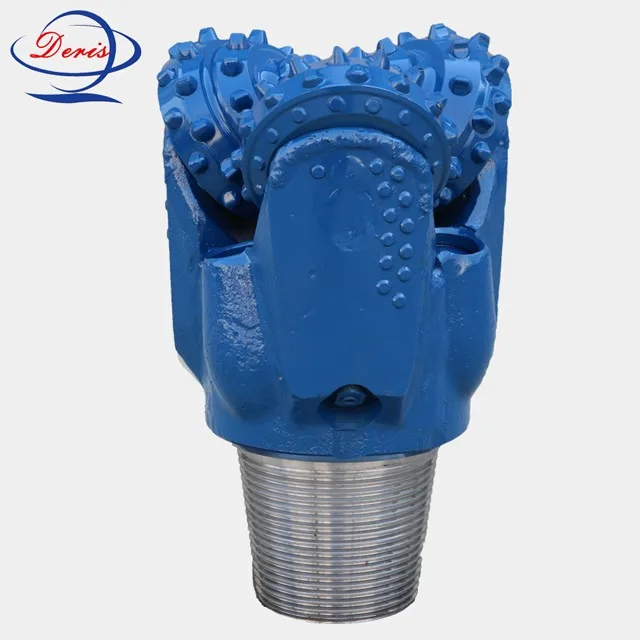

Size of tricone bit
7 7/8 inch 200mm
Thread Connection
4 1/2" API reg pin
IADC CODE
HA 517G
 Bearing type
rubber /metal o-ring journal bearing
Operating Parameters
WOB (Weight On Bit)
0.35~1.05 KN/mm (bit Dia.)
Rotary speed
140~70 r/min
Make up torque
16.3~21.7 KN.M
Formation
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft limestone,etc.


Tricone bit More parameters please click here




The Advantages of Using a Tri Cone Over Other Drill Bits

 1)There is a Tri Cone suitable for any rock formation

2) Tricone bit is versatile and can handle changing formations

3)Tri Cones are reasonably priced, long lasting and have an efficient drilling rate

4)Tricone is that the roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.

All advantage extend bit work life









Application


Application of the tricone bit
It used for oil well , gas well , water well , mining well , HDD , pile foundation .
Please select the applicable formation and parameters according to the instructions.
Carefully check the bits appearance and to check the bits threaded end face,whether the serial number on the box and certificate.
Selection of WOB and RPM should be within the limits of the recommended parameters, higher WOB and RPM cannot be used simultaneously.
Bottom hole must be clean and bit must not be used for long section reaming.
Drilling process must operate smoothly, find that there is Bie jump on abnormal phenomenon, should be timely analysis and take effective measures
The bit should be kept indoor with dry and well ventilated conditions at 10-33℃ and kept from sunshine and rain. Stored under such conditions, quality of bit is guaranteed for 3 years.




Customer inspection


Welcome to visit  my factory and inspect the bit quality





My company


About us

Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial
Park,close to Tianjin Port, Beijing Airport, convenient transportation.
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills,
hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team
has been established.♦Advanced technology&Equipment, International standard.
♦R&D center for rock drilling tools, high precision CNC machines, drilling machines, milling machines, quality testing
equipmentAPI&ISO Certified.
♦10+ Years & 30 Countries service experience.
♦Optimized solutions for various of requirement
Any inquiry please ask us





Related Products










Certification




Packing & Delivery




Package Type : wooden case ,also be packaged according to customers requirement
Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better
Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and pdc bit, we have stock.
If we have no stock, such as the tci reamer and pdc hole opener, it will be 7-10 working days in total.



Contact




This is Jenny, already have 9 years working experience for this section. Already make many friends from different countries. I am very pleasure to help them solve some difficult problems for the HDD drilling reamer and tricone bit,PDC bit and find the more suitable drilling products.
We believe double win is what we want.
If you have any questions, welcome to talk with me.
