Литий-ионный полимерный аккумулятор 602060 3 7 в 670 мач
- Категория: Основной батареи >>>
- Поставщик: Shenzhen,Everwin,Tech,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.67 $* | 0.61 $* |
| Aug-16-2025 | 0.53 $* | 0.60 $* |
| Jul-16-2025 | 0.13 $* | 0.59 $* |
| Jun-16-2025 | 0.12 $* | 0.69 $* |
| May-16-2025 | 0.27 $* | 0.45 $* |
| Apr-16-2025 | 0.77 $* | 0.19 $* |
| Mar-16-2025 | 0.55 $* | 0.88 $* |
| Feb-16-2025 | 0.17 $* | 0.41 $* |
| Jan-16-2025 | 0.15 $* | 0.71 $* |
Характеристики

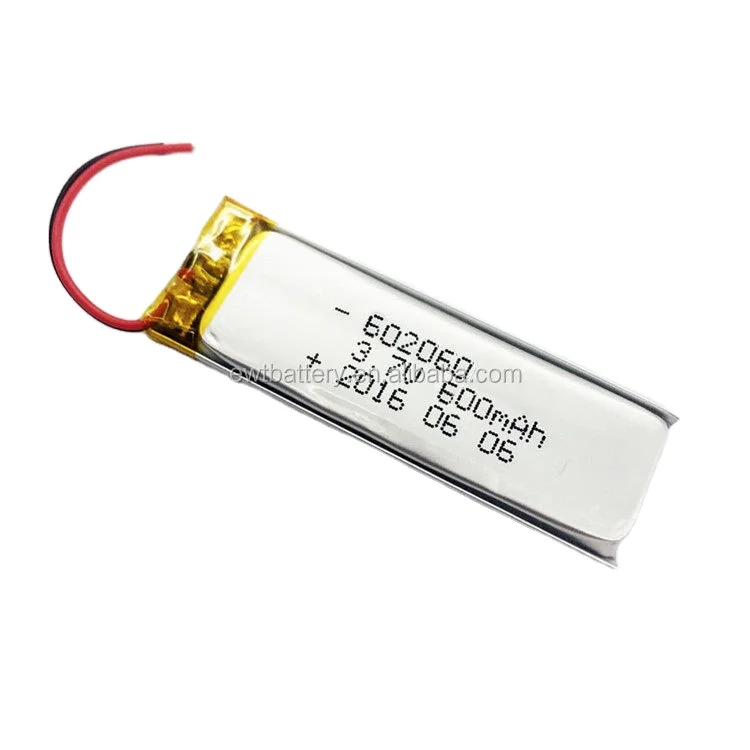

602060 lithium polymer rechargeable battery 3.7v 670mah
1. Specification:
1. Description | Nominal Parameter | Note | |
2. Nominal Capacity | 670mAh |
| |
3. Nominal Voltage | 3.70V |
| |
4. Internal Resistance | ≤40mΩ |
| |
5. Discharge Cut-off Voltage | 3.0V |
| |
6. Charge Voltage | 4.20V |
| |
7. Max Charge Voltage | 4.25V |
| |
8. Charging Time | Around 5 hours | Charge the battery at constant current of 0.2C to reach 4.2V. | |
9. Standard Charging Current | 136mA | 0.2CmA | |
10. Max Charging Current | 340mA | 0.5CmA | |
11. Max Discharging Current | 680mA | 1.0CmA | |
12. Weight | Around 15g |
| |
13.Operating Temperature | Charge | 0~+45℃ |
|
Discharge | -10~+60℃ |
| |
14. Storage | Less than 1 month | -10~+45℃ | Recommend 20℃ when delivery |
More than 6 months | -10~+35℃ | ||
15. Energy | |||
16. Dimension | Battery cell dimension:6*20*60mm
| ||
2.Key Features:
- High operation voltage
- High energy desity
- Long cycle life
- Minimal self-discharge
- Wide temperature range
- Environmentally compatible
- High level of safety
- Non-memory
3. Applications:
- Telecommunication: cellular phone, web phone, interphone, earphone.
- Portable office devices: Notebook, PDA, portable electrograph, portable printer.
- Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
- Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
- Illuminate devices: miner lamp, searchlight.
- Others: toys, models.
4:Other Li-PO Batteries:
| Type | Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Diamension (mm) | ||
| Thickness | Width | Height | ||||
| **1020 | 301020P | 3.7 | 30 | 3 | 10 | 20 |
| **1030 | 301030P | 3.7 | 50 | 3 | 10 | 30 |
| **1430 | 301430P | 3.7 | 95 | 3 | 14 | 30 |
| 401430P | 3.7 | 120 | 4 | 14 | 30 | |
| **2025 | 302025P | 3.7 | 90 | 3 | 20 | 25 |
| 602025P | 3.7 | 240 | 6 | 20 | 25 | |
| **2030 | 302030P | 3.7 | 120 | 3 | 20 | 30 |
| 402030P | 3.7 | 180 | 3.85 | 20 | 30 | |
| 452032P | 3.7 | 210 | 4.5 | 20 | 30 | |
| 502030P | 3.7 | 240 | 4.8 | 20.5 | 31 | |
| 602030P | 3.7 | 300 | 6.1 | 20.7 | 31 | |
| **2035 | 302035P | 3.7 | 170 | 3 | 25 | 30 |
| 402035P | 3.7 | 240 | 4 | 25 | 30 | |
| 502035P | 3.7 | 300 | 5 | 25 | 30 | |
| **2040 | 252040P | 3.7 | 140 | 2.5 | 20 | 40 |
| 302040P | 3.7 | 190 | 3 | 20 | 40 | |
| 552040P | 3.7 | 420 | 5.5 | 20 | 40 | |
| 602040P | 3.7 | 450 | 6 | 20 | 40 | |
| **2250 | 302250P | 3.7 | 300 | 3 | 22 | 50 |
| 402250P | 3.7 | 400 | 4 | 22 | 50 | |
| 502250P | 3.7 | 530 | 5 | 22 | 50 | |
| **2525 | 302525P | 3.7 | 140 | 3 | 25 | 25 |
| **2530 | 302530P | 3.7 | 180 | 3 | 25 | 30 |
| 352530P | 3.7 | 200 | 3.3 | 25 | 30 | |
| 402530P | 3.7 | 240 | 4 | 25 | 30 | |
| 502530P | 3.7 | 320 | 5 | 24.8 | 30 | |
| 602530P | 3.7 | 370 | 6.1 | 25 | 31 | |
| **3040 | 303040P | 3.7 | 320 | 3 | 30 | 40 |
| 383040P | 3.7 | 420 | 3.8 | 30 | 40 | |
| 403040P | 3.7 | 460 | 4.2 | 30 | 40 | |
| 503040P | 3.7 | 550 | 5 | 29.6 | 40 | |
| **3048 | 403048P | 3.7 | 500 | 4 | 30 | 48 |
| 423048P | 3.7 | 500 | 4 | 30 | 48 | |
| 503048P | 3.7 | 700 | 5.1 | 30 | 48 | |
| 603048P | 3.7 | 810 | 6 | 30 | 48 | |
| 803048P | 3.7 | 1000 | 8 | 30 | 48 | |
| 903048P | 3.7 | 1100 | 9 | 30 | 48 | |
| 103048P | 3.7 | 1000 | 10 | 30 | 48 | |
| **3448 | 253448P | 3.7 | 360 | 2.5 | 34 | 48 |
| 303448P | 3.7 | 500 | 3 | 34 | 48 | |
| 323448P | 3.7 | 450 | 3.2 | 34 | 48 | |
| 403448P | 3.7 | 600 | 4 | 34 | 48 | |
| 503448P | 3.7 | 800 | 5 | 34 | 48 | |
| 603448P | 3.7 | 930 | 6.1 | 34 | 48 | |
| 703448P | 3.7 | 1050 | 7 | 34 | 48 | |
| 103448P | 3.7 | 1100 | 10 | 34 | 48 | |
| **3450 | 303450P | 3.7 | 500 | 3 | 34 | 50 |
| 403450P | 3.7 | 700 | 4 | 34 | 50 | |
| 423450P | 3.7 | 800 | 4.2 | 34 | 50 | |
| 523450P | 3.7 | 900 | 5.2 | 34 | 50 | |
| 503450P | 3.7 | 900 | 5 | 34 | 50 | |
| 603450P | 3.7 | 1000 | 6 | 34 | 50 | |
| 103450P | 3.7 | 1900 | 10 | 34 | 50 | |
| **3465 | 103465P | 3.7 | 2000 | 10 | 34 | 65 |
| **4050 | 504050P | 3.7 | 1000 | 5 | 40 | 50 |
| 554050P | 3.7 | 1000 | 5.5 | 40 | 50 | |
| **4858 | 364858P | 3.7 | 1000 | 3.5 | 49 | 59 |
| 454858P | 3.7 | 1320 | 4.5 | 48 | 58 | |
| 474858P | 3.7 | 1450 | 4.7 | 48 | 58 | |
| 504858P | 3.7 | 1500 | 5 | 48 | 58 | |
| 554858P | 3.7 | 1600 | 5.5 | 48 | 58 | |
| 704858P | 3.7 | 1900 | 7 | 48 | 58 | |
| 754858P | 3.7 | 2000 | 7.5 | 48 | 58 | |
| 804858P | 3.7 | 2300 | 7.6/7.7 | 48 | 58 | |
| 854858P | 3.7 | 2500 | 8.5 | 48 | 58 | |
| **5050 | 375050P | 3.7 | 750 | 3.7 | 50 | 50 |
| 575050P | 3.7 | 1500 | 5.7 | 50 | 50 | |
| 655050P | 3.7 | 1600 | 6.6 | 50 | 50 | |
| 105050P | 3.7 | 2200 | 10 | 50 | 50 | |
| **5058 | 605058P | 3.7 | 1800 | 6 | 50 | 58 |
5. Our Factory:
