Характеристики

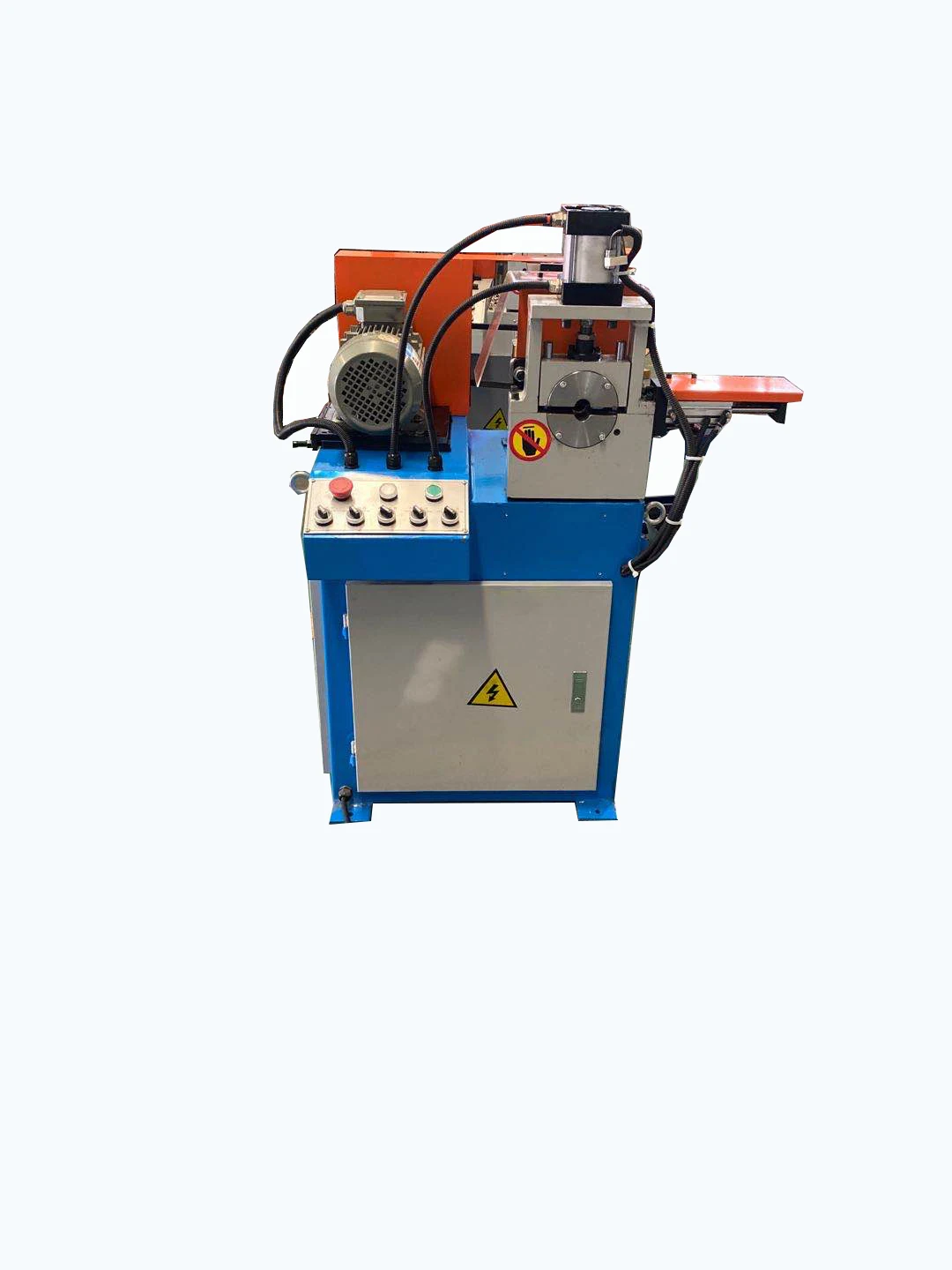

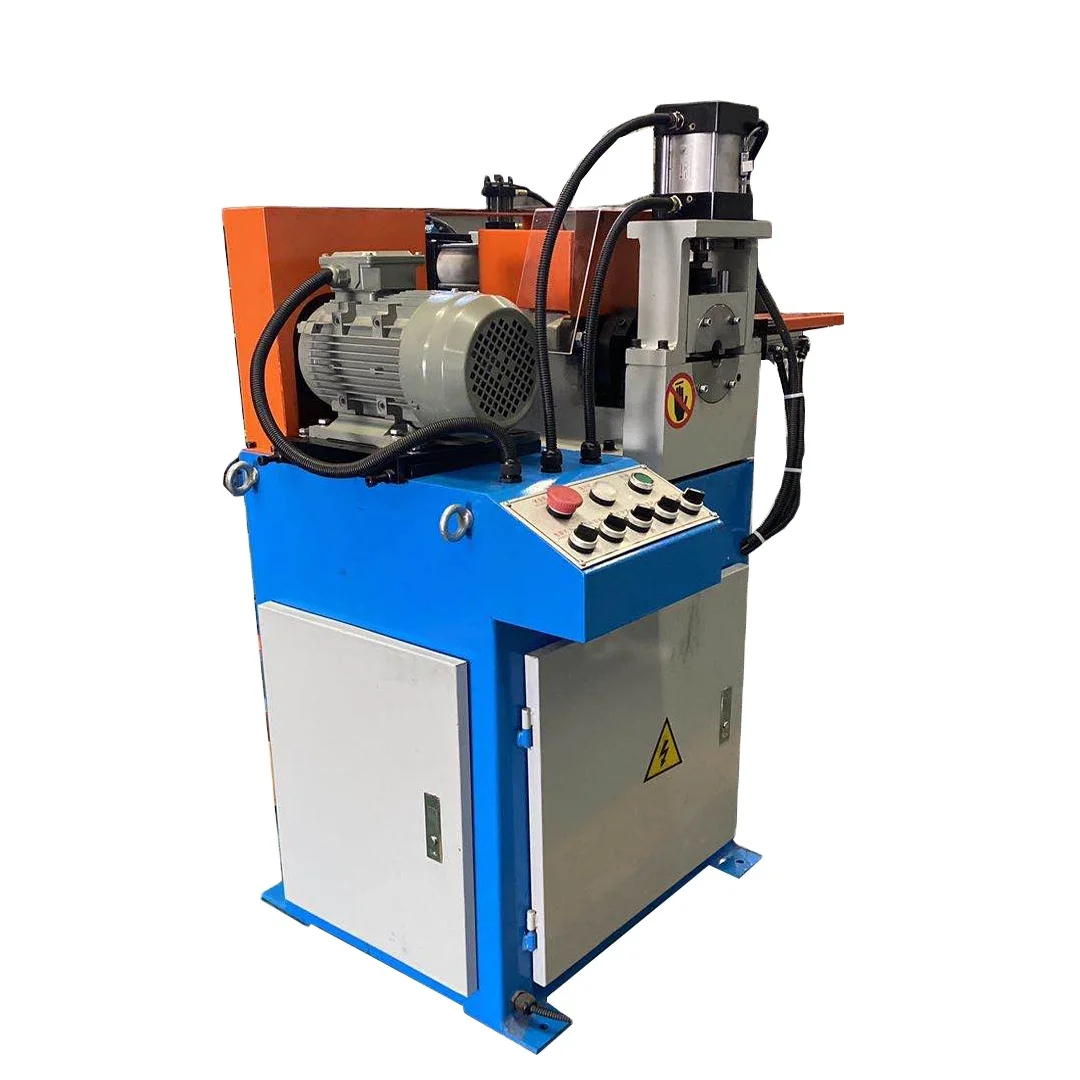

Automatic Steel Pipe Chamfering Machine / Double Head Chamfering Machine/ Chamfering Machine for Metal
Product Description
Single-end chamfering machine

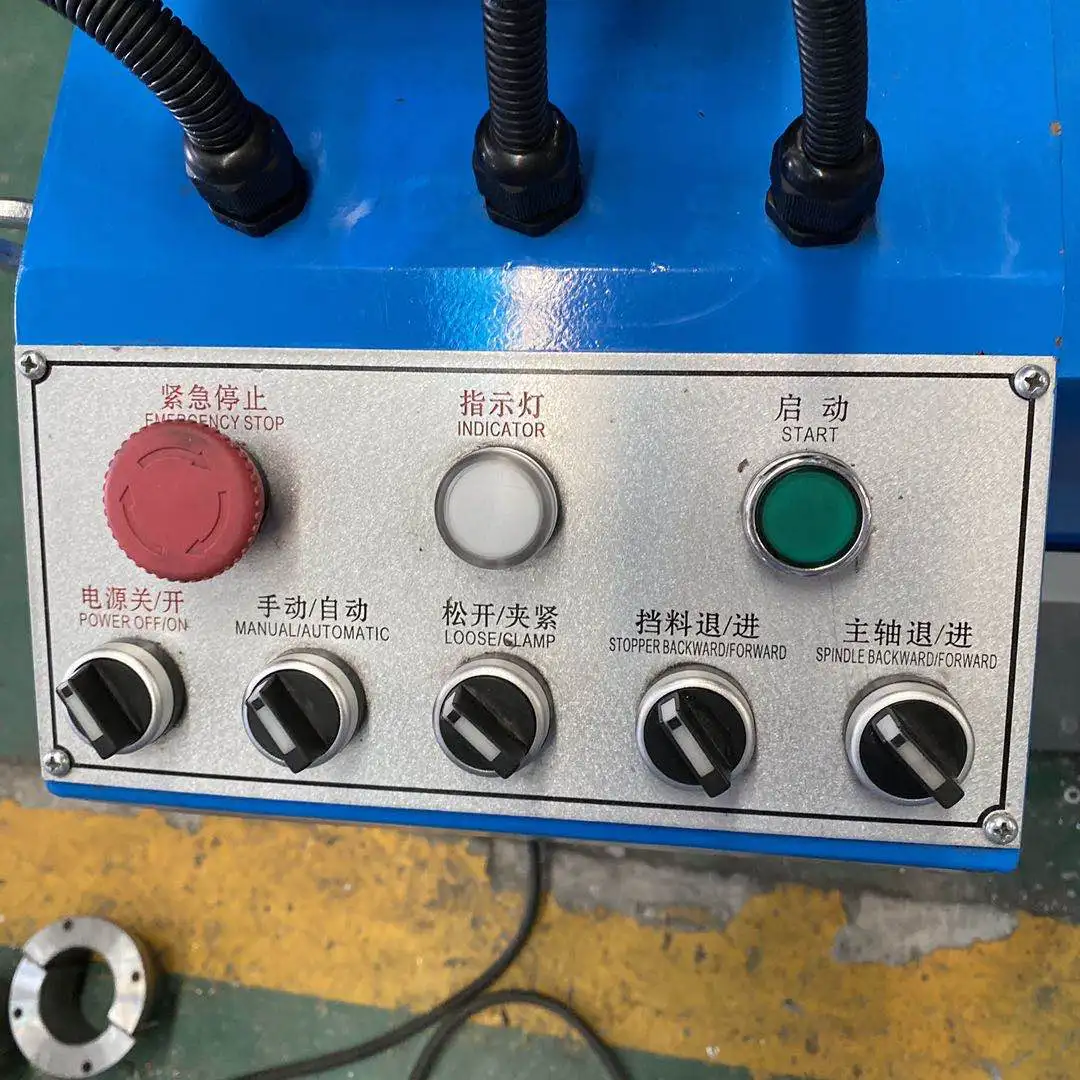

Semi-automatic precise chamfering machine, manual feeding, automatic clamping and automatic driving and reversing machine

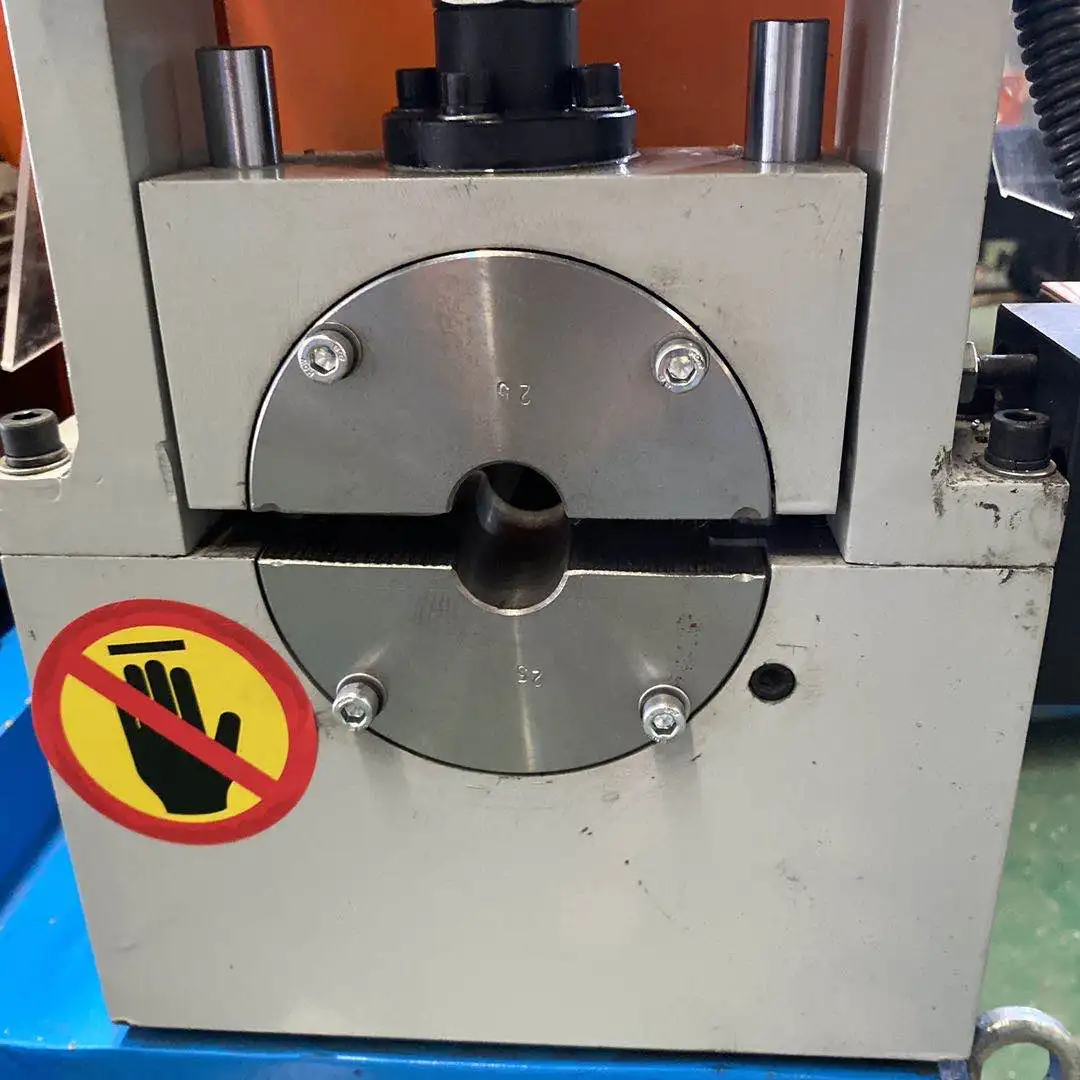

1. Clamp mould and cutter head and carefully designed to ensure the center line of processed object and cutter head will not be changed. The processing of outer angle at tube end, inner angle and tube end can be finished uniformly in one time.
2. The speed can be changed by changing the belt pulley to adapt to different metal material and ensure the longest service life of cutter.
3. Feeding speed at two sections can save time and the slow speed can be easily adjusted to ensure perfect processing.
Product main technical Specifications:
Specification/Model | WD-AC/50 | WD-AC/80 |
Main motor power | 1.5KW | 2.2kw |
Main axis speed | According to the pipe material | |
Processing diameter | 9-52mm | 30-82mm |
Processing external angle | 9-25mm | 20-50mm |
compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
Size | 450mmx 400mm x 800mm | 500mmx 400mm x 850mm |
Weight | 300kg | 400kg |
Detailed Photo
Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface once quickly and accurately.
Application
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.
