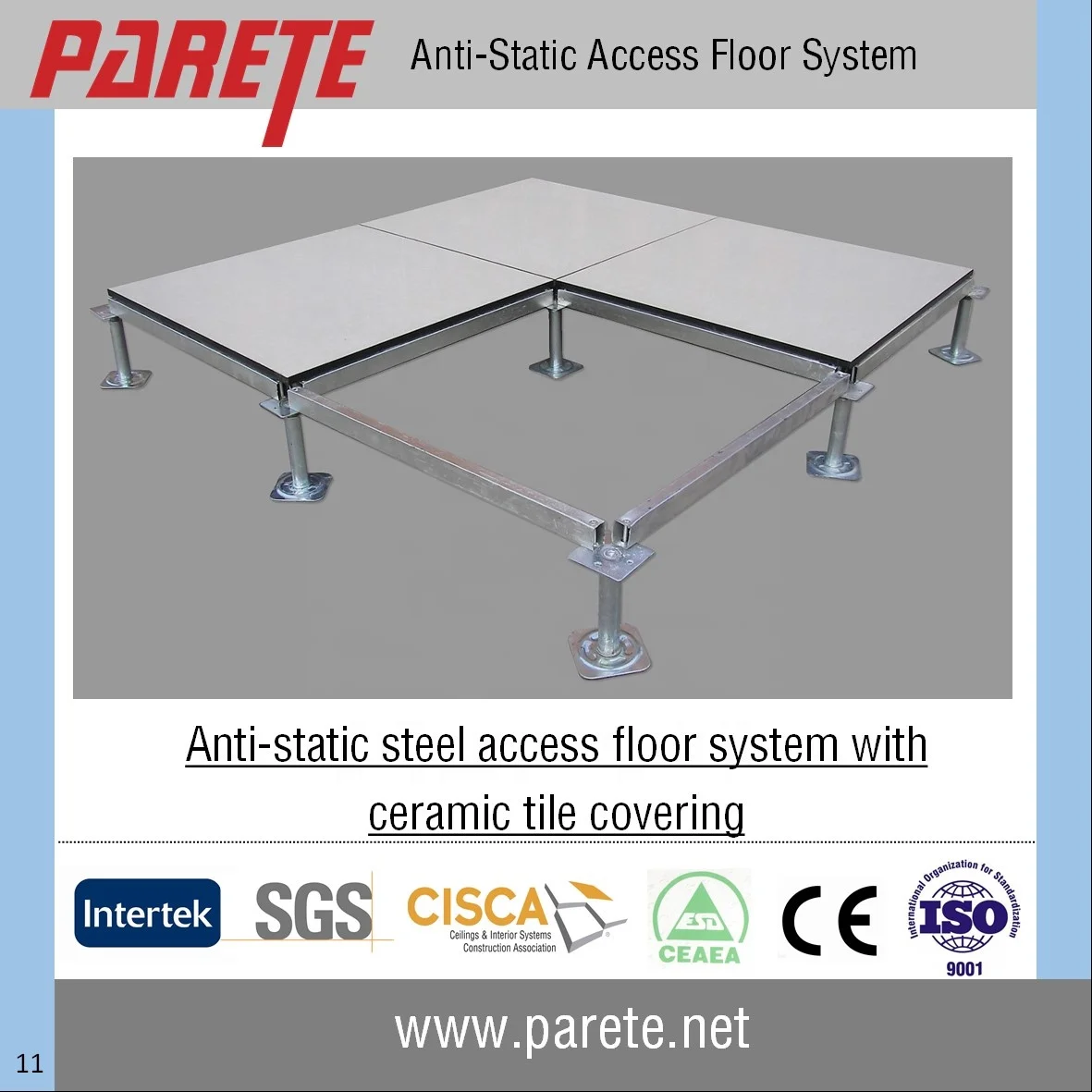

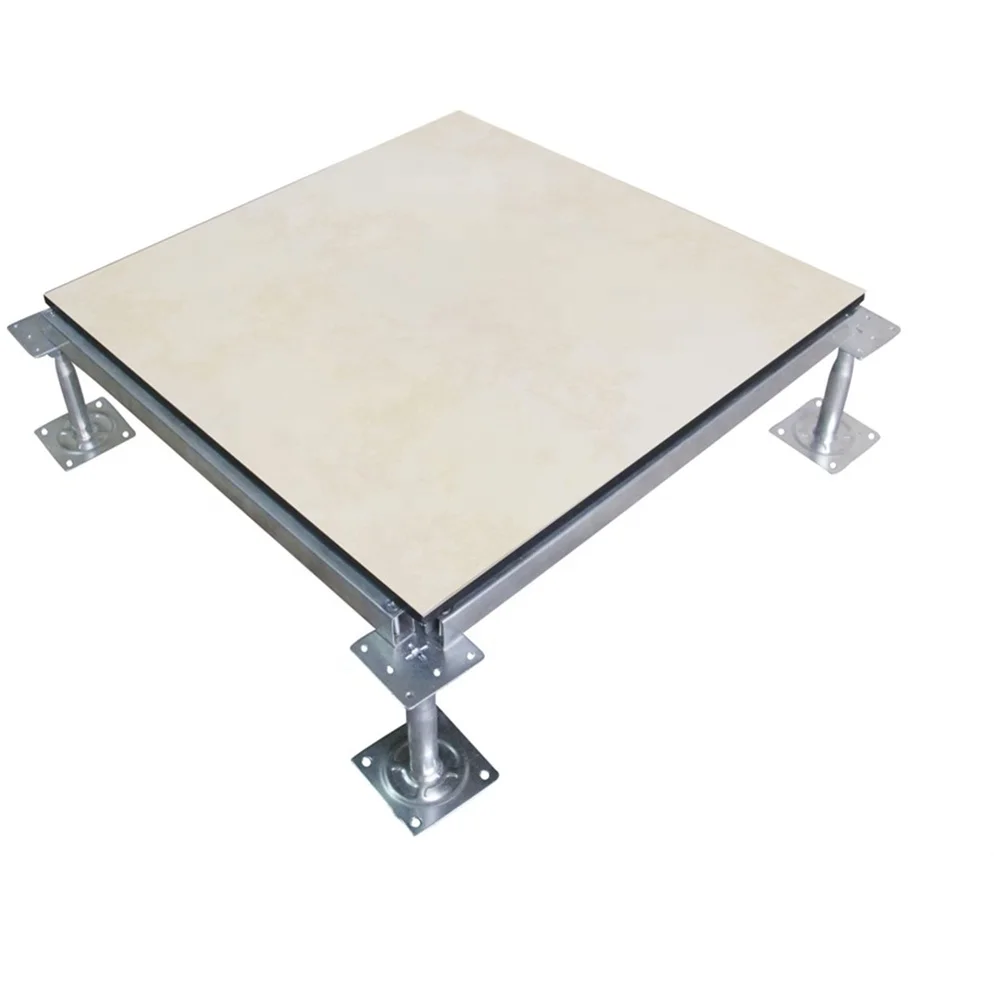

Steel access floor with 10mm (ESD) Ceramic Tile



Product discription



Antistatic Access Floor is made of good quality cold-rolled steel sheet with foaming cement fully filled. The  bottom is high quality deep stretch coil steel plate. The top is  cold rolled hard plate. The top steel plate and bottom steel plate are spot-welded to form a high quality shell. The shell is treated by phosphate and painted with epoxy powder coating. Then foaming cement will be filled into the shell. After curing, the structure will be stable and strong to support the designed loading capacity . The access floor panel has high strength and high durability.













Product advantages:



1. Made of steel plate, high mechanical strength, high loading capacity, good fire resistance.

2. Epoxy power painting on surface, matt and soft, wear resistant and anti-corrosion.

3. Covering is glued under high pressure.  Multiple choices and good decorated surface. Wear resistant and anti scratch, excellent electrical conductivity, anti pollution and easy cleaning.

4. High dimensional accuracy,  interchangeable, flexible assembly, easy maintenance.

5. Products can be upgraded or adjusted according to the loading requirements.



Technical data of steel anti-static access floor

NO.	Size	Thickness	Concentrated load (deflection=2mm)			Ultimate load	Uniform load	Rolling load			Electrical resistance
	(mm)	(mm)	lb	N	kg	N	N/m2	N	deflection	Permanent deformation	(Ω)
PRT-FS662	600×600	35	662	2950	301	8850	12500	2255	≤2mm	≤0.5mm	106 - 1010
PRT-FS800	600×600	35	800	3550	363	10650	16500	2950			106 - 1010
PRT-FS1000	600×600	35	1000	4450	454	13350	23000	3560			106 - 1010
PRT-FS1250	600×600	35	1250	5560	567	16680	33000	4450			106 - 1010
PRT-FS1500	600×600	38	1500	6665	680	19995	39324	5560			106 - 1010
PRT-FS2000	600×600	38	2000	9000	910	31130	58000	8000			106 - 1010
CICAS or BS standard size panel			Parete can provide the size 24’’ ×24’’ (610mm×610mm) access floor panel.
Floor covering			Ceramic tile
Raised height			Normally from 100mm to 1000mm, above 1000mm, it should be in special solution.
Electrical resistance			It will be 106-109 When use the ESD ceramic tile

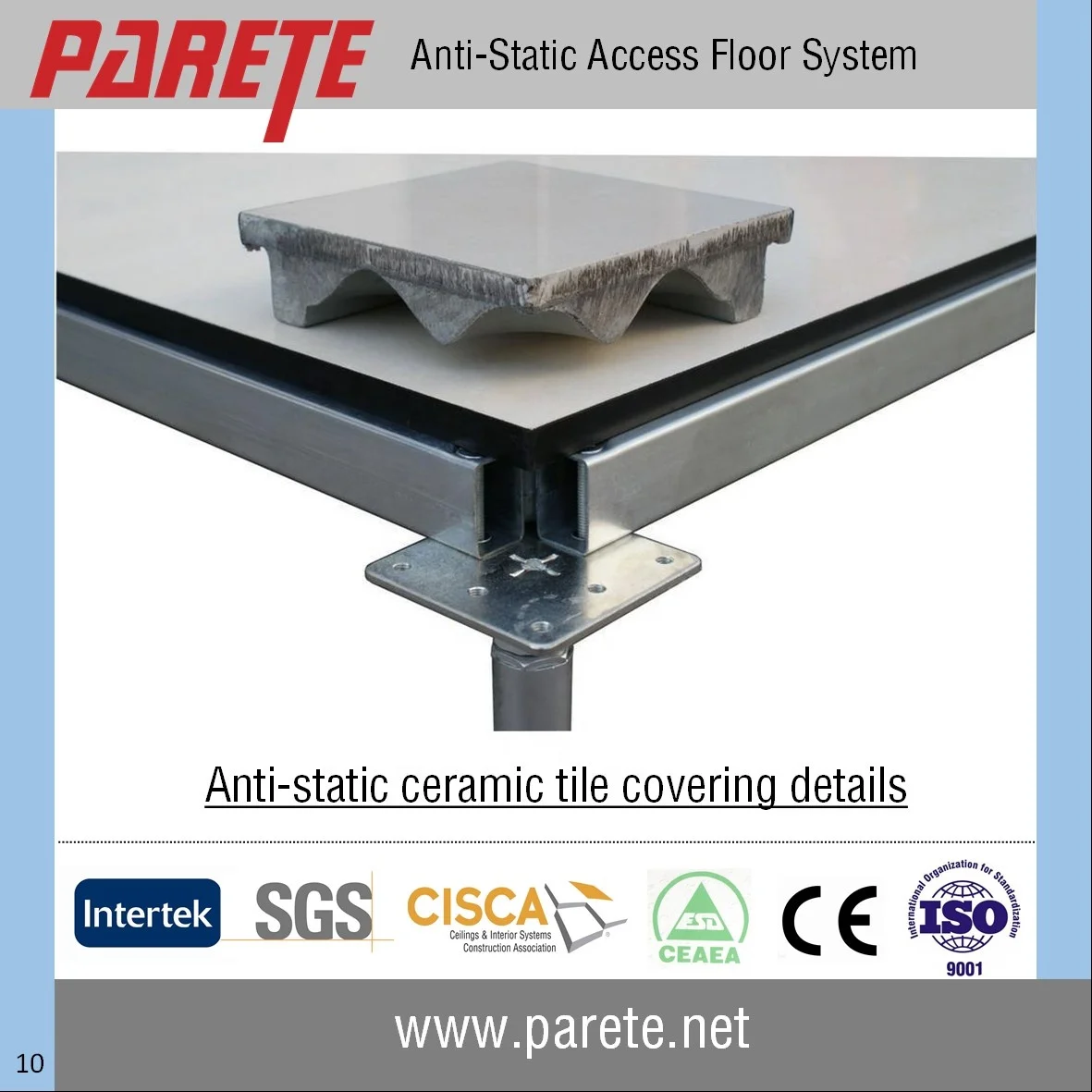

Anti Static Ceramic Tile



After using a variety of special paper phenolic, melamine, resin processing, high temperature and pressure made of thermosetting resin decorative laminates. It is not only bright color, bright and smooth, and has a wear-resistant, heat resistance, pollution, washable and permanent decorative features, the standard thickness of 0.8mm, 1.0mm, 1.2mm, 1.5mm, the thickness can development of user requirements.

High pressure melamine laminate is widely used in varies computer rooms and data centers. It is anti-static, anti-wear and free of pollution.  It is anti scratch and wear resistance. It is economical and easy glued on the surface of metal, calcium sulphate panel and wood core surface. So it is the most welcome floor covering.



Raised Floor applications



Industry	areas
manufacture	Electronic factory, transformer substation, hydropower, oil tank, cement factory, motor industry etc.
financial	Bank, security, telecom, insurance
Commercial	Hotel, Shopping mall, intelligent office, logistic center
Government	School, tax bureau, police station, frontier inspection station, national defense center, industrial and commercial bureau, custom, national conference center etc.
Public facility	Hospital, military, highway, airport, TV station, radio and TV center

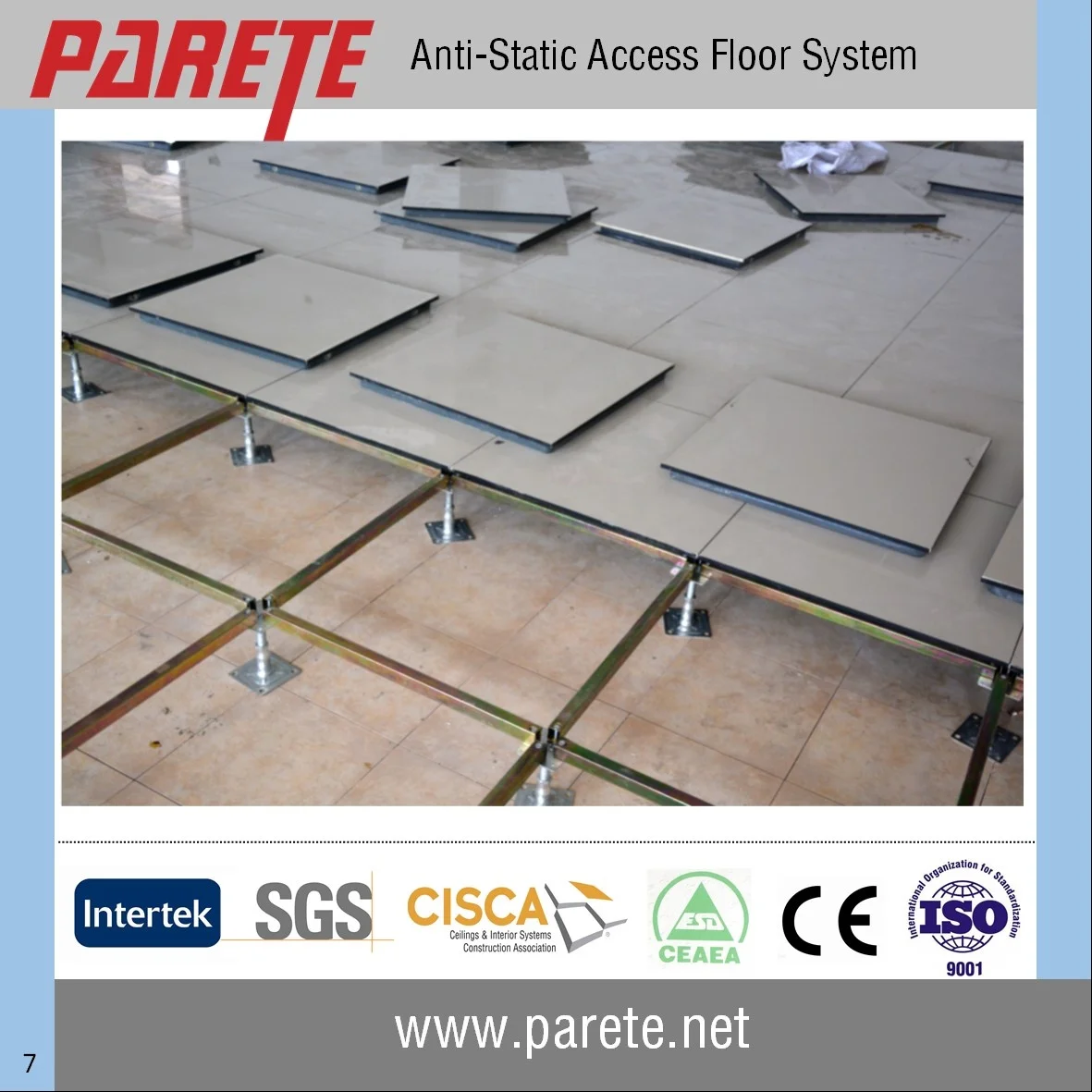

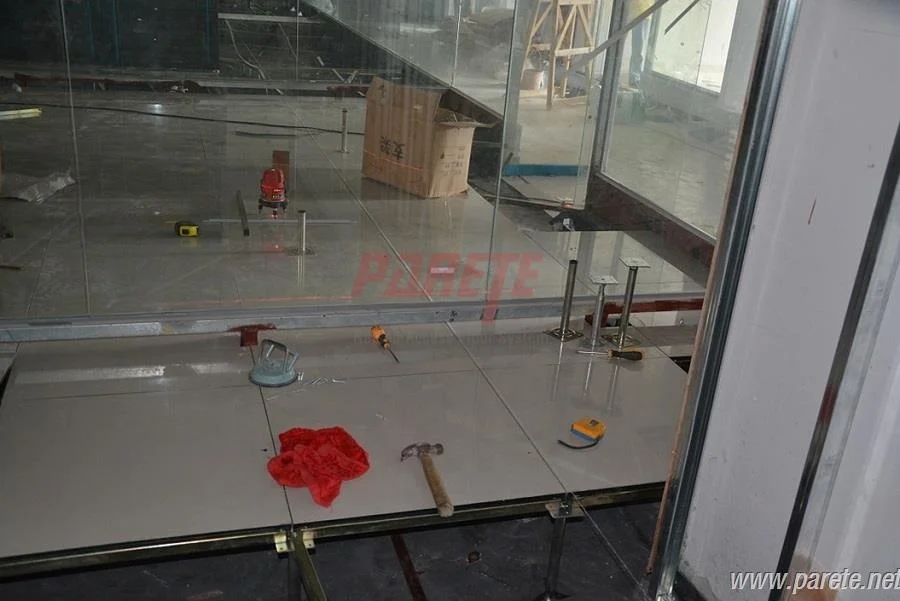

University teaching center ceramic raised floor





University teaching center ceramic raised floor



University teaching center ceramic raised floor



Control and morntoring center ceramic raised floor



Control and morntoring center ceramic raised floor

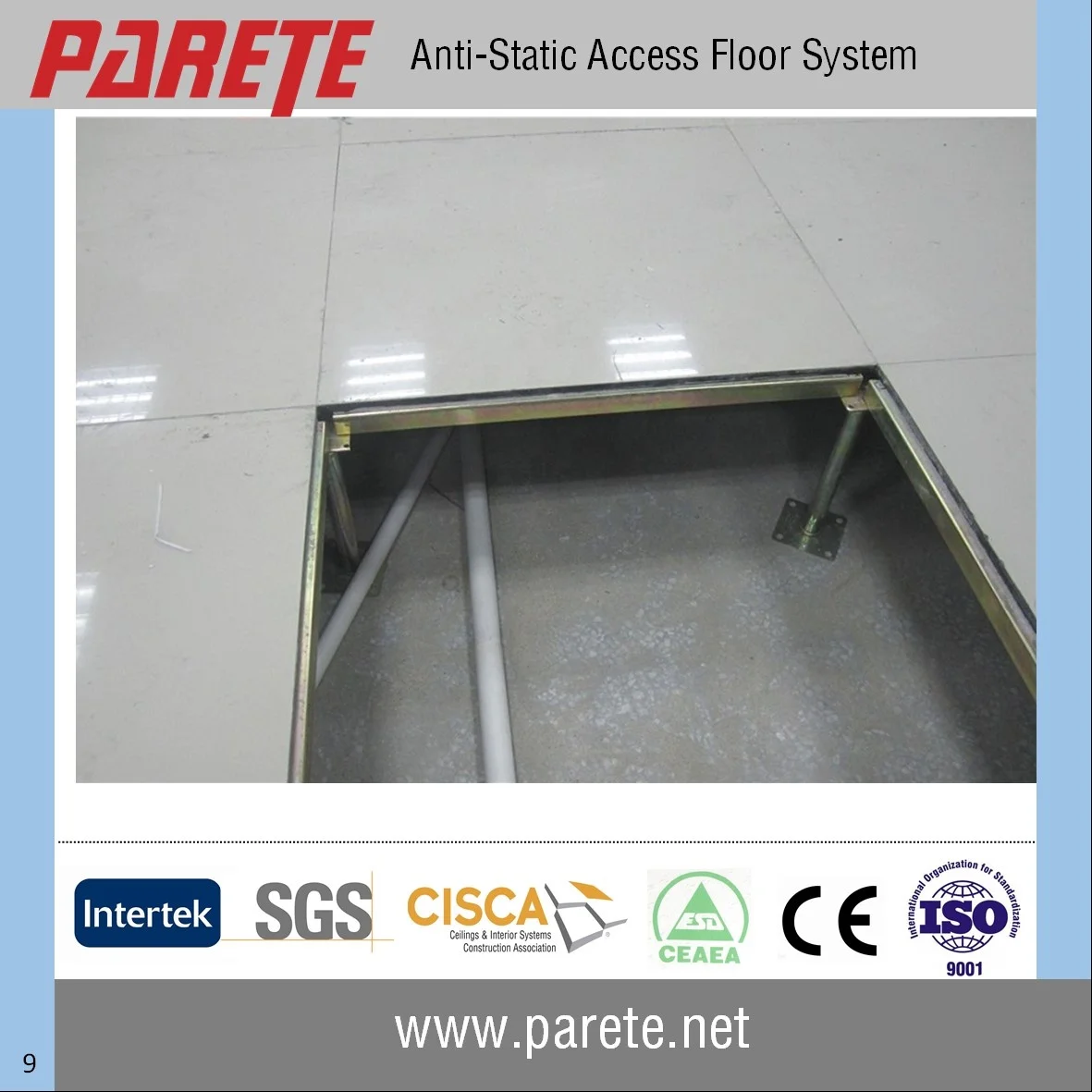

Control room ceramic raised floor
