Wholesale Price 12000 Btu Air Conditioner Solar Powered

Sunchees 100% DC48V solar air conditioners range includes 9000btu ,12000btu,

180000btu and24000btu systems.Due to solar votage fluctuations the unit cannot

connect directly to solarpanels and must have a stable source of power such as

batteries.



Depending on conditions, the entry-level set up can operate on 5 hours/12 hours/

24 hours,and use 4 to 12 solar panels. Batteries and charge controller must be

sized appropriately.Detailed design and specification please check following

information.

Sunchees solar air conditioner advantage:



1.Use of world advanced technology to avoid the common air conditioner problem:

refrigerant not completely evaporate cause whole system running ineffective.



2.Easy installation & maintenance, same as the common air conditioner.



3.Running high efficiently, comfortable & safe, more energy-saving & money saving.



4.Toshiba Compresser, R410 refrigerant guarantee fluoride-free emission, solar energy ensure

freely and renewable.



5.Durable and long-lived, smooth running, Low-loaded operation of the compressor to extend

its duration.



6.Healthy and comfortable, constant temperature to keep air conditioner disease away.









Say goodbye to the electricity bill

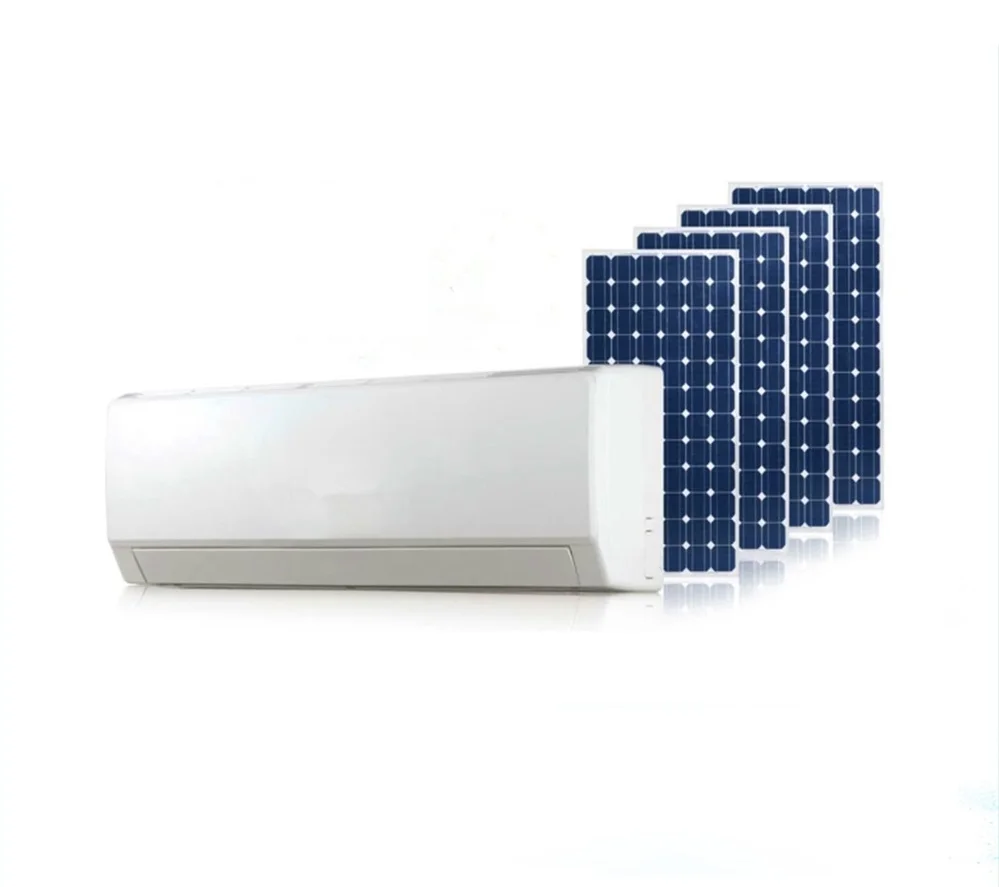

Sunchees 100% solar air conditioner system consists of solar panels, solar charging controller,

Gel battery and DC inverter air conditionr. It uses DC power directly without needing an inverter

or other AC power source. Thus, 100% DC solar air conditioner can assist people who living in

places short of power supply or grid power cost is very expensive, to enjoying air conditioner

freely and economically.

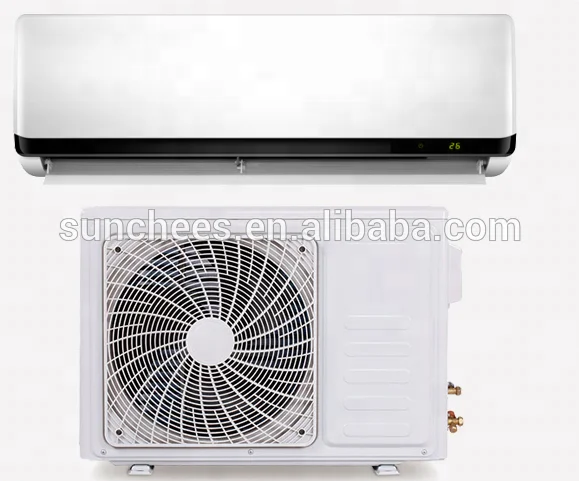

Main features of wall split solar air conditioner

1.Power Specification:48V DC

2.Driven by solar panels directly, no inverter required, no AC power required, 100% energy saving

3.Variable Speed BLDC(Brushless DC)

4.Cooling + heating model

5.Overnight operation available

6.Quiet operation

7.R410a refrigerant, Toshiba comprosser, high quality, more safe.

8.Multi-folds evaporator

9.Solar panel and battery requirements will vary based on application and local sunlight conditions.









DC solar power air conditioner specification



SUNCHEES 12000BTU Solar Air Conditioner System  Full set Total volume:1.2CBM Total weight:420kg
System	Solar panel rated output power: 1000W
Basic Information	System working time : 5 hours
Solar panel	FS250W mono solar panel	QTY
	Vmp:30V  Voc:35.8V
	Imp 8.33A   Size : 1640*992*4mm	4pcs
	25 years life time  (CE TUV) 10 years warranty
	Glass:3.2mm Tempered
	Terminal block: IP65 with MC4 connector
	Connect way:2pcs panels in series, 2pcs series in Parallel connection to air conditioner
Solar charger controller	Solar charger controller : CP48V/30A	QTY
	Charger efficiency :95%	1pc
	Charging mode  intelligent control
	Size :133*85*40mm ,	weight :0.3KG
12000BTU Air conditioner	Air conditioner model: DC 48V/12000BTU	QTY
	Power supply : cooling +Heating
	Compressor brand : Toshiba, 5 years warranty
	EER W/W :5.28  Cooling Rated current :13.23A
	Starting current: 2A, Max. Current: 25A
	Indoor/Outdoor noise level:<40/33/28dB/<50dB	1pc
	Ambient temp (cooling/heating):18~55℃/-15-34℃
	Application area:15-25m2
	Indoor unit size : 795*285*215mm   12KG
	Outdoor unit size :745*335*570mm  35KG
Gel Battery	Capacity:12V/120AH full sealed	QTY
	Solar power Gel battery,
	Service life:5-6 years ,
	Size:329*172*214mm	4pcs
	Connect way:4PCS in series as a string
panel rack	Slope Rooftop or Flat rooftop	QTY
	wind load:55m/s,snow load:1.5kn/m2
	structure:Anodized Aluminum+stainless steel,  Angle adjustable, 10 years warranty	1set
Cables		QTY
	4mm2 pv cable 50M	50m
	terminals and MC4
	battery connect terminal





1. How does the solar air conditioner work?

PV Solar panels produce electricity. Electricity to be saved in battery group as energy bank;

Batteries drive air conditioner to run for cooling and heating. Solar controller protect the

whole system and provide stable power supply.



2. Do you need inverter to make DC power to AC?

Inverter is NOT required for our solar air conditioners, because our solar air conditioners were

100% driven by 48V DC power.



3.What is the function of batteries? Which kind of batteries and capacity recommended for your

solar air conditioners?

Battery is the energy bank to reserve electricity energy. We recommend you 4 x 12V deep cycle gel

solarbatteries for each solar system.



4. What’s Sunchees DC air conditioner's advantage?

Equipped with ecough-power self-produced DC compressor, Sunchees DC air conditioner has a

perfect cooling performance even at 45℃ ambient temperature.



5. What is the input voltage for the Sunchees DC/solar air conditioner?

Generally input voltage is DC 48or DC60V.



6.Is AC100~240V power accepted by Sunchees DC solar air conditioner?

AC100~240V  power can be input by an adapter;

Never input AC100~240V power to DC air conditioner directly.
