Автоматическая фальцевально-клеильная машина упаковочная для микро гофрированной бумаги

 product introduction:

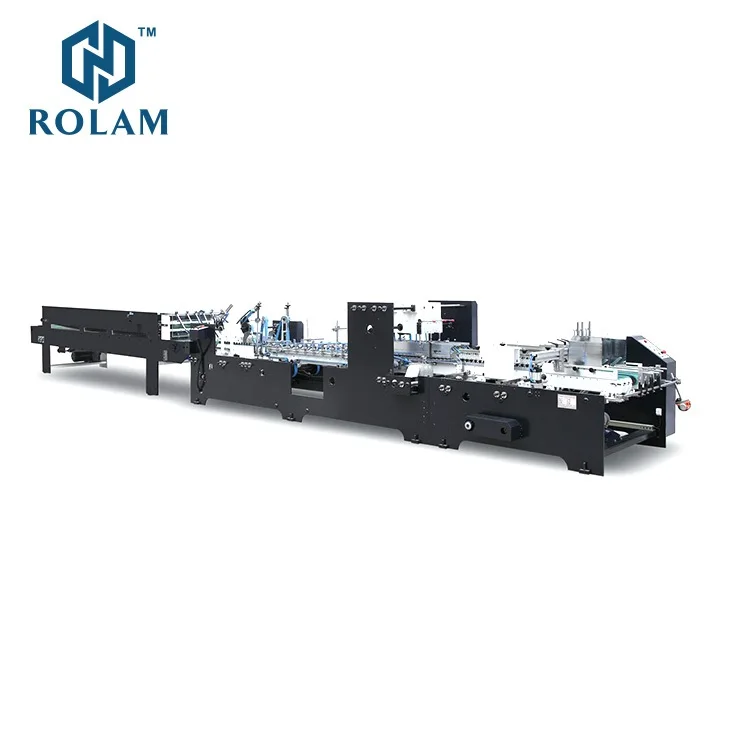

Series G folding gluing machine is dual purpose machine, adopt synchronous belt transmission and electronic

continuously variable speeder ,domestic standard electronic components,feeding section adopt mechanic

continuously variable, stable and easy to control and operate. It is especially designed for various cardboard,

corrugated-paper packaging, adapts correction function, and make corrugated boxes perfectly meet the requirements

of auto packaging. (in case of any special function required, we can design according to the customer's intention.).

Machine cconfiguration:
1.Main Board :Main Board
2.Main motor:Taiwan Teco
3.Conveying motor:Qiaobang
4.Circuit breaker:Schneider France
5.Contac:Schneider France
6.Intermediate relay:Schneider France
7.Button:Schneider France
8.Photo electricity:OMRON Japan
9.Head conveyor belt:NITTA
10.Base belt :NITTA
11.Conveying belt :Simaote :Driving bearing
12.Press Switch+ Remote controller:Taiwan Yuding Switch, Eight- position wireless remote controller
13.Mound layer, roller:Special section bar, hot processed

Pre-fold:
Double-board structure with a set of pre-folding knife. Pre-fold angle is 180 and 90.
Packed with special track device.
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Bottom Lock:
3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons.
The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

Bottom-folding speed is 50-200 pcs per min, stable and reliable.
Folding Section:
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
Trombone:
Automatic: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.
Transmission:
Equipped with feeding paper inspection device.
Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
