Автоматическая машина для склеивания картонных

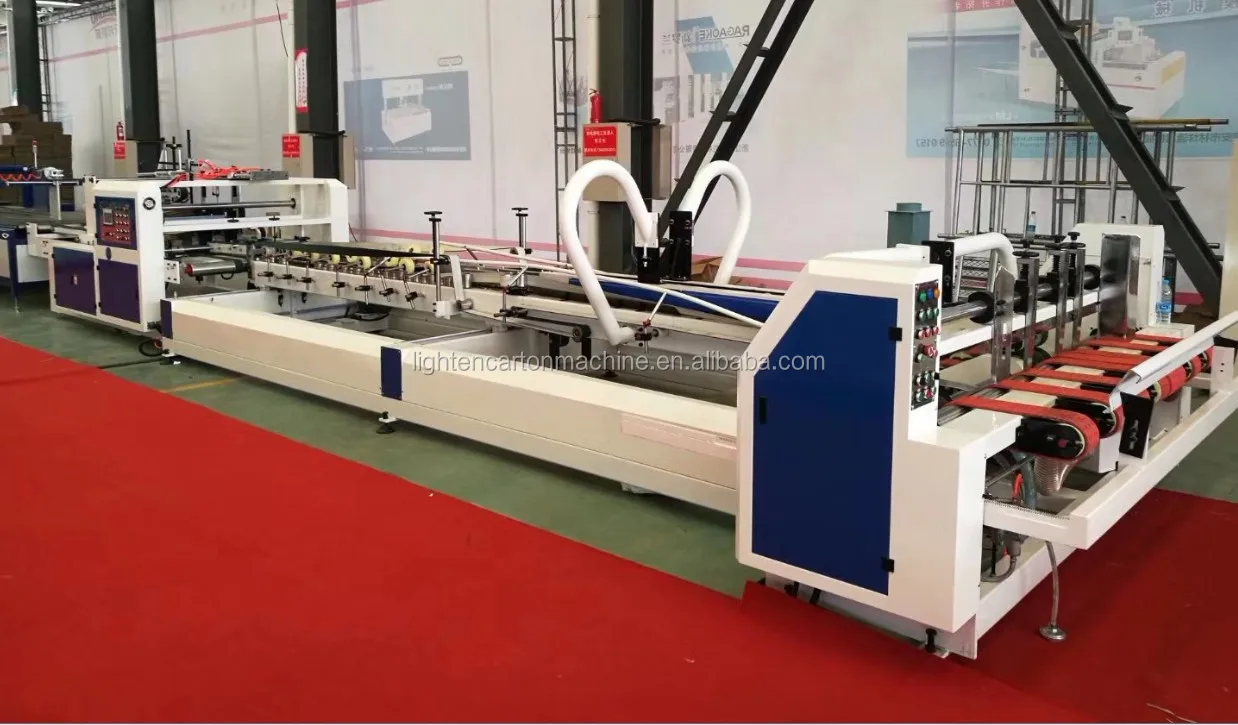

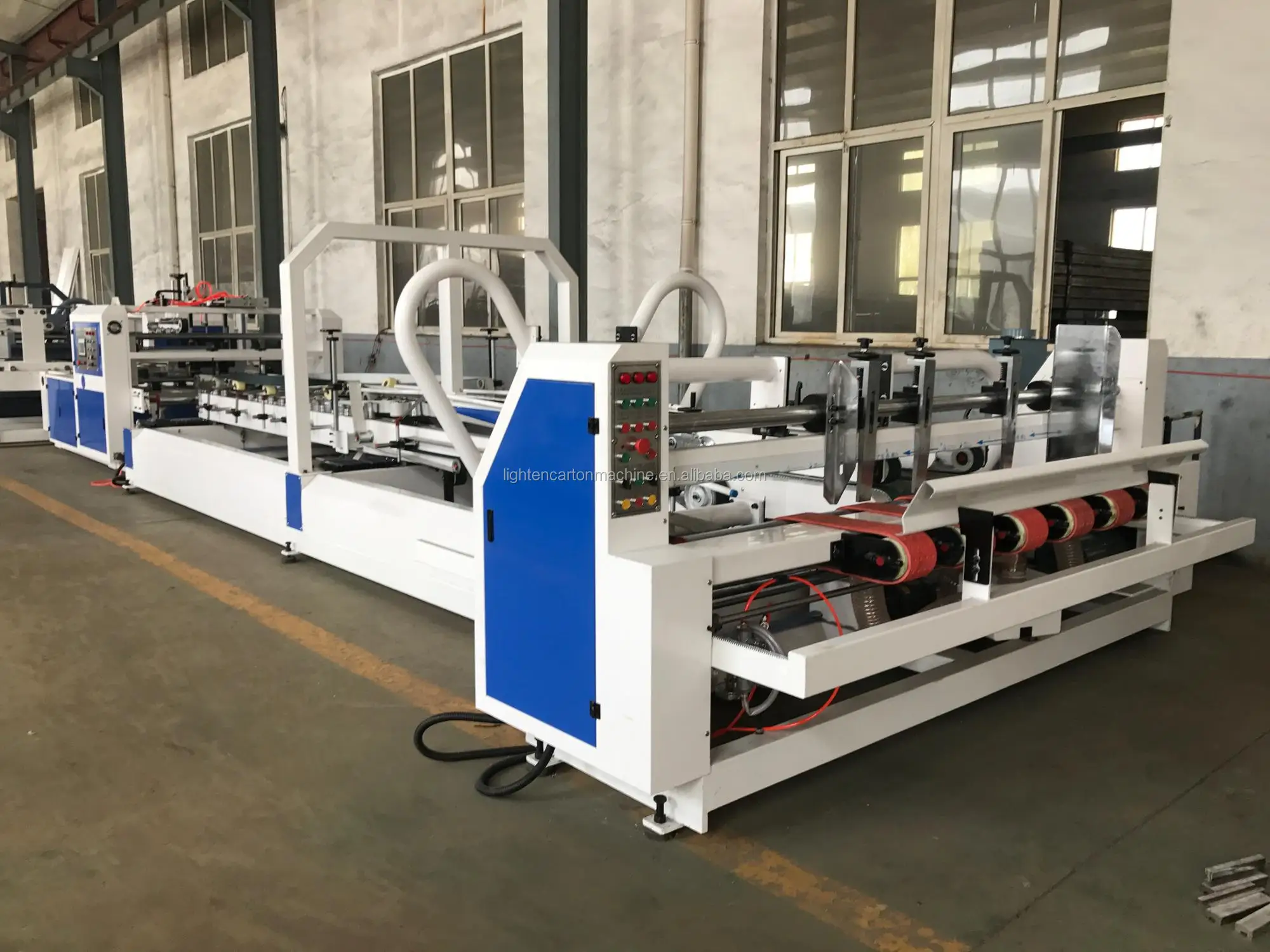

Full-automatic folder gluer machine, by feeding department, gelatinize folding department and count accumulation of three parts, digital display speed, microcomputer attenuation is simple and convenient, quick and reliable precise control mode, automatic feeding, automatic glue fold, automatic counting, automatic Stacker output, average sticky box speed 150 pcs/min, highest speed 180 pcs/min, high efficient energy-saving environmental protection is our supreme pursuit.

This machine can achieve whole computer adjustment for gluer unit, feeding unit and folder unit, just enter three data on the touch screen (Length, width, height size), the machine can automatic adjustment to exact position.

This machine was also setting the single computer NC adjustment, it can adjustment for any single position, at the same time, It was also setting the adjustment button, which can meet any different operation habit.

●This machine was also setting the single computer NC adjustment ,it can adjustment for any single position; At same time ,it was also setting the adjustment button ,which can meet any different operation habit. The machine baffle used the 40mm thickness cast iron.

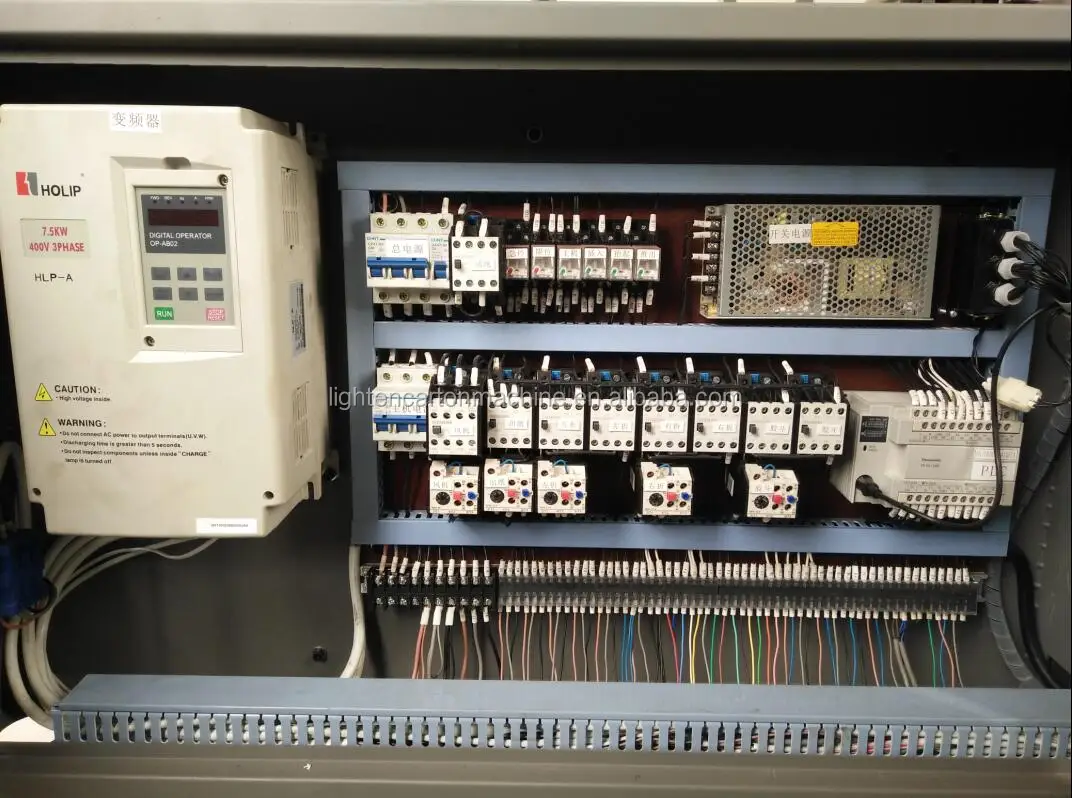

●Control data adjustment by PLC Programme , enter the carton box size into the Touch Screen.
●The machine baffle used the 40mm thickness cast iron.
●Feeding unit used the printing machine model gear transmission, more steady than tradition model chain wheel and chain transmission. Less noise ,feeding more precision .
●The average speed of gluing box is 8000-10000pcs / hour, speed is very fast , greatly improve production efficiency.
●automatic feeding, automatic glue, automatic folding, automatic calibration, automatic counting, only two people can complete the whole process.
●The suction belt feeding way, simple structure, fast speed, paper accurately.
●The nail tooth belt feed, feed accuracy;and it has secondary indentation function, make folding cartons more accurately.
●With functions of secondary rectification, eliminate the size of the different mouth, reduce rejection rate.
●With differential correction regulating function, eliminate shear knife and fork, fold more accurate.
●Receiving paperboard unit can automatic counting, shape adjusting then stacking , all carton can be piled up according to a certain quantity , then output , high speed and precision.

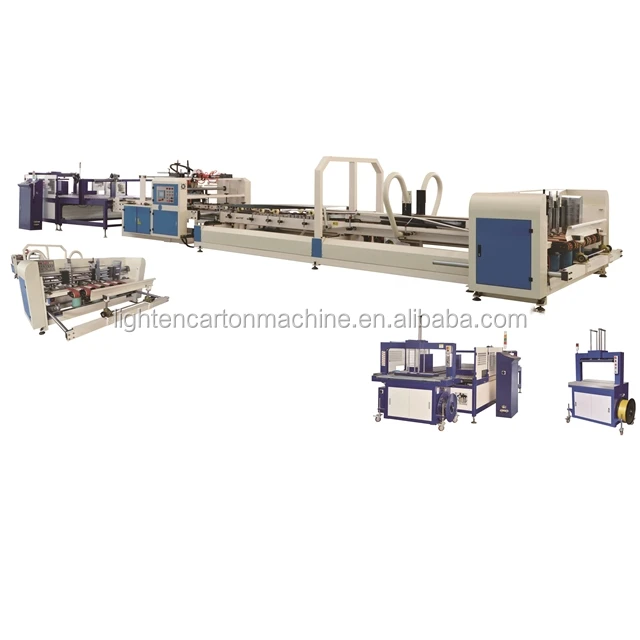

●Able to match with the automatic strapping machine.
