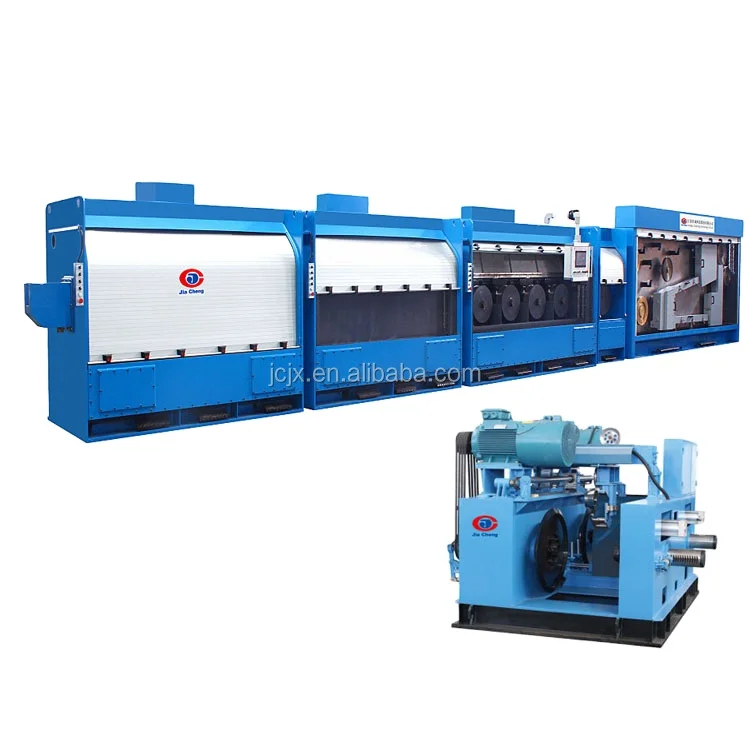

Two Al Al-alloy wires rod breakdown machine by single motor







Machine Type		LSD450/13-2	LSD450-11/2	LSD450/9-2
Drawing Wire No.		2 Wires
Max. Die No.		13*2	11*2	9*2
Inlet wire dia.(mm)	Copper	2*Ø8
	Al, Al Alloy	2*Ø9.5
Outlet wire dia.(mm)	Copper	2*Ø1.2-Ø3.5 1*Ø3.5-Ø4.5	2*Ø1.2-Ø3.5 1*Ø3.5-Ø4.5	2*Ø2.0-Ø3.5 1*Ø3.5-Ø4.5
	Al,Al Alloy	2*Ø1.7-Ø5.0	2*Ø2.2-Ø5.0	2*Ø2.8-Ø5.0
Max. Drawing Speed(m/s)		30	25	20
Main Motor(KW)		45/55/75/132K(AC)
Capstan Arrangement		Horizontal Type
Take-up Type(Optional)		Double Take-up/Single Take-up/Coiler
Optional Equipment		Online horizontal annealing
Machine Type		450T-2
Annealing Wire No.		2 Wires
Annealing Wire Dia. (mm)		2*Ø1.2-Ø3.2,1*Ø3.5-Ø4.5
Annealing Voltage(V)		0-55
Annealing Current(A)		0-8000
Max. Annealing Speed(m/s)		25





Advantage:

1. Full immersion, can gurantee the wire's cooling and lubrication.

2. Every drum is transmitted by single motor, realizing little slip drawing wire,the tensile rate can be adjustable, the die can be set at random.

3. New design double take-up adopt air pressure control, quick response,changing bobbin without stopping drawing, high efficiency.

4. Easier threading wire than traditional type.





Main parts' brand:

1. Motor: Siemens

2. Inverter:Siemens

3. PLC: Siemens

4. Touch screen: Siemens

5. Electric parts: Schneider



Component of production line:

1. Pay-off                                                     2 sets

2. LSD450/13-2 Drawing main m/c          1 set

3.450T-2 Online annealing m/c                  1 set

4. Accumulator tension                               2 sets

5. 500/630 Double take-up                        1 set

6. Coiler                                                        1 set

7. Drawing oil lubrication device               1 set

8. Electric system and operator                1 set

9. Threading machine                                 1 set



Certificates: ISO 9001:2008, CE
