Product Overview

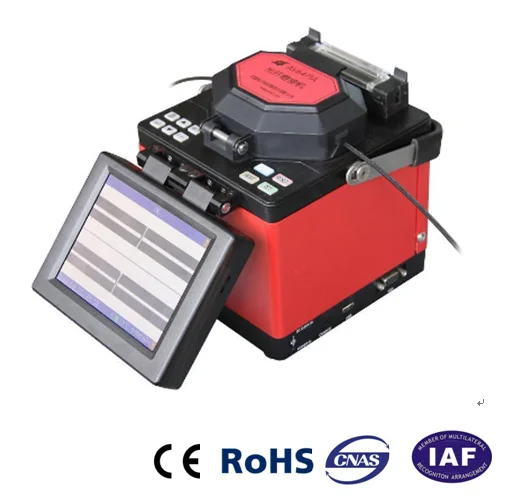

AV6471 is an optical fiber splicing device with a brand new design. With powerful functions and
super low splicing loss, it is highly competent for construction of trunk lines and FTTx.
Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging
system makes the image clearer. The real-time embeded Operating System provides a friendly

man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can

support long-time field work. The real-time compensation system for temperature, humidity and air
pressure has greatly enhanced the device against unfavorable environment changes and thus

guarantees its consistency of low loss splicing in various environments.



Main Features
 New fully-digitalized design
 Small in size, lightweight, only 2.8kg with battery
 Takes only 8 seconds for splicing,25 seconds for pyrocondensation
 Can set automatic start of splicing or of pyrocondensation upon close of the cover
 Simultaneous display of X/Y axis,zoom in up to 304 times original size
 Real time discharging for adjustment, no need for further adjustment
 Electrode has a long life, discharging times up to 4000
 With USB and VGA ports
 5.7 inch digital high resolution LCD
 Precise real-time display of remaining battery capacity
 Built-in high capacity battery, which enables up to 220 times of splicing and heating



Technical Highlights
    HD Optical Image Acquisition System
   HD aligner for double separate optical fibers
   High performance CMOS sensor
   Sensor pixels 640*480



Len Imaging Optical Fiber Aligning System
 Fast evaluation of fiber profile
 Precise fiber alignment
 Precise evaluation of splicing loss



Real-time Discharging Correction System
 High performance discharging electrode
AC-DC mix discharging technique
Current feedback and environment compensation





Typical Application
AV6471 Fiber Splicer is mainly applied in fiber cable construction, fiber line
maintenance, emergency repair of fiber cables and tests and production of optical
fiber components.





TECHNICAL SPECIFICATIONS
