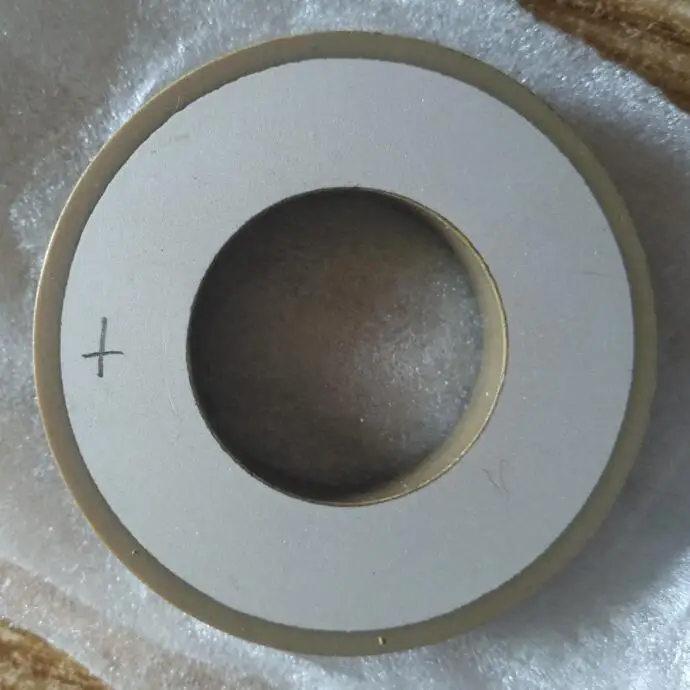

Ultrasonic piezo ceramic disc

When the voltage is applied to the piezoelectric ceramic, the mechanical deformation will follow the change of the voltage and frequency. On the other hand, when vibrating piezoelectric ceramic, it will produce an electric charge. According to this principle, when the vibrator is composed of two piezoelectric ceramic or a form of piezoelectric ceramic and a metal sheet, called bimorph element, applying a signal, it will emit ultrasonic vibration due to bending. Conversely, an ultrasonic signal is generated when an ultrasonic vibration is applied to the bimorph element. Based on the above action, piezoelectric ceramics can be used as ultrasonic sensors.
The piezoelectric ceramic wafer is electrical devices with a simple structure and light, with high sensitivity, no magnetic field spread without spillover, copper wire and magnets, low power consumption, less cost, easy mass production and the advantages of widely used. Suitable for ultrasonic and acoustic wave transmitting and receiving, piezoelectric ceramics is relatively large area and can also be used to detect pressure and vibration. The working principle is to use the reversible piezoelectric effect, applied voltage in the audio, and voice.

pecification:

Dimensions (mm)	Capacity C(pF)	Weak field dissipation Tgδ(12v)	Strong field dissipation Tgδ(400v)	Radial frequency Fr(KHz)	Resonance impedance Zm()	Thick frequency Ft(KHz)	Coupling modulus Kr(%)	Quality factor Qm
Φ30/Φ10*5	1150±10%	≤0.5%	≤1.0%	58.4±5%	≤15	410	≥45	≥800
Φ32/Φ10*5	1320±10%	≤0.5%	≤1.0%	56.1±5%	≤15	410	≥45	≥800
Φ35/Φ15*5	1430±10%	≤0.5%	≤1.0%	45.5±5%	≤15	410	≥45	≥800
Φ38/Φ15*5	1750±10%	≤0.5%	≤1.0%	43.4±5%	≤15	410	≥46	≥800
Φ40/Φ15*5	1970±10%	≤0.5%	≤1.0%	42.8±5%	≤15	410	≥45	≥800
Φ42/Φ15*5	2200±10%	≤0.5%	≤1.0%	40±5%	≤15	410	≥45	≥800
Φ42/Φ17*5	2110±10%	≤0.5%	≤1.0%	38.8±5%	≤15	410	≥45	≥800
Φ45/Φ15*5	2580±10%	≤0.5%	≤1.0%	38.1±5%	≤15	410	≥46	≥800
Φ50/Φ17*5	3160±10%	≤0.5%	≤1.0%	34.8±5%	≤15	410	≥45	≥800
Φ50/Φ17*6	2430±10%	≤0.5%	≤1.0%	34.8±5%	≤15	315	≥45	≥800
Φ50*3	5800±10%	≤0.5%	≤1.0%	46±5%	≤10	681	≥50	≥800

PZT-4

Specification:

Dimensions (mm)	Capacity C(pF)	Weak field dissipation Tgδ(12v)	Radial frequency Fr(KHz)	Resonance impedance Zm()	Coupling modulus Kp(%)
Φ30/Φ10*5	1440±15%	≤0.5%	57.5±5%	≤20	≥40
Φ32/Φ10*5	1660±15%	≤0.5%	54.8±5%	≤20	≥40
Φ35/Φ15*5	1700±15%	≤0.5%	46.0±5%	≤20	≥39
Φ40/Φ15*5	2470±15%	≤0.5%	41.8±5%	≤18	≥39
Φ45/Φ15*5	3140±15%	≤0.5%	38.3±5%	≤18	≥40
Φ50*3	7500±15%	≤0.5%	44.0±5%	≤10	≥56

We are dedicated to research and development in the ultrasonic field

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.

.jpg

Payment term: T/T, Western Union, Paypal, bank account
Production Lead Time: Normally according to your order quantity, 5~7 DAYS AFTER PAYMENT.
Shipping Methods: Express(FEDEX, DHL, TNT etc), Air shipping, Sea shipping
