Гальванический выпрямительный станок с полярностью 10 в 1000

10V 1000A polarity reversing electroplating rectifier machine has polarity reversing funtion. Positive and negative time can be control via multi time relay. Muti time relay can be set from 0 to 9999 min.

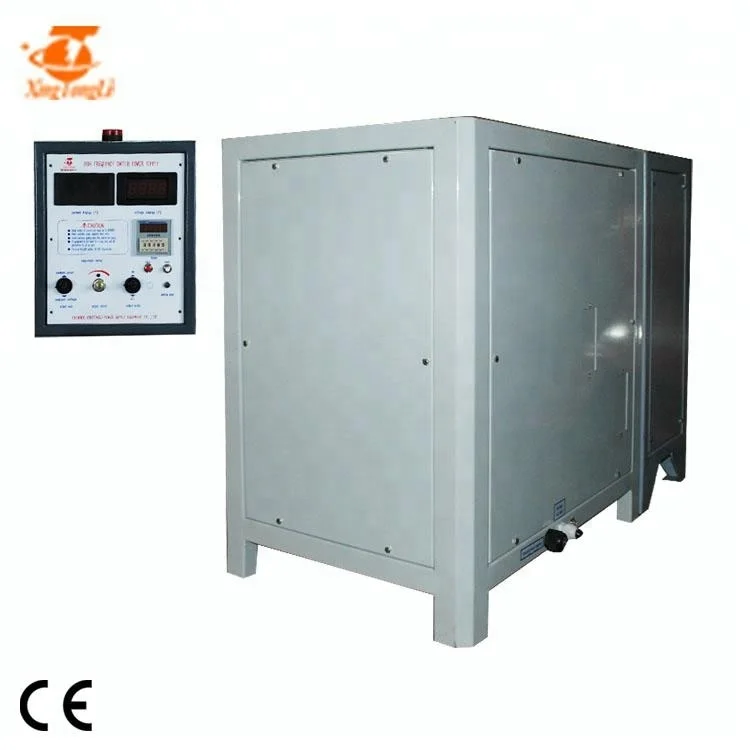

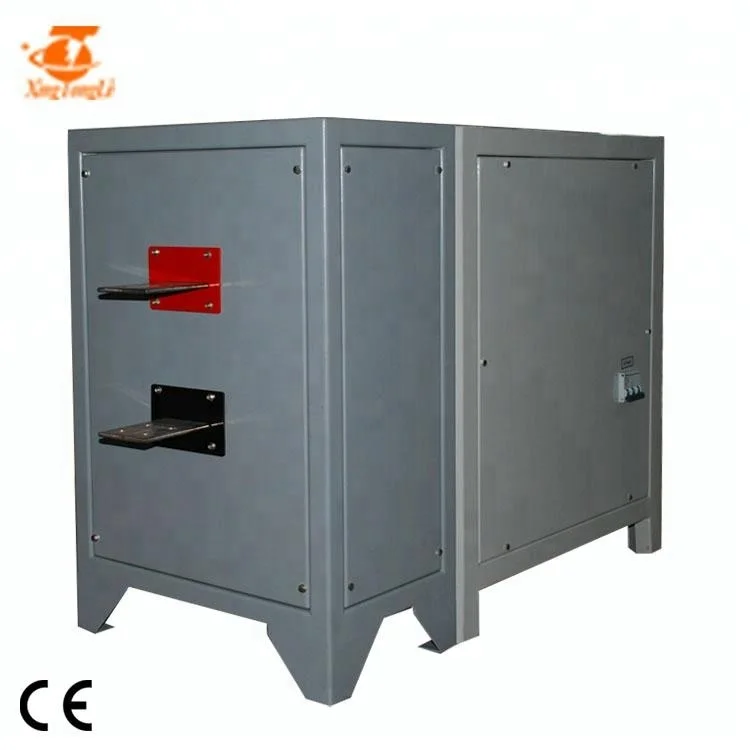

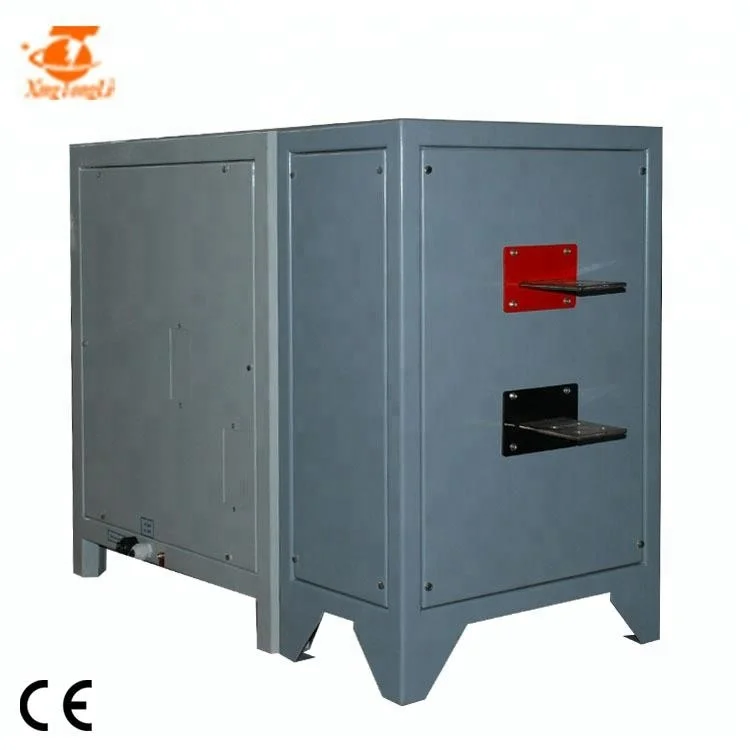

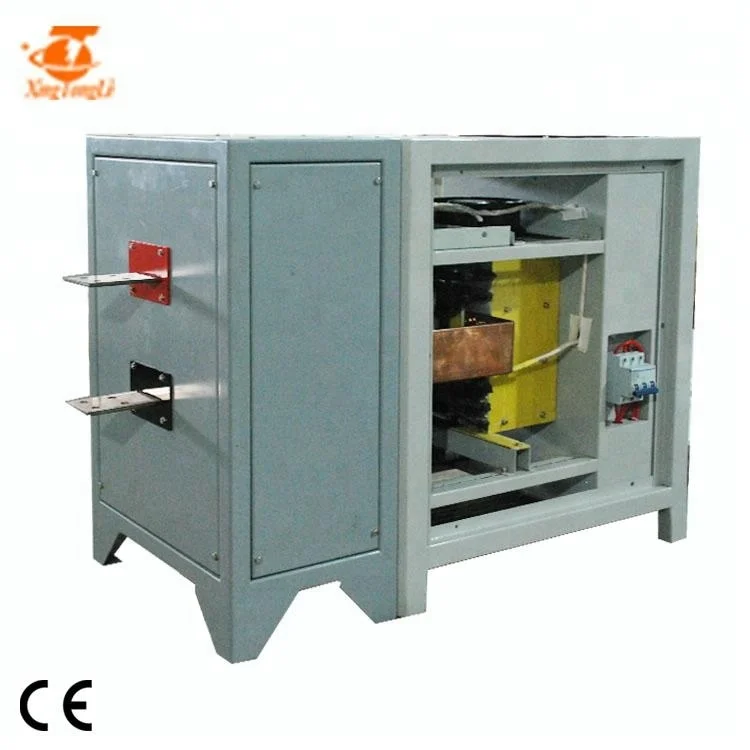

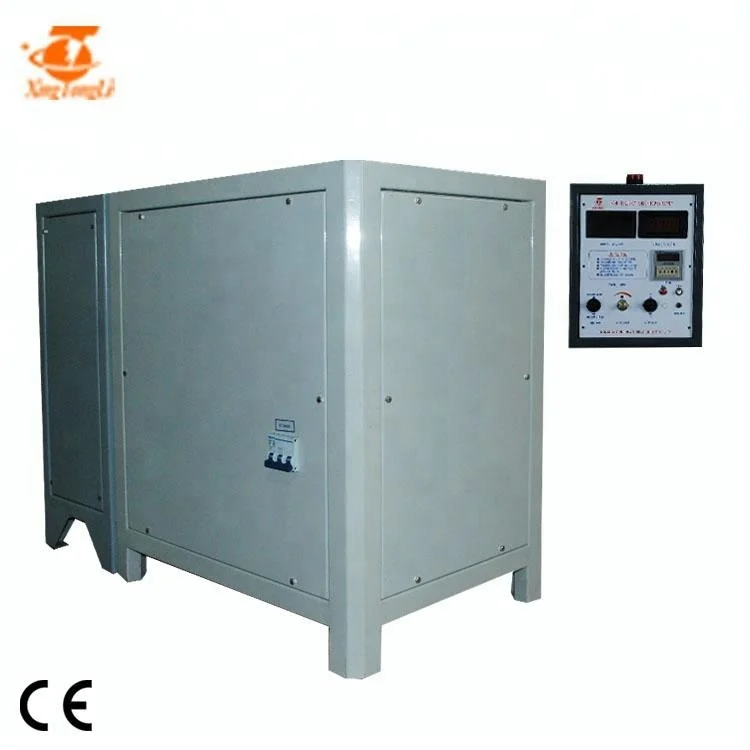

Some real pics show of 10V 1000A polarity reversing electroplating rectifier machine

Remote control box

 Diffierent volt and current, different application

Fetures

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided

2. Control mode: Local control or Remote control(the length of cable is determined by customers)

3. Japan IGBT(the default choice) or Germany IGBT are adopted

4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function

5. Easy to operate and repaire

Other advantages

1 Cabinet

a: Adopting completely digitalized machining

b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.

c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.

d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system

a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.

b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.

c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode

a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.

How to install rectifier

This is installation way for remote control rectifier. Not only this way. Only for your reference. We advice that all rectifiers should be isolated to increase of its life.

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly.  Before package, 10V 1000A polarity reversing electroplating rectifier machine will be check again to ensure that it works normally.

1. The first step is to wrap the 10V 1000A polarity reversing electroplating rectifier machine with plastic film,

2.The second step is to fix 10V 1000A polarity reversing electroplating rectifier machine with the wooden block to prevent the sloshing

3.Then, to fill the gap with foam to prevent sloshing

Pre sale service

1. To answer your questions within 24hours.

2. 3D design picture and wiring diagram can be offered.

3. Inner part pictures can be offered

4. OEM and ODM is accepted

After sale service

1. To resolve your problems within 24hours.

2. Replacement parts can be offered for free within 1 year warranty

3. The machine is damaged by quality and can be changed for free within 1 year

4. The client can check the rectifier before the factory by themselves or test video can be offered

CDXTL Power Supply Equipment Co., Ltd. was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched-mode plating rectifier machine . We are experienced in the field of power electronics, energy transforming technology and industry control system. The performance of electroplating power supply we designed is excellent. It is safe, green and reliable. With these advantages, our products are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum industry and some other industries. Now we have already held a big market share of the plating rectifier machine in metal surface finishing field. We are one of the main vendors of plating rectifier machine in China.

We have our own factory and R & D team. Save your cost, offer professional suggestion, design perfect product

We have established good cooperation with many customers

High quality, quality control follows ISO9001:2008, CE and Chinese military standard.

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediately. Our engineers are on standby.
