new design sdtw mini excavator 08 tongwu micro excavator tw08 for sale
Product Description

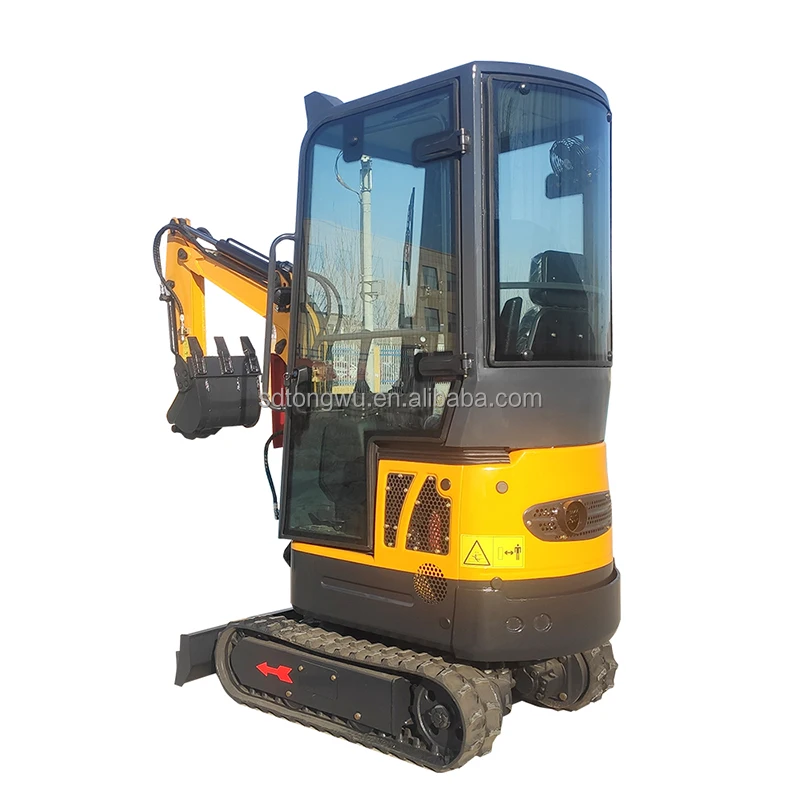

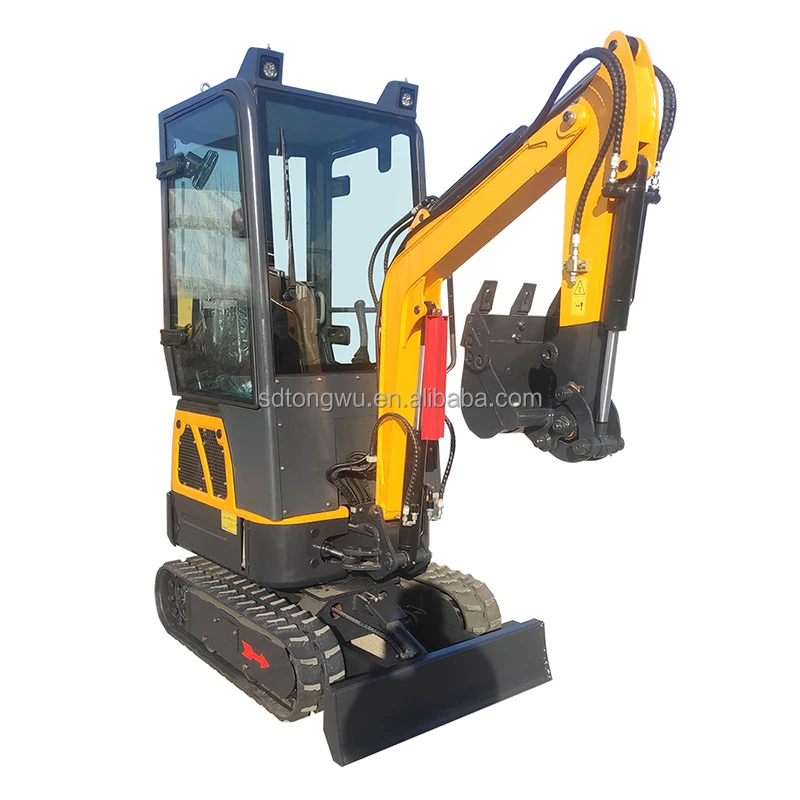

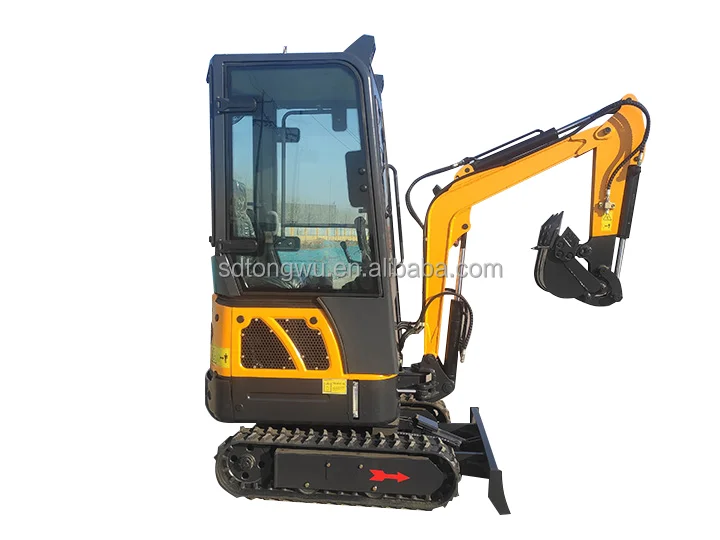

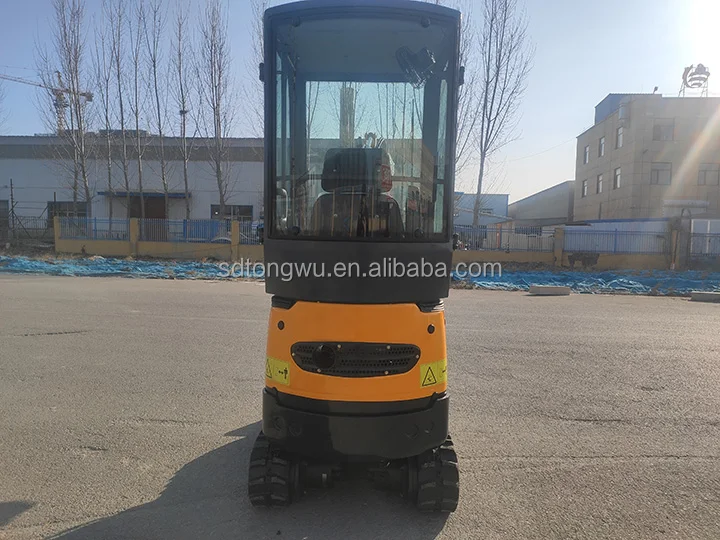

TW08 excavator is a compact mini-sized excavator applied in narrow spaces, featuring high reliability, easy operations, and excellent protection for the driver. It will become your excellent partner.
Quick Change Device
-- It can allow the removal and installation of various buckets and attachments in a time-saving and rapid manner. Plenty attachments can be used, Auger, Breaker, Rake, Ripper, Narrow bucket, Standard bucket, Leveling bucket, bucket thumb.
Fops / Tops
-- The standard tiltable / foldable protection cage conforms to the EU Fops / Topssafety certification requirements to safeguard the driver. This protection cage features better trafficability after being folded.
Main specification
TW08 | ||
Brand | SDTW | |
Operating weight | 900 kg | |
Bucket capacity | 0.025 cbm | |
Engine | CHANGCHAI | |
Rated power | 8.6 kw /3000r/min | |
Displacement | 0.499L | |
Bore stroke | 92x75 | |
Main pump | CBK-F6.8 | |
Displacement | 6.8 ml/r | |
Swing motor | SJ-TECH | |
Traveling motor | KERSEN | |
Travel speed | 1.5 km/h | |
Swing speed | 8 rpm | |
Bucket digging force | 9.4 kN | |
Bucket rod digging force | 5.8 kN | |
MAIN DIMENSIONS
| ||
Overall dimension( LxWxH) | 1877x896x1990 mm | |
a. Wheel distance | 910 mm | |
b. Total length of track | 1230mm | |
c. Platform ground clearance | 380 mm | |
d. Platform back turning radius | 784 mm | |
e. Chassis width | 896 mm | |
f. Track width | 180 mm | |
g. Chassis ground clearance | 320 mm | |
OPERATING RANGE | ||
A. Max. Digging radius on ground | 2930 mm | |
B. Max. Digging radius | 2850 mm | |
C. Max. Digging depth | 1650 mm | |
D. Max. Digging height | 2610 mm | |
E. Max. Dumping height | 1850 mm | |
F. Max. Vertical digging depth | 1375 mm | |
G. Min. Rotation radius | 1330 mm | |
H. Max. Upgrade height of bulldozer blade | 345mm | |
Max. Digging depth of bulldozer blade | 255 mm | |
Plenty attachments can be used on this china hydraulic mini excavator TW08 with cheap price, for example, Auger, Breaker, Rake, Ripper, Narrow bucket, Standard bucket, Leveling bucket, bucket thumb.
