Видеонаблюдения взрыва высокоскоростная корпус Взрывной кожух
US $500.00-$540.00
Профессиональный инструмент для тестирования CCTV 5 дюймов TFT LCD 5MP AHD TVI 4MP 3MP CVI CVBS камера тестер монитор Поддержка PTZ
- Категория: Аксессуары системы видеонаблюдения >>>
- Поставщик: Shenzhen,Geniuspy,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 71.24 $* | 75.11 $* |
| Aug-17-2025 | 71.62 $* | 75.16 $* |
| Jul-17-2025 | 59.49 $* | 62.8 $* |
| Jun-17-2025 | 70.99 $* | 74.46 $* |
| May-17-2025 | 61.97 $* | 64.26 $* |
| Apr-17-2025 | 68.42 $* | 71.28 $* |
| Mar-17-2025 | 68.28 $* | 71.75 $* |
| Feb-17-2025 | 67.60 $* | 70.10 $* |
| Jan-17-2025 | 67.41 $* | 70.31 $* |
Характеристики
cctv tester

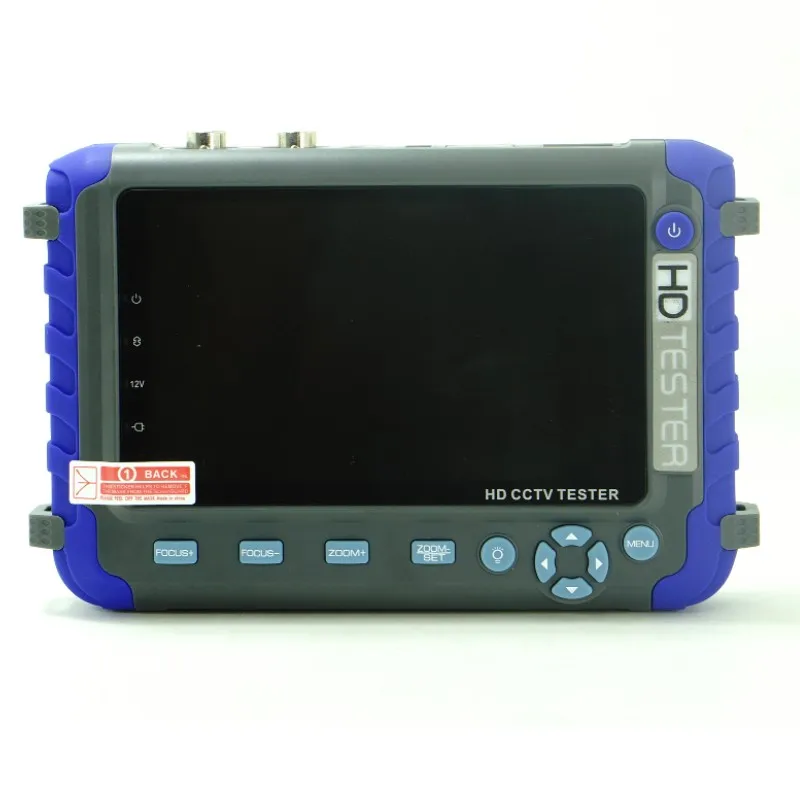

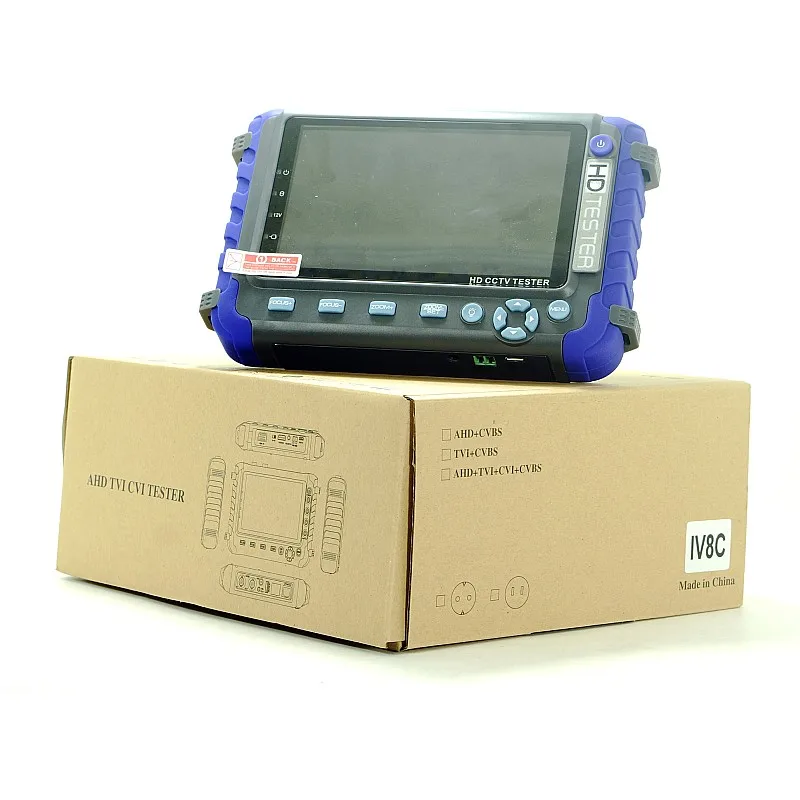

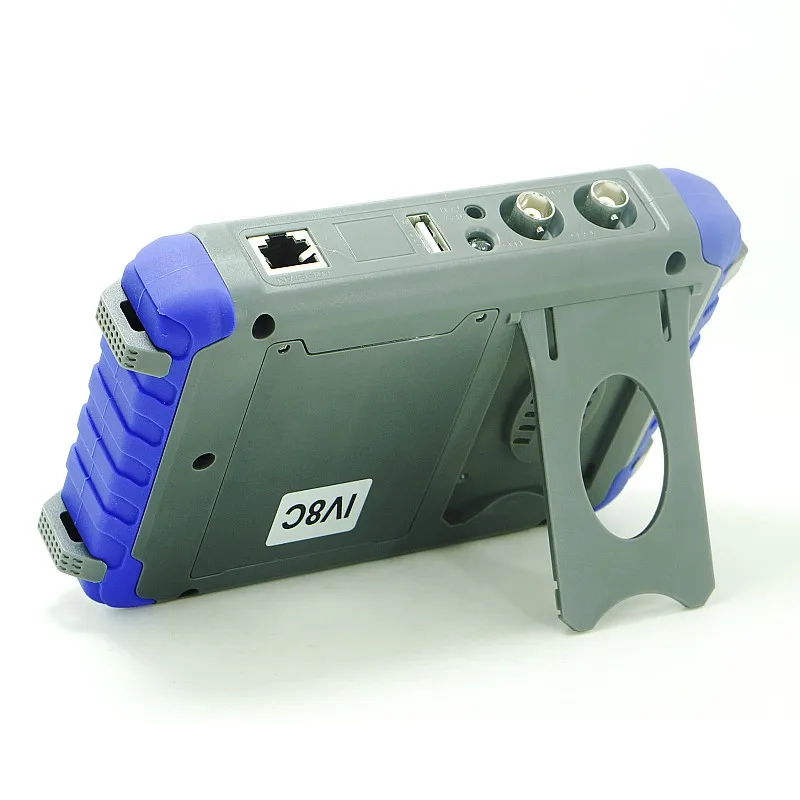

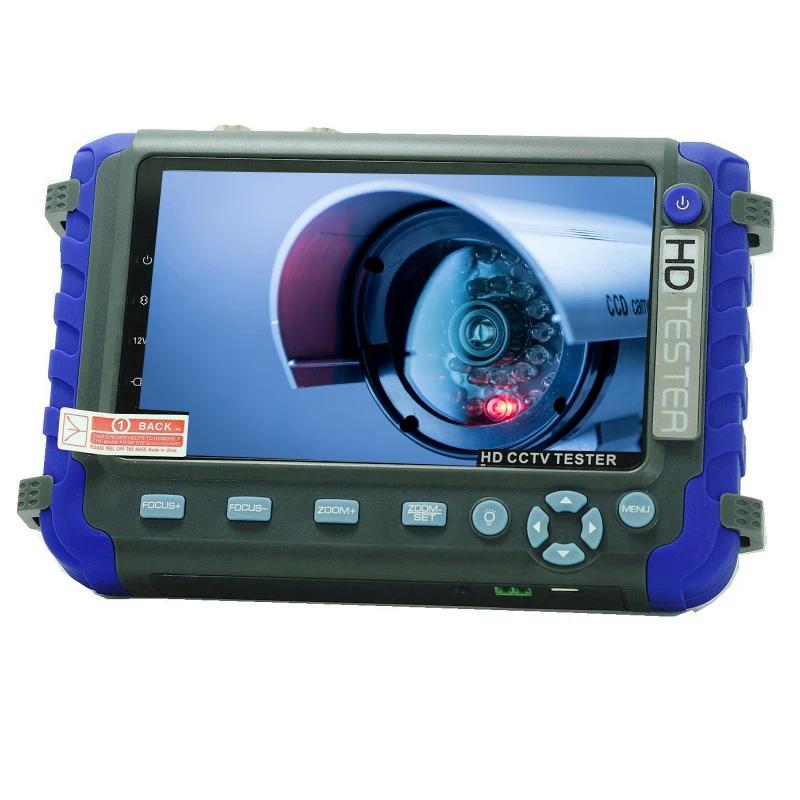

Professional CCTV Testing Tool 5 Inch TFT LCD 5MP AHD TVI 4MP 3MP CVI CVBS CCTV Camera Tester Monitor Support PTZ UTP
Product Overviews
Product Description
Descriptions:
Professional CCTV testing tool IV8C 5 Inch TFT LCD 5MP AHD TVI 4MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test
Kindly pls note IV8C not support VGA/HDMI input
IV8W support CVBS + AHD (5MP) + TVI (5MP) + CVI (4MP) Camera VideoTest:
(1) AHD Signal test: 5MP 4MP 3MP 1080P 720P;
(2) TVI Signal test: 5MP 4MP 3MP 1080P 720P;
(3) CVI Signal test: 4MP 3MP 1080P 720P;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, RS485 data searching, cable testing, LED lamp etc.
Main Features:
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.
* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* TVI camera test
HD TVI video surveillance testing, support 1MP 2MP 3MP 4MP 5MP. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD CVI video surveillance testing, support 1MP 2MP 3MP 4MP. When CVI signal input, the tester will display HD CVI camera image.
* AHD camera test
HD video surveillance testing, support 1MP 2MP 3MP 4MP 5MP. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specifications:
Model | IV8C | |
LCD screen | 5.0 inch TFT-LCD, 800(RGB)x 480 resolution | |
Video test | NTSC/PAL (Auto adapt) | |
LCD adjustment | Brightness, Contrast, Saturation adjustable | |
Video IN/OUT | 1 channel BNC Input & 1 channel BNC Output | |
VGA/HDMI input | NOT Support | |
PTZ Controller | Support RS485 | |
PTZ Protocol | Compatible with protocols PELCO-D/P, | |
Baud Rate | Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps | |
Color bar generator | Support both PAL / NTSC format’s standard color bar output | |
(Red, Green, Blue, White, Black, Grey) and testing image output | ||
UTP Cable Test | Display UTP cable connection status , cable type and | |
the sequence of wires as well as read the number of the test box. | ||
DC12V power output | Output DC12V1A power for camera | |
Audio input test | 1 channel audio signal input | |
Coaxial HD test | ||
TVI test | 1 channel TVI input(BNC interface), | |
support 1MP 2MP 3MP 4MP 5MP | ||
| ||
CVI Test | 1 channel TVI input(BNC interface), | |
support 1MP 2MP 3MP 4MP | ||
| ||
AHD Test | 1 channel AHD input (BNC interface), | |
support AHD 2.0 version, 1MP 2MP 3MP 4MP 5MP | ||
| ||
POWER | ||
Power Adapter | DC 5V(1.5A) | |
Battery | Built-in 18650 2600mA battery X 2, | |
After charging 3-4 hour, working time lasts 11 hours | ||
General | ||
Language | English and Chinese optional | |
Working Humidity | 30%-90% | |
Dimension | 194mm x 112mm x 48mm / 540g | |

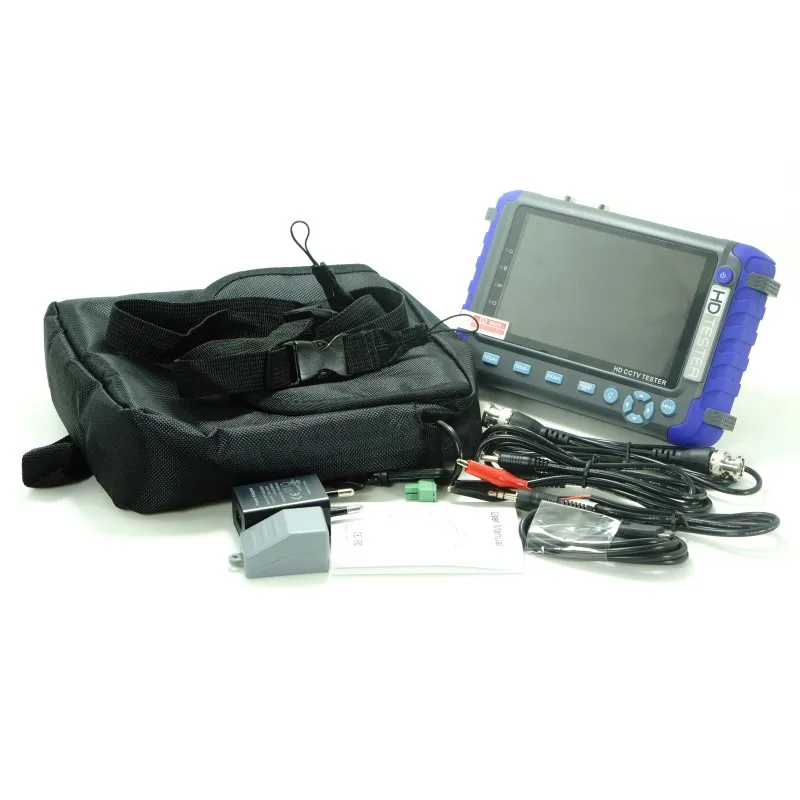

Packing list:
- HD coaxial tester
- Adapter DC5V 1A(with USB cable)
- International Standard 18650 2600ma battery
- BNC cable
- RS485 connector
- Power output conversion cable
- Audio cable
- Lanyard
- Tool bag
- Instruction Manual
Company Information
Certifications
Transaction Flow
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
Payment
we accept T/T ,Paypal,Alibaba Trade Assurance,Escrow.Western Union,L/C etc
Tesimonials
Work Flow
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 8 years!
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦ Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
A: Yes, Sample order available. we can also provide drop ship service.
♦What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
♦what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
♦.Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
♦ What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
♦How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
