Низкая цена для резки металла машины кислородной плазменной свет портального типа cnc плазма отрезного
- Категория: Плазменная резка с ЧПУ >>>
- Поставщик: Wuhan,Lansun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.55 $* | 0.14 $* |
| Aug-16-2025 | 0.63 $* | 0.43 $* |
| Jul-16-2025 | 0.29 $* | 0.88 $* |
| Jun-16-2025 | 0.25 $* | 0.23 $* |
| May-16-2025 | 0.7 $* | 0.30 $* |
| Apr-16-2025 | 0.4 $* | 0.95 $* |
| Mar-16-2025 | 0.11 $* | 0.53 $* |
| Feb-16-2025 | 0.1 $* | 0.43 $* |
| Jan-16-2025 | 0.14 $* | 0.1 $* |
Характеристики
Our Company
Alternatives to Portable Cutting Machines
High in quality and beautiful in design,dual drive, easy installation and operation.
17 years CNC cutting machine manufacturing;
11 years Alibaba supplier; 5000 + customers Choice;
1. 20,000 ㎡+ large-scale production site .
2. Facturer and export CNC cutting machine over 11 years,very familiar with whole shipping process.
3. Choose high quality and famous materials parts.
4. Delivery time: within 3 business days, within enough stock.
5. Providing detailed videos of installation, operation and maintenance of machines.
6. Experienced technology&quality team,our engineers have over 17 years working experience.we can give you best solutions.
Product Description
Cutting method:
1..Flame cutting: Suitable for cutting carbon steel larger than 20mm;
2. Plasma cutting:suitable for cutting carbon steel within 20mm;Plasma cutting cost is 1/3~1/2 of flame cutting
3. Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.
Mechanical Components | Description |
Horizontal rail Width | 3m |
Effective cutting width | 2.5m |
Longitudinal rail Length | 5m |
Effective cutting length | 4m, can be extended to 10m. |
CNC Cutting torch | flame,plasma,flame & plasma |
CNC Oxy-fuel cutting torch | Wuhan lansun |
Auto-ignitiondevice | Wuhan lansun |
Torch height controller | Automatci height controller |
Plasma source | China brand LGK100A LGK120A or USA brand . |
CNC plasma cutting torch | According to plasma power source |
Plasma cutting speed | 50-6500mm/min |
Oxy-fuel cutting thickness | 5-120mm |
Oxy-fuel cutting speed | 50-3500mm/min |
Cutting torch lifting distance | 120mm |
Drive Mode | Dual side drive |
Interface | 7 inch True color Display with Spanish language |
CNC control system | Beijing Start control system |
Programming and nestling software | Fastcam |
Driving motor | Stepper Motor |
Detailed Images

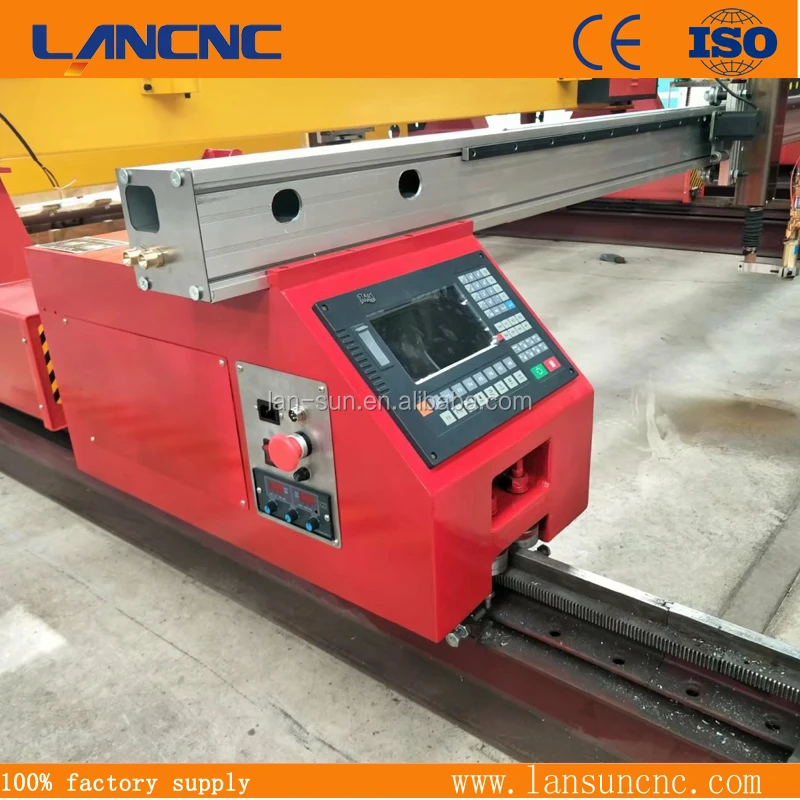

CNC System
>High-reliability, Prevents system from strong plasma disturbs and lightning strike etc;
>Chinese and English , Russian , Spanish , more than 10 languages can switch easily;
>Adopt USB disk to Read/Write program to upgrade software.
Main Features
cutting mode : plasma and flame
Flame cutting thickness : 6-120mm
Plasma cutting thickness : according to the plasma generator .

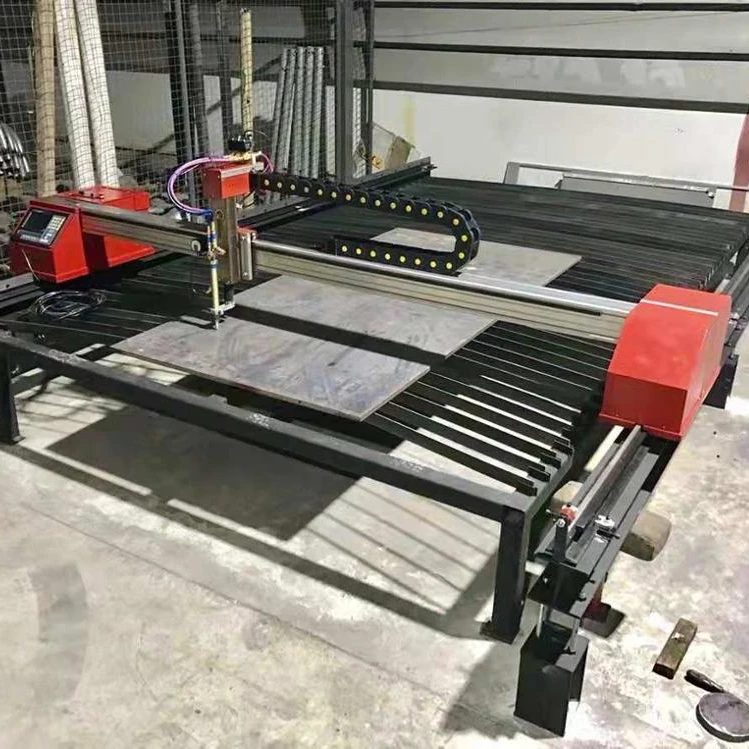

Machine Parts : Guide rail
Steel guide rail , dual drive, more stable for machine running .
Plasma holder and height controller
Plasma with automatic arc voltage height controller .
cutting sample
Packing & Delivery
Packaging | ||
Size | 227 (L) * 46(W) * 26 (D) 49 (L) * 54(W) * 58 (D) | |
Weight | 300KG - 350KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated. | |
FAQ
1. Are you factory ?
17 years old big manufacturers of CNC cutting machine,20,000 ㎡+ large-scale production site.
2. What's the quality?
All spare parts of this machine come with best brand and best quality, Test the machine for 48 hours after installation.CE, ISO9001 authentication.
3. Easy to Installation and operation?
Installation and operation are very simple, we provide detailed installation and operation instructions video. We provide telephone and e-mail support 24 hours a day.
4. How to pay?
Support T/T, L/C, Western Union and so on. Other ways can be discussed.
5. What to do if the machine has a problem?
Telephone and email support at 24 hours a day,Free parts and after-sales service are available in warranty period.
