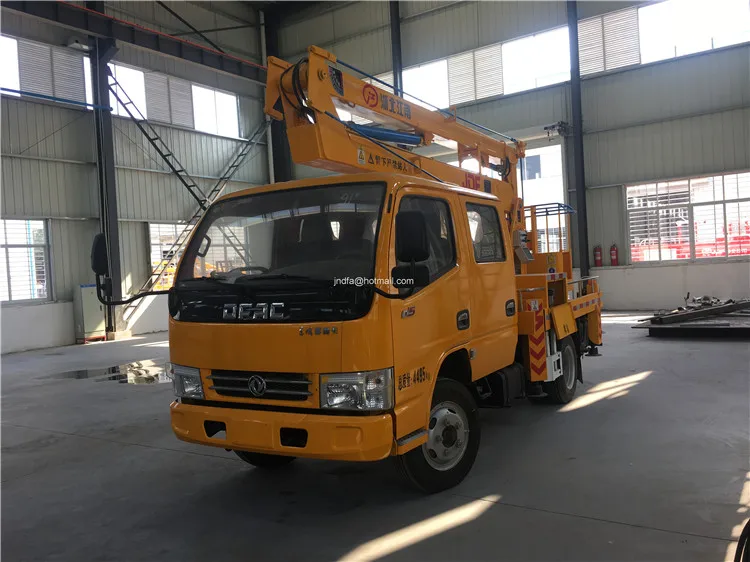

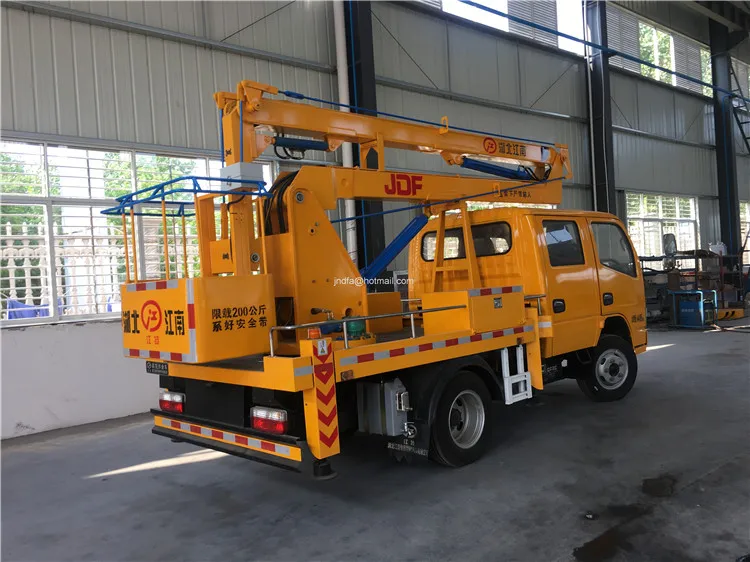

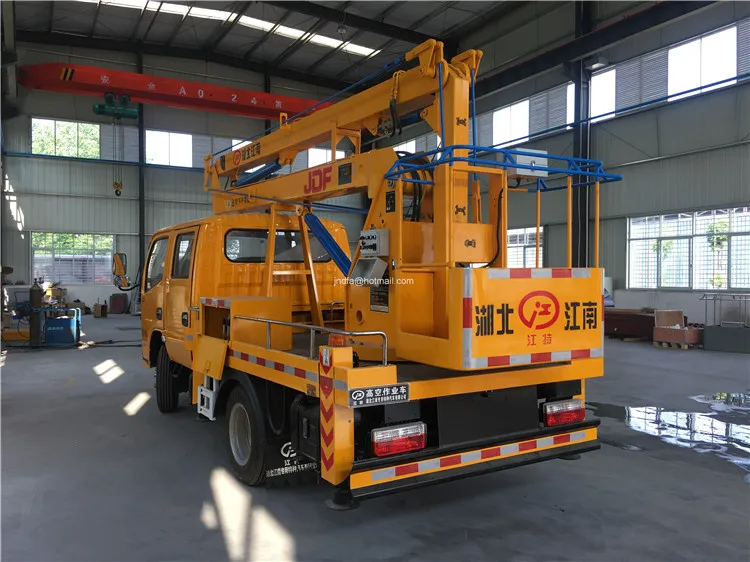

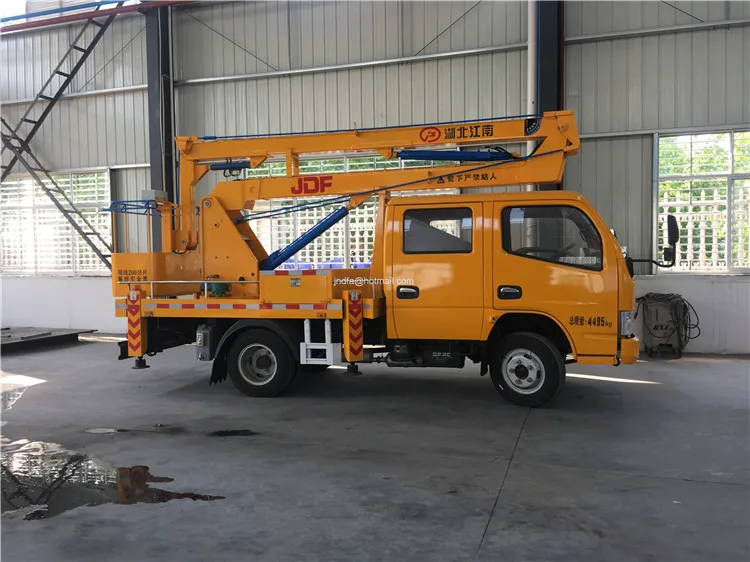

Property boom type 3 section hand High altitude work

Product main technical data

product name:

Aerial working truck

Overall size (mm):

9480x2470x3860

Total mass :(kg)

12425,12490

Approach/Departure angle (°)

24/9,26/9

Rated mass: (kg)

Front/rear suspension (mm):

1250/3030,1450/3030

Cube weight: (kg)

12295

The maximum speed (km/h):

90

Emission Standards:

EURO V

Chassis parameters

Chassis Model

EQ1168GLJ4

Patch:

291

Axis number:

2

Fuel type:

diesel

Wheelbase(mm):

3650,3800,3950,4200,4500,
4700,5100,5600,5200

Front track (mm):

1910,1760,1940,1960

Passenger

2+3

Rear track (mm):

1860,1690,1750,1800

Number of tires:

6

Number of leaf springs:

9/11+8,8/10+8,8/11+8,9/10+8,3/4+3

Tire specifications:

10.00-20,10.00R20,9.00R20,9.00-20,10R22.5,275/80R22.5

Vehicle description:

Chassis optional cab; forward / front suspension / long dimension (mm) correspondence: 100/1250/9480, no forward / 1450/9580; side protection and rear lower guard material Material: Q235, overall The structure, the height of the lower protective device after the ground: 510mm; ABS model is 3631010-C2000, the manufacturer is East Corknorr commercial vehicle brake system (Shiyan) Co., Ltd.

Engine parameters

Engine model

Engine manufacturer

Displacement (ml)

Power (kw)

YC6J180-50

Guangxi Yuchai Machinery Co., Ltd.

6500

132

Description of special functions for aerial vehicles

Maximum working height 24m Maximum working width 11.5m Working bucket rated load 200kg Turning angle 360

Rotary speed 0-2r/min Rated lifting mass 1000-2000kg (optional)

Maximum lifting height 8.8m (optional) Lateral span of the legs 3.25m Maximum lift angle of the upper arm 70 Maximum lift angle of the lower arm 140

1.Using the international leading Dongfeng high-end chassis to install five-fold arm hydraulic lifting device

2.Environmental protection to the fifth phase emission standard of national motor vehicle (National V)

3.Made of domestic and imported reversing valves and hydraulic cylinders, the steering is stable, the operation is flexible and convenient, the hydraulic system realizes interlocking of the car, overload protection, safety lock of the cylinder, the system is equipped with overload protection valve, the oil pressure exceeds the fixed value, automatic unloading

4.Turntable, work bucket double station operation

5.Boom structure is compact, mobility is good, and operating range is large

6.Leg and working arm interlock, safe and reliable, to prevent misuse

7.H-type legs, large span, good stability, the legs can be independent expansion and contraction, but also linkage, with support leg flashing lights, for the leg silhouette during work, send a light alarm signal

8.Work bucket leveling automatically, external lever forced balance

9.Electronic control system with optional electro-hydraulic proportional speed control, stepless speed regulation, stable operation/electronic control system, optional ground wireless remote control operating system
