Can I install the video peephole viewer in the front door?
Yes, it's used to replace the traditional peephole viewer, suitable for users of all ages especially for senior citizens, kids and people living alone.

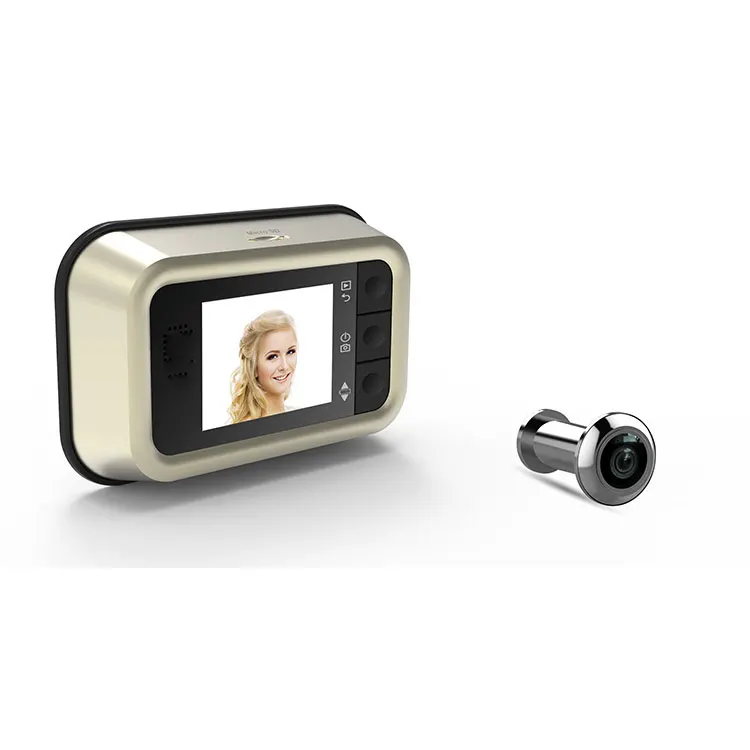

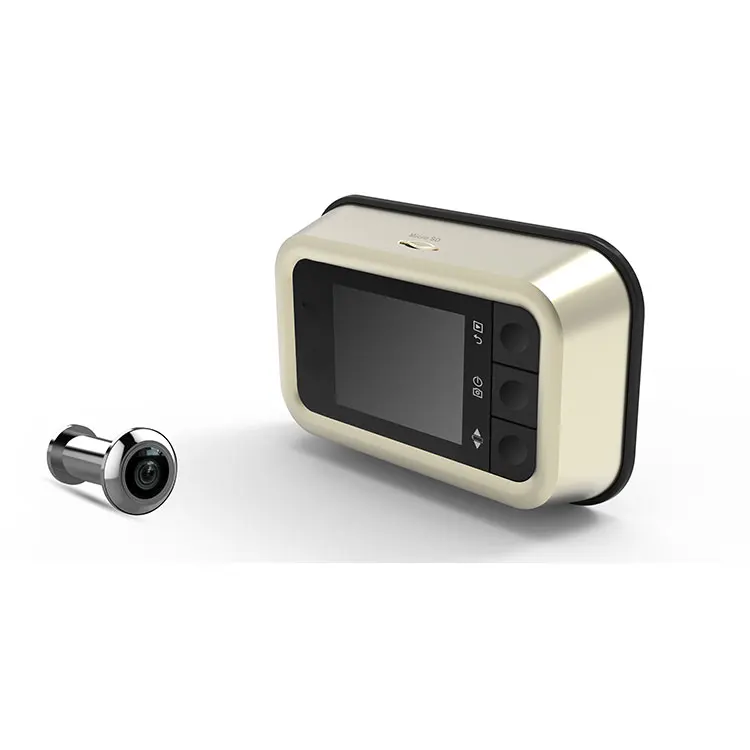

Digital Door Peephole with Recording Function
Clearly see who's at the door!
How to Install? Can I mount it by myself?
Yes!
For Doors With No Existing Peephole
• Find the center of the door and desired height and mark.
• Drill a 9/16 inch (14 mm) hole through the door using a standard power drill. Remove any debris from the hole and proceed to Step 2.
Step 1: Remove Existing Peephole Viewer
• Use the Remove / Install Tool to loosen the Eyepiece. Insert the small tip of the Tool into the barrel and turn it counterclockwise.
Once the barrel is loosened, use your fingers to unscrew it from the backside of the door. Note: you may have to hold the Lens with your other hand while you remove the barrel.
Pull to remove the existing Lens from the front side of the door.
Step 2: Installation
• Remove the battery cover from the peephole viewer by pressing down and pulling the side tab. Insert 2 AA type batteries (not included) according to the polarity (+/-) marked in the battery compartment. Replace battery cover.
• Note: For holes wider than 9/16 inch(14 mm), place the (optional) Washer over the peephole before inserting the Lens. For narrow holes, use a 9/16 inch (14 mm) bit to widen the existing hole. Remove any debris before proceeding with installation.
• Insert the new Lens through the front side of the door.

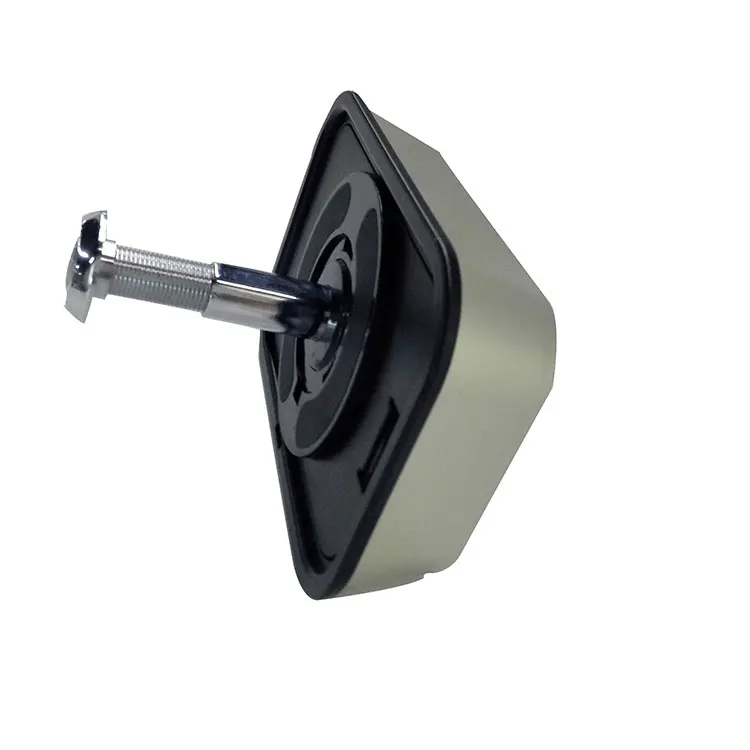

• Place the Peephole Viewer over the Base Flange at an angle as shown below.
• Rotate the peephole viewer clockwise until it stops.

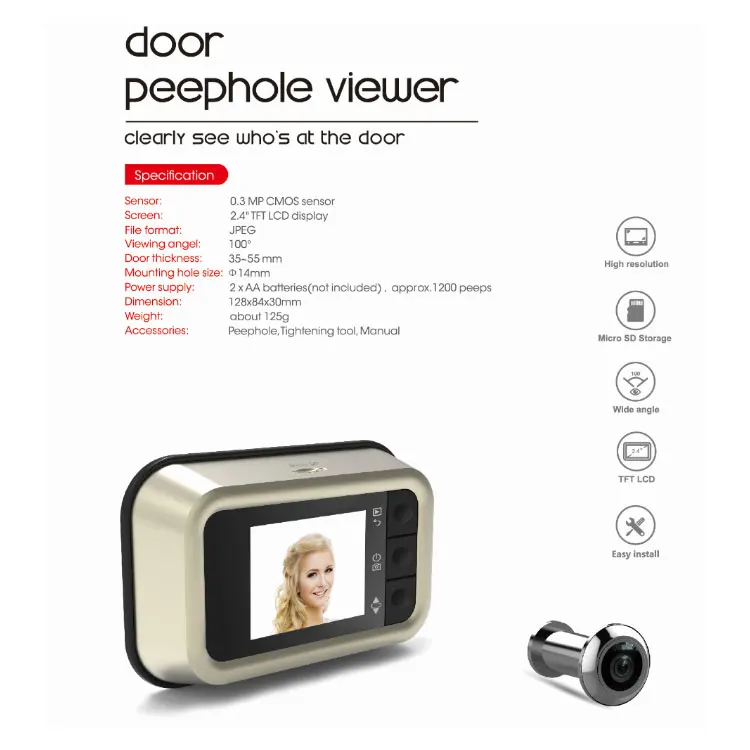

What's the Specifications?
Model No.
SPV004-D
Function
Door Peephole Viewer + Digital Camera
Chipest
Sunplus
Sensor
0.3 Mega Pixels (640x480 pixels)
Screen
2.4" TFT LCD display(320x240 pixels)
File format
JPEG
Storage
Built in 64MB SDRAM memory, max to support 16GB Micro SD card
Power supply
2 x AA batteries(not included), approx.1200 peeps.
Dimension
162x88x38mm
Weight
about 168g
Accessories
1 x Peephole, 1 x Tightening tool, 1 x Manual
Packing
1pc/color box, 24pc/CTN
Applications:
Used to replace the conventional Door Peephole Viewer
