Хорошее качество серийный Wifi модуль Esp-Wroom-02 Esp8266 изолятор балки встряхивая 12 дешевые

1.802.11 b/g/n/e/i

2.802.11 n (2.4 GHz), up to 72.2 Mbps

3.802.11 e: QoS for wireless multimedia technology

4.AT Set, Cloud Server, App

5.A-MPDU and A-MSDU aggregation

6.Network Protocols: IPv4, TCP/UDP/HTTP/FTP

7.Fragmentation and defragmentation

8.Automatic Beacon monitoring/scanning

9.802.11 i security features: pre-authentication and TSN

10.Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)

11.Infrastructure BSS Station mode/Soft AP mode

12.Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management

13.UMA compliant and certified

14.Antenna diversity and selection

15.RoHS compliance (Lead-free)

16.FCC, CE compliance

China Supplier Esp8266 Wifi Module Chip Spi Usb Wifi Wireless Best Price Ethernet Module

Hardware Features

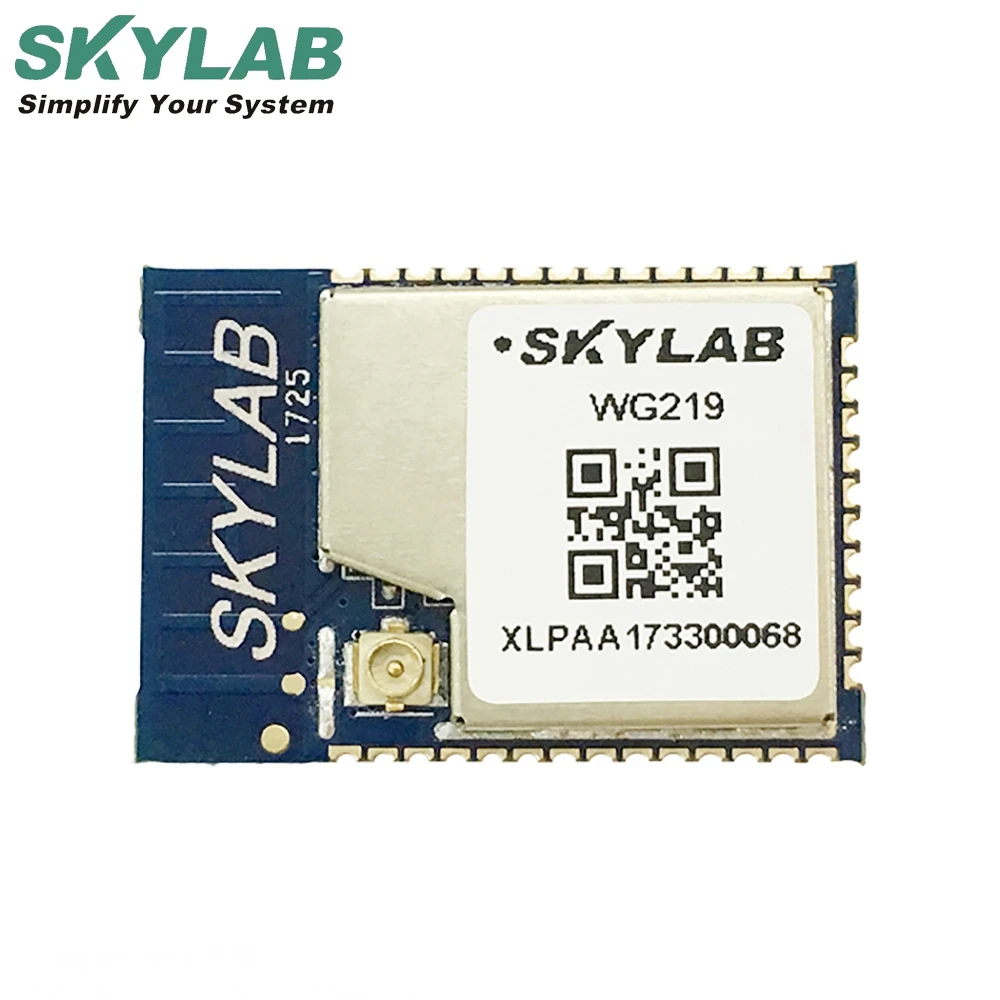

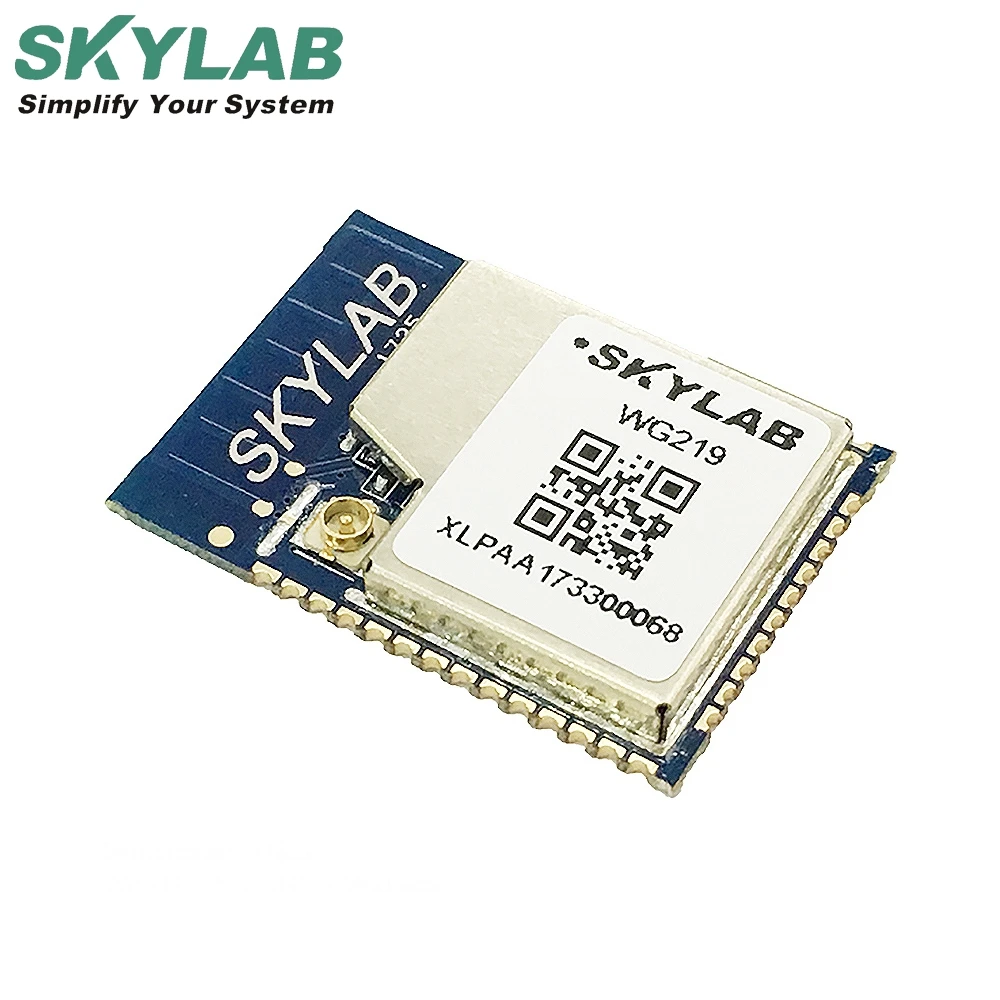

Model

WG219

Antenna Type

IPEX connecter or PCB antenna

Chipset solution

ESP8266

Voltage

3.3V+/-10%

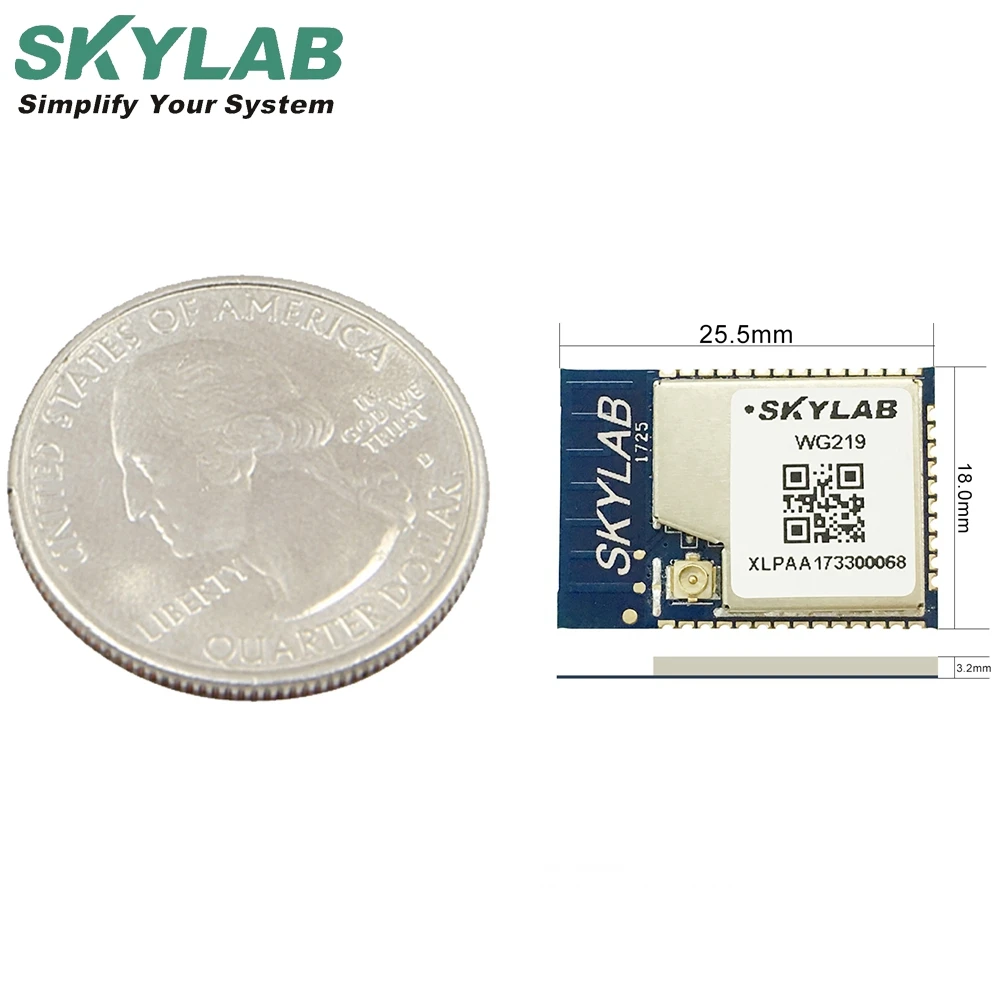

Dimension(L×WxH)

25.5mm*18.0mm*3.2mm

2.4GHz Wireless Features

Wireless Standards

IEEE 802.11 b/g/n

Frequency Range

2.412-2.484GHz

Data Rates

IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbp

IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n/Draft 2.0 Mode: 72.2Mbps @ HT20(MCS7)

2.4GReceiver Sensitivity

HT20 MCS7 :   -70dBm@10% PER(MCS7)

OFDM 54M :   -73dBm@10% PER

CCK, 11M:   -88dBm@ 8% PER

Wireless Security

Supports WEP64/128, WPA, WPA2, TKIP, WAPI, and AES hardware encryption

Transmit Power With ±2dBm tolerance

IEEE 802.11n:  13-16dBm @HT40 MCS7

IEEE 802.11g:    16dBm

IEEE 802.11b:    18dBm

Work Mode

Soft AP/ Station/Soft AP+Station

Others

Environment

Operating Temperature: -20℃~70℃

Storage Temperature: -40℃~125℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
