Автоматическая пневматическая машина для снятия фаски с двойной
- Категория: Chamfering Machines >>>
- Поставщик: Henan,Wadley,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.94 $* | 0.34 $* |
| Aug-18-2025 | 0.41 $* | 0.11 $* |
| Jul-18-2025 | 0.7 $* | 0.41 $* |
| Jun-18-2025 | 0.45 $* | 0.59 $* |
| May-18-2025 | 0.89 $* | 0.54 $* |
| Apr-18-2025 | 0.7 $* | 0.53 $* |
| Mar-18-2025 | 0.57 $* | 0.68 $* |
| Feb-18-2025 | 0.82 $* | 0.88 $* |
| Jan-18-2025 | 0.66 $* | 0.36 $* |
Характеристики
Product Description

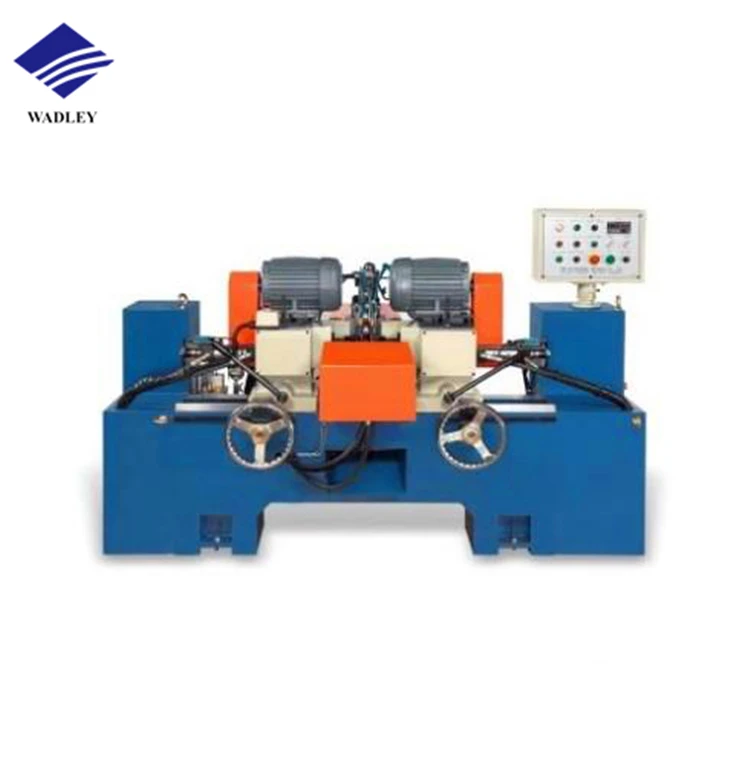

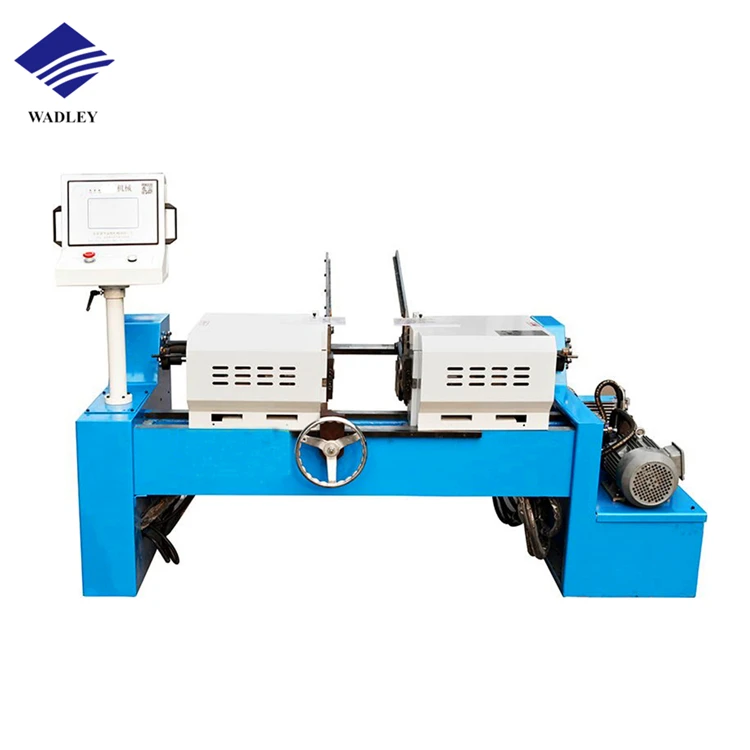

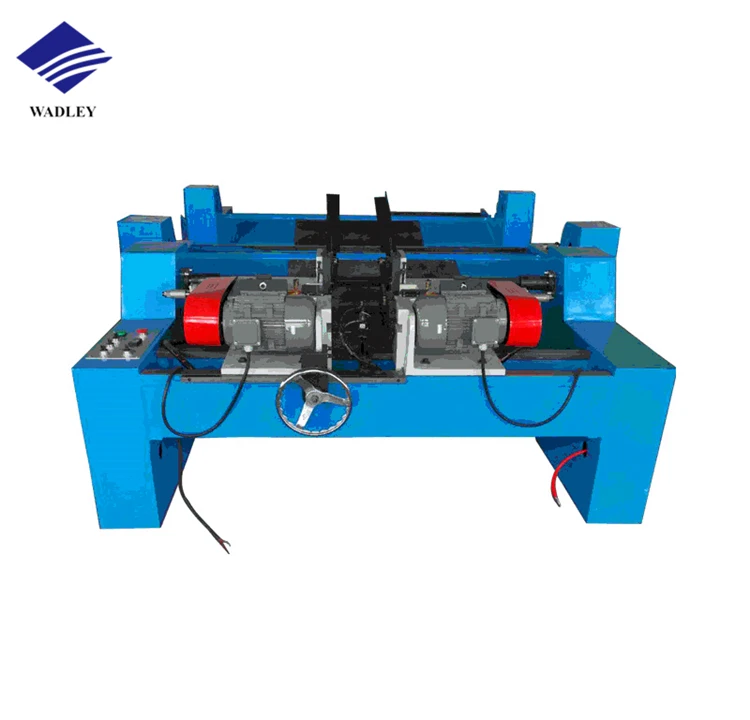

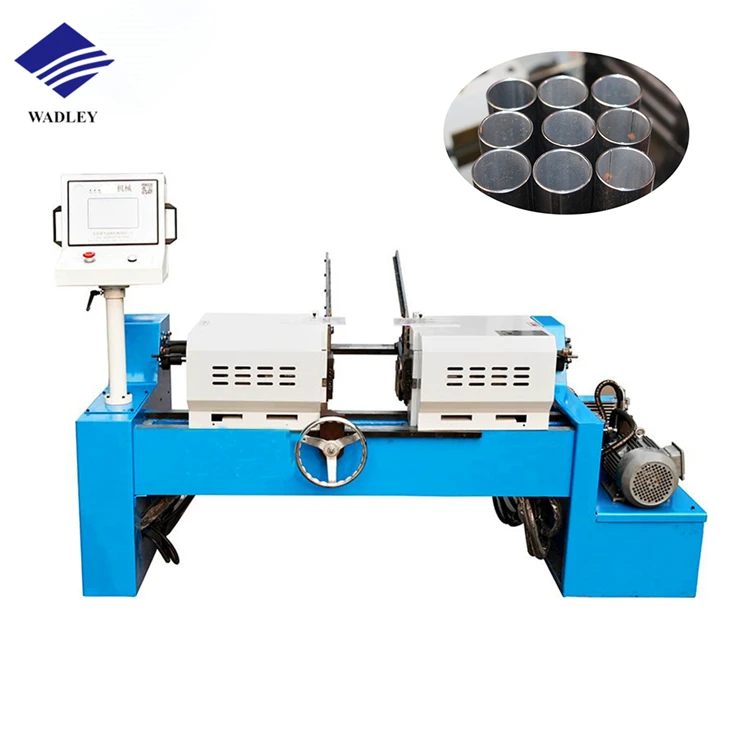

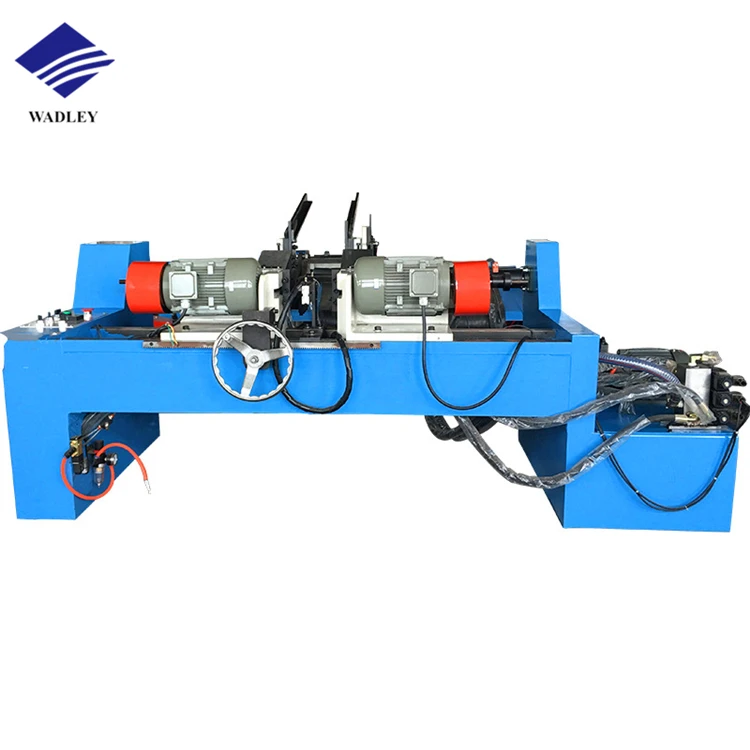

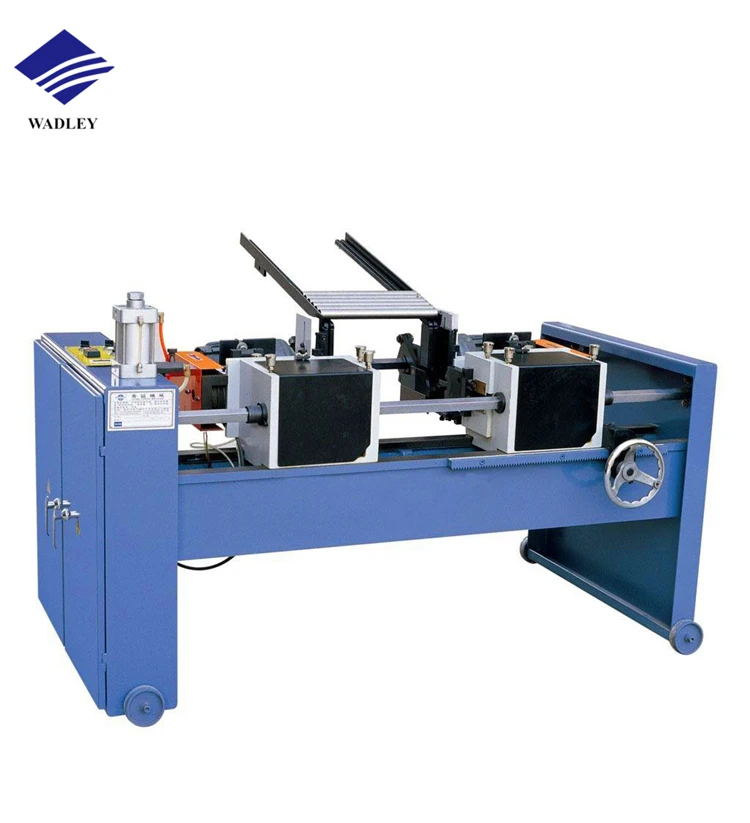

Automatic pneumatic double head tube chamfering machine
Detailed Images
Size Information
Model | WD-50/FA | WD-80/FA | |
Motor power | 1.5kw | 2.2kw | |
Compressed air | 6-9Kgs/cm2 120ml/min | 6-9Kgs/cm2 120ml/min | |
Use segment | Standard segment,Application：Φ12-Φ51mm | Standard segment,Application：Φ14-Φ80mm | |
O.D.Procdssing capacity O.D. | (Diameter)Φ14-Φ51mm | (Diameter)Φ14-Φ80mm | |
(Rod outer corners)Φ5-Φ25mm | (Rod outer corners)Φ9-Φ38mm | ||
(Length)50-800mm | (Length)50-800mm | ||
Special equipment | 1.Stadard segment 2.A group of fixtures | ||
Special accessories | Different sizes fixture | ||
Machina weight | 760kg | 1060kg | |
(LxWxH) Machine dimensions | 2000x1250x1120mm | 2000x1350x1200mm | |
Company Introduction
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
