Dongfeng 5 м шасси рамы автобуса 4x2 EQ6570KS14D передний дизельный

Цена:*

Количество:

Product Description

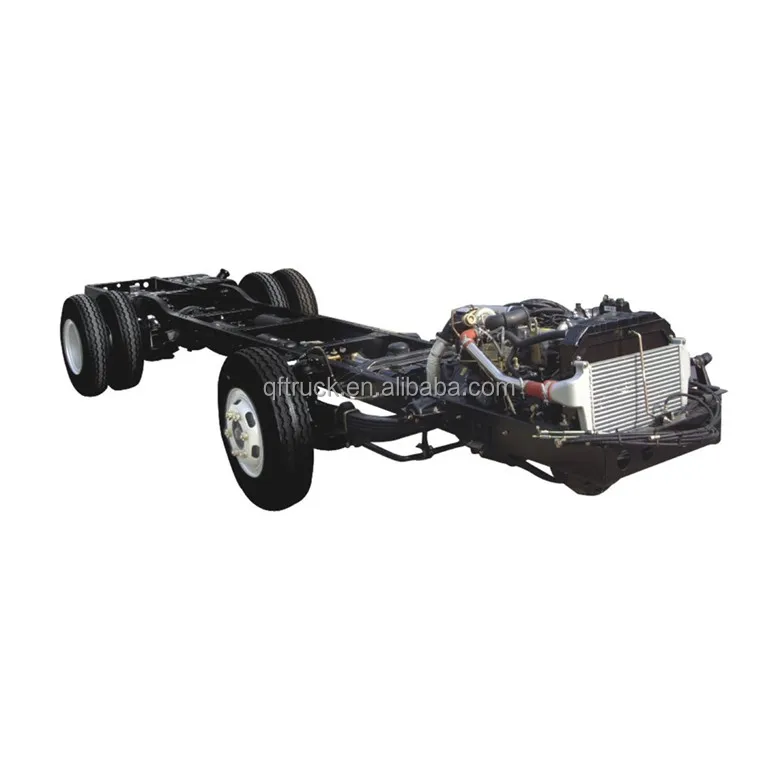

Dongfeng EQ6570KS14D 4x2 mini bus chassis 5m front engine

Dimensions(mm)		*54701969**
Track(mm)	Front	1680
	Rear	1500
Wheel base		3100
Front/Rear suspension(mm)		*10001370**
Min ground clearance(mm)		rear axle 165(6.50-16 tire)
Ground clearance of upper frame(leaded)		front axle
		rear axle
Dry mass(Kg)		1400
Authorized total mass(Kg)		4900
Front/rear axle load(Kg)		2000/2900
Max.speed(Km/h)		86,95
Min.turning diameter(m)		14
Max. grade ability(%)		30
Limited mode fuel consumption/100km(L)		11
Ramp angle(°)		approach angle 23
		departure angle 15
Main Equipment
Engine	Model	490QZL
	Type	4L, diesel engine
	Rated power(kw/r/min)	60/3200
	Max. torque(N.m/r/min)	206/2000~2240
Gearbox	Model&Operation way	Manual 5, Flexible shaft, long gear 525
	Files bit rate ratio	0.814,1,1.634,2.832,5.568,5.011®
Front axle pattern		First type & l axle
Rear axle	Pattern	Ramming welding rear axle, one grade gifferential
	Differential Ratio	5.833,4.875,5.375
Frame	Overall cast rear axle
Clutch	∈255
Steering Gear	Mechanical steering
Suspension system	Multiple spring
Braking system	Double route brake, Drum brake
Braking system	Center brake
Tire specification	6.50-16 7.00-16
Alterator	12V, 35A
Note	Front diesel engine(long front suspension)

Packaging & Shipping

Naked,vehicle surface spray anti-rust wax before shipment.

.jpg

Our Services

· One year quality warranty for key parts such as axles, engine, transmission;

· All spare parts would be OEM and supplied at cost prices;

· Overseas service center to ensure efficent after-sales service;

· Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
