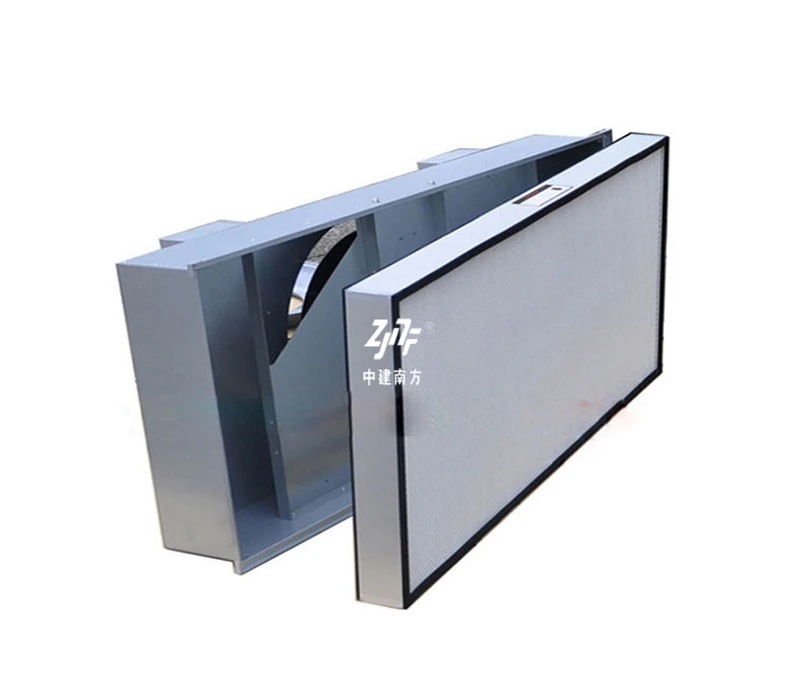

Custom FFU Hepa Fan Filter Unit

1.Features:

1. Wind speed: 0.35m/s, 0.45m/s;

2. Noise:49-63dBA;

3. Power: 220V, 50Hz;

4. Highly efficient filter (filtration efficiency is 99.99%);

5. Material: armor plate, stainless steel;

6. Adjustable speeds;

7. Excellent performance ;

8. Using a highly-efficient centrifugal air blower;

9. Durable, low noise, low vibration;

10. Free maintenance for one year

2.Description:

Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

3.Concept of FFU development:

1. To reduce running cost by saving energy;

2. To reduce construction cost and term by thin, light and compact structure;

3. To reduce initial cost by total design of clean room including noise spec. etc;

4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

4.Advantage of clean room with FFU:

1. The construction period can be shortened;

2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;

3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;

4. Bay method or through the wall method is possible by the arrangement of layout of FFU;

5. The velocity of the air flow can be set at each area;

6. Flexible increase or change of the clean room is possible by the arrangement of FFU.

5.Main technical parameters:

Model	ZN-FFU-1	ZN-FFU-2	ZN-FFU-3
FUU size	6101220350(mm)	610610350(mm)	1174574350(mm)
Filter size	600121069(mm)	61061069(mm)	117057069(mm)
Air flow	2000m³h	1000 m³h	1300 m³h
Speed control	Stepless air flow regulator can arbitrarily adjust the air flow
Voltage/current	Single phase 220V/50Hz
Output power	140W-240W
Filter efficiency	HEPA 0.3um is above 99.99%
Body material	SUS304/430 mirror stainless steel plate 1.1T//PP powder coated steel plate
Weight	25Kg	16Kg	25Kg

Product Show

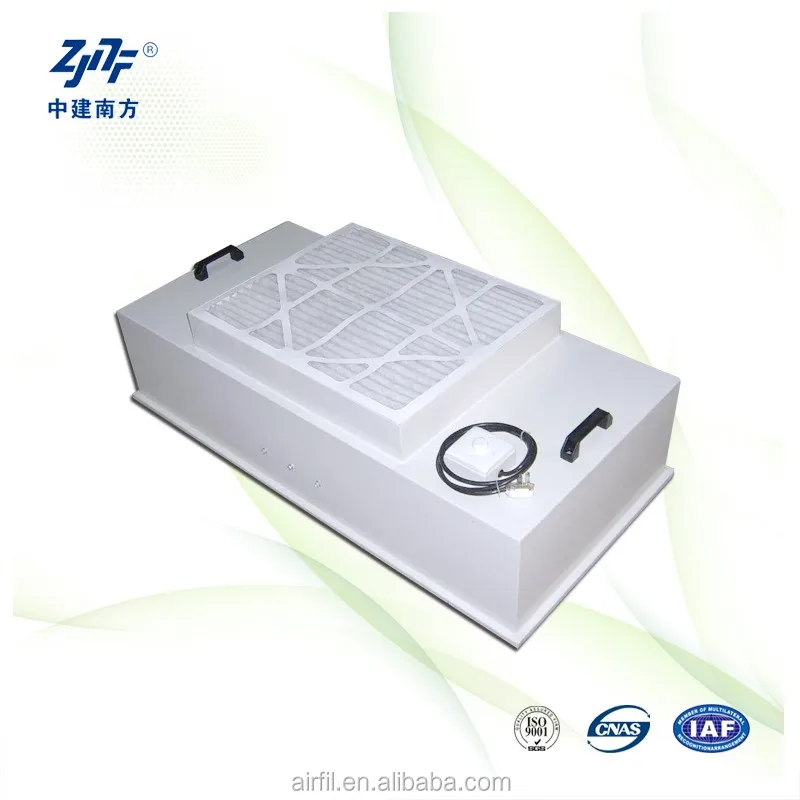

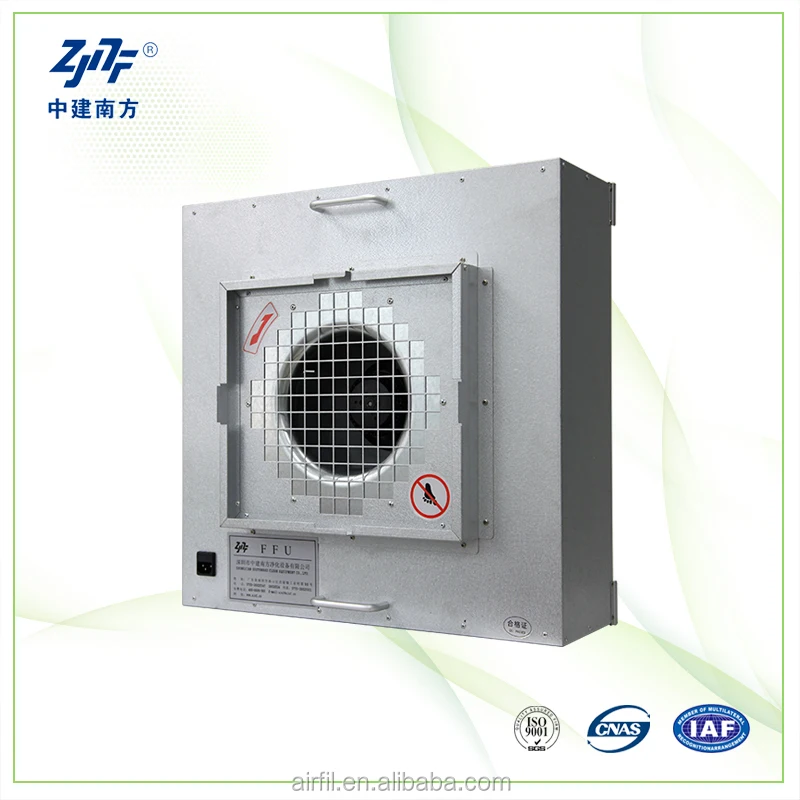

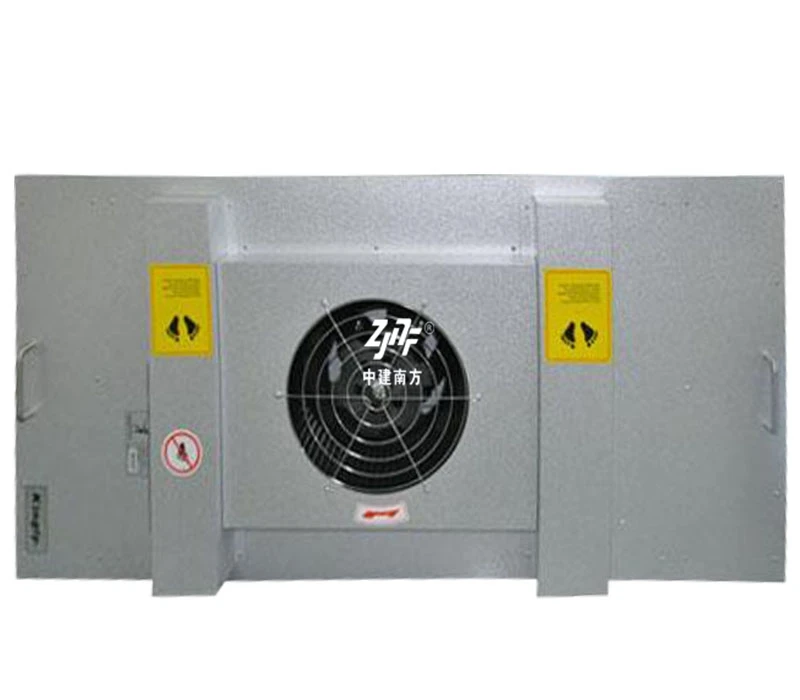

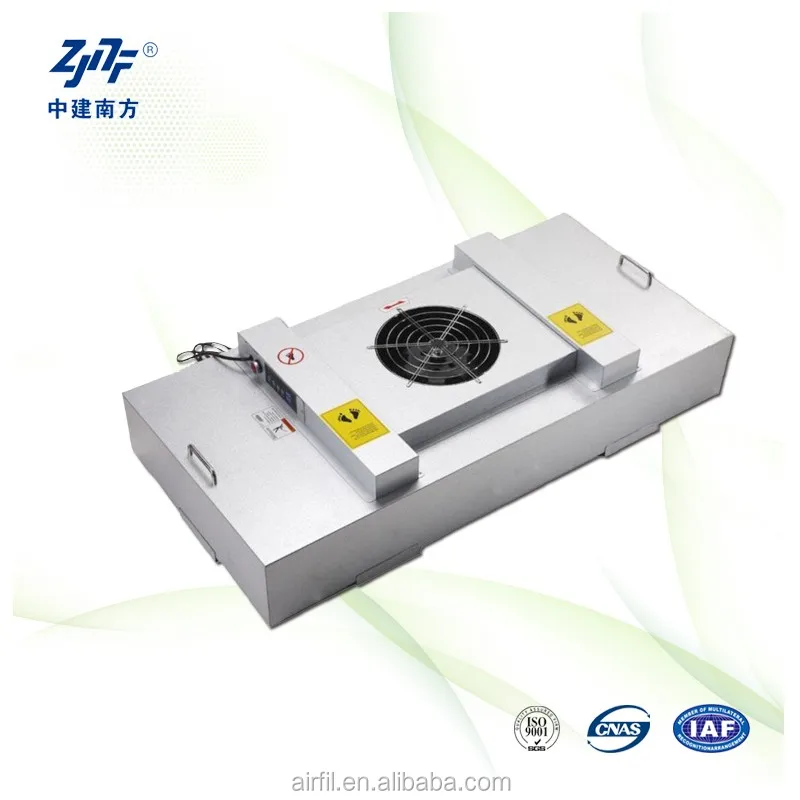

fan filter unit FFU.jpg fan filter unit.jpg

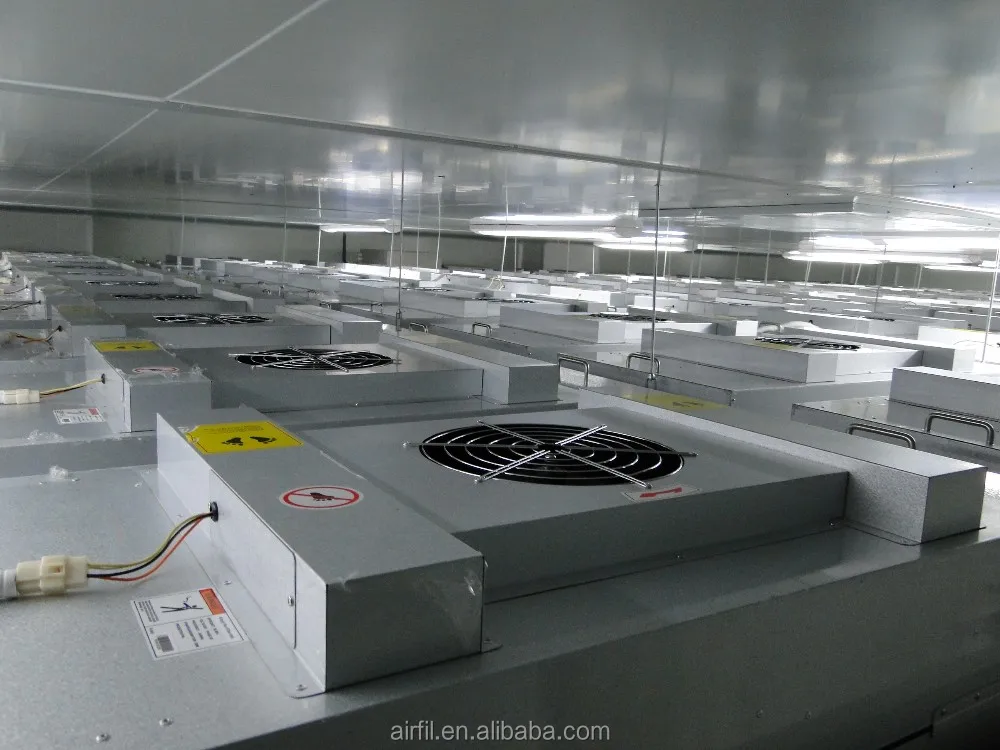

FFU for clean room.jpg

Company Show

2_07

Packaging & Shipping

Certifications

Company Information

Shenzhen Zhong Jian South Environment CO.,LTD founded in 2003, was the first high-tech enterprise to propose solution of Micro Air Pollution Control and Treat. The company is engaged in the design and installation of clean room, which is specialized in controlling and treating of Air PM2.5, benzene, formaldehyde,VOC, and other poisonous or harmful substance.

Science and technology are the primary productive forces. The company holds more than 20 items of patents and have passed ISO9001 quality management system certification in the early 2004. Moreover, the company has set up an unique laboratory for air pollution detection and control ,which is undergoing long-term cooperative research and development in association with THU Tsinghua University and HIT(Harbin Institute of Technology) .

The main products and service including: air purification engineering system, intelligent control system, air filers and related materials etc. The company is engaged in the research and development of technology and air filter production, and also dedicated in the design and installation of the clean room. Our services include research, design ,manufacture, selling, and services. All the products cover the area of industry , commerce, household applications etc.

The company is committed to serving precision electronics industry,medicines,medical apparatus and instruments , laboratory , printing , coating , food , cosmetics and other industries. There is a group of over 15 years with professional work experience and high-quality technology talents. professional, specific, honest management. The company has build long-term relationship with top 500 global companies such as: Foxconn Group, BYD company, Samsung Electronics, Canon Inc, Lan Si Tek, Biel Crystal, Skyworth, TCL, The Chinese Academy of Science, Japan Dacheng, Csg Holding, Guangxi Nanning General Hospital,Boen Medical, Grain Mill, Kashi Milk, Aoxue cosmetic, under the director of the business concept---profession, specification, honesty.

Company enjoys good reputation and recognition in air purification industry, With the mission of being Chinese leader of micro pollution control and management enterprise, returning the earth with a healthy and fresh air atmosphere, the company aims to promote a leap-type development in the spirit of initiative, innovation, exertion.

FAQ

Q: What kind of air filter you make?

A:The main products include the primary air filter ,mid efficiency air filter, high efficiency air filter, activated carbon air filter, cartridge air filter, liquid air filter, air filter machine ,pocket air filter, cold media air filter, etc. Besides we also design and build clean room.

Q: Are you really manufacturer or trading company?

A: We have our own factory and engineer team. The service including offering the technology and support of building the clean room oversea.

Q: What is the international standard for air filter?

A:Euro: Pre (G1---G4), Medium (F5----F9), HEPA (H10--H14), ULPA (U15--17)

American: Pre (Merv1---7), Medium ( Merve8----14), HEPA (Merv15---19), ULPA (Merv20)

Q: What is your MOQ?

There are different standard of MOQ for different goods. If you want to customize the size and shape of air filter, but your quantity is small, the price will be higher than the normal one. Because we give the quotation according to the cost of production.

Q: Do we have some free samples for testing or checking?

A: Yes, no more than tow pc of free sample available only. But the courier or shipping charge will be on customer account as per our company police.

Q: How long will be the lead time for samples and production?

A: Generally, it takes 3-4 days for sampling, and 2-3 weeks for production. As if volume order, pls check with our sales.

Q: Do you have any certification to ensure the quality?

A:ISO9001 ,and patents for some products. The company builds the laboratory with the elite college to research and development new products.

Q: Could the filter be used for high temperature or humidity circumstance?

A:There are anti temperature and humidity filtering materials available, please tell the sale in advance what the condition your air filter is used. The air filter can be customized according to your need. Q: What Payment term you are running?

30% deposit paid in advance,70% of the balance is paid before delivery.
