     50x Lens  Profile Projector

I. Usage

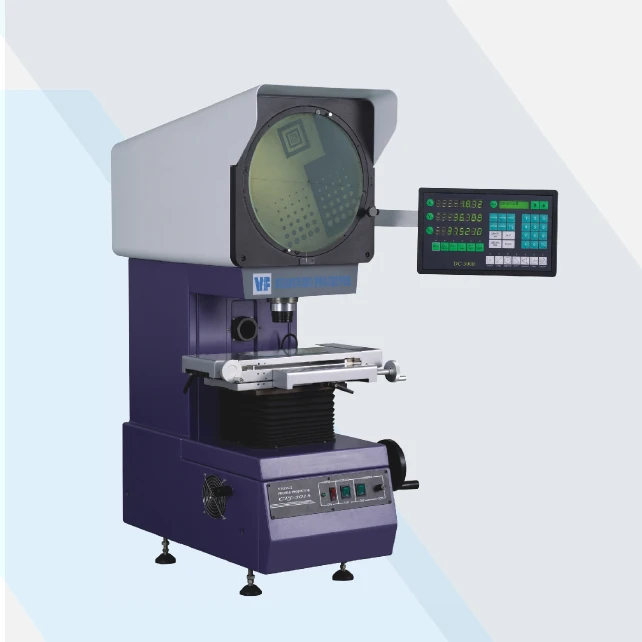

CPJ-3000 series is a high cost performance, high efficiency, universal type vertical profile projector developed by DG-YIHUI.



It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape,can inspect all kinds of surface and outline of complicated work-pieces, cam, screw thread, gear, perform milling cutter and so on, widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.



II. Features

It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.06%.Coordinate measurement deviation is Ex, y ≤ (3.0+L/200)μm, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.



P.S The Digital Readout has a function of interchange between mm and inches



III. Specification



* All data is tested according to standard JJF1093-2002.

  L is measured length (units: mm)



About Us :



Dongguan Yihui Photoelectric Technology Co; Ltd. was established in 2003 which has its own R&D,we manufacture and sale high-tech detection equipment. Our main products are: Video Measuring Instrument series, Optical Projector series, Coordinate Measuring Machine series, Tool Microscope series, Grating Sensor and Digital Display Meter series, Tensile Testing Machine series, Environment Testing Machine series etc.The products are widely used in electronics, plastics, moulds, machinery, hardware, instruments, connectors and other industries.







We have passed the International Quality Management System certification ISO9001:2008. “Customer-oriented, Quality First, Standardized Management and Continuous Transformation” is our operating philosophy. All of our partners will dedicate to the new and old customers with low-cost, high efficiency, high-quality and trustworthy service.













Guarantee:





12 months warranty. Buy with confidence!





1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.



2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.







3. We provide life warranty services of machine for users with cost.



1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.



2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.



4. Extra warranty period: We will take phone to user after-sale advisory service.







5. Our company has spare parts which can be provided for the users with cost.







6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
