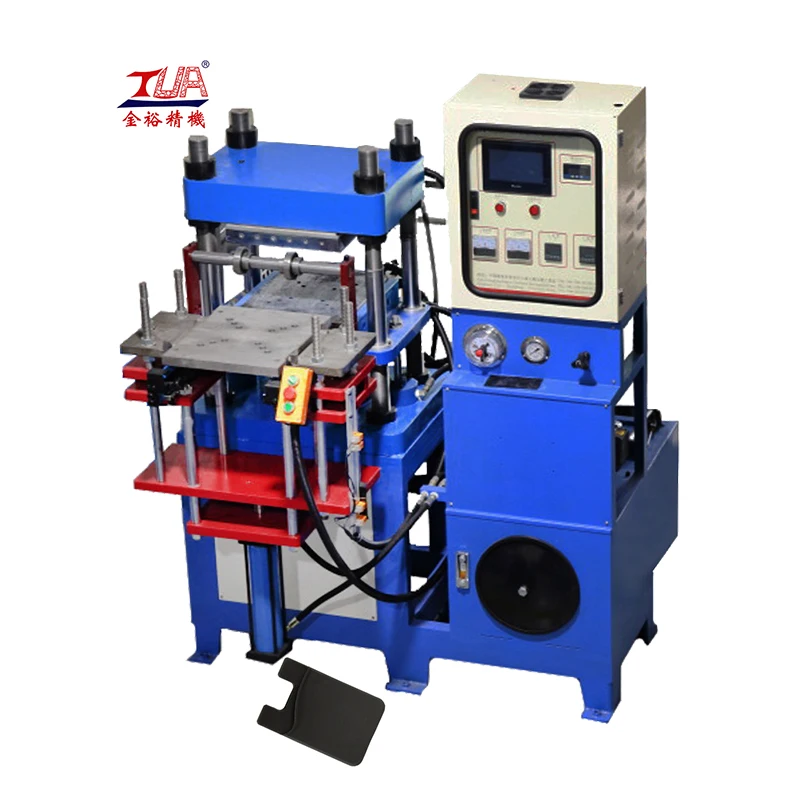

silicone making machine for card case bracelet mobile cover
Product Description
The silicone making machine to produce many kinds of plastic silicone products, such silicone phone case, tiles, rmat, silicone ring, swimming cap and so on. also named silicone vulcanizer, can provide press, high temperature, make more good plastic silicone products to adapt to different working environment. Mainly consists of three parts, the host, hydraulic station, electric control system. Different products use different machine, we have tire tread hydraulic press, big conveyor belt hydraulic press machine and so on. According to different host there are different types, such as column type, frame plate type, jaw type and so on, you can choose according to your products. Such as automatic control, manual control, PLC control, hydraulic push mold, all can design according to customer require .
Part of cases to making machine
1.working table:used deep hold processing,HRC50-55 harness, long time wear-resisting
durable and hot easy to be out of shape and high plane precision.
2.Pillar: used with chromium, it’s very durable without distortion.
3.Push button: can choose to automatically or manually to complete the task.
4.Solenoid valve: control the circuit and ensure the machine can work normally.
Technical Parameters :
Type
30T
50T
63T
Worktable (mm)
350*350
350*400
400*400
Power specification
3 phase 4 wire, 380V
3 phase 4 wire, 380V
3 phase 4 wire , 380v
Total power (kw)
14.5
18.3
18.3
Electrical power (kw)
3.7
7.5
7.5
Heating power (kw)
10.8
10.8
10.8
Piston diameter (mm)
Φ150
Φ180
Φ200
Weight (kw)
1000
1500
2000
Size (mm)
1200*1600*1300
1300*1650*1400
1400* 1650*1550
cases to making machine production process
1.Maxing the pigments and liquid silicone by using the stirring machine ,in order to get the mixture at the same time, put the pigments and solid silicone into the gum machine, for getting the mixture ,too.
2.liquid and solid silicone and pigments had mixed ,and the liquid silicone need to vacuum, and the solid silicone need to use the cutting machine .
3.filling the mold with liquid silicone by dispensing machine (the logo of the mold can design by yourself),
and then need to use the vacuum machine to deflate.
4.put the solid silicone into the mold (with filled by liquid silicone).
5.put the mold into the hydraulic machine to press about 1min(adjustable),the working principle is thermoforming.
6.finally, just open the mold and finish the phone case,put the mold to the automatic cooling table.
materials:
Our Services
Our services:
We have a workshop in our factory?which keep producing the?products, welcome sincerely customer come to visit and enhance your confidence. making samples provide: if you have mould, we can make samples for you.
Packaging & Shipping
Packaging & Shipping 1. Package: Seaworthy wooden case packages 2. Delivery: Generally 15-20 work days, 2 days for ready stock. 3. Payment: 50%T/T in advance as deposit, 50% T/T before shipment. L/C is acceptable for special area or country. 4. FOB Guangzhou/Shenzhen
