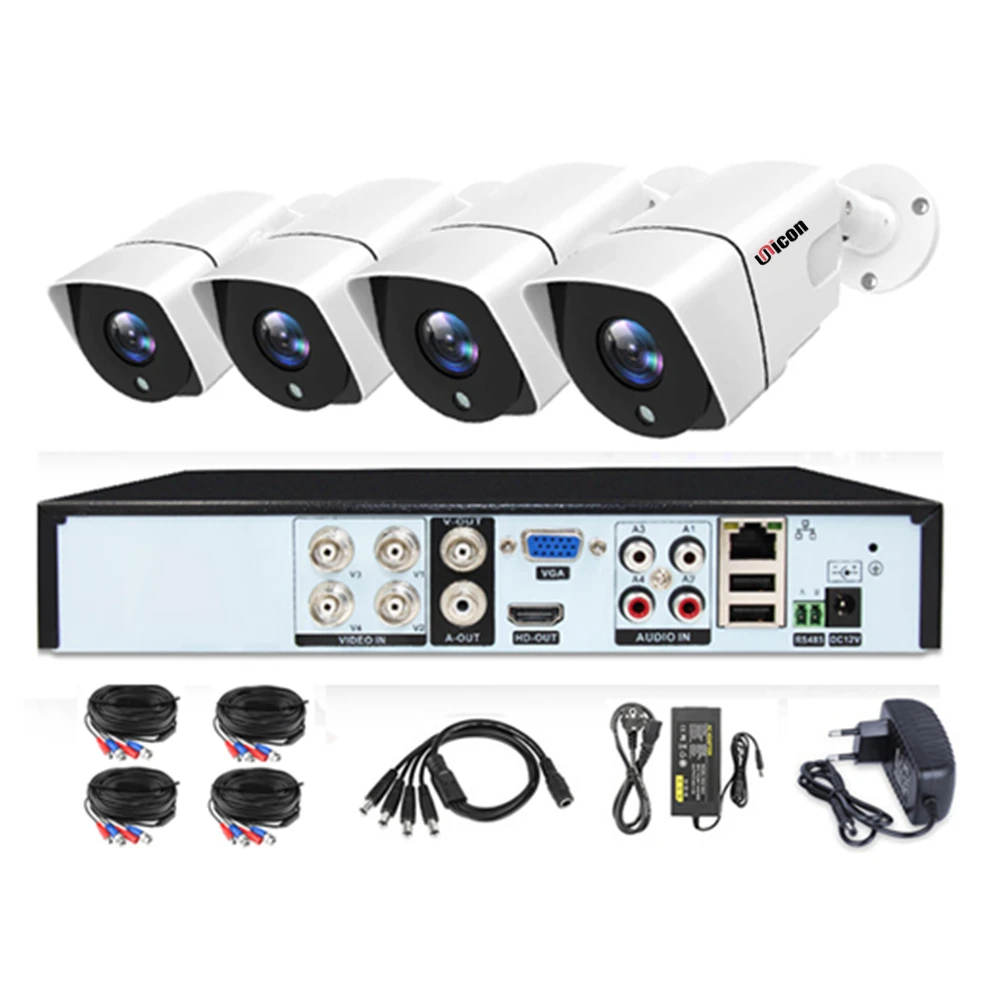

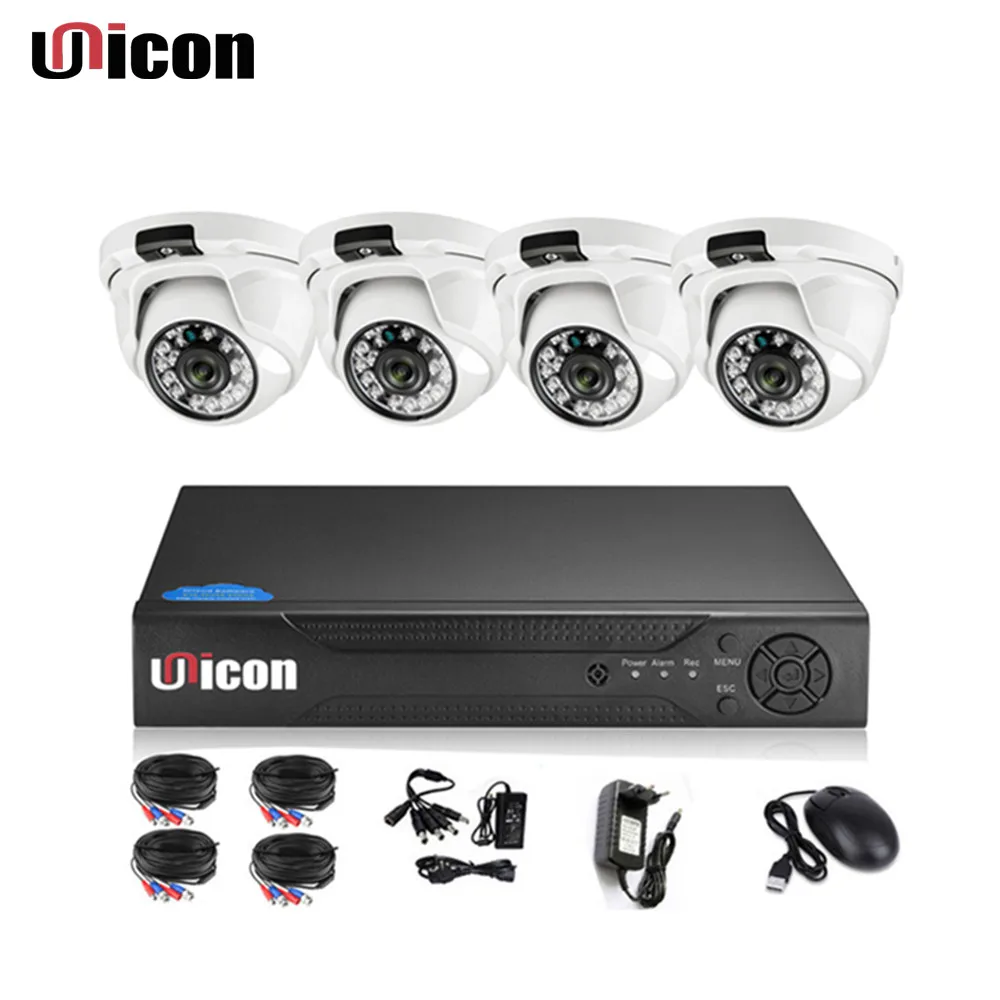

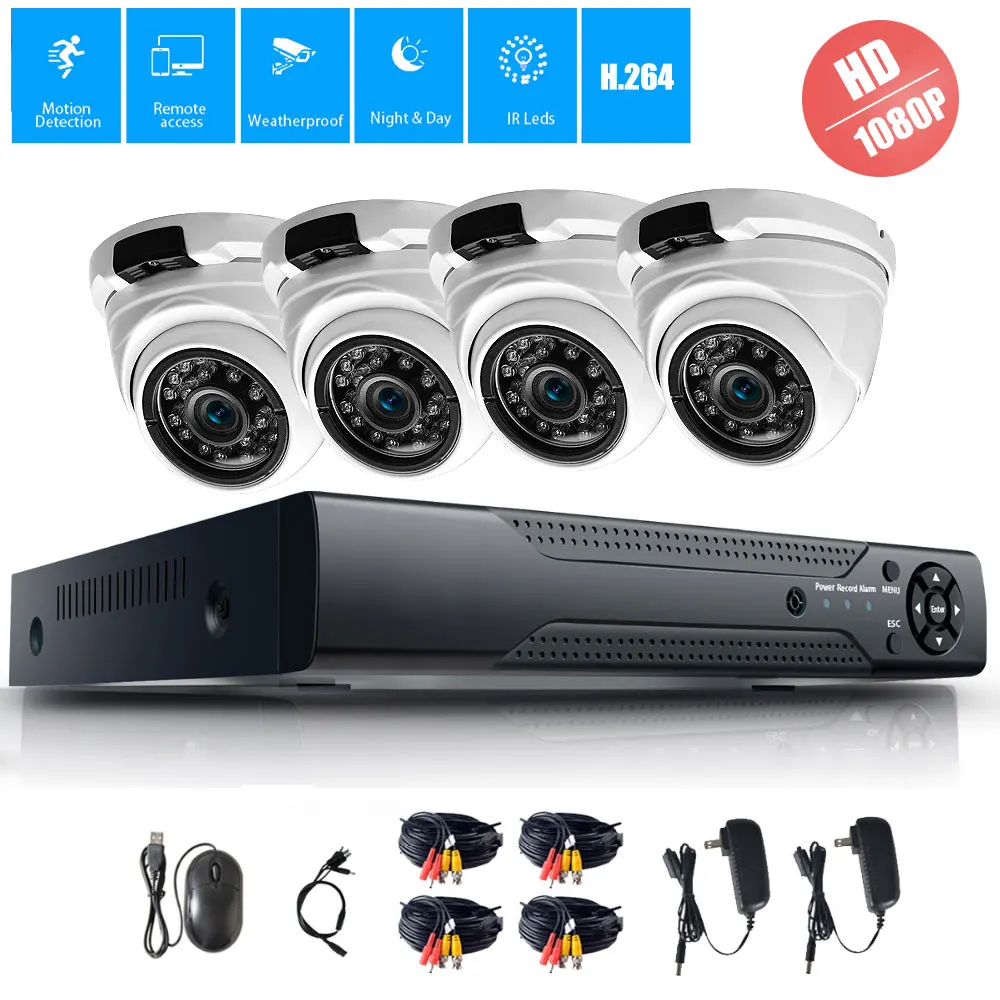

Outdoor Full HD 4CH CCTV AHD DVR KIT 1080P Video Surveillance With Digital Camera
Key Features:
1. H.264 standard compression format with efficient processing and clear image.
2. Support 1080P/720P recording encoding.
3. Two high-speed USB2.0 interfaces, you can mix backup and mouse.
4. Support six operations at the same time, recording playback, network transmission,backup,mobile monitoring,PTZ control etc.
5.Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any domain names, plug and play
6.Dedicated high-reliability file system for special monitoring
7.Simplified Chinese, English, Thai, Russian, French, Spanish etc. over twenty languages
Specification :
Master chip
HI3520D V300
Compression
H.264 Standard Compression
Operation
Embedded Linux
Image coding-control
Image edit adjustable,both changeable and fix stream optional
Dual stream
Can be set up in each channel
Monitor Image quality
1080P (1920 x 1080)
Image dynamic detection
Multiple detection areas in each channel
Video frame rate
1080P 15fps
Image playback quality
1080P Total:50fps(4ch)
Video mode
Support manual,automatic,dynamic monitoring,alarm trigger video mode
Backup mode
U disk,USB portable disk,USB burn,Network storage and backup
Operate mode
Mouse,Front Panel Control
Login locally
admin and password
Save recording
Local hard disk and network
External Interface
Audio input
RCA*4
Video output
VGA*1, HDMI*1
Audio output
RCA*1
Network interface
10M/100M base-T Ethernet(RJ-45)
USB connect port
USB*2
RS485
RS485*1
Alarm input
N/A
Alarm output
N/A
Hard disk
Internal HDD
1 SATA HDD Port
Maximum Capacity
Maximum 4TB Each SATA
Cell phone monitoring
Support Window Mobile,iphone ,ipad,Android
Power
12V/2A
Operating Temperature
-10~50 degree
Operating humidity
10%-90%
CMS Interface :
