Машина для полностью выдувания бутылок с минеральной водой мытья наполнения закупорки

1.The capacity is from 5000BPH to 36000BPH for hot filling, mid-temp filling, and aseptic cold filling lines.

2.The capacity is from 5000BPH to 36000BPH for mineral water and pure water product line.

3.The capacity is from 2000BPH to 20000BPH for carbonated beverage product line.

4.The capacity is from 5000BPH to 30000BPH for beverage with particle product line

5.Water treatment equipments.

6.PET injection machine and blow molding machine

7.Beverage blending system and washing and sterilizing system

Equipments Details:

1. Small Bottle Water Filling & Packaging System

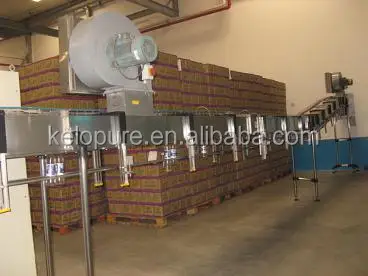

1. 1 Air Conveyor

Function: Air conveyor is a bridge between the BOTTLE BLOWING MACHINE/manual empty bottle platform and TRICBLOC RINSER FILLER

l CAPPER. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. The bottle is transferred to 3 in 1 machine through blowing wind.

l 304 stainless steel construction

l Come with heavy duty fan, dust-proof design

Reference Photo:

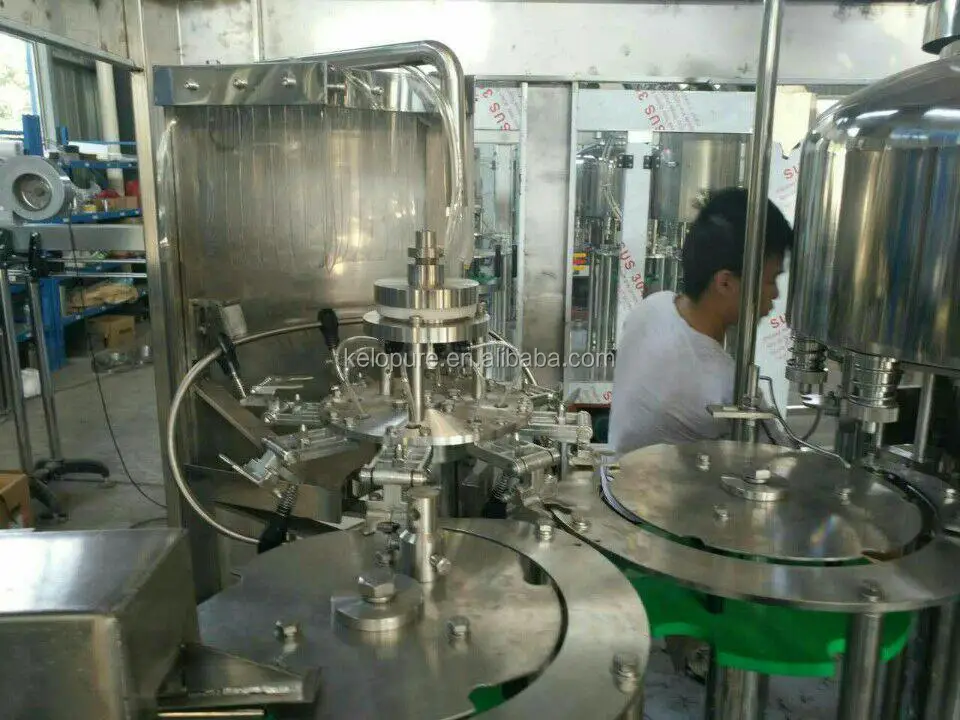

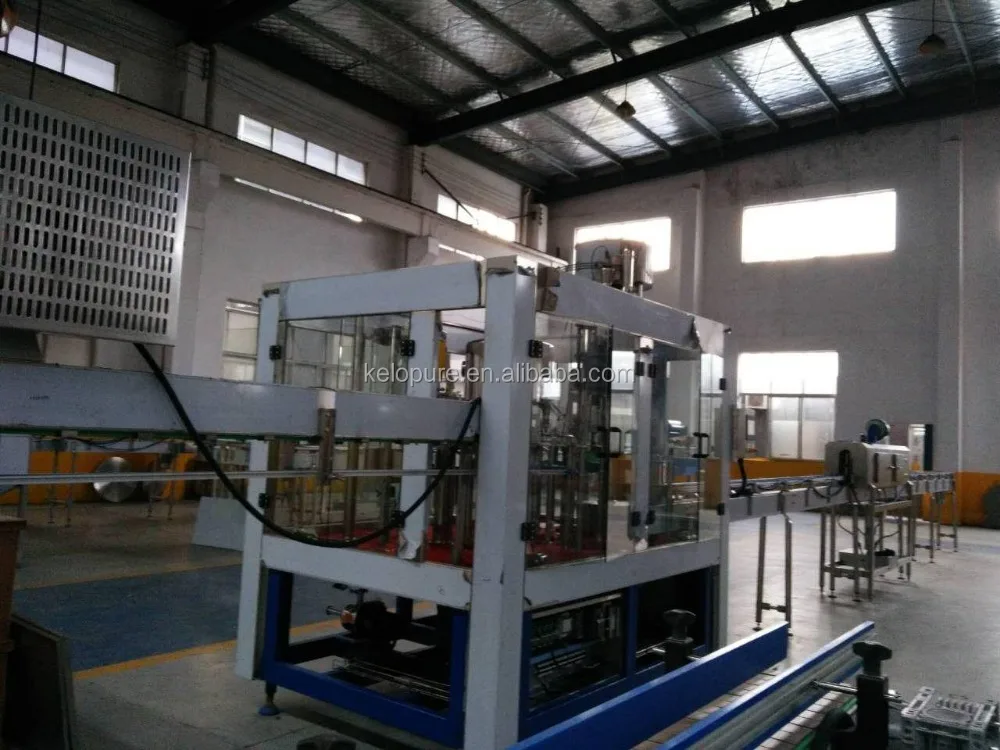

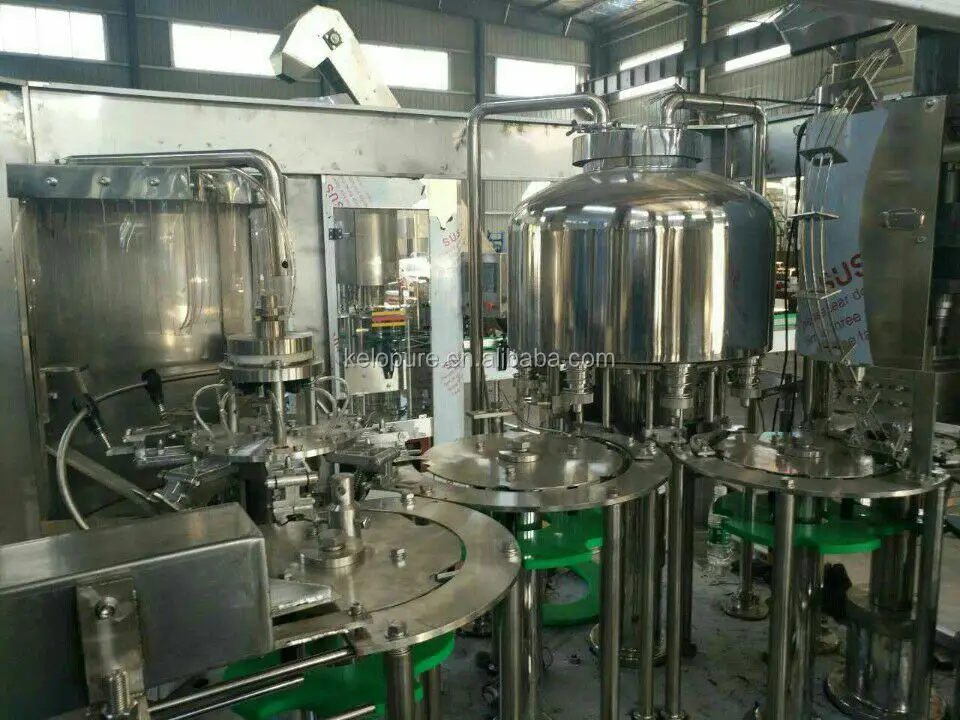

1. 2 Tribloc Rinser Filler Capper

Model:KL8-8-3

Technical Parameter of KL-8-8-3

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.

This machine is used to fill drinking water into pet bottle and with screw caps capping function.

This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

Rinser Station:

l All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean

l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

l 304 stainless steel washing pumps

Filler Station:

l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

l Gravity filling nozzles which ensure filling accuracy

l All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean

l No bottle no filling

Capper station:

l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

l All 304stainless steel construction

l No bottle no capping and Automatic stop when lack of bottle

Electric Part & Safe Device & Automation:

l When accident system automatic stop & alarm

l Emergency switch when accident

l Famous Mitsubishi brand PLC , Touch-screen Control Panel & inverter

l Famous Omron brand sensor & other electric parts adopted, heavy duty running

l Food Grade 304 stainless steel rinsing pump, reliable & sanitary

Machine Base & Machine Construction:

l 304 stainless steel frame

l Tempering Glass window, Clear & no odor

l Excellent start wheel design, easy change over parts

l Machine Base with anti-rust process, ensure the forever antirust

l All seal where liquid may Leakage & base neck come with rubber, water proof

l Manual lubrication system

Configuration List:

1 .3 Bottle Drier

Model: BD-1

Feature:

Function: to dry the bottle that feeding from the Rinser Filler Capper with blowing air, make them suitable to the post-packaging

Multiple groups of Air knife make sure bottle complete dry.

SUS304 machine construction

Technical Parameter

air pump 1pcs

Power: 2.5kw

Max air flow rate: 40cube meter per pump

Max. Air Pressure 15kpa

Power Supply:380V 3phase, 50HZ

Size: 800*700*1700mm

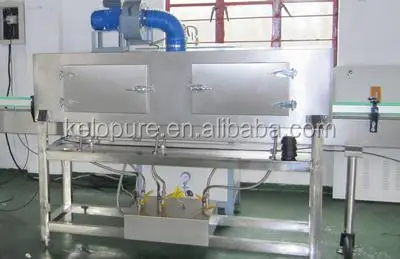

1.4 Semi-automatic Bottle Label shrinking Machine

l Model: SK-1.2

l Suitable to bottle neck:∅28 mm-∅125mm
Suitable to label with length:30 mm ~ 250mm with thickness:0.03 mm ~0.13 mm

l All 304 stainless steel construction

l Shrinking channel with length1.2 meter

l The Steam Generator with Power: 6Kw, two thermal tube, one is 3kw, the other is 3kw

l Lack of water automatic feeding

1.5 Ink jet Printer

Model: IC-55

Feature:

Apply to print big characters and small characters

Max can print 6 lines; completely meet the requirements of different industries.

English, Arabic numerals, can print various kinds of bar codes, special patterns and characters;

Printing speed reaches 100m/min, bar code 30m/min;

Environmental protection solvent free ink, 125ML is capable of printing 30 million characters

Suitable to print on metal, plastic, glass, wood, paper and ceramics material.

Automatic inject nozzle clean, pretend injecting nozzle stock.

1.6 Semi-automatic Shrinking Film Wrapper & Shrinker

Model: SWA-5040

This system is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels.

Feature:

Up and down magnetic switch prevent sealing mistakes, and protect the operators.

The input position is adjustable, base on the size of products packaged.

‘Schneider’ PLC, ‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.

Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

Up and down large power fan system ensures the excellent effect of shrinking in one time.

Super cooling system cools the packing and makes the figuration perfectly.

Technical Parameter

1.7 Chain-plate Conveyor belt (for filled bottles)

Function: to convey the filled bottles out to the labeling machine and post packaging machine by chain-plate

ABS chain plate

304 stainless steel frame

PLC control, automatic conveying speed adjustable

3. Semi-Automatic PET Blow Molding Machine

Machine introduction

* HJ-1.5L Semiautomatic bottle blow molding machine is an ideal equipment to produce types of PET bottle, pet cans for mineral water, juice, carbonated drink and edible oil, etc.

* Two stretch blow molding machines share one drying tunnel so that it is compact in size, productive and energy saving. All of those factors make it be the best choice of various plastic bottle productions.

* Advanced PLC control system with a use-friendly panel and time-control precision up to 0.01second, make the blow molding processing in supper high stability

* The Solenoid valve of the Pneumatic components adopted the famous brand

* The Air Cylinder adopted famous Lingtong brand (one of the best from China )

* Equipped with special designed air storage unit

* Using Infrared Ray PET preform heater

* Independent Temperature Control for different heating lamp to get ideal preform heating effects

* Heating lamps are adjustable in directions to suit various preforms.

* Simple installation & startup adjustment.

* Waste rate of finished bottle is no more than 0.3%.

* The machine lower noise when working .It is easy to maintain .It is the equipment for producing PET bottles.

* Coated Frame construction, long life running

1.Cover by PVC film + wooden case/carton case
2.Wooden case suitable for long distance ocean shipping.

FAQ                                                                                                     Kelopure

Q1. Are you a trading company or a manufactory?

A1. We are a manufactory with over 18 years experience.

Q2. How long is the production period?

A2.  General speaking, it takes about 20~30 days for production time.

Q3. What is packing of this machine? Is it suitable for shipment?

A3.  Machine will be packed by standard wooden case or carton. They are suitable for shipment.

Q4. Is this machine easy to install?

A4. It is easy to install following our english instruction and video.
