Пуско-батарея bms для защиты цепи 4s lifepo4 LTO 12v пик 300ah система управления батареей конкурсов красоты маленьких
- Категория: Многослойные печатные платы >>>
- Поставщик: Shenzhen,Li-Ion,Battery,Bodyguard,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.30 $* | 0.40 $* |
| Aug-17-2025 | 0.35 $* | 0.17 $* |
| Jul-17-2025 | 0.40 $* | 0.34 $* |
| Jun-17-2025 | 0.23 $* | 0.94 $* |
| May-17-2025 | 0.89 $* | 0.6 $* |
| Apr-17-2025 | 0.4 $* | 0.2 $* |
| Mar-17-2025 | 0.81 $* | 0.55 $* |
| Feb-17-2025 | 0.73 $* | 0.97 $* |
| Jan-17-2025 | 0.39 $* | 0.70 $* |
Характеристики
Product Description
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
- Supply OEM/ODM and custom service
- High quality with smart balance function
- Wholesale price
- ISO9001/ISO14001/CE/ROHS certificates
- Fast delivery

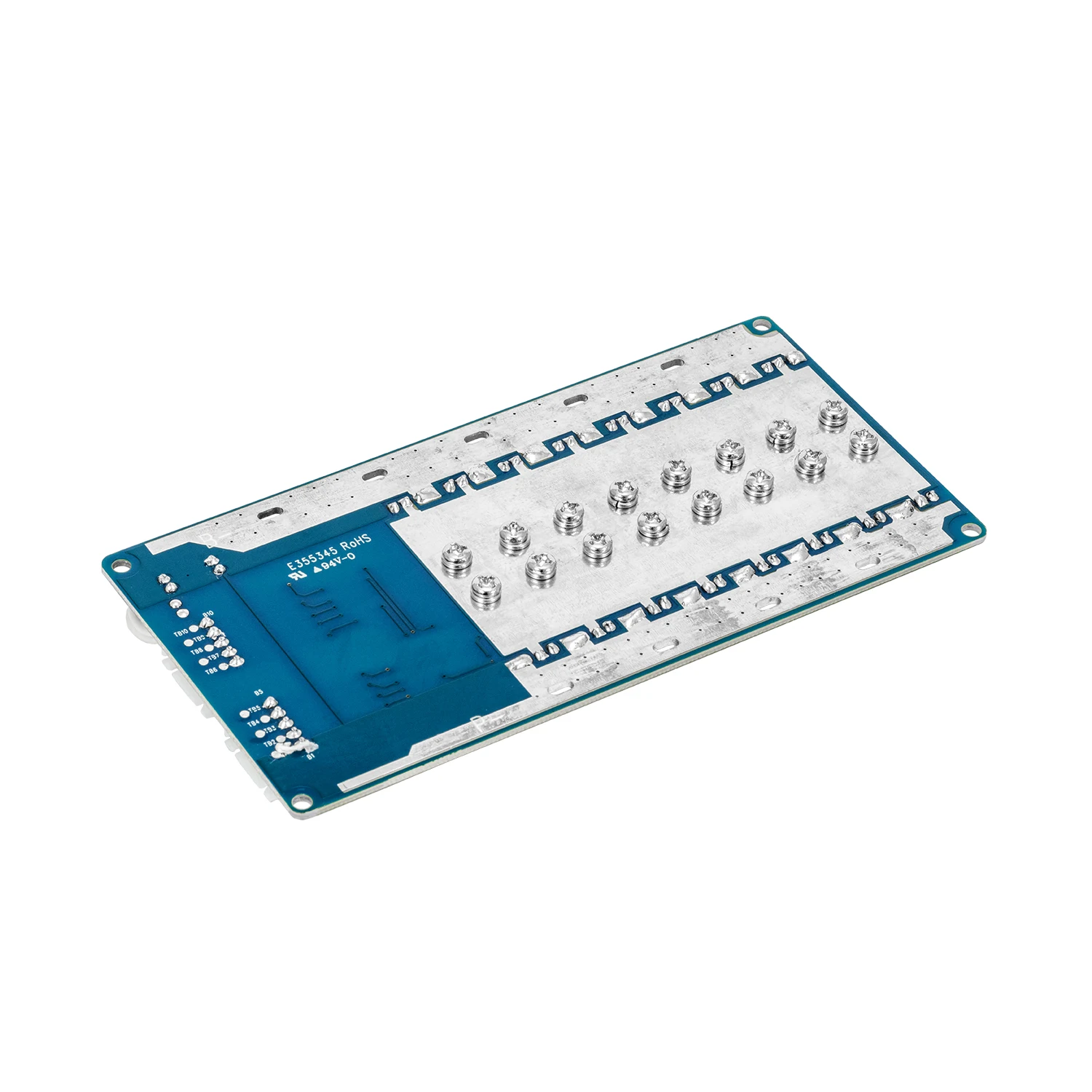

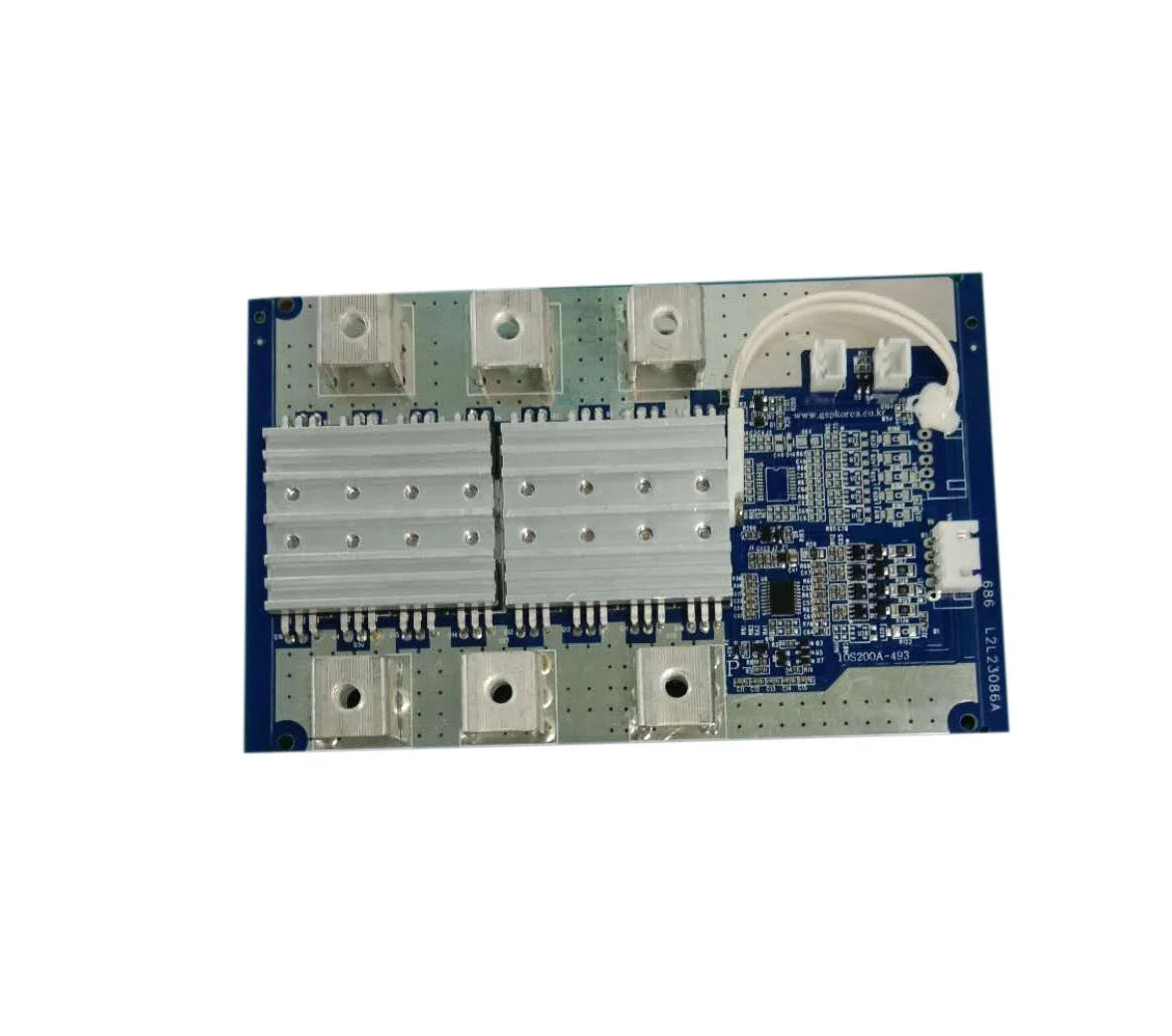

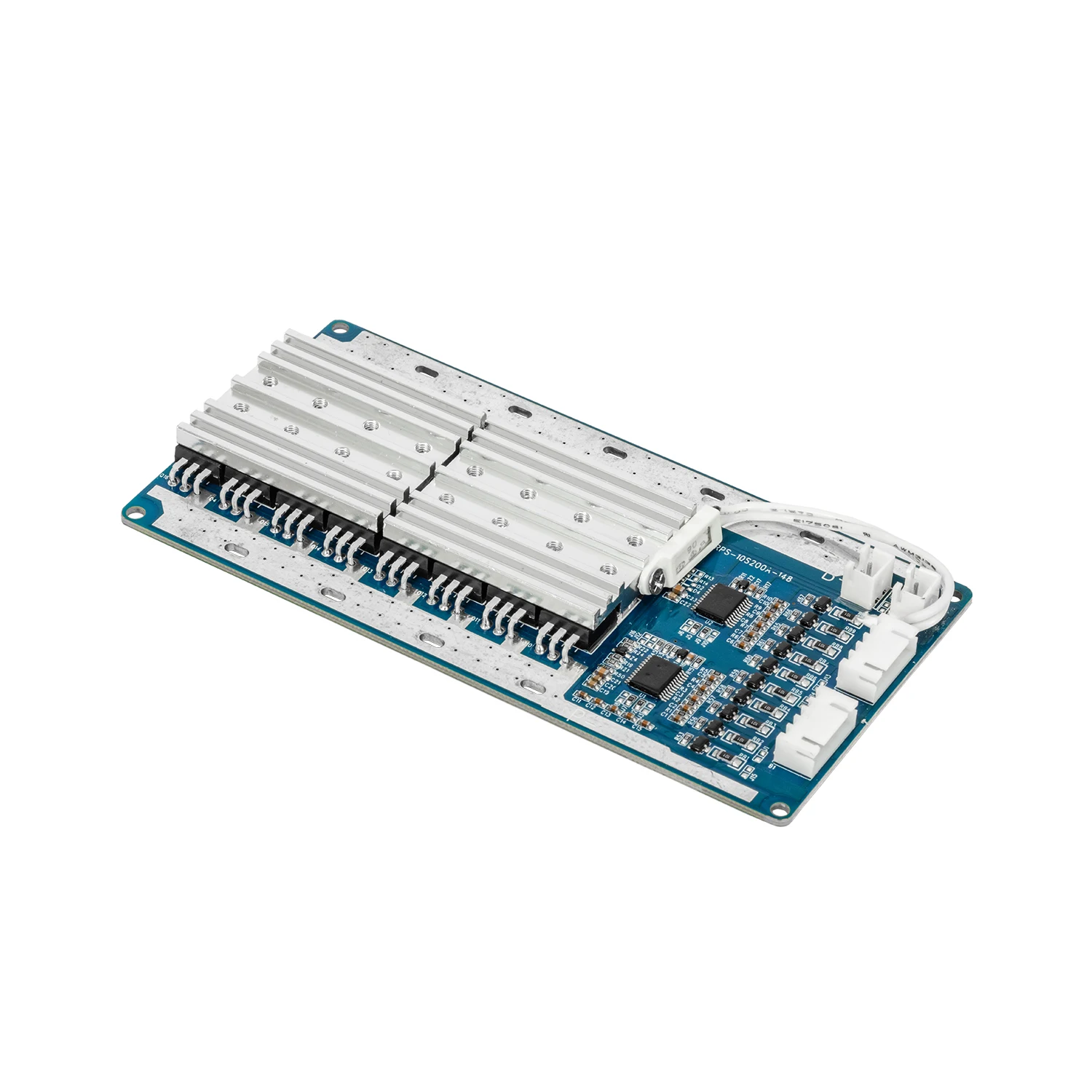

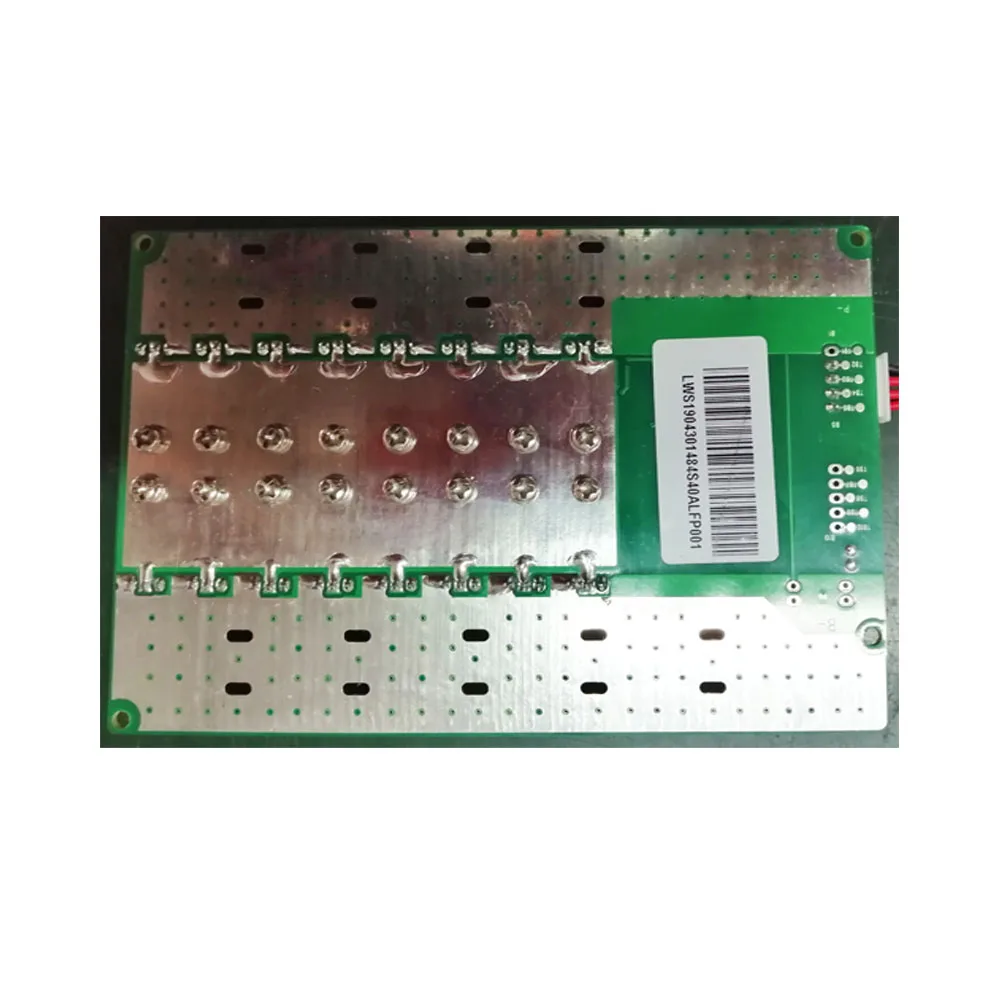

About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design will let it have more stable quality working performance , Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),full set of protection measures let it works well without any infulence from external unexpected accidents.
| Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD | ||||
| PCM Specifications For 12V(5S) LTO Battery Packs | ||||

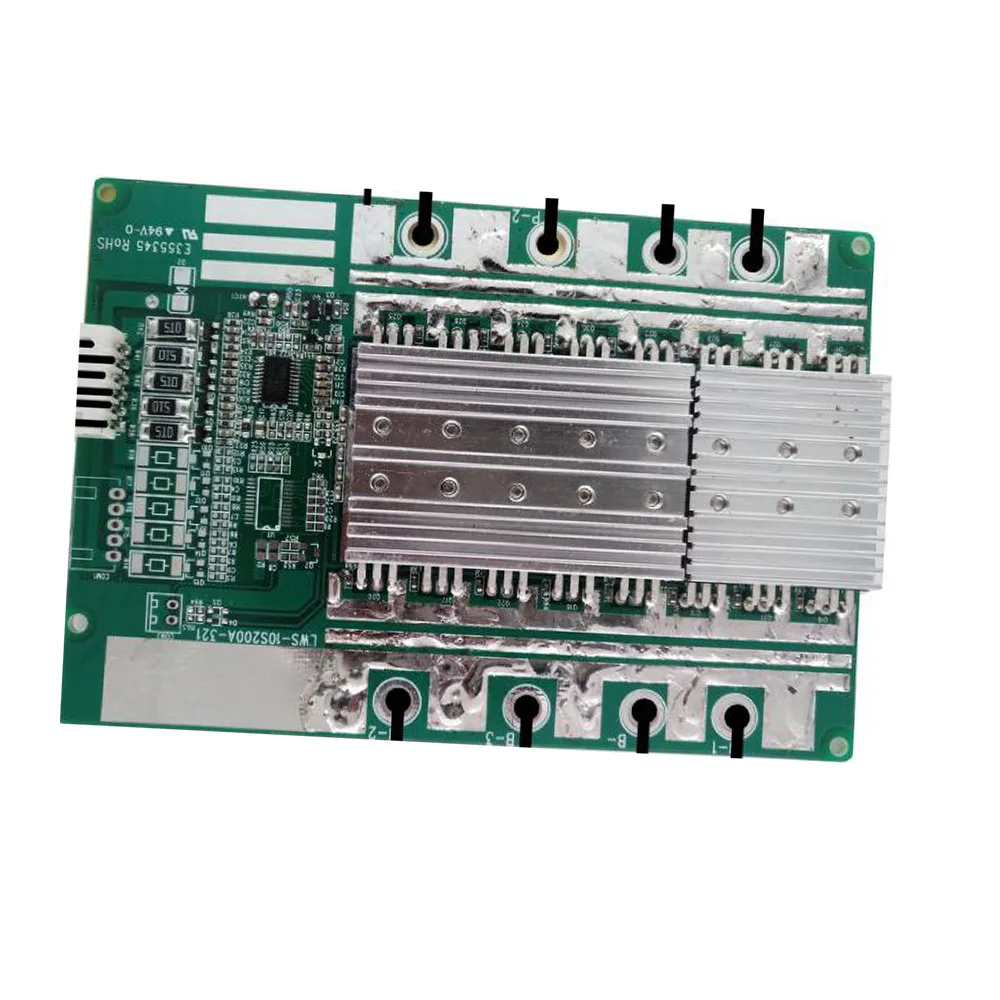

| Model: LWS-10S200A-321(5S) | ||||
| No. | Test item | Criterion | ||
| 1 | Voltage | Charging voltage | DC:13.7V 2.75V/Cell | |
| Balance voltage for single cell | 2.7±0.025V | |||
| 2 | Current | Balance current for single cell | 40±5mA | |
| Current consumption | ≤40μA | |||
| Maximal continuous charging current | 40A | |||
| Maximal continuous Discharging current | 40A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V | |
| Over charge detection delay time | 0.5S—1.5S | |||
| Over charge release voltage for single cell | 2.8±0.025V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.55±0.05V | |
| Over discharge detection delay time | 10mS—150mS | |||
| Over discharge release voltage for single cell | 3.00±0.062V | |||
| 5 | Over current protection | Over current detection voltage | 0.62V | |
| Over current detection current | 150±50A | |||
| Detection delay time | 5ms—15ms | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| 7 | Resistance | Protection circuitry(MOSFET) | ≤20mΩ | |
| 8 | Temperature | Operating Temperature Range | -40~+65℃ | |
| Storage Temperature Range | -40~+125℃ | |||
Company Information
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: How many Ampere protection circuit boards should choose?
A: It depends on your load power such as electric motor power please contact the sales or technical support before buying.

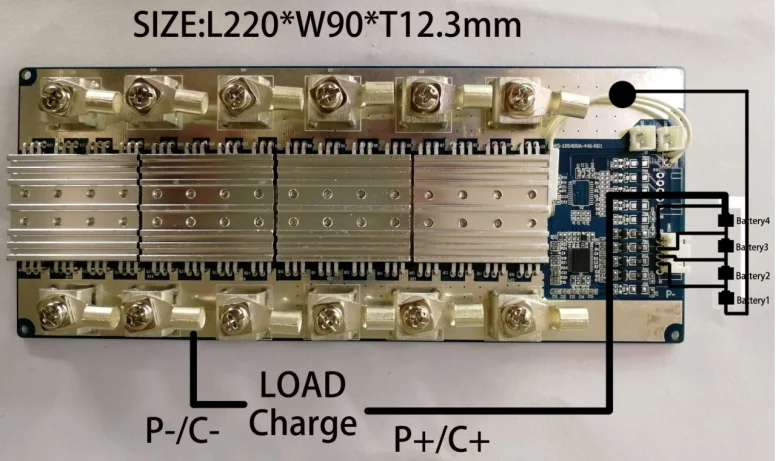

Q: What is the distinction between same port wiring and different port wiring?
A: The cathode of charger and load is different for different port wiring , the cathode of charger and load is same for same port wiring and the charging current is equal to the discharge current.
Q: What is the distinction between balance and unbalance function?
A: Equilibrium function is that high voltage cells will be discharged with resistor, waiting for the low voltage cells , to achieve the each cell voltage is consistent , to improve the battery performance for the whole group.
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements,Also ODM / OEM is welcome.
Q: What is your term of payment?
A: PayPal, T/T, L/C,
