GFK-160 2 мл-3500 мл цифровой контрольный насос
- Категория: Electric Water Heaters >>>
- Поставщик: Shanghai,Peixu,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 339.46 $* | 346.78 $* |
| Jul-19-2025 | 275.83 $* | 281.27 $* |
| Jun-19-2025 | 334.64 $* | 341.50 $* |
| May-19-2025 | 331.87 $* | 338.33 $* |
| Apr-19-2025 | 264.5 $* | 269.70 $* |
| Mar-19-2025 | 326.25 $* | 333.76 $* |
| Feb-19-2025 | 323.66 $* | 329.41 $* |
| Jan-19-2025 | 320.29 $* | 326.53 $* |
Характеристики
Automatic Digital Liquid Filling Filler Machine Microcomputer Control 2~3500ml
Product Description
This Updated GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material. There is no mechanical metal part or abrasion inside the pump.
This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, drinks, vinegar, milk etc.
Liquid suitable: low viscous liquid like water, wine, solutions etc.
Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.
The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.
How to use
1. Installation

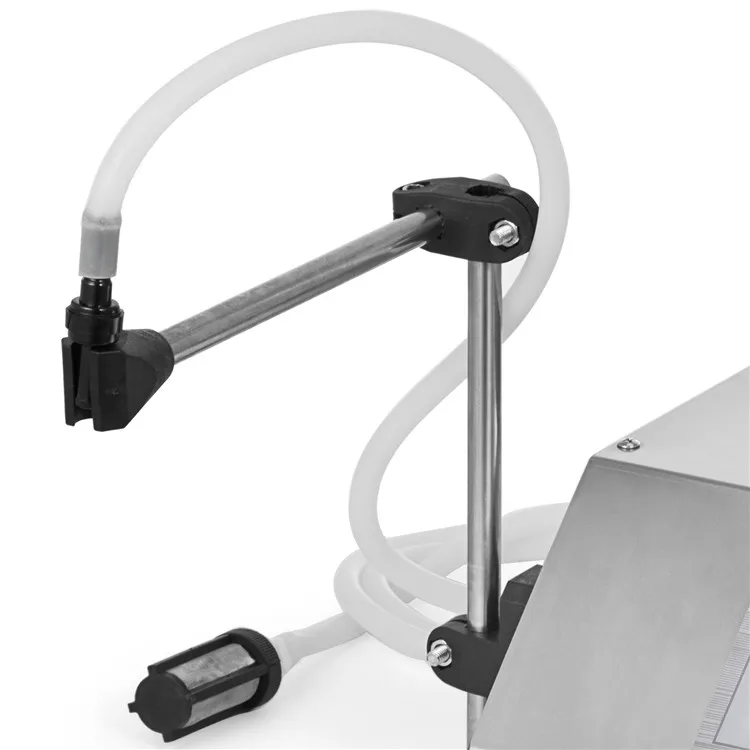

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines as photo3 shows. Put the filling head in the clip and tighten it by socket wrench.
Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.
2. Turn on

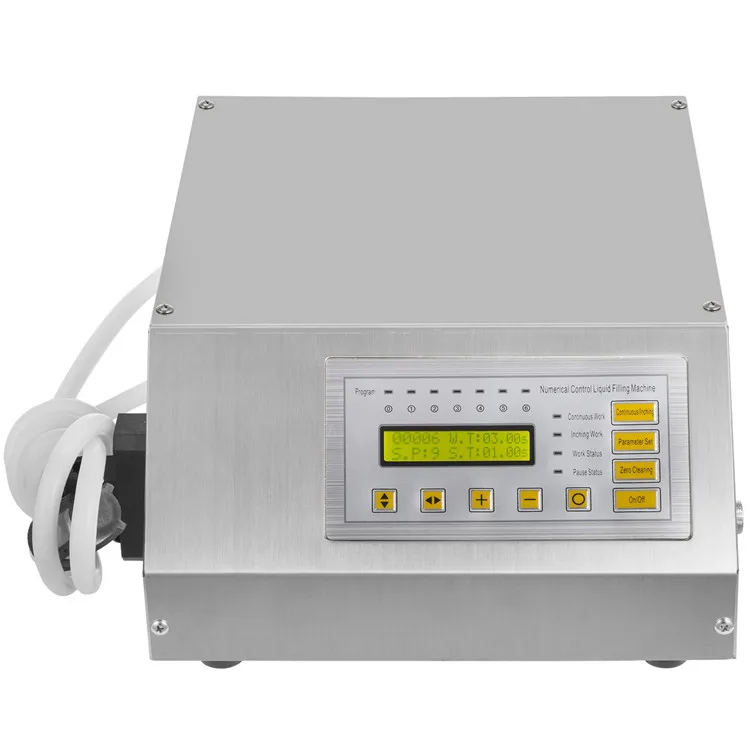

Switch on the machine, the LCD screen will show welcome words and the machine will be under standby status after 3 seconds. As photo4 shows, the screen shows filling quantity at the top left corner, filling speed at bottom left corner, once filling time at the top right corner, interval time at bottom right corner.
3. Adjustment
When the machine is under working status, other buttons can't work. You can adjust the parameter after press the on/off button to let the machine under pause status.
4. Measurement Proofreading
This procedure is to check out if there is water coming out from the nozzle. By adjusting the filling time and speed to meet the requirement. The normal work can be carried out after the measurement proofreading is done.
Kindly note: The manufacturer will not be responsible for any damage due to improper operation. This kind of risk should be taken by the users. Strictly abiding by the manual book is a part of operation requirement.
Features
- Automatic counting function, effectively control filling quantity
- Import single-chip microcomputer control, high efficiency, low power consumption
- LCD display, touch screen is very easy to operate
- Filling Accuracy is high, precise volume
- Wide Voltage range
- Working performance is stable and can be used for long time
- Self-suck function, don't need to pour
- The pump can stand acid and alkali
- Anti-dripping design
- Reasonable design, made of stainless steel, meet GMP requirement
- Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s
- Save up to 6 sets of parameters for different-sized bottles and can choose from easily
- Widely used in medical, chemistry, food, beverage, oil, and cosmetics, etc.
- Suitable for filling low-viscous liquid without pellets
- The pump can stand oil, heat, acid, alkali, abrasion and chemical products
- Integrates the advantage of self-suck pump and chemical pump
- Self suck, heat protect, stable working and continuous idle or load operate for long time
Technical
- Voltage: AC110V-140V
- Power: 30W
- Max Flow Rate: 3.2L/min
- Max Absorption Distance: 2m
- Repeat Error: <0.5%
- Package Dimension: 400×380×200(mm)
- Machine Weight: 5.5kg / 12.1Lbs
- Filling Volume Range: 2ml-3500ml
- Anti-dripping Function: Available
- Memory Function without Electricity:Available

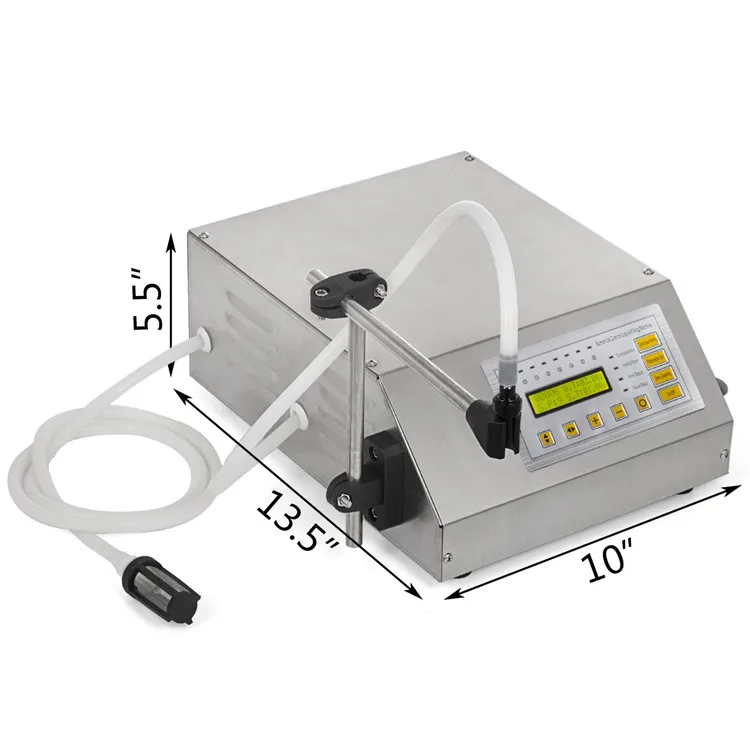

- Machine Size:350 X 270 X 150(mm)
- Diameter of Filling Nozzle:Φ 8mm
- Suitable Soft Tube:17# (interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)
- Note:Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.

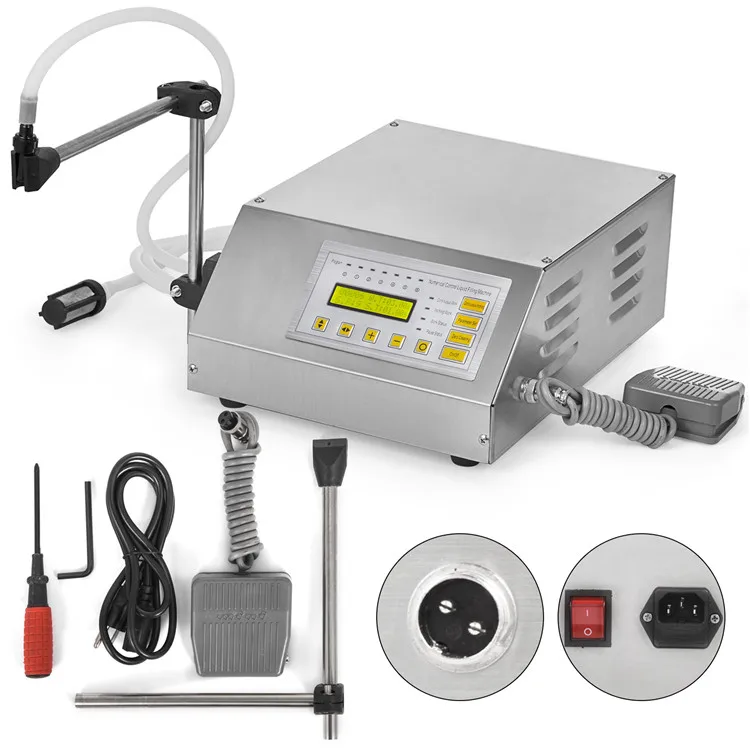

Friendly
- Power cord X 1
- Pedal Switch X 1
- Filling Stand X 1
- Filter X 1
- Filling Nozzle X 1
- Screwdriver X 1
- Inner hexagonal wrench X 1
- Manual Book X 1
- Guarantee receipt X1
Pictures
Customer payment
Certification
Company Information
| Company name | Shanghai Peixu Machinery Equipment Co., Ltd. |
| Business modle | Manufacture&Trading |
| Place of origin | Shanghai,China(Mainland) |
| Delivery time | 5~10 days |
| Minimun order quantity | 1 set |
| Payment | L/C;T/T |
| Warranty | 2 years |
