Алюминиевый промышленный светильник ufo IP65 5 лет гарантии 100 Вт 120 150 250 400

Описание и отзывы

Трекер стоимости

Характеристики

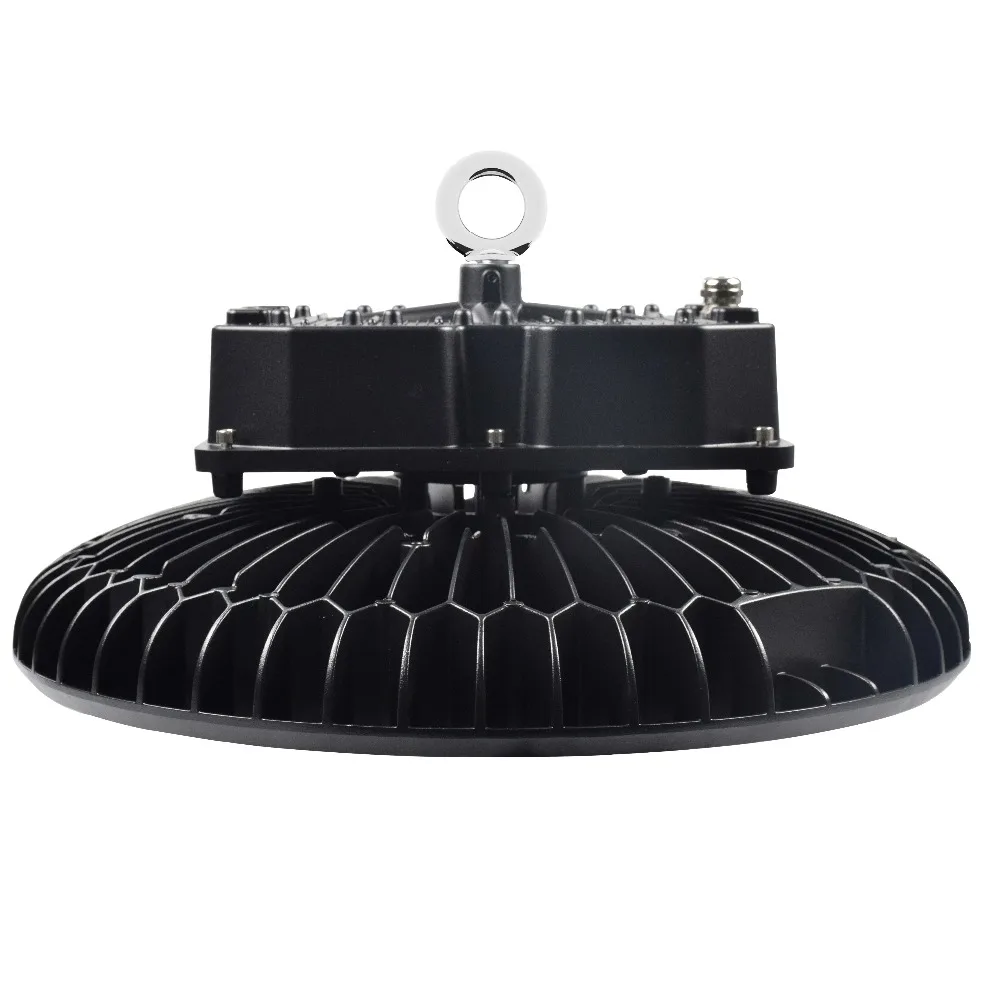

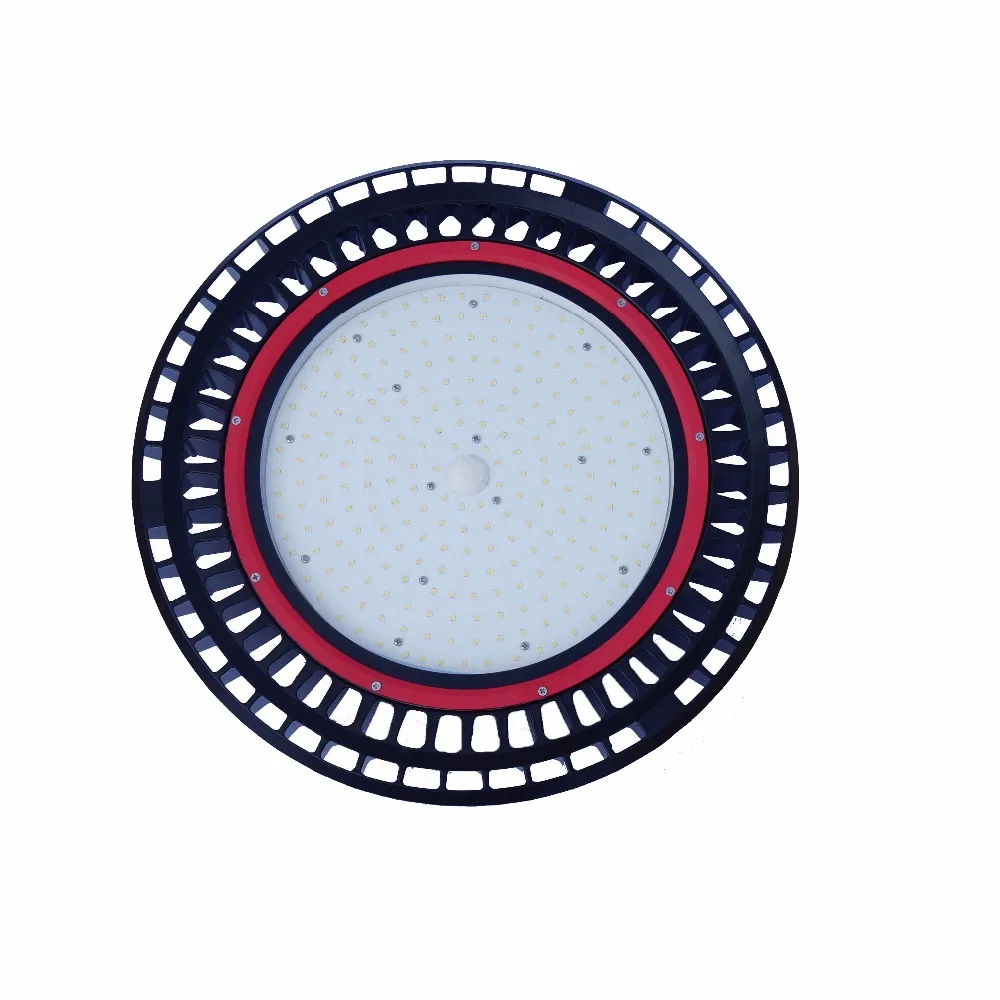

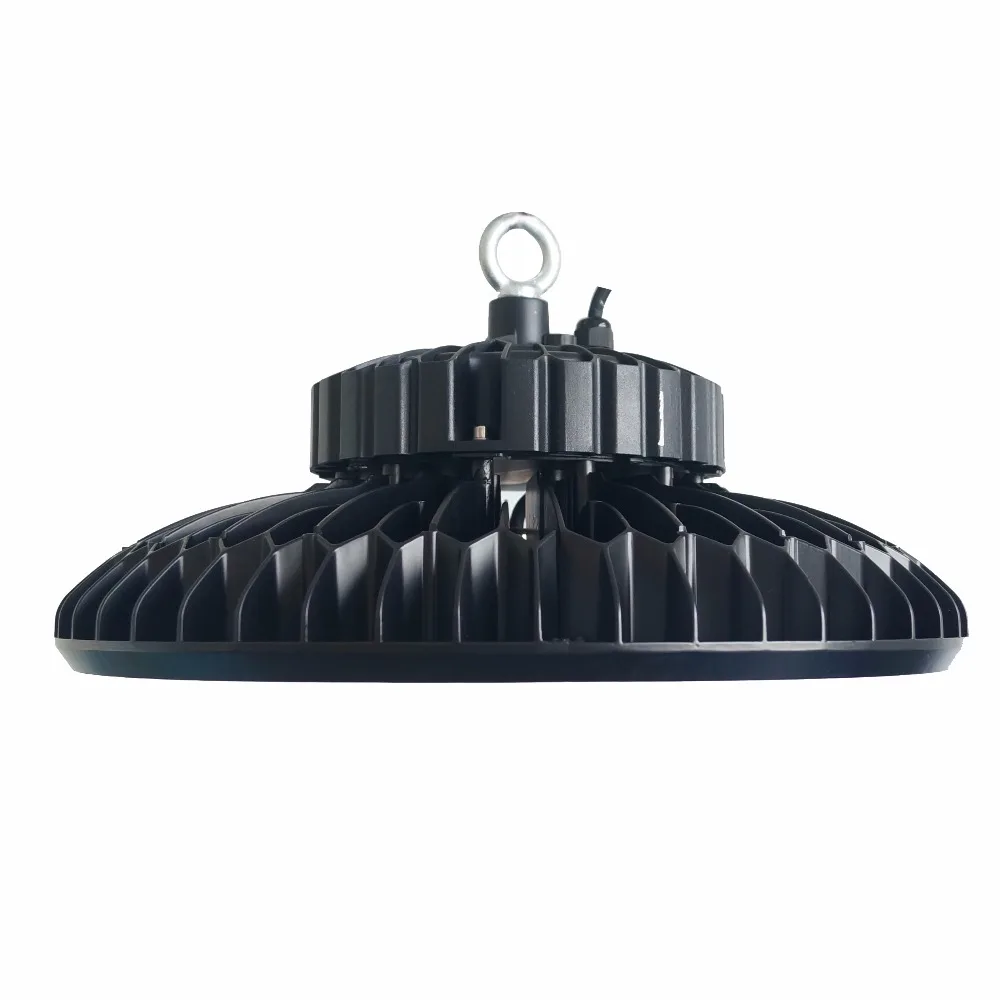

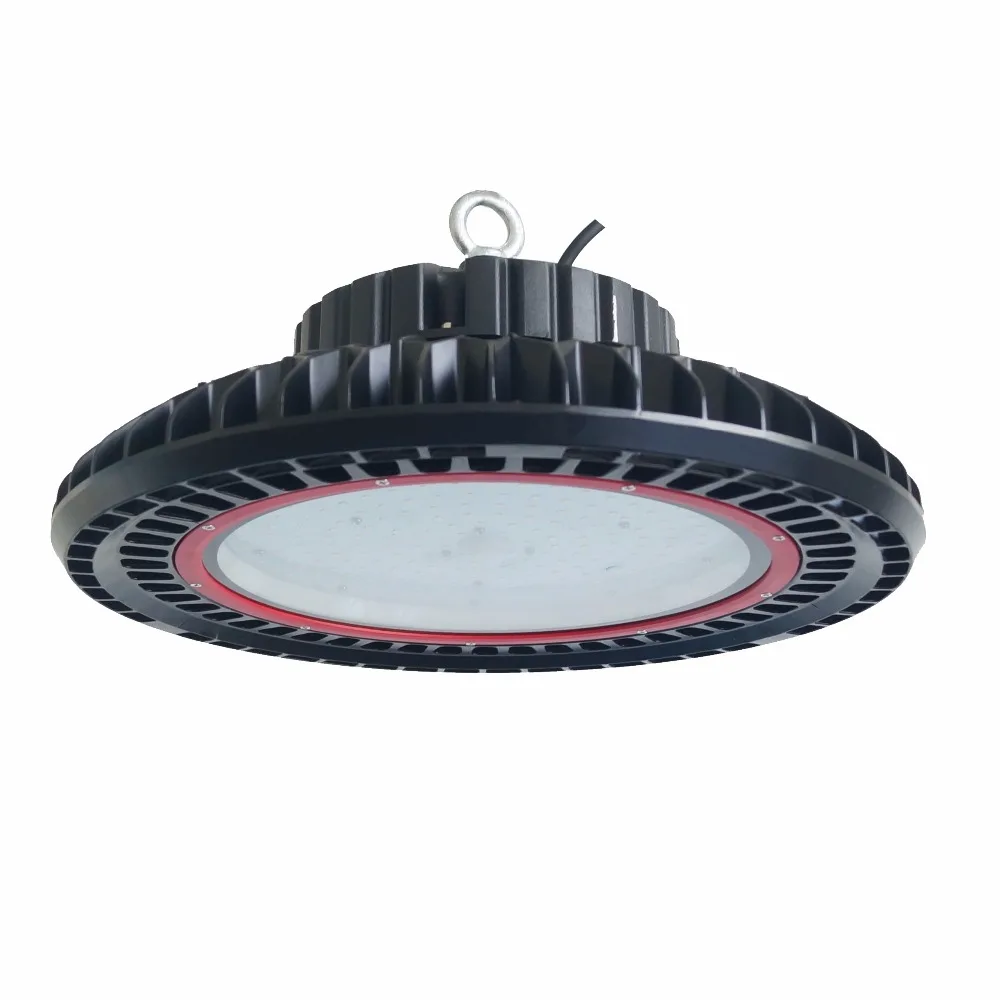

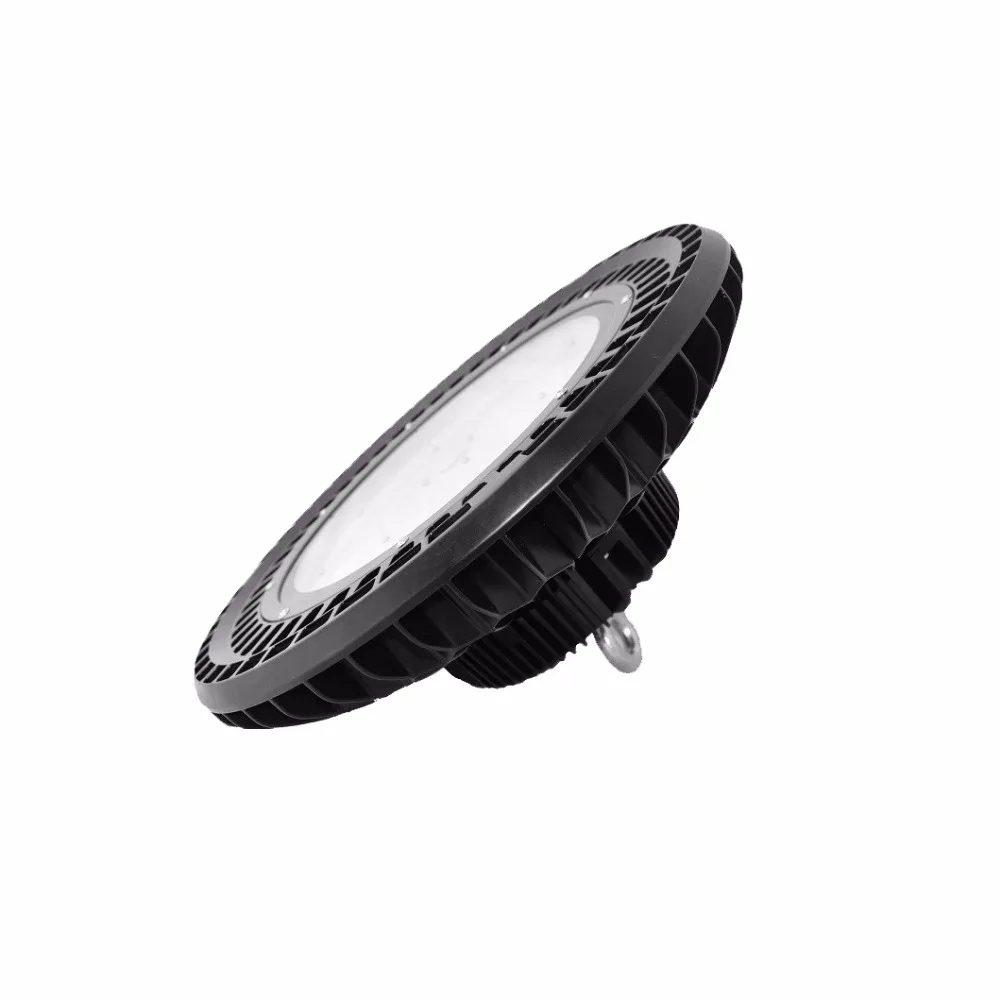

100W UFO LED HIGH BAY LIGHT (CLOUD LED HIGH BAY)



Product Applications

* LED High Bay Lighting series can be widely used in outdoor, indoor or half indoor lighting, like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth,waiting rooms, the platforms of railway station , indoor stadiums and flower cultivating tents etc.



Products Fixture

a. IP 65 rating is designed for challenging environments like water or dust locations.
b. Unique Lens design offers multiple beam angles: 45 degree /60 degree/120 degree
c. High efficiency SMD 3030 chip, Luminous efficiency: 120-150 lm/w;
d. Meanwell HBG Series led driver,

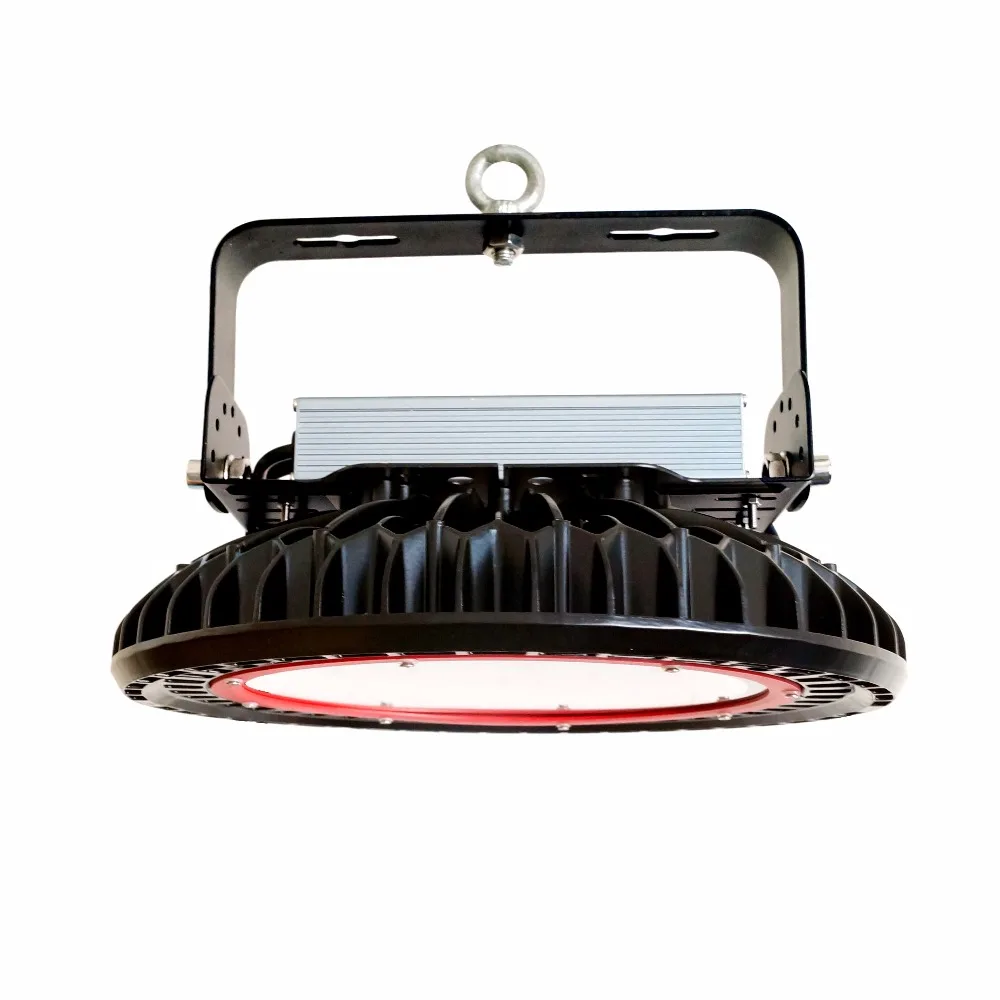

e. Installation: Hook Mount, Ring Mount, Pole Mount, Bracket Mount (Optional)
f. Multiple Ring Colors: Black, Red, Yellow



Replacement Table



Products Technical Specification

Model No.	SF-H-B100	SF-H-B120	SF-H-B150	SF-H-B200	SF-H-B240	SF-H-B300	SF-H-B400
Power	100W	120W	150W	200W	240W	300W	400W
Lumen	14000LM	14000LM	20000LM	26000LM	30000LM	42000LM	58000LM

LED: SMD3030
Power Factor: >0.95
Colour Temperature: 3000K, 4000K, 5000K, 6000K (Red/Yellow/Blue/Green availabe)
Input voltage: AC85-265V/AC100-305V
Driver: Meanwell Driver or CE Approval Driver
CRI: >Ra80 ( Customized available, such as CRI>Ra90)
Luminous efficiency: 120-150lm/w
Housing color: Black/ Grey
IP grade : IP65
Beam angle : 120 degree

Material: Aluminum + Tempered Glass
Working temperature: -35 °C~ +55 °C
Lifespan: 50000 hours
Warranty: 5 years

Product Dimension (unit: mm)(200w)



Light Distribution Curve (120 degree)

Product Packaging & Shipping
80w-100w 1pcs/carton, carton size: 33x33x22cm, 4KG/carton
120w-150w 1pcs/carton, carton size: 36x36x22cm, 5.5KG/carton

200w-240w 1pcs/carton, carton size: 44x44x23cm, 8.5KG/carton

300w-400w 1pcs/carton, carton size: 56x56x27cm, 13.5KG/carton



Installation Process



Installation Process
1.In case of fire, explosion, electronic shock, the install, inspect and maintenance must be operated by professional people.
2.Please make sure the power off before operation!Luminaries must be electronic grounding!
3.Please make the voltage supplied is available for the luminaries!
4.Please make the luminaries working under the limited working temperature!
5.In order to guarantee enough air convection, luminaries should not be installed in narrow space!

Hook installation steps
1.Cut off power before operation.
2.Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.
3.Fix the hook before installation and make the it can bear over 3 times weight of the lamp
4.Connect the lamp with hook and make it is safe.
5.Connect the power wire:Brown,“L”,connect to LIVE; Blue, “N”,connect to NEUTRAL; Lime-green,
connect to EARTH/ROUND

Maintenance manual
1.Cut off power before maintenance
2.Clean the LED bay light regular to keep good light transmission.
3.Clean the dusk on the surface and heatsink regular to keep good heat dissipation.
4.Do not use water or strong corrosive liquid to clean the lamp, dry cloth is better.
5.Replace LED driver: use screwdriver to open the cover, fetch out the driver. You can see three AC wires, Match brown wire with “L”, Blue with “N”,
Kelly or yellow with “G”. The red or white wire on driver is the positive electrode, black wire is the negative electrode.
Notice, pls confirm the positive and negative electrode has not met extremely instead



Our Production











FAQ
Q1. Are you a factory? Where is your factory?
A: Yes. Our factory locate in Bao'an District, Shenzhen, mainland China.(close to Bao'an International Airport.about 40-45 minutes' drive)
Q2. What about the lead time?
A:Normally, 3-5 working day for sample order, 2-3 weeks for bulk order, we’ll reply the delivery time order by order. Special arrangement for special order and urgent order.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What's the payment method you accept?
A: Usually by T/T, L/C , Paypal or other payment terms
Q6. Can I add my logo on the products?
A: Yes,You can print LOGO free of charge if quantity is good
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5-7 years warranty to our products based different quality standard
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
