Easy to Integrate This Visual Presenter has camera, image system process (ISP) and power all in one. It can be used to display a wide range of materials by connecting to a proper display device.
Excellent Image Quality This product is equipped with 5.0 mega pixels CMOS camera lens that enhances the quality of the image.
Easy To Use When this Visual Presenter is not connected with power source, the signal received from the “COMPUTER IN” can be outputted in “COMPUTER OUT”. This means the Visual Presenter can be operated even when disconnected from computer.
Easy to Adjust The Focus/Iris/White Balance are automatically adjusted. These functions can also be adjusted manually to best fit user’s needs.
Fast Auto-Focus Images will be auto-focused in only 1~2 seconds.
22X Optical Camera Zoom 22X optical camera zoom enlarge the shooting zone.
Image Freeze Make the images become still on the screen.
Multi-Scene Display The multi-scene feature allows multiple images to be shown at the same time.
Image Rotation The displayed image can be rotated by 90°,180°,270°

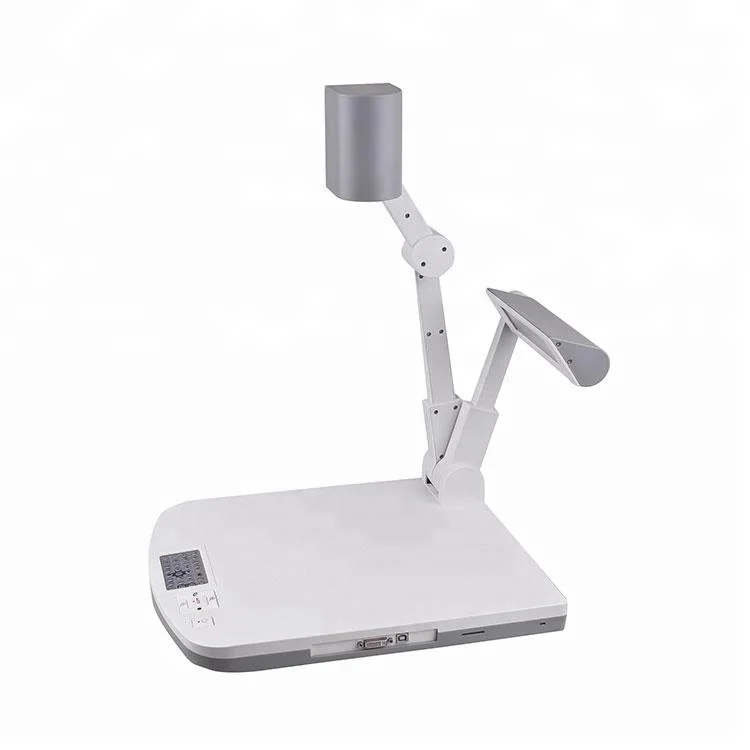

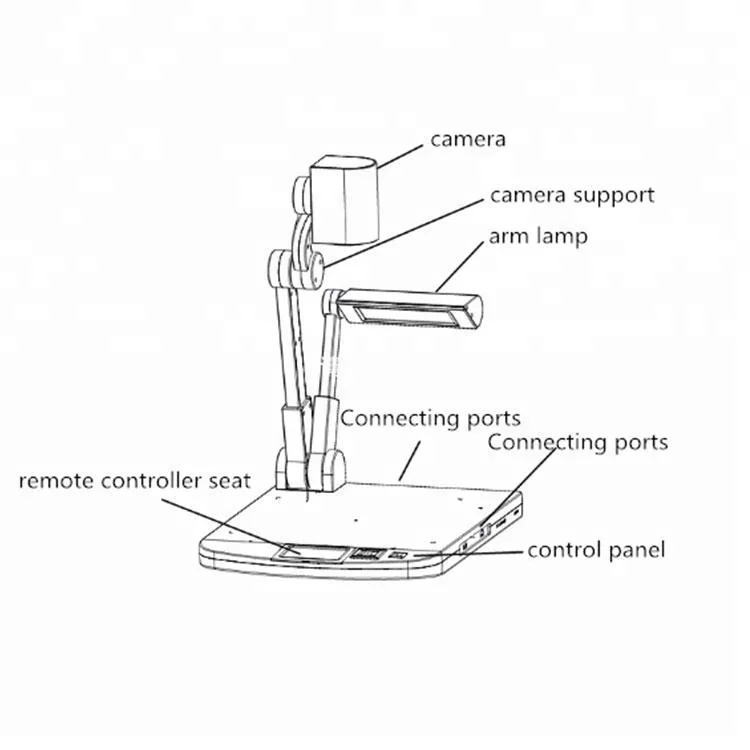

Flexible Mechanical Structure The camera stand has multiple joints and is highly versatile. When the camera stand is positioned vertically, the camera head can rotate 180° (upward and downward).
Display of Various Materials This Visual Presenter can display text, film, 3D objects and a wide range of other materials in fined details. It can also show negative film by turning on the base light and pressing the “NEG” button.
LED Lamps as Auxiliary Light Source LED lamps which have longer rated life and lower energy consumption are installed inside the one arm of this Visual Presenter.
Image Storage and Retrieval Images can be stored in the Visual Presenter for review at a later time.
Built-in Image Switch The built-in image switch allows easy swap between the Visual Presenter and the other image device input.
What's the Specifications?
Type
Model
WS-1105H
Optical System
Zoom
22 X Optical
10xdigital Zoom
Image system
Effective Pixels
5.0MP
Resolution
XGA,SXGA,720P,WXGA,1080P
Horizontal Resolution
≥850 TV Line
Focus
Auto/Manual
Iris Control
Auto/Manual
White balance
Auto
Positve/Negative
YES
Black/White/Color
YES
Special Effect
Title,Rotation(90,180,270 degree),Image Mirror
Special Function
Auxiliary lights
LED Arm light *1pcs
Operation mode
Separate Keyboard , OSD EN/CN/Off
Digtial process
Screen compare
Dual Screen
Picture Storage
YES
Picture Freeze
YES
Brightness adjust
YES
Camera Mode
TEXT/Image

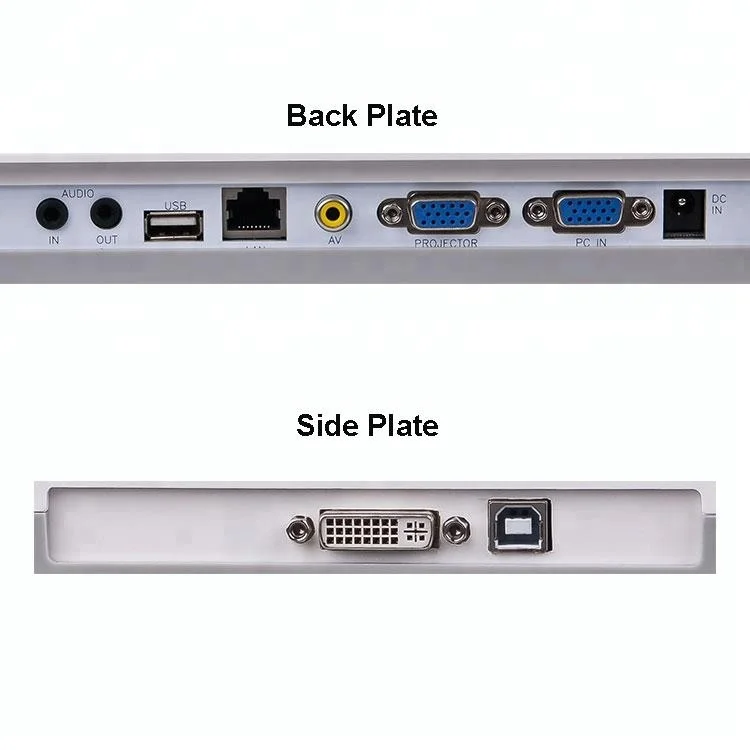

Input
Video
1
Audio
2
RGB
1
Output
Video
1
Audio
1
HDM
1
Blackout pass through
YES
RGB
2
IP Port
NO
USB
YES
Rotation of Lens
Vertical 330°
Size

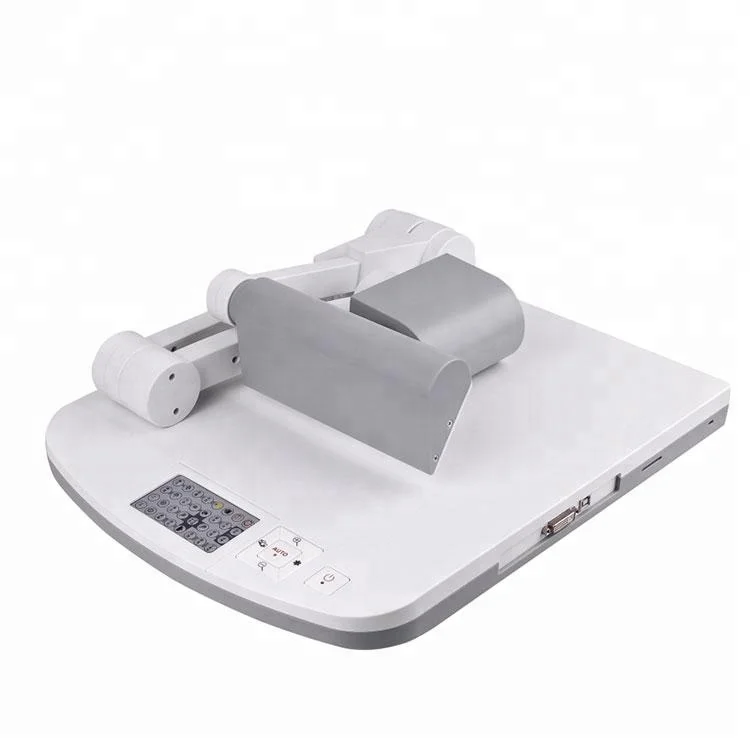

Unfolding
44*35*56cm
Folding
44*35*13cm
Power
DC 5V 2A
Weight
Net weight
2.3
Applications:
1. Perfectly use in multi-media classrooms
Share books, 3D objects, and detailed demonstrations or experiments with your entire class using the easy-to use document cameras.
2. Record and share lessons
Record lessons for viewing at a later time, and give your students a more interactive learning experience.
Display content from your iPad, record lessons for viewing at a later time, and give your students a more interactive learning experience.
3. Live Video Presentation
Conference and Training: Present documents / 3D Objects to large screen by working with projector;
Vivid Presentation with Electronical Whiteboard for Education.
