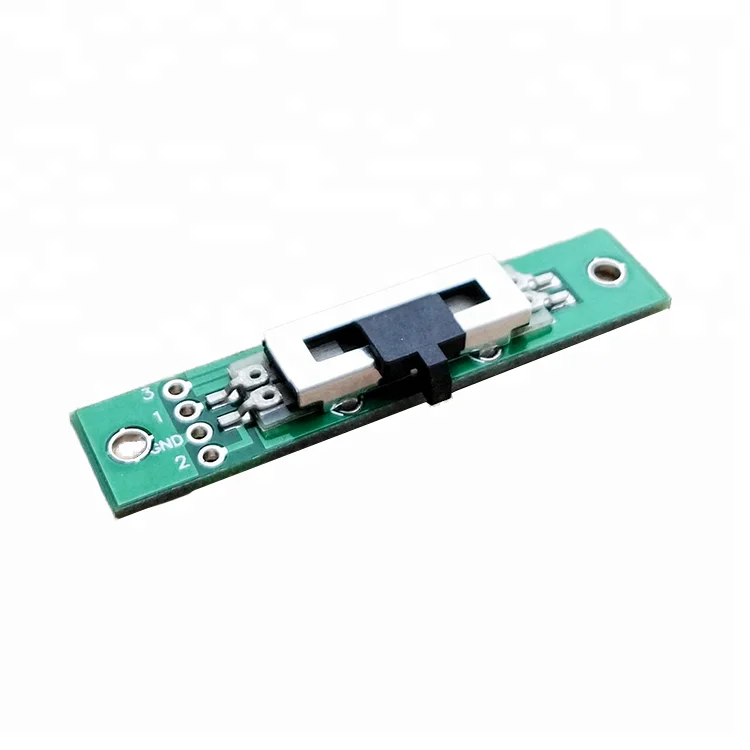

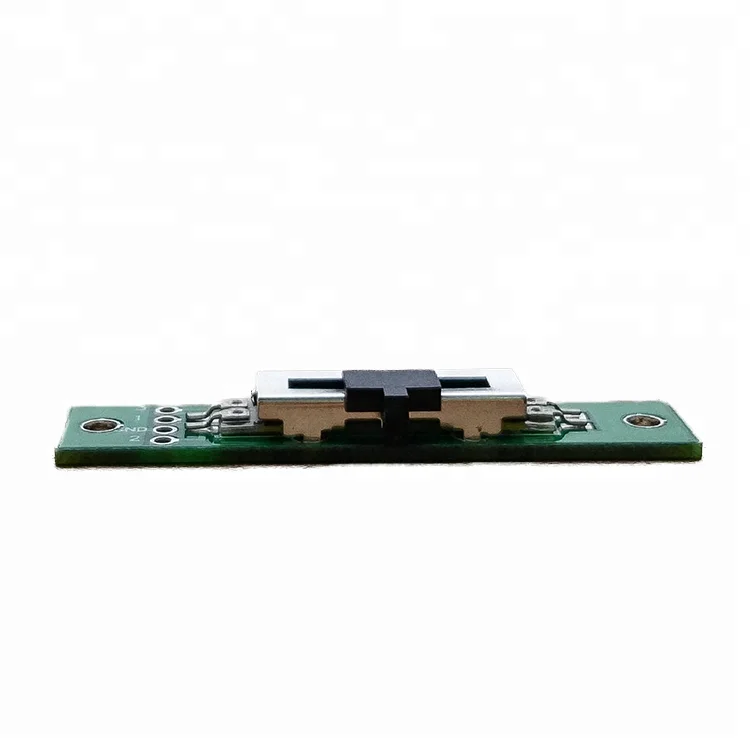

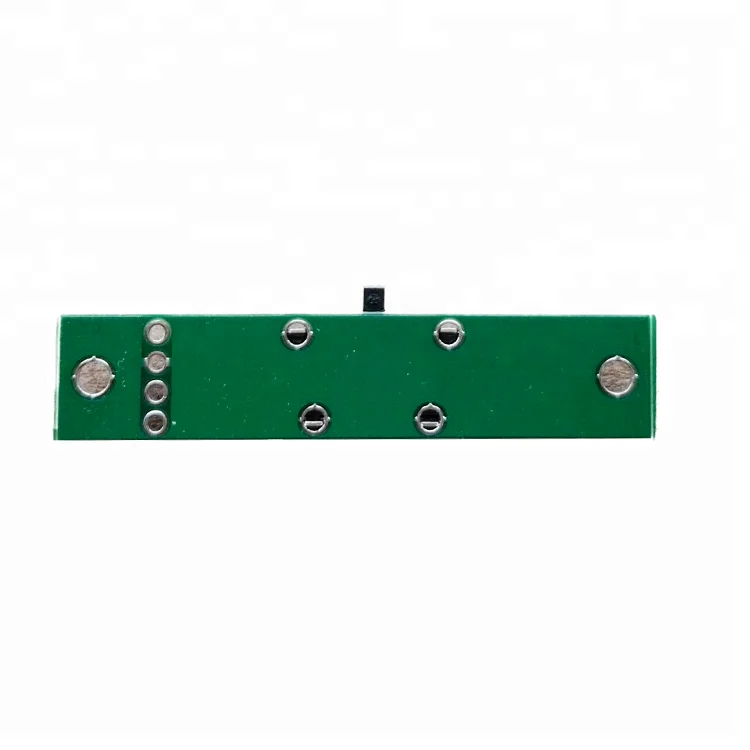

Дорожный модуль печатной платы SL10NV (3 3) 10 мм миниатюрный потенциометр слайда SMD насадка для пайки технология патентный сертификат
- Категория: Потенциометры >>>
- Поставщик: WORLD,WALK,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.48 $* | 1.57 $* |
| Jul-16-2025 | 1.9 $* | 1.46 $* |
| Jun-16-2025 | 1.58 $* | 1.52 $* |
| May-16-2025 | 1.51 $* | 1.6 $* |
| Apr-16-2025 | 1.48 $* | 1.42 $* |
| Mar-16-2025 | 1.17 $* | 1.40 $* |
| Feb-16-2025 | 1.84 $* | 1.55 $* |
| Jan-16-2025 | 1.24 $* | 1.32 $* |
Характеристики

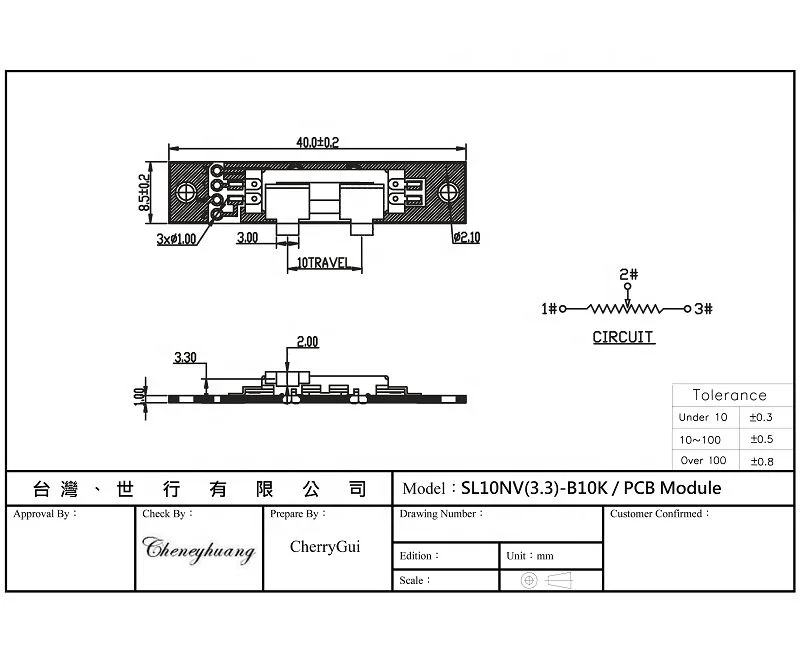

Slide Potentiometer
SL10NV(3.3)/PCB
Application
For volume control on headphones and earphones, portable medical equipment, car electronics, alarm system volume control, and any electronics that require a channel tracer controller.
Mechanical Data
| Sliding Travel | 10mm ± 0.1mm | ||||||
| Rotational Torque | 30~200 gf.cm | ||||||
| Rotational Stopper Strength | 7 kgf.cm Min | ||||||
| Push-pull Strength | 10 kg | ||||||
| Rotational Life | 10,000 Cycles Min. | ||||||
Electrical Data
| Total Resistance | 500~1MΩ | ||||||
| Total Resistance Tolerance | ±10%, ±20% | ||||||
| Residual Resistance | < 10Ω | ||||||
| Resistance Taper (JIS) | B (Linear) ; A (Log) ; C (An-ti Log) | ||||||
| Power Rating | Mono 0.1W (B taper) | ||||||
| Max Operating Voltage | AC100V | ||||||
| Slide Noise | Under 47mV | ||||||
| Insulation Resistance | 100MΩ Min. at DC250V | ||||||
| Breakdown Voltage | 1 Minute at AC250V | ||||||
Advantages
1. Tiny 10mm SMD Slide Potentiometer;
2. The potentiometer is lightweight;
3. There is no wiring terminal;
4. Compatible with reflows soldering (Patent approved);
5. Reduce manufacturing costs and improving product quality;
6. The design would be customized depending on the customer's demands.
