Для хранения литиевая батарея зарядное устройство контроля холодильного агрегата зарядки контроллера переключатель защиты DC6V-60V
- Категория: Переключатели >>>
- Поставщик: Shenzhen,Jinyanxiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.67 $* | 4.60 $* |
| Jul-16-2025 | 3.98 $* | 3.71 $* |
| Jun-16-2025 | 4.88 $* | 4.16 $* |
| May-16-2025 | 4.39 $* | 4.86 $* |
| Apr-16-2025 | 3.25 $* | 3.31 $* |
| Mar-16-2025 | 4.81 $* | 4.35 $* |
| Feb-16-2025 | 4.6 $* | 4.52 $* |
| Jan-16-2025 | 4.66 $* | 4.81 $* |
Характеристики

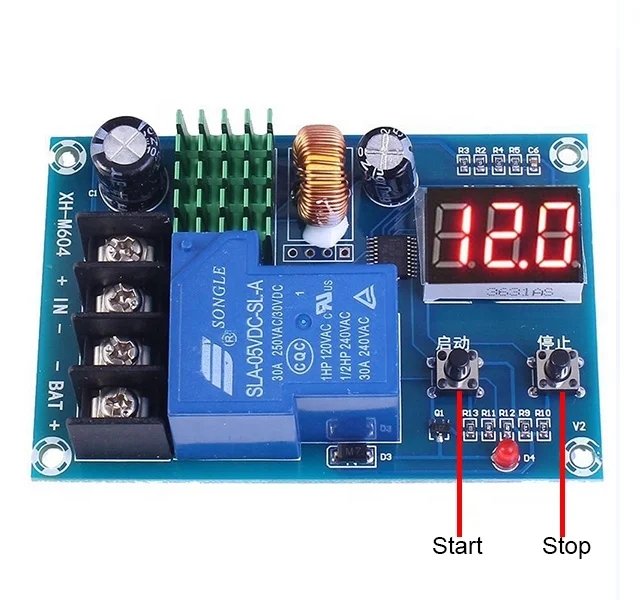

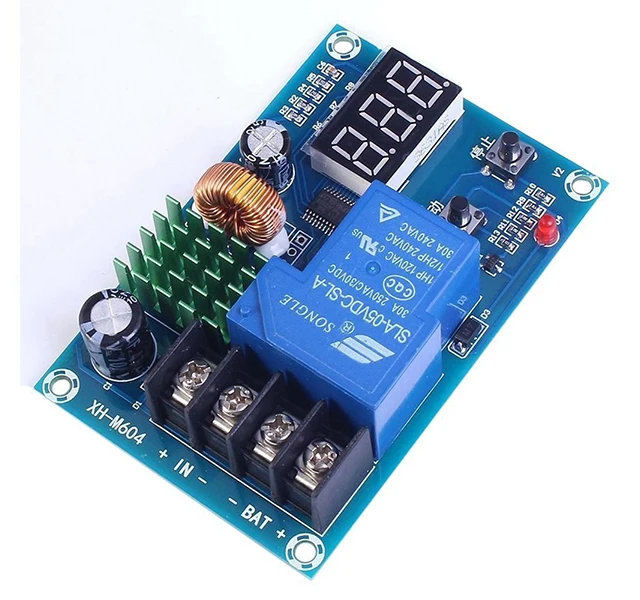

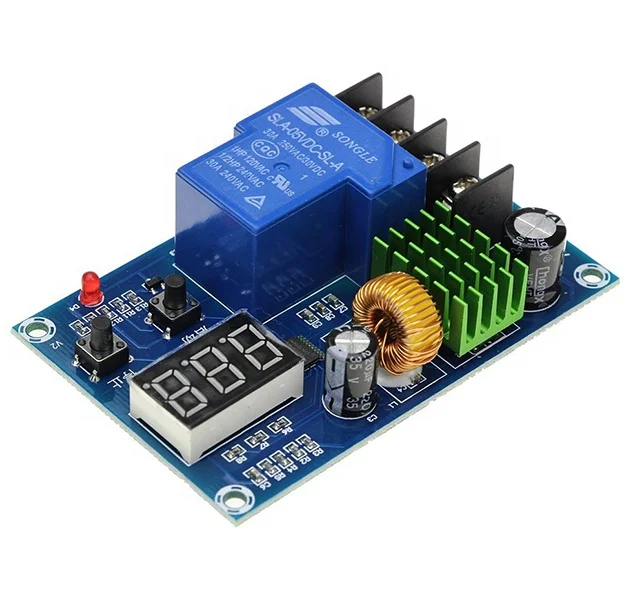

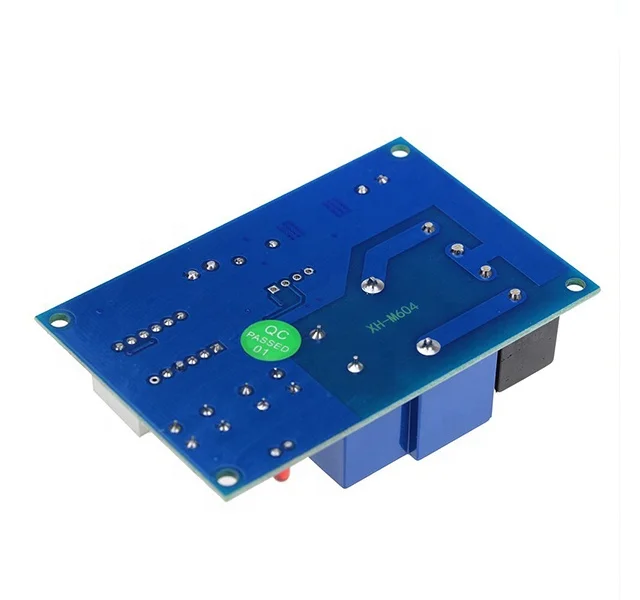

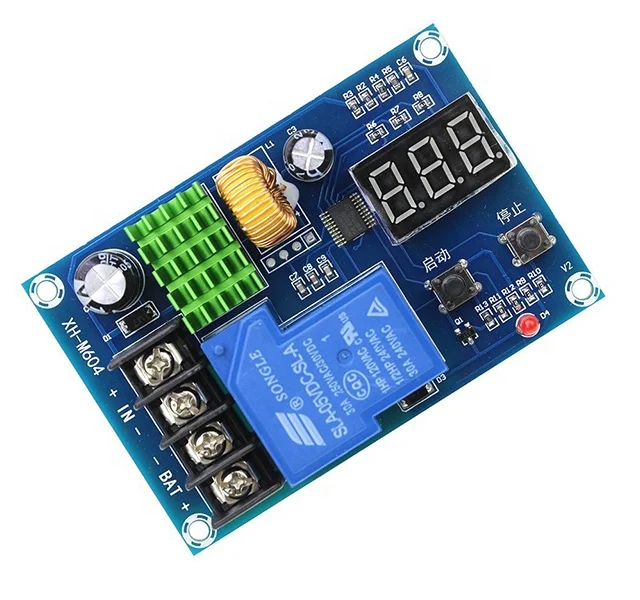

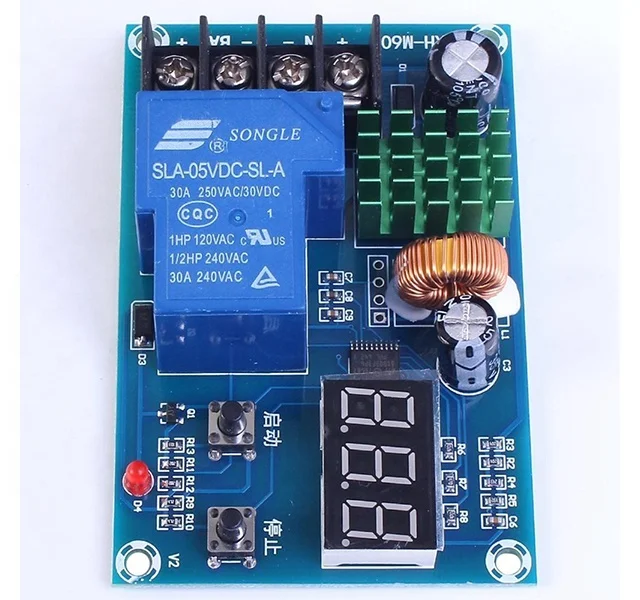

Storage Lithium Battery Charger Control Module Charging Controller Protection Switch DC6V-60V XH-M604
Input voltage: DC 6-60V
Display precision: 0.1V
Control precision: 0.1V
Output type: direct output
Voltage tolerance: + 0.1V
Suitable for: 6-60V maximum 80V battery
Size: 81 * 54 * 18mm
Use: in setting the voltage value, the start button play button is promoted, and the stop button role is down.
1. set the starting voltage:
The voltage state is displayed normally, the starting voltage button is pressed and the starting charge voltage is displayed. According to the start button, the number flashes, and the starting and Stopping buttons are set to set the starting charge voltage value.
2. set stop voltage:
Normal voltage normal display mode, press to stop voltage button, show stop charging voltage. With the stop button, the number flashes, and the charging voltage is stopped by starting and Stopping buttons.
3. setting errors:
Press and hold the start / stop button under the state of electricity. Digital display 888, this is the factory setting
(5)Statement
We reserve the right of little modification of the appearance of the product , subject to change without prior notice.
