Акриловая/поликарбонатная Лицевая панель с принтом на обратной

WHAT ARE GRAPHIC OVERLAYS, INDUSTRIAL FACEPLATES LABELS ?

WHAT IS THE MATERIAL THICKNESS ?

DO YOU USE SUPER STRONG ADHESIVE ? -Get a quote now

Strong and shockproof packages

Описание и отзывы

Трекер стоимости

Характеристики

Главная
Все Категории
Telecom Parts
Акриловая/поликарбонатная Лицевая панель с принтом на обратной

Категория: Telecom Parts >>>
Поставщик: Hangzhou,Qianxi,Crafts,Ltd.

Цена:*

Количество:

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.92 $*	0.45 $*
Aug-15-2025	0.95 $*	0.99 $*
Jul-15-2025	0.40 $*	0.89 $*
Jun-15-2025	0.24 $*	0.23 $*
May-15-2025	0.58 $*	0.6 $*
Apr-15-2025	0.58 $*	0.34 $*
Mar-15-2025	0.91 $*	0.70 $*
Feb-15-2025	0.9 $*	0.93 $*
Jan-15-2025	0.60 $*	0.71 $*

Products Advantage

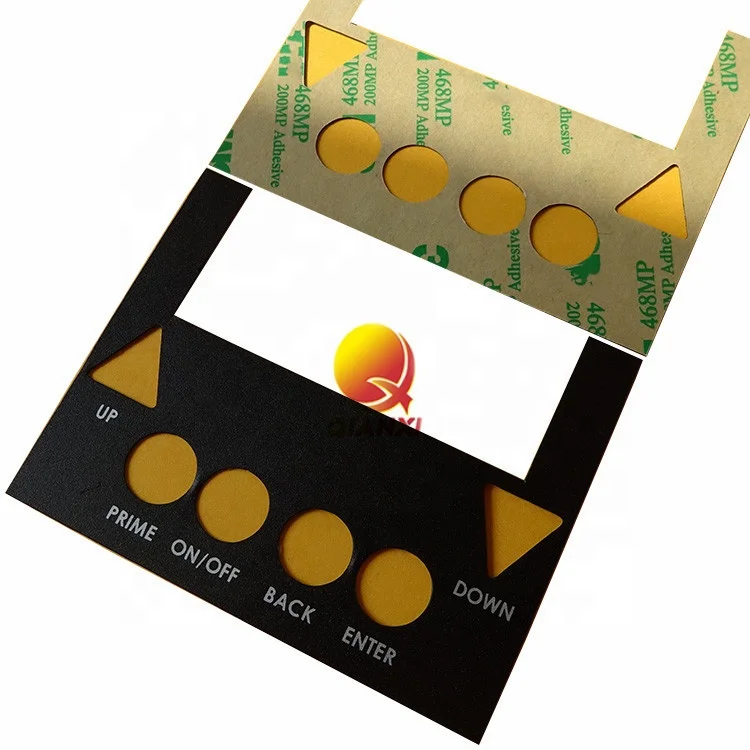

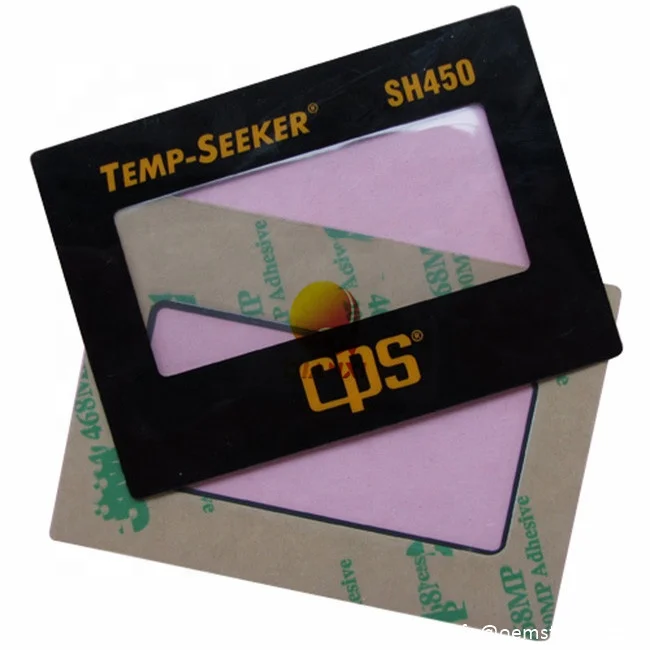

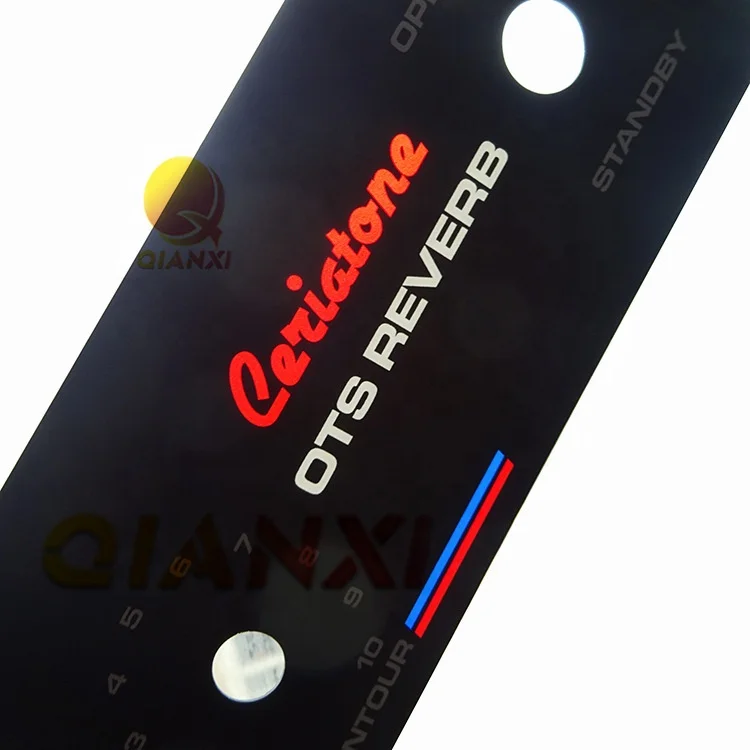

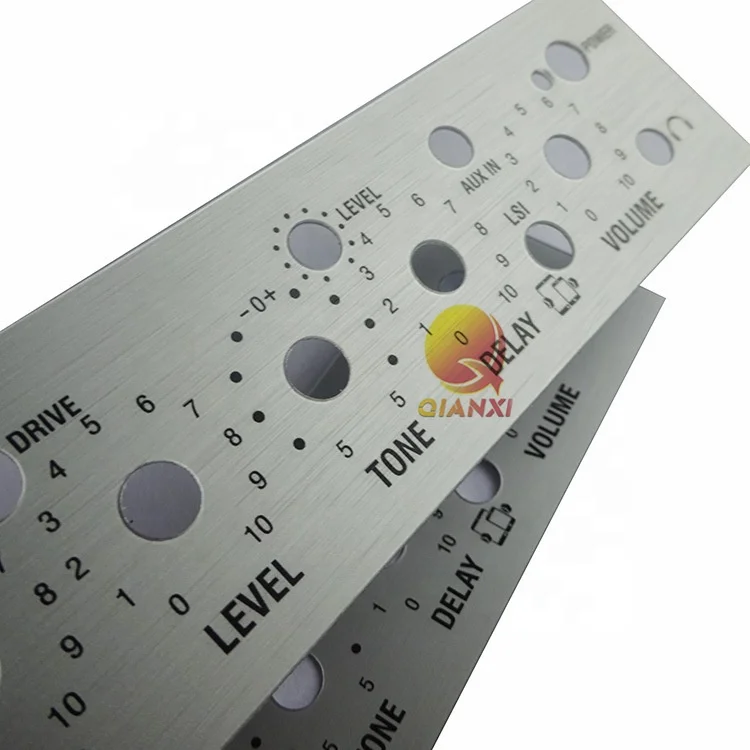

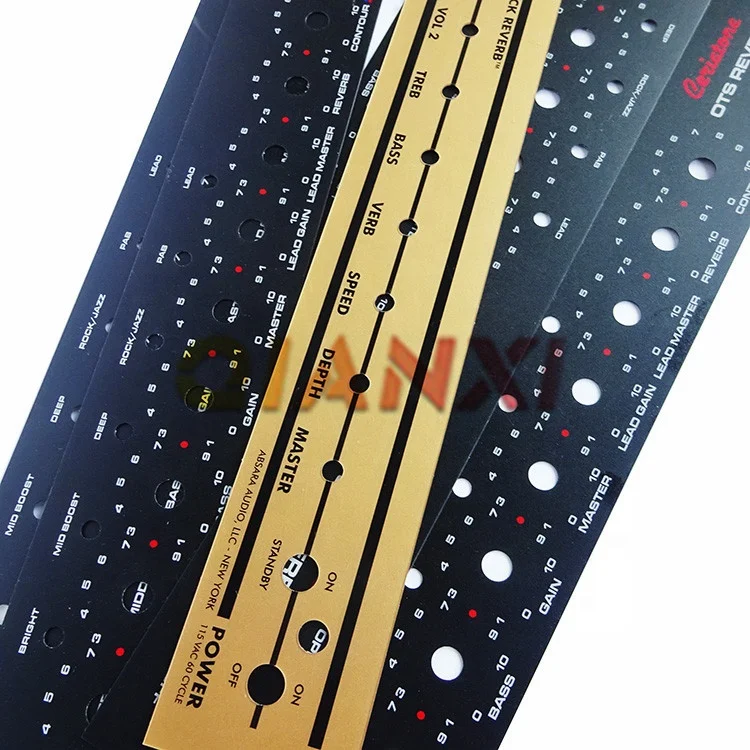

Sometimes referred to as graphic overlays or fascia overlays,
These products are the front covers of industrial machinery and equipment.

They are perfect as a solution that requires lots of cut-outs or raised areas, such as machines with a large number
of buttons, LEDs or screens. We can print on the overlays to show branding or instructions.

Excellent dielectrical properties, Good abrasion resistance

Excellent temperature resistance, Excellent dimensional stability

BASE MATERIALS AND FINISH OPTIONS ?
To suit all applications - Polycarbonate, Polyester and pvc, All with a choice of finishes. Gloss, Anti-glare and mark resist.
MATTE / VELVET FINISH			SHINY GLOSS / TRANSPARENT FINISH

Send a RFQ ?

The material thickness options: 0.125 mm, 0.175 mm, 0.25 mm, 0.38 mm, 0.5 mm, 1mm

Yes! We do use Super Strong Adhesive, Permanent, waterproof, hot-resistant, weatherproof adhesive, even for wall

Selective adhesive can be applied so as not to hinder button actions. The overlay can be embossed to give the button a more mechanical feel. Component cut outs can be added for dials and switches.

PRODUCTION TIME
Samples	Approx 3-7 working days
Mass Production	Approx 7-15 working days, it depends on the quantity, contact us to know it
HOW DO YOU SHIP IT ?
Express door-to-door	3-5 working days
By sea or airfreight	7-20 working days
KNOW MORE DETAILS ?
Materials	Lexan, Polycarbonate, PET (Gloss finish, Matte finish, Velvet finish, Brushed finish)
Finish	Smooth velvet or transparent glossy finish
Thickness	Thickness ranging from 0.125, 0.175mm, 0.25mm 0.38mm, 0.5mm, 0.8mm to 1mm
Sizes	Any size or shape,Up to 60″ x 33″ in size, larger sizes available upon review
Printing	Second Surface - Printed on Underside,Reverse Printed, Silkscreen Printing
Colors	Custom colors, Pontane Matching Colors, CMYK or RGB full colors
Data	Serialization Available
Fixing	Premium Permanent Pressure-Sensitive Adhesive
Production Time	5-15 Working days
Delivery Time	Delivered by airfreight with 2-5 working days, By sea for huge heavy goods 30 days

EXPLORE OUR OTHER PROCESSES

Another elegant way to promote your brand names

\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t

WHAT IS THE PRODUCTION PROCESS ?

Decide the most appropriate base material and printing technique for your requirements.

Your design is colour matched and printed to the underside of the material, so that it reads correctly from the front.

An adhesive is added and any window areas required for screens, LEDs or switches are cut.

Good and safe package to protect your goods and samples
-Products in sheet form or individual packages
-Inside package: shock proof packages
-Outside package: strong 5-7 layer rigid cartons

HS Code:
Labels and stickers: 3919909090 or 4821100000
Metal labels and nameplates: 8310000000
