АПП M6E-1 водонепроницаемый распыления применяемые в сельском хозяйстве беспилотный летательный аппарат для


Поделиться:


Цена:6 799,15 $ - 7 999,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 8635.0 $* 8808.75 $*
Jul-16-2025 7003.64 $* 7143.70 $*
Jun-16-2025 8499.15 $* 8669.80 $*
May-16-2025 8431.59 $* 8600.89 $*
Apr-16-2025 6731.5 $* 6866.52 $*
Mar-16-2025 8295.49 $* 8461.57 $*
Feb-16-2025 8227.29 $* 8392.89 $*
Jan-16-2025 8159.6 $* 8322.31 $*

Характеристики



Product Description

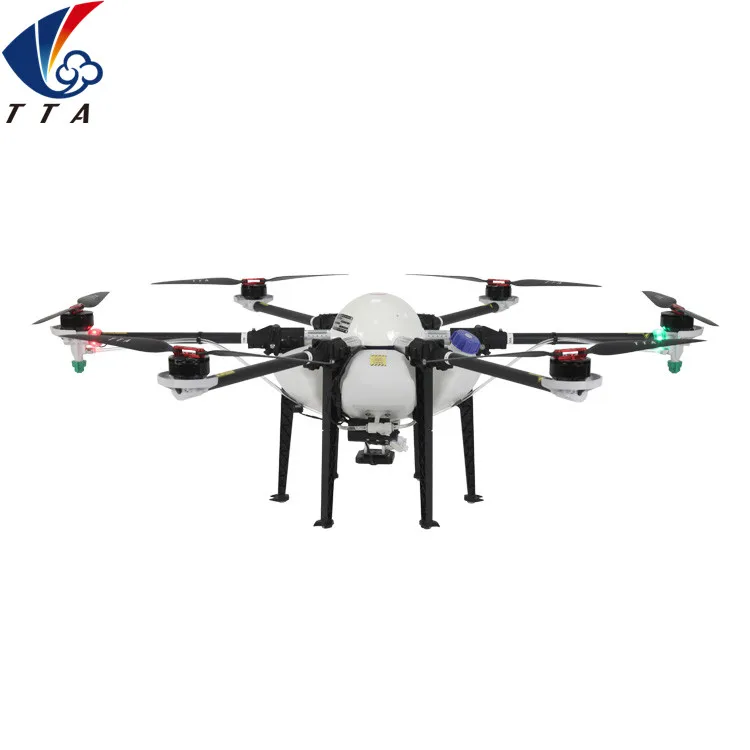

TTA TIANNNOG M6E WHOLE MACHINE WATER-PROOF AGRICULTURE SPRAYER DRONE

Intelligent Agriculture is the trend of all over the world. And the intelligent drone act as a important role in this world plan.
TTA Agriculture spraying drone can replace the traditional pesticide sprayer and it's speed is 40times of the traditional sprayer.

It will save 90% water and 30%-40% pesticide. Small droplet diameter make the pesticide more well-distribute and improve the effect.

At the same time, it will make the people faraway from the pesticide and reduce the pesticide remain of the crop.
Make the life more healthy, make the world more efficient.--TTA

SPECIFICATIONS FOR 10KG PAYLOAD AGRICULTURE SPRAYING DRONE M6E


DIMENTION
Diagonal wheelbase
1400mm
Size Folded L*W*H
490*400*656mm
Container Material
tough plastic
Container Volume
10kg





FLYING
Full payload flying time
11min
Empty payload flying time
30 min
Flying Speed
0-15m/s
Flight Radius
1.5 km
Flying Height
3000-3500m
Landing approach
Vertical take-off and landing
Anti-wind
<8m/s (28.8km/h)




SPRAYING
Spray droplet diameter
60-180μm
Quantity of Nozzles
6pcs
Recommend Spray Speed
4.8-6m/s
Spray Width
4-5.5M
Spray Height
1-3M above crop
Work Efficiency
1.8-2.5Acres/10min


Main Features

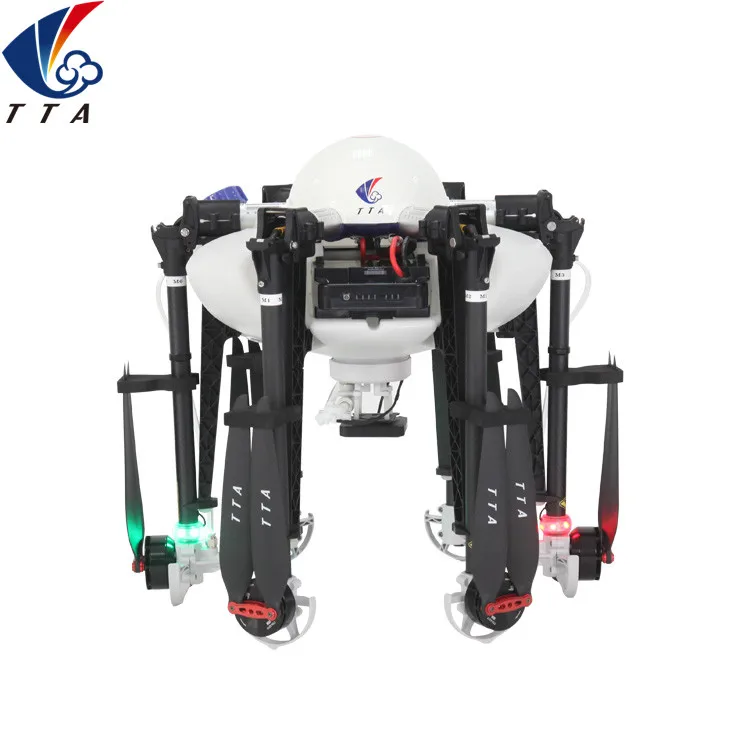

*Quick release foldable design
The whole copter is foldable, landing gear is quick release design, easy to carry.

Tiannong take the patent of newest generation foldable arm,easily damaged parts has been designed specially,

high toughness fiber material as the propellers, spare parts are much lower price.

*360°bicolor LED
Tiannong LED is a bicolor circle design, left and right are apparent, alarm for low power and empty liquid, easy to fly at night.

*Innovative liquid tank design
Add strainer at the bottom of the tank, bottom of the tank could be opened,easy to clean, agitator system is added,

protection from sediment and the uneven liquid, tank is desined for vibrate-resistant.

*Quick plug type intelligent integrated circuit design
Intelligent integrated circuit battery, handhold quick plug design, easy to change

*The whole copter is water-proof, it can be directly clean by water after spraying.

*Easy to maintain, even to repair it at the crop field.  And lower maintain cost.

Detailed Images





Operate mode

operate mode: AB mode

Only one person can operate the drone, very simple but automatic flying.

Support break-point memory, it can automatically back to the point where you stopped to spraying which will avoid to miss the field.

Optional: RTK  accurate positioning system.





Whole machine water-proof

New type structure design, all the electronics are protected well, even the esc are water proof but good dissipate heat progress.

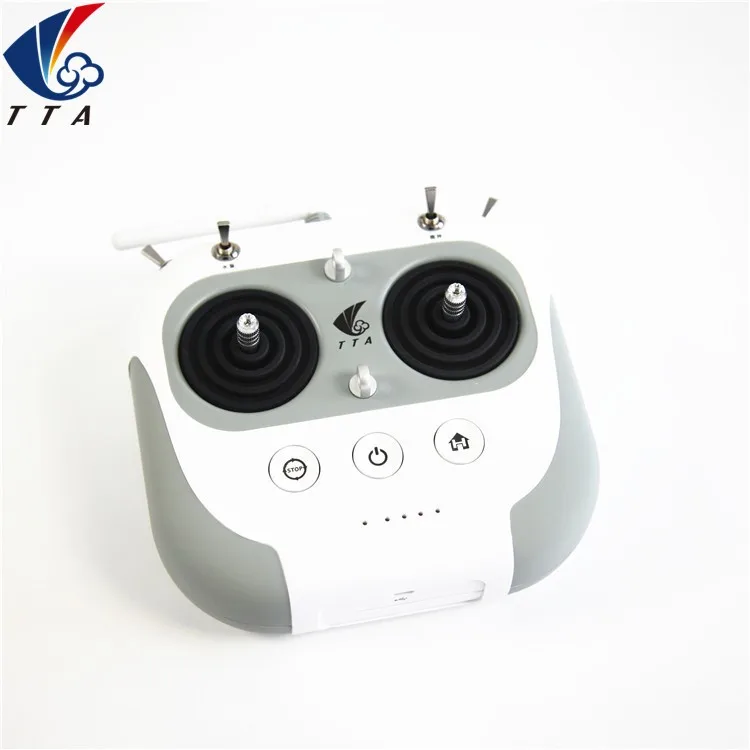

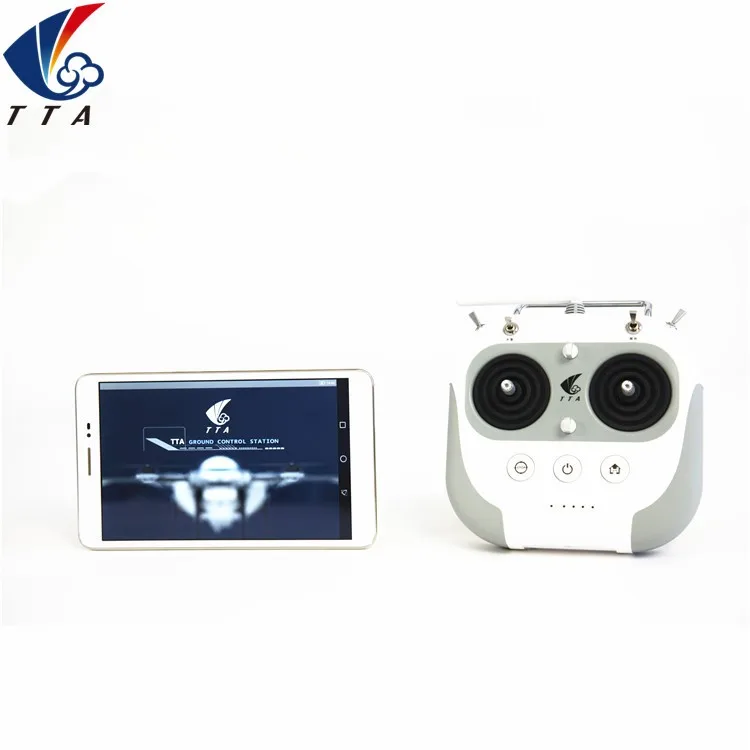

Remote controler

Alarm for low power and lower liquid level .

Support emergency stop. One key stop.

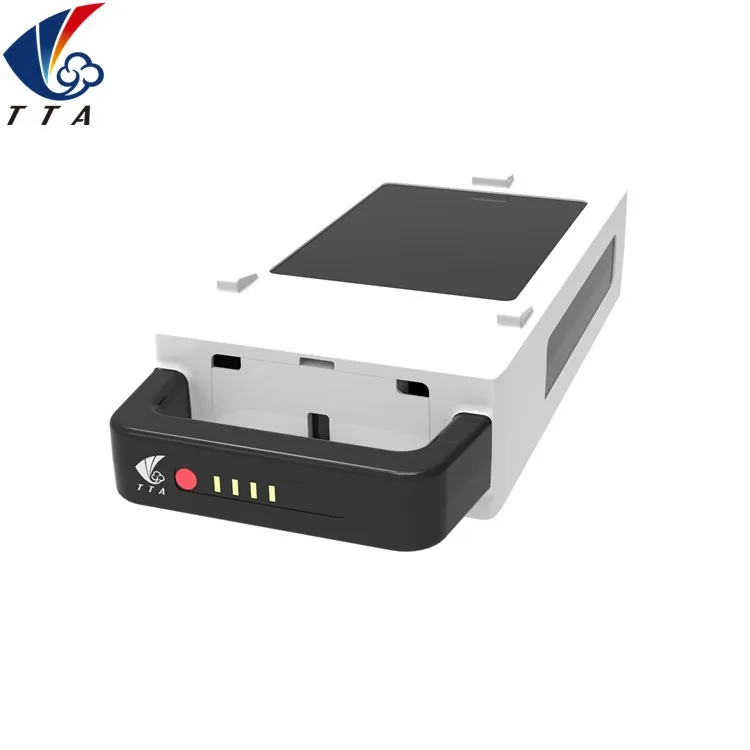

Inteligent battery

Equipped with intelligent battery, only one piece battery , portable push-in design.
The battery will memory the charge and discharge times automatically.
Low voltage protection.







Q&A

Special motor supporter design which will  protect  the

motor well.

Dual 360°Ring LED indicators to alarm when lower power and low liquid level.
Adjustable flow speed and the nozzles are made  in

German.



Q&C

There is a responsible person for each drone.

TTA will test every drone before delivery.

There is serial no. for every drone which can be used to check it's whole production process.



Packaging



Size: 59 (L) * 48(W) * 60(H)

Weight: 15kg

Packing list:

1.Fuselage, water tank and remote controller .
2.Arms and propellers
3.Assemble tools

The drone is packaged by two small portable cartons and the two small cartons can be put in one complete carton. Which compressed the volume and make the transport easier. And we have designed special foam according to the drone structure. The drone inside the box will be fixed.

Why Choose Us



Hot selling products

Certificate display

Company Strength

Our services

FAQ

Q: 1.How to fly the drones?

A: There are operating manual and video to teach the operation. You can also come to our company for free training.


Q: 2.Are your drone waterproof?

A: Yes, the drone is waterproof.


Q: 3.Does your agriculture drone can set routes?

A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.


Q:4.What capacity drone do you have?

A:We have 5, 10 and 20 liters drone.


Q:5.How many hectares can the drone can cover one day?

A:From 30-50 hectares, depends on the capacity.


Q:6.Can the drone spray the high trees?

A:Yes, we designed the fogger drone.


Q:7.Can the drone spray the fertilizers and seeds?

A:Yes. we designed the 20kg agriculture spreader drone.


Q:8.Does it have the FPV camera and light?

A:Yes.


Q: 9.Which flight controller do you use?

A: We have our own flight controller.



      Welcome to contact us ♥ ♥
