Характеристики
Product Description

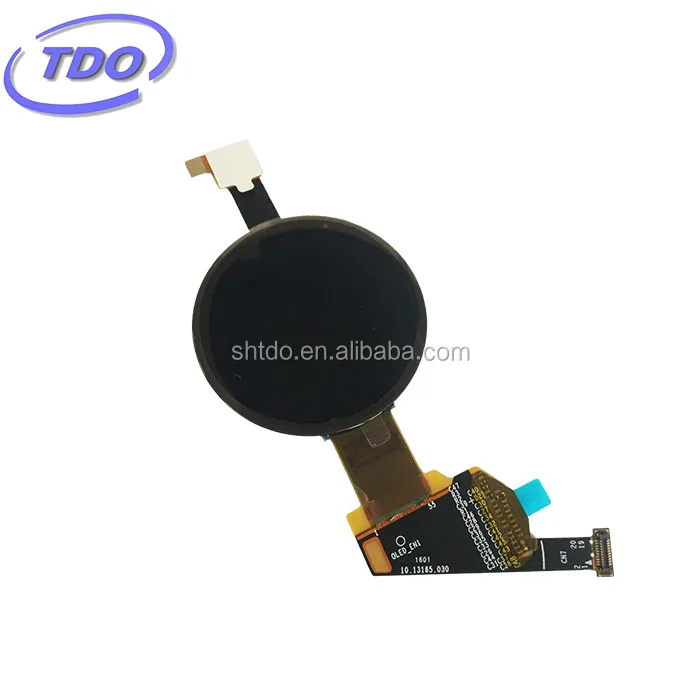

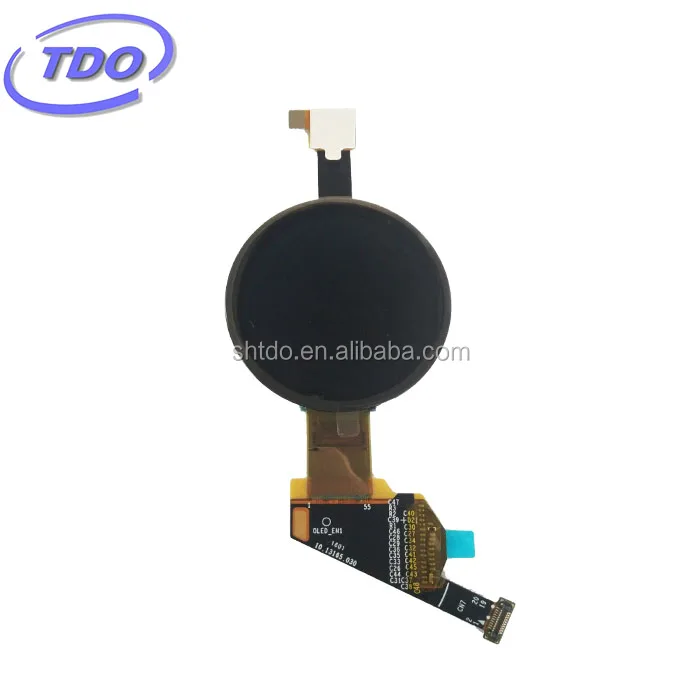

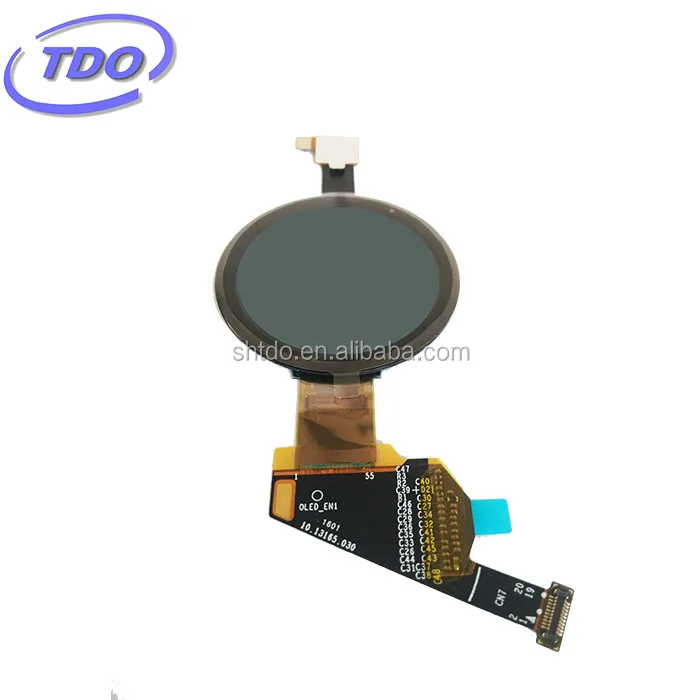

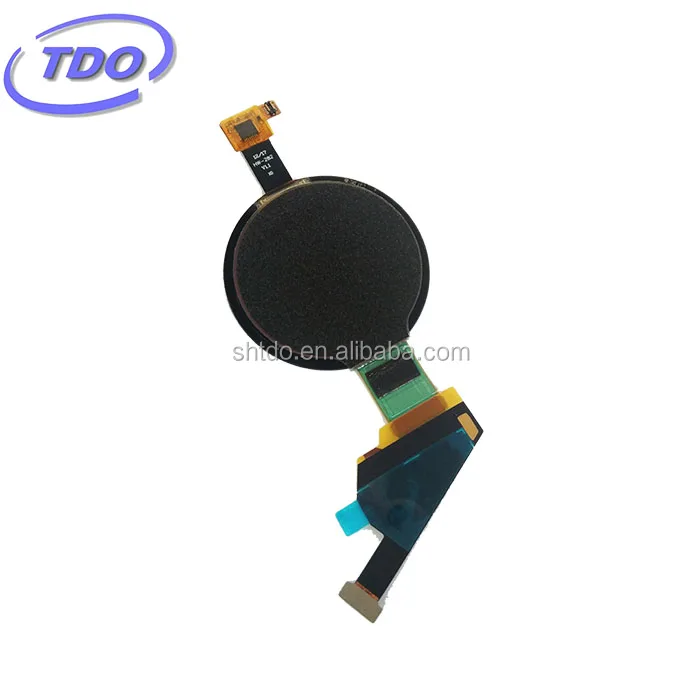

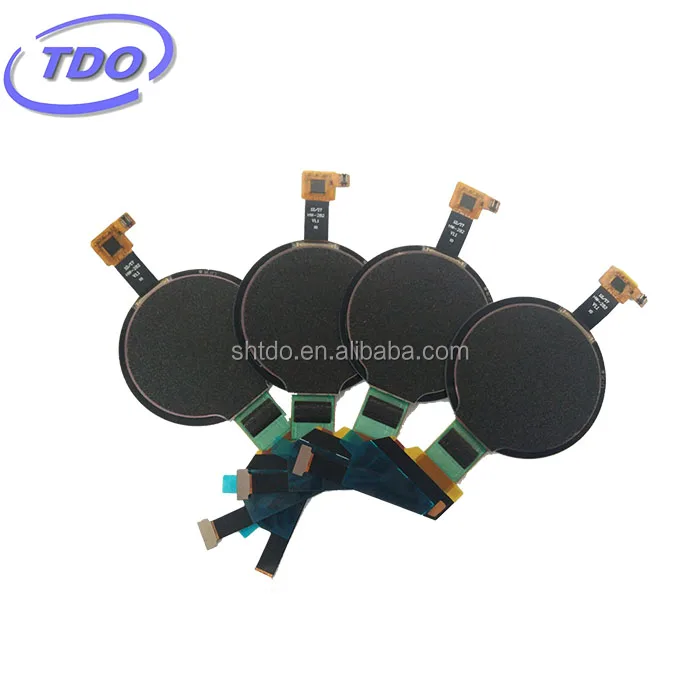

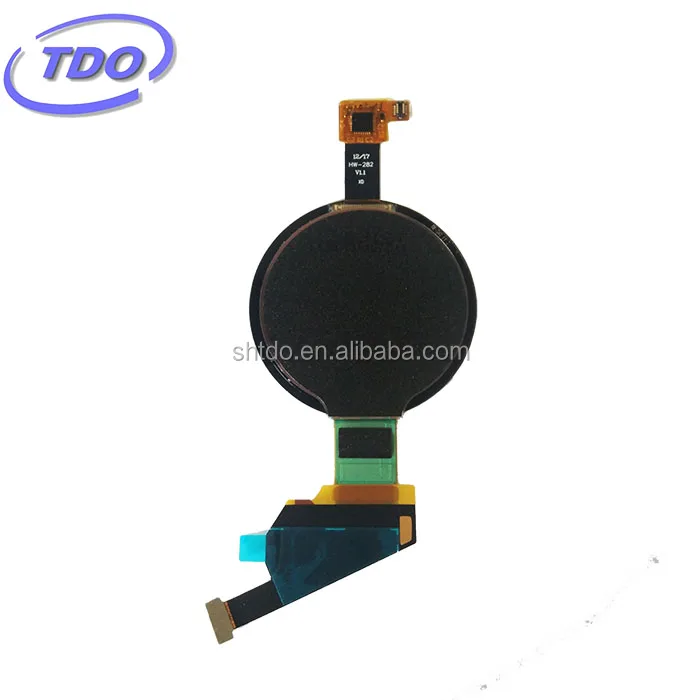

color oled small screen1.39inch oled touchscreen display with CTP touch screen
1.Application :Smart watch
2.Features:
1)display color:16.7M(RGB*8bits)
2)Display format:1.4inch(454RGB*454)
3)Pixel arrangement:Real RGB arrangement
4)Interface:MIPI 1-lane
Mechanical Specifications
| Item | Specifiaction | Unit |
| Dimension outline | 38.6*40.5*0.69 | mm |
| LTPS Glass outline | 38.6*40.5 | mm |
| Encapsulation Glass outline | 38.6*38.6 | mm |
| NUmber of dots | 454(W)*RGB*454 | dots |
| A.A size | Φ35.4 | mm |
| Diagonal size | 1.39 | inch |
| Pixel pitch | 29.5*88.5 | um |
| Glass thinckness (LTPS/encapsulation glass) | 0.2/0.3 | mm |
Note:Refer to 9 outline dimension drawing.
Picture for more
round oled 400 x 400
round oled display 1.39inch
Structure diagram
