H93-R

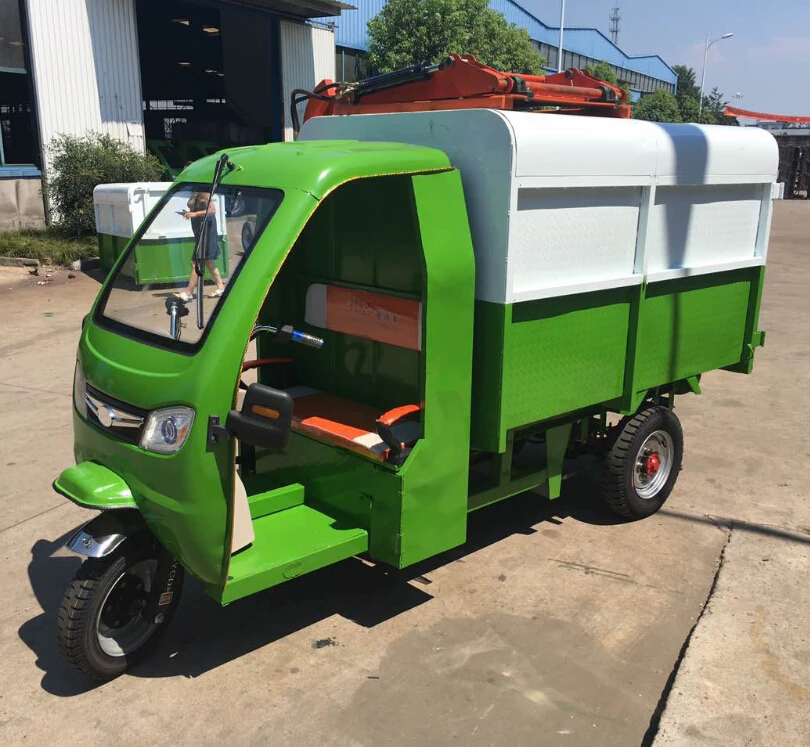

This model is three-wheeled with large hopper. It saves manpower by lifting 240L dust bin at right side with hydraulic system, it is suitable for garbage collecting and transporting in cities, small streets and towns, public squares and so on.









Feature

lRide On

lRechargeable

lHopper Dumping



PARAMETERS

S/N	ITEM	UNIT	SPECIFICATION
1	Dimension	cm	330*115*195(Shed Included)
2	Hopper	L	2400
3	Max Grade Ability	%	≤15
4	Axle Base	cm	220
5	Wheel Span	cm	105
6	Battery	Ah	72V100Ah
7	Continuous Mileage	km	80
8	Max Speed	Km/h	≤25
9	Motor Power	w	72V2500
10	Ground Clearance	cm	15
11	Controller	V	72V36
12	Tyre	4.00-12/4.50-12











FEATURES



lThe hopper is made of 2mm thick steel metal, the main chassis is made of 5mm thick solid steel, and the secondary beam is made of 5mm thick U-steel.

lThe whole machine is anti-corrosion dealed and rust proof. The hopper is all enclosed to avoid leaking during transportation.

lLeaning forwarded hopper and the raised back are effective for avoiding leaking during transportation.

lEquipped with double-axle driver, it is more powerful for climbing lane.

lEquipped with auto-dumping hydraulic system, the 240L dust bin can be overturned easily.

lThe vehicle is endowed with much bearing ability with the three heavy-increased tyres.
