Характеристики
Product Description

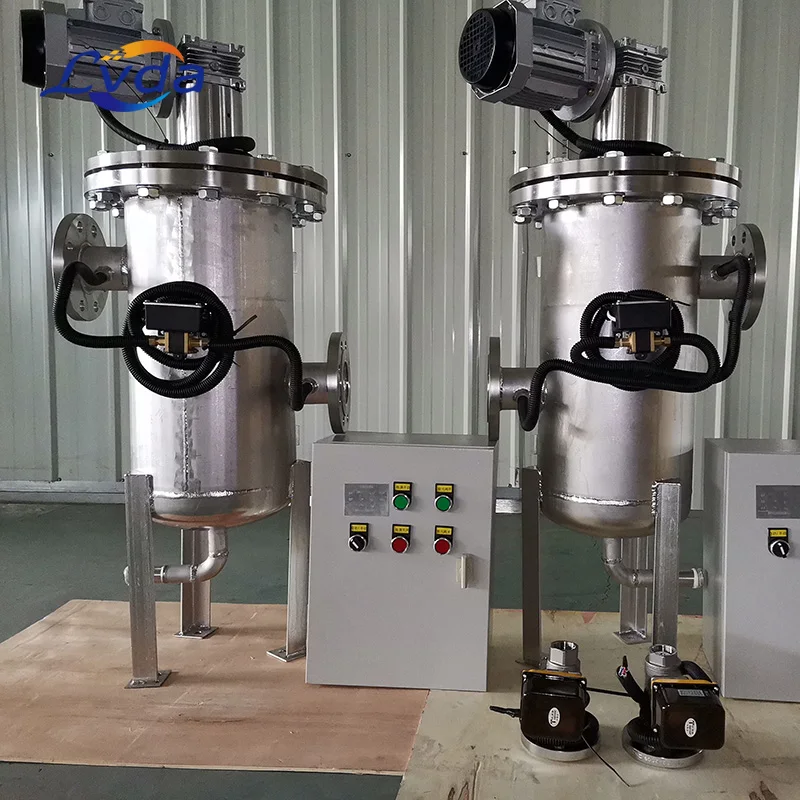

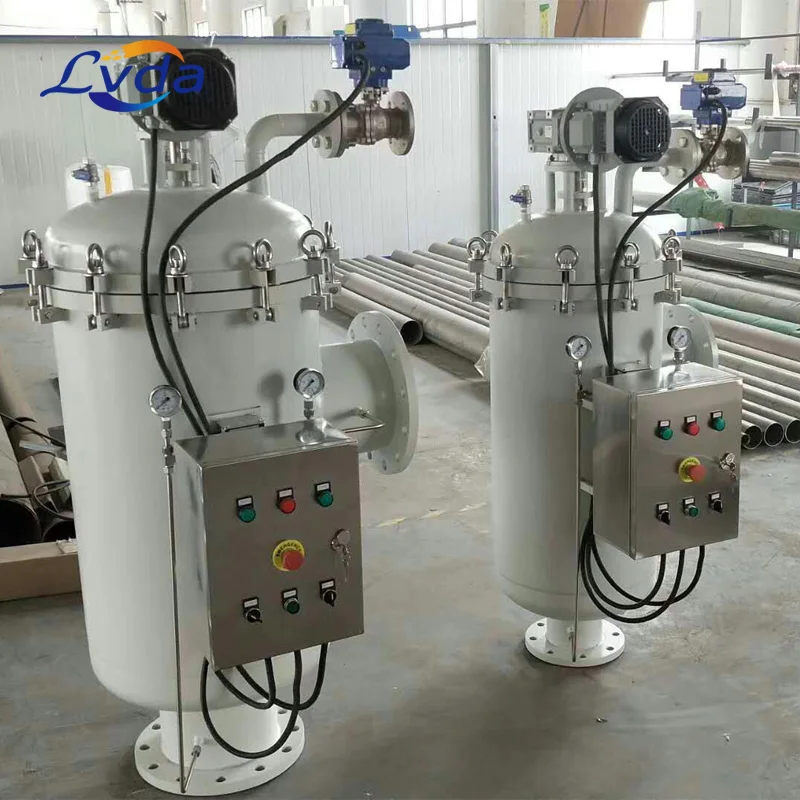

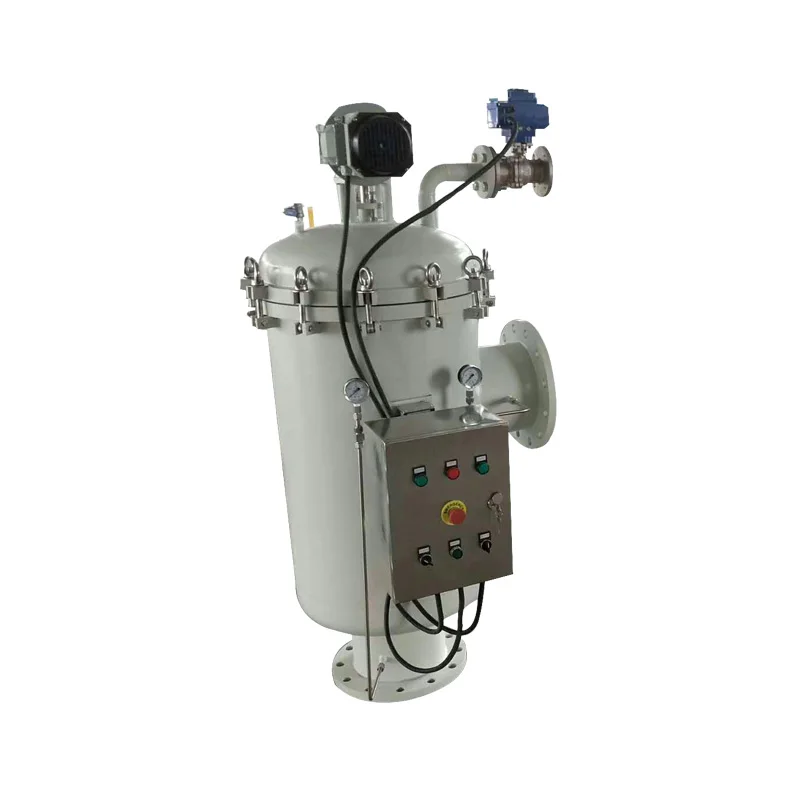

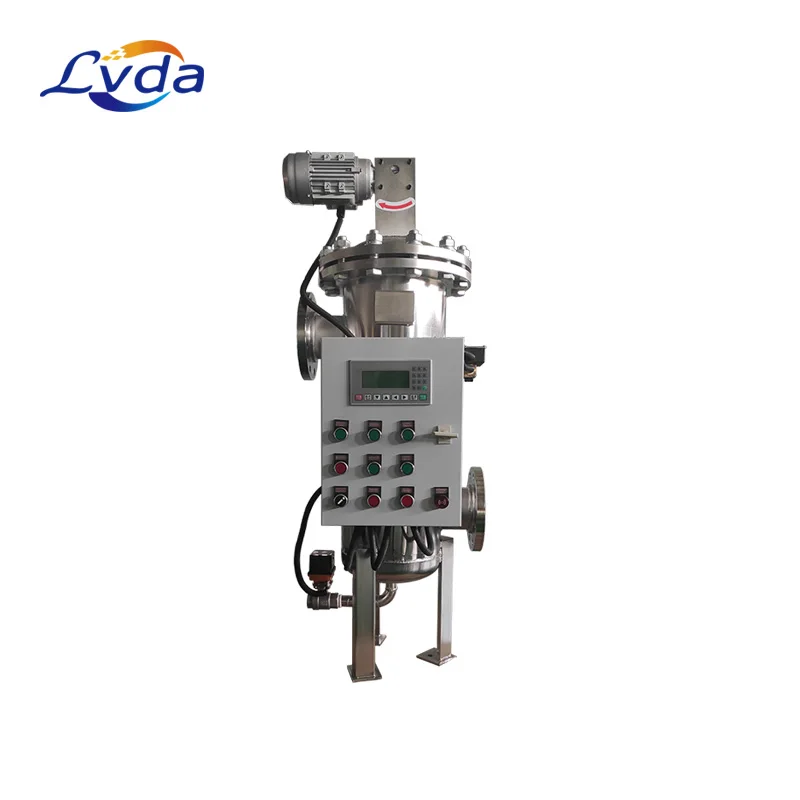

Self cleaning water filter
AIDA screen automatic cleaning water filter , an automatically self-cleaning filter, offers an efficient solution to filtration at
a minimal loss of pressure and flushing water. The self-cleaning system sucks the deposited dirt/waste from the filter screen in approx. 8 seconds, while not interrupting the filtering process. The filter element composed of stainless steel filtering layers sintered to one another has an extremely effective filtering surface. Equipped with maximum differential-pressure protection, a controller box with a flushing programme and an electrically operated drain valve, the filter is supplied ‘ready to be plugged in.
Filter Flow | 20-1500 m³/h |
Max working pressure | 16bar |
Min working pressure | 2bar |
Pressure loss | < 0.1 bar |
Water temperature range | 0 ~ 95 °C |
Filtration Micron | 10~3000um |
Filter element | SS wedge mesh filter |
Filter element Material | SS 304 / SS316 mesh |
Filter housing material | Carbon steel ST37-2/SS304/SS316 |
Connections | Flange |
Control way | Differential Pressure/PLC Timer/Manual |
Drive way | Motor drive |
Sewage way | Automatic |
Installation | Vertical |
Rated operating voltage | 3PH/380V/50Hz |
Production Feature of the screen automatic cleaning water filter
(1)Online operation without shutdown, no bypass features, and a short cleaning time, sewage consumption less than 1% of the total flow.
(2)Cleaning method is simple and efficient, and the cleaning cycle electronic monitoring, can achieve automatic cleaning blowdown, cleaning time, cleaning cycle parameters can be adjusted;The design concept of man-machine integration.(the user can adjust the above parameters according to the actual working condition of the product and the user's demand.)
(3)Filter micron defaults to 100μm, the selction range is from 50μm to 3000μm.Large filtration area, high pollution content.Users can customize according to the actual working condition.
(4)High maintainability, easy installation and disassembly.
(5)Control ways: Differential pressure control, time control, manual control.
(6)With motor overload, overheating protection, can effectively protect the motor.
(7)Connect type: Flange connection,using gb flange, universal.
(8)The extension can be linked to the user's phone and can be monitored 24 hours a day.
(9)The filter cleaning and mixing shaft adopts the three-way lip sealing structure, which can effectively solve the leakage and leakage problems under the long-term working state of rotating shaft and ensure the stability and safety of the whole filter machine.
Feedback
Customer Photos
Company Profile
LVDA
Xinxiang Lvda Purification Equipment Co., Ltd. is a factory with more than 20 years of production experience. We specialize in the production, development and sales of filters, hydraulic filter elements, air compressor filters, oil filters, water filters, metal filters, oil filters and other products, and can also be customized according to customer requirements. Customers in more than 100 countries including Asia, Europe, North America, South America, Africa, etc.
lvda has been recognized in the professional field and has been continuously praised by customers.
lvda has been recognized in the professional field and has been continuously praised by customers.
FAQ
1. Do you accept OEM?
A: Yes. we can produce according to your requirement.
2. Can you print my company logo and package?How long does it take to produce?
A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will
do it for you.
Normally, we produce it need 4-6 working days.
3. What is your MOQ?
A: We can accept 1pcs sample. If more quantities, more favorable price.
4. Payments accepted
A: Bank-transfer, Creditcard, Paypal, Telegraphic Transfer Remittance (TT).
5. What is our shipping ways?
a. By sea and by air.
b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to
collect goods for you from different location. If it's necessary, we can recommend someone for you.
6. How long is your Delivery Time?
A:If there has stock, the delivery time is about 5 working days after receiving your payment.
Order Tips
If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.
A: Yes. we can produce according to your requirement.
2. Can you print my company logo and package?How long does it take to produce?
A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will
do it for you.
Normally, we produce it need 4-6 working days.
3. What is your MOQ?
A: We can accept 1pcs sample. If more quantities, more favorable price.
4. Payments accepted
A: Bank-transfer, Creditcard, Paypal, Telegraphic Transfer Remittance (TT).
5. What is our shipping ways?
a. By sea and by air.
b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to
collect goods for you from different location. If it's necessary, we can recommend someone for you.
6. How long is your Delivery Time?
A:If there has stock, the delivery time is about 5 working days after receiving your payment.
Order Tips
If you are not sure about the filter needed exactly,please advise its exact working environment and usage.We help you choose certain suitable filter.

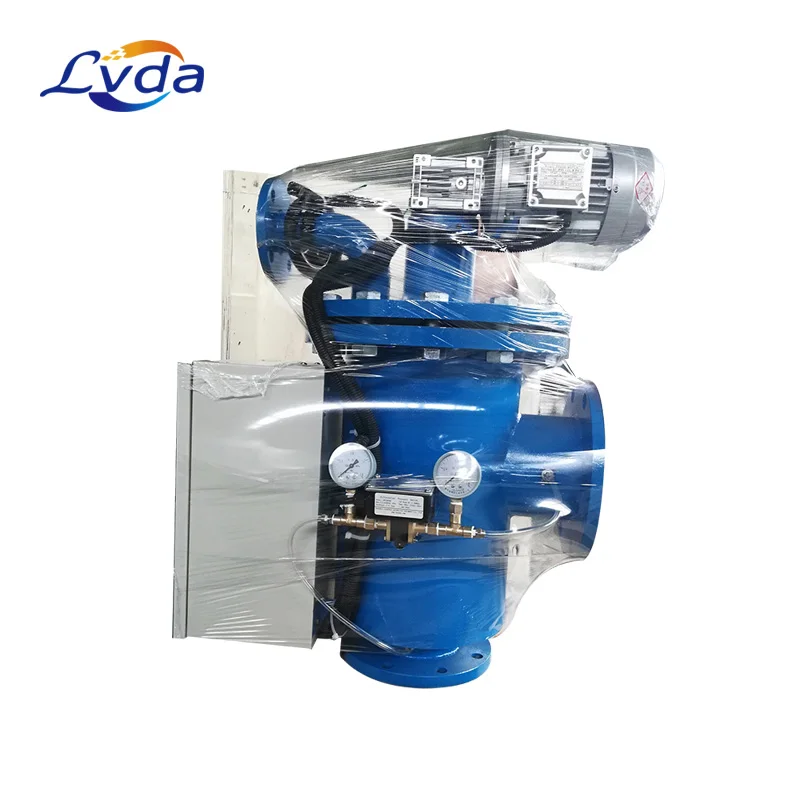

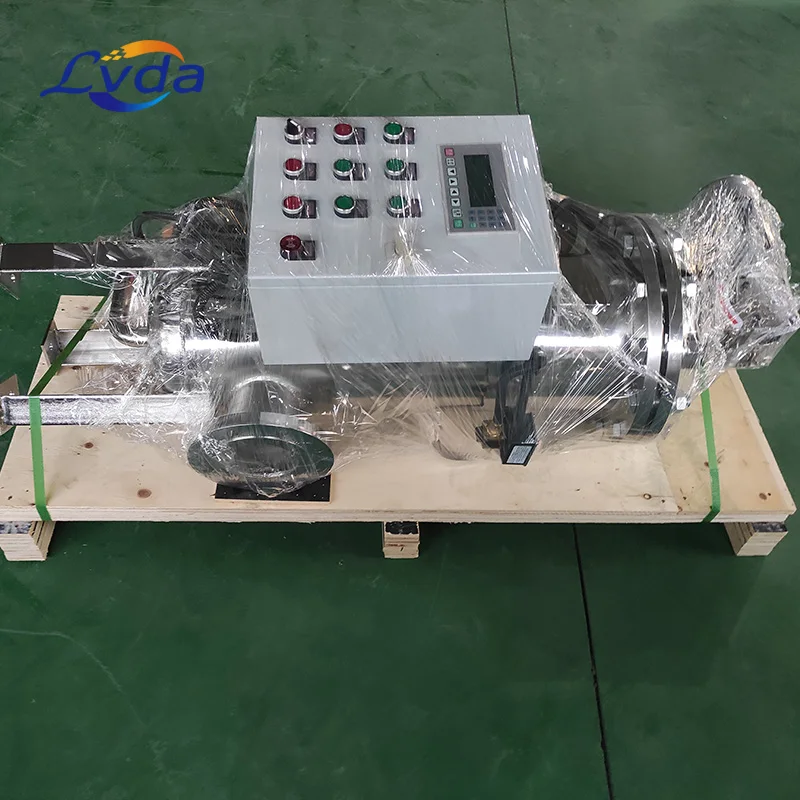

Product packaging
