Процессор QOTOM Mini PC Q305S Celeron


Поделиться:


Цена:130,00 $ - 135,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 155.30 $* 163.84 $*
Aug-18-2025 153.22 $* 161.42 $*
Jul-18-2025 129.21 $* 135.78 $*
Jun-18-2025 151.43 $* 159.25 $*
May-18-2025 131.61 $* 138.86 $*
Apr-18-2025 148.17 $* 155.6 $*
Mar-18-2025 147.78 $* 154.18 $*
Feb-18-2025 146.12 $* 153.97 $*
Jan-18-2025 144.15 $* 151.94 $*

Характеристики


\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
\t
Specification
\t
Dimension
\t
S05: 187*115*52mm(L*H*W)
\t
Power Consumption
\t
TDP 15W
\t
Onboard CPU
\t
Intel Celeron Processor 3205U, 2M Cache, dual core 1.50 GHz
\t
Processor Graphics
\t
Intel HD Graphics
\t
Memory
\t
Support DDR3L 1333/1600 MHz, 1.35V. Non-ECC
1 x DDR3 DIMM Memory Slot
Max. Support up to 8GB Memory
\t
Hard Disk
\t
Support SSD ( MSATA / SATA)
Support HDD (2.5 inch SATA HDD )
\t
Onboard LAN
\t
2 x Intel I211-AT- 10/100/1000 Controller
Support diskless booting and Wake on LAN
\t
Audio Solution
\t
Realtek ALC662 6-Channel HD Audio
\t

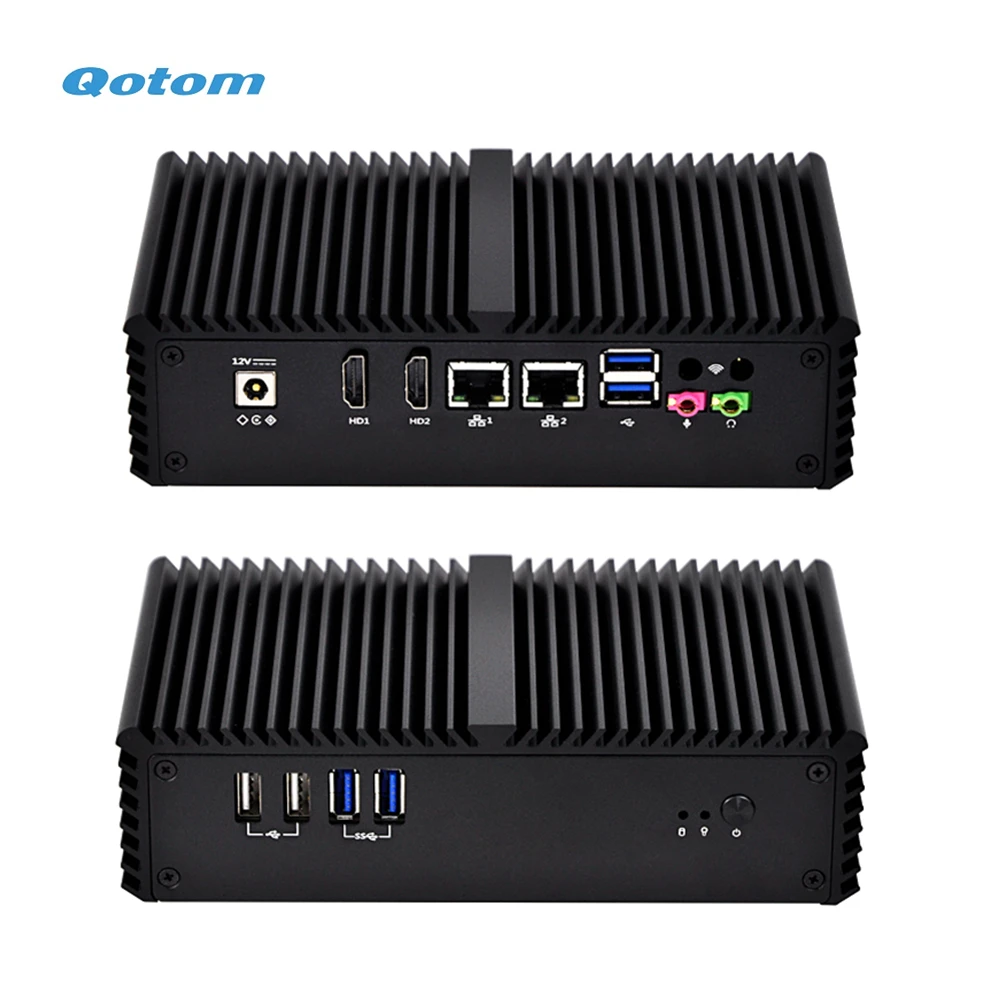

Front-Panel Connectors
\t
• Power on/off button
• HDD LED, Power LEDs
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
\t
Internal Connectors
\t
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/Bluetooth Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x SIM Card slot
\t
Back-Panel Connectors
\t
• 1 x DV 12V DC input
• 2 x HDMI Ports
• 2 x Intel RJ-45 Ports
• 2 x USB 3.0 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
\t
Operating System
\t
Support Windows, Linux, pfSense, etc

Preinstall Inactive Windows 7 for test

Mini PC Q305S support Windows 7/ 8/ 10, Linux, ect. If you buy it with memory and hard disk, it will come with inactive Windows 7 for test and we do not provide any Windows license. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter BIOS

Related models

If you need COM ports, we have Mini PC Q305P with 6 COM Ports

If you need more powerful processor, we have Mini PC Q330S Core i3 and Q350S Core i5.

\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t

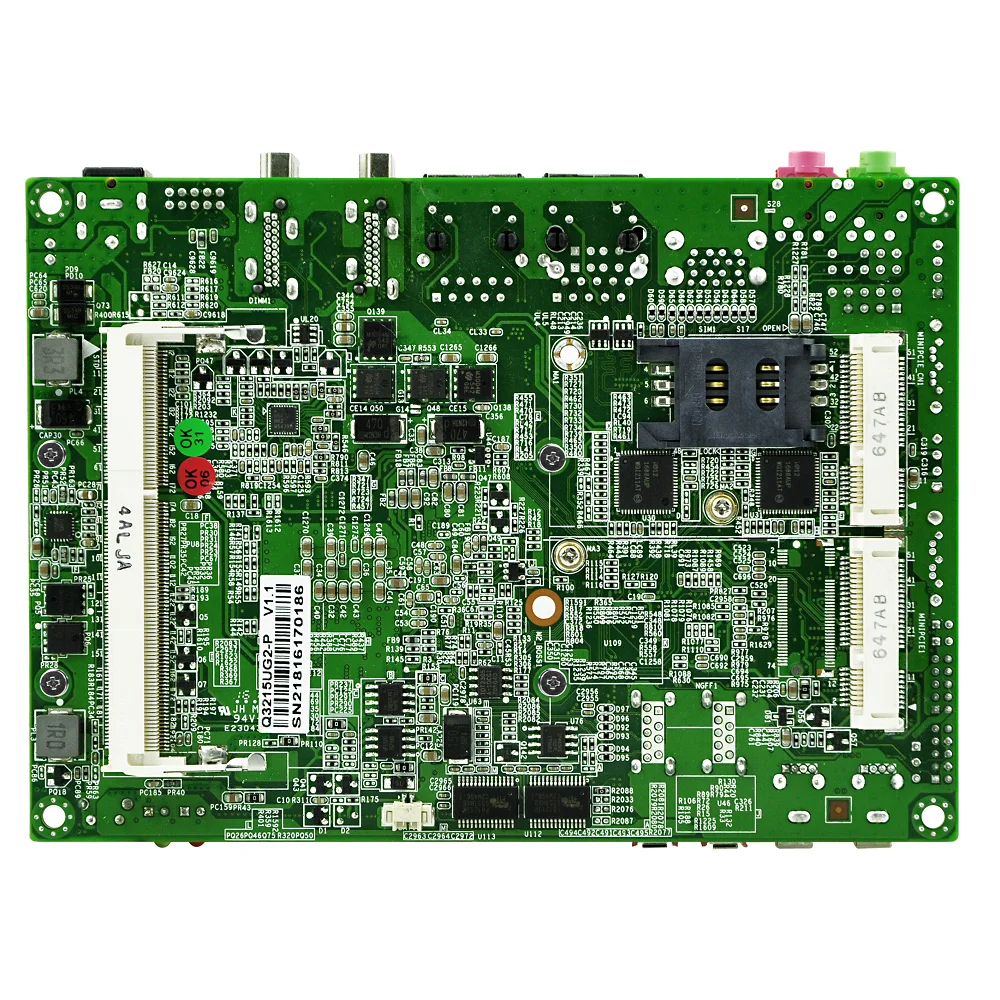

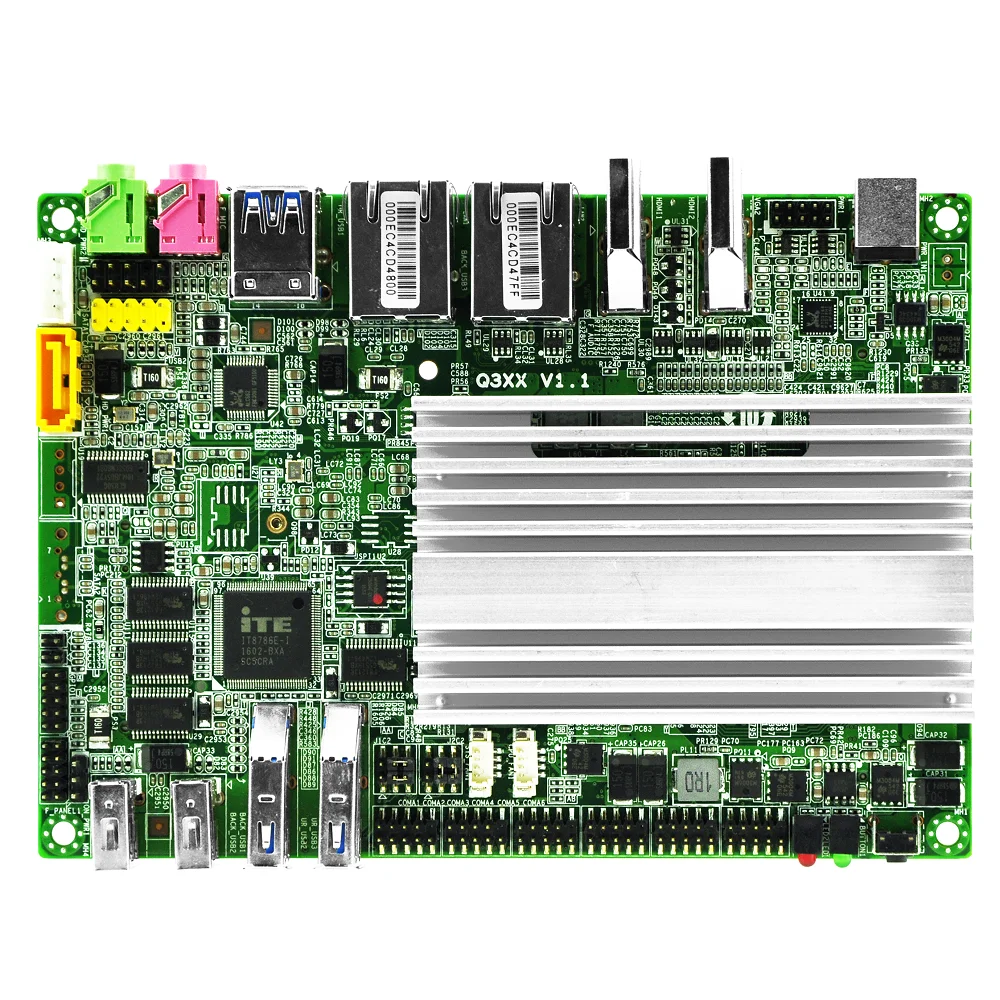

QOTOM Mini Motherboard Q3205UG2-P is for Mini PC Q305S
If you need motherboard user manual or only want to purchase the motherboard, please contact us.

There is a half mini pcie slot for wifi card, if you want to install a 3G/ 4G module instead of wifi card, please contact us in advance to move the screw.

Packing & Delivery

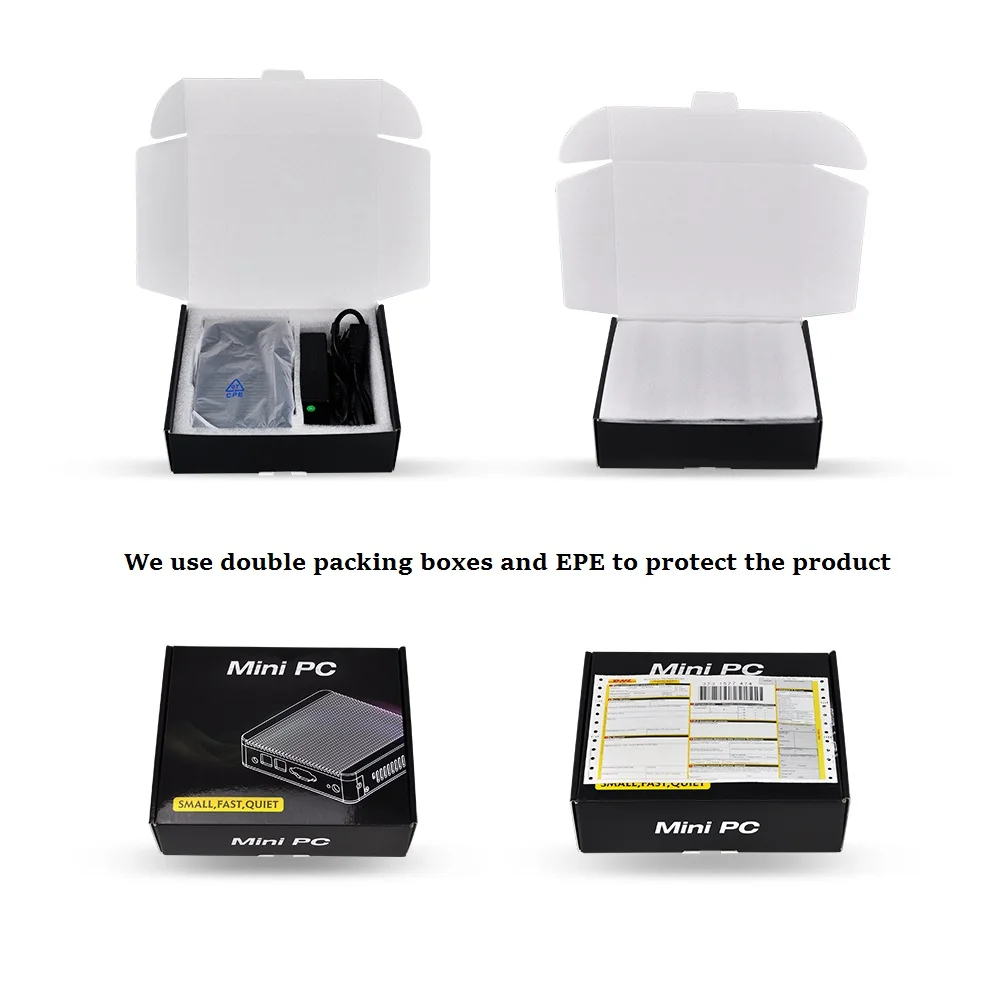

Packing

We have 2 kinds of packaging box, color box and neutral packing box. Same price but we use color box by default. If you prefer to neutral box, please contact us.

Packing list

1 x Mini PC
1 x Power supply: adapter and plug (US/ UK/ EU/ AU/ IT standard)
1 x VESA bracket
1 x SATA power cable for 2.5" SATA SSD/ HDD

2 x antennas (If the order includes wifi)
Some screws for VESA and SATA
1 x salesperson business card (You can contact the salesperson by email if necessary)


You can contact salesperson to require for  commercial invoice/ Motherboard User Manual and Windows drivers download link/ or other information you need.

Shipment

We arrange the shipment timely within 2 business days after payment completed. DHL Express takes about 3 to 5 days to destination. Please take the import fees into consideration.
Fedex, EMS, UPS, cheap Post are options.

\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t

Shipment & Import fees:

We are not responsible for your import fees (duty and tax, VAT and others), but we can do our best to help you avoid or reduce them. Declaring a lower price is the best solution.
If you need us declare true value or lower value, please leave a message.
Please focus on the shipment, you can contact DHL/Fedex when the package reach to the Customs that may save some fees.
We are not responsible for the delays due to the Customs clearance in your country.

FAQ:

Q: What's your MOQ?
A: MOQ: 1 piece.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: What's the payment term?
A: We accept T/T, western union and Paypal. If you prefer to place orders online, we can provide QOTOM AliExpress Store link or Amazon store link.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.

Q: What is the warranty?
A: One year warranty.
