Высокое качество по заводской цене понижающая распылительная краска в кабинах использованная печь для покраски

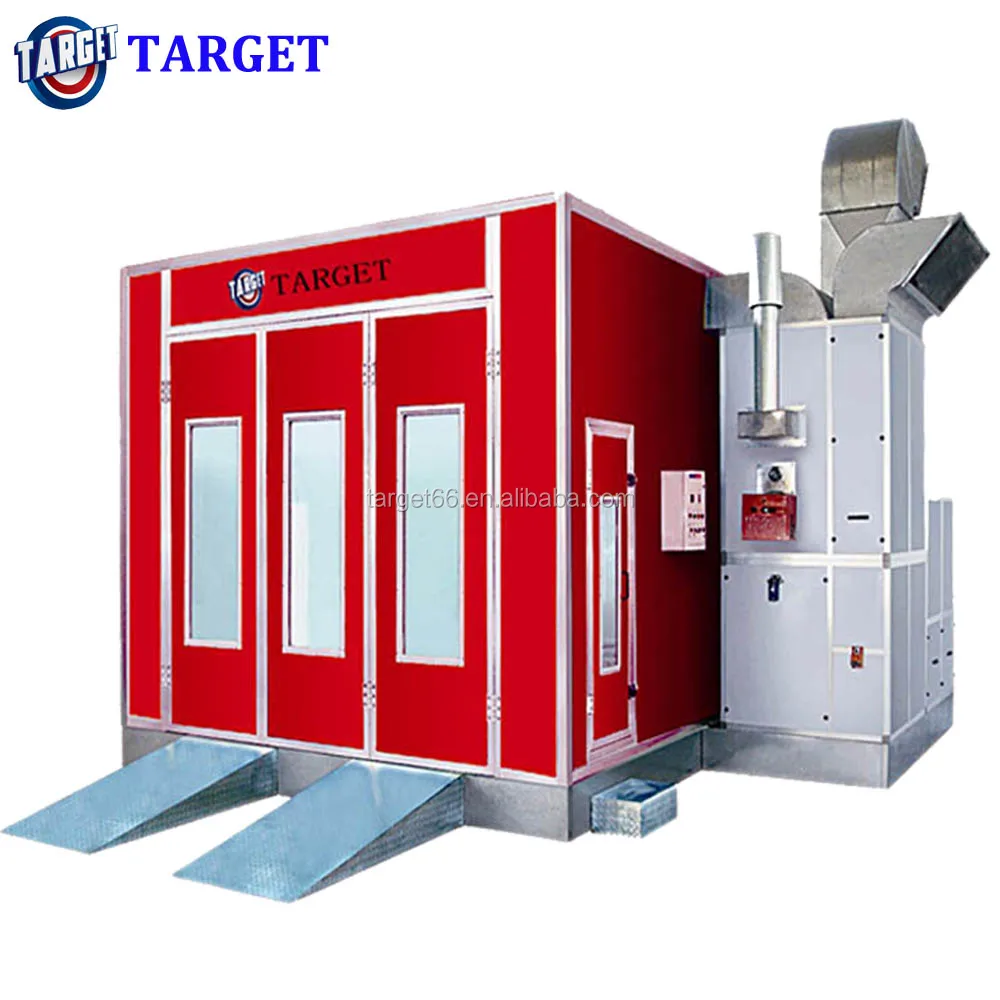

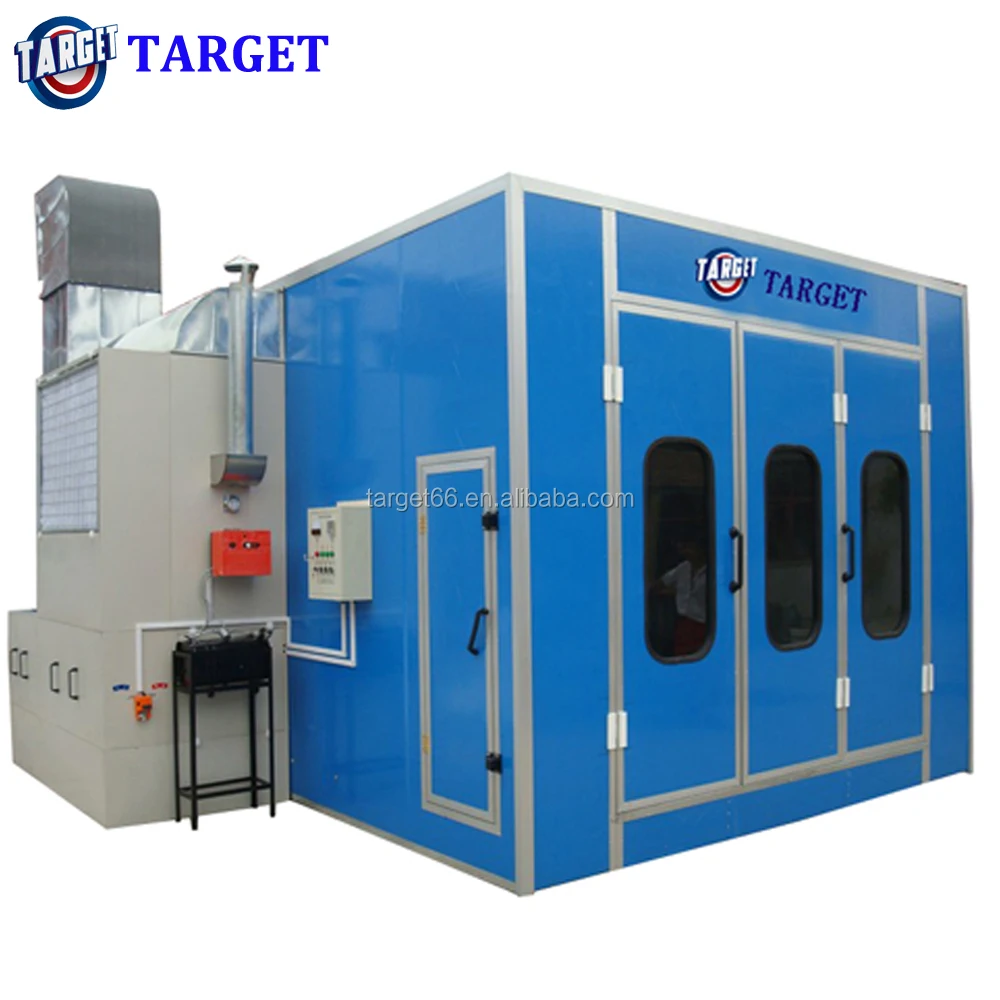

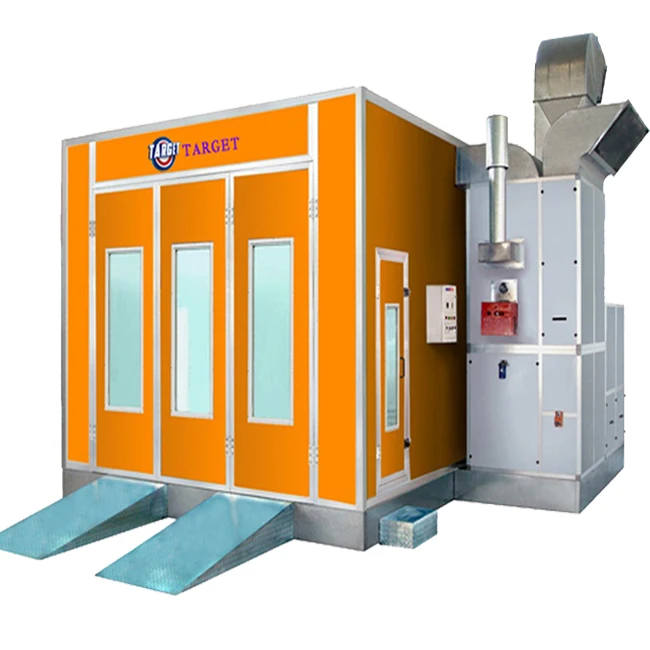

Spray Booth  Diesel Burner  TG-60A

Inside dimension

6900*3900*2650 (LxWxH)

Front door(mm)

3000*2600 mm(W×H)

Outside dimension

7000*5200*3350 (LxWxH)

Total Power(Kw)

12 Kw

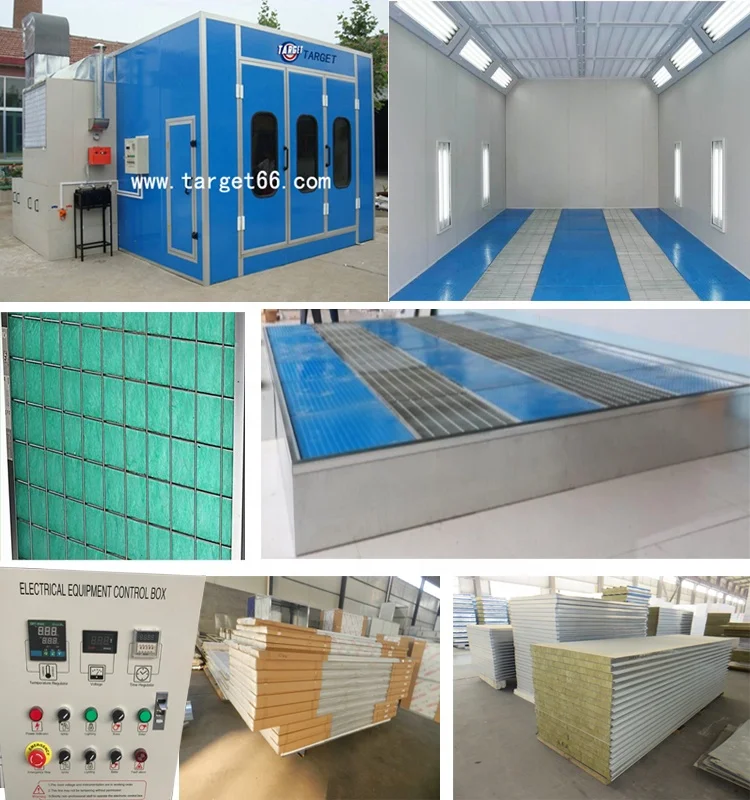

Cabin System

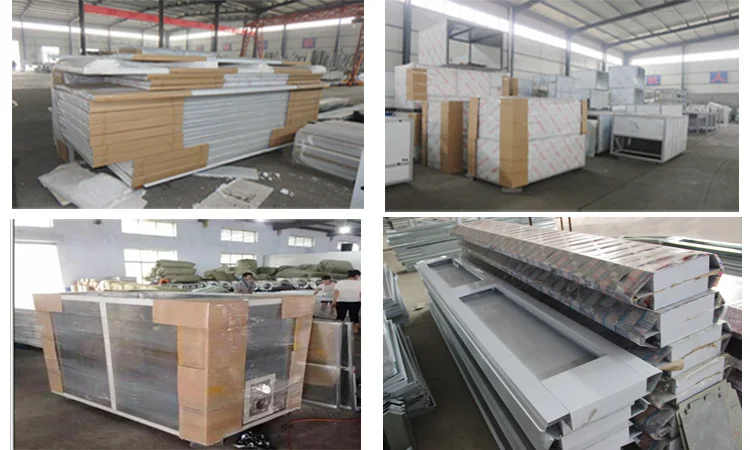

Wallboard

EPS (epispastics polystyrene) colorful steel skin panel, 50mm thick,tongue & groove style,compound construction,Aluminum-alloy frame,anti-flame and heat-insulation, galvanized steel roof panel.

Basement

300mm depth ,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized. 2 ramps, external setting, 630 x 2000 mm ( W * L )/pc

Air Circulation System

Intake Fan

Blower Capacity:   20000m³/h

Exhaust Fan

Blower Capacity:   12500m³/h

Power:   3kw/pc

Power:   4kw/pc

Quantity:   2 pcs

Quantity:   1 pc

Model: Double-intake centrifugal fan

Model: Double-intake centrifugal fan

Air Volume: 20000m³/h , Air flow speed in the cabin:0.35m/s

Heating system

Burner

Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304 Stainless steel heat exchanger ,argon arc welding.

Heat energy

Max Temp:80.C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle

Filter system

Dual-filtering structure

Primary filter : Can Capture Granules Larger than 10μm

Ceiling filter :600g high efficiency filter, can Capture Granules Bigger than 4μm

Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>95%

Lighting system

Ceiling lights

8Units×4Pcs=32Pcs×18W  1000LUX

Side lights

6Units×2Pcs=12Pcs×18W  1000LUX

Control system

Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.

Environmental  System

Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
