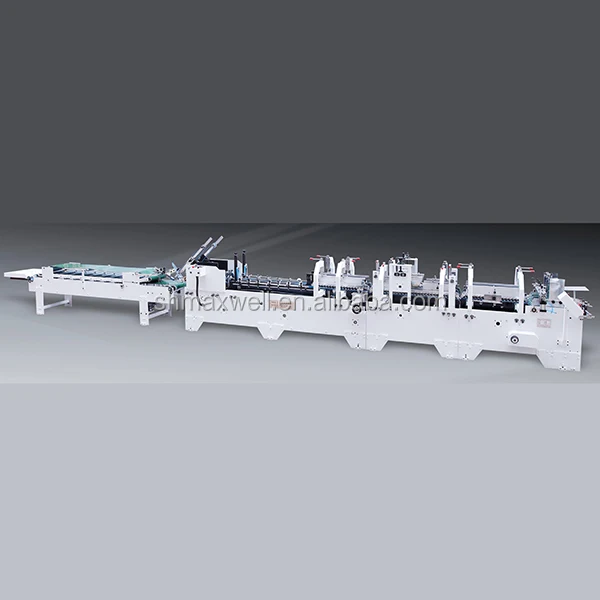

Series C model A folding gluing machine is 4-fold bottom-lock machine, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt mechanic continuously variable, stable and easy to control and operate.



It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons. Pre-fold section is applied to auto packaging, fold 2 and fold 4 of all cartons can reach 90°  and 180° ,perfectly combing the requirements of auto packaging together.(In case of any special function required, we can design according the customers intension).





MGK-650\\780CA is bottom-lock equipment (Applicable for cardboard)

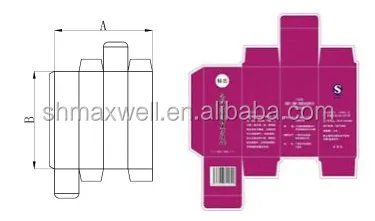

Bottom-locked carton type and folded box size:			Normal box type and size:
Model	GK-650CA	GK-780CA	Model	GK-650CA	GK-780CA
A	180-630	180-760	A	90-650	90-780
B	50-500	50-500	B	50-700	50-700
H	25-100	25-100



Two-side gluing box type and size:
Model	GK-650CA	GK-780CA
A	50-500	50-650
B	50-700	50-700
H	10-50	10-500

Tips:

#     Upper gluing bucket can be adjusted separately up/down, right/left, to ensure the gluing quality.

#     Bottom gluing bucket can be adjusted right and left,set gluing amount, east to assemble, disassemble and clean.

#     Product is special-shaped like fries chips box, then it needs spraying system

#     Which is customized on user order.





Model	MGK-650CA	MGK-780CA
Paper Material	Cardboard210-800g
Max. Liner speed	Max. 220 meter/minute
Feeding way	Automatically and continuously feeding
Way of folding	Fold 1 and fold 3 are 180°, Fold 2 and fold 4 are 90°and 180° Bottom folded and glued
Glue Material	Water-base cold glue
Basic box gluing methods:	one side-gluing, two-side gluing, bottom gluing
Electric power	6.0kw   380v	6.0kw  380v
Weight	3.0T	3.5T
Over dimension	8.45x1.3x1.45m	8.45x1.45x1.45m
Packaging dimensions	2.8*1.3*1.45m	2.8*1.45*1.45m
	2.95*1.3*1.2m	2.95*1.45*1.2m
	2.8*0.77*0.9m	2.8*0.95*0.9m
Container	20GP	20GP
(kg)Net weight	1000kg	1200kg
	1100kg	1300kg
	400kg	500kg
(kg)Gross weight	1200kg	1400kg
	1300kg	1500kg
	500kg	600kg
