Отбойная установка API для нефтяных

Категория: Нефтепромысловое оборудование >>>
Поставщик: Sinotai,Petroleum,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.22 $*	0.25 $*
Aug-16-2025	0.21 $*	0.33 $*
Jul-16-2025	0.30 $*	0.94 $*
Jun-16-2025	0.74 $*	0.15 $*
May-16-2025	0.13 $*	0.21 $*
Apr-16-2025	0.31 $*	0.42 $*
Mar-16-2025	0.49 $*	0.45 $*
Feb-16-2025	0.40 $*	0.37 $*
Jan-16-2025	0.62 $*	0.14 $*

Характеристики

Product Description

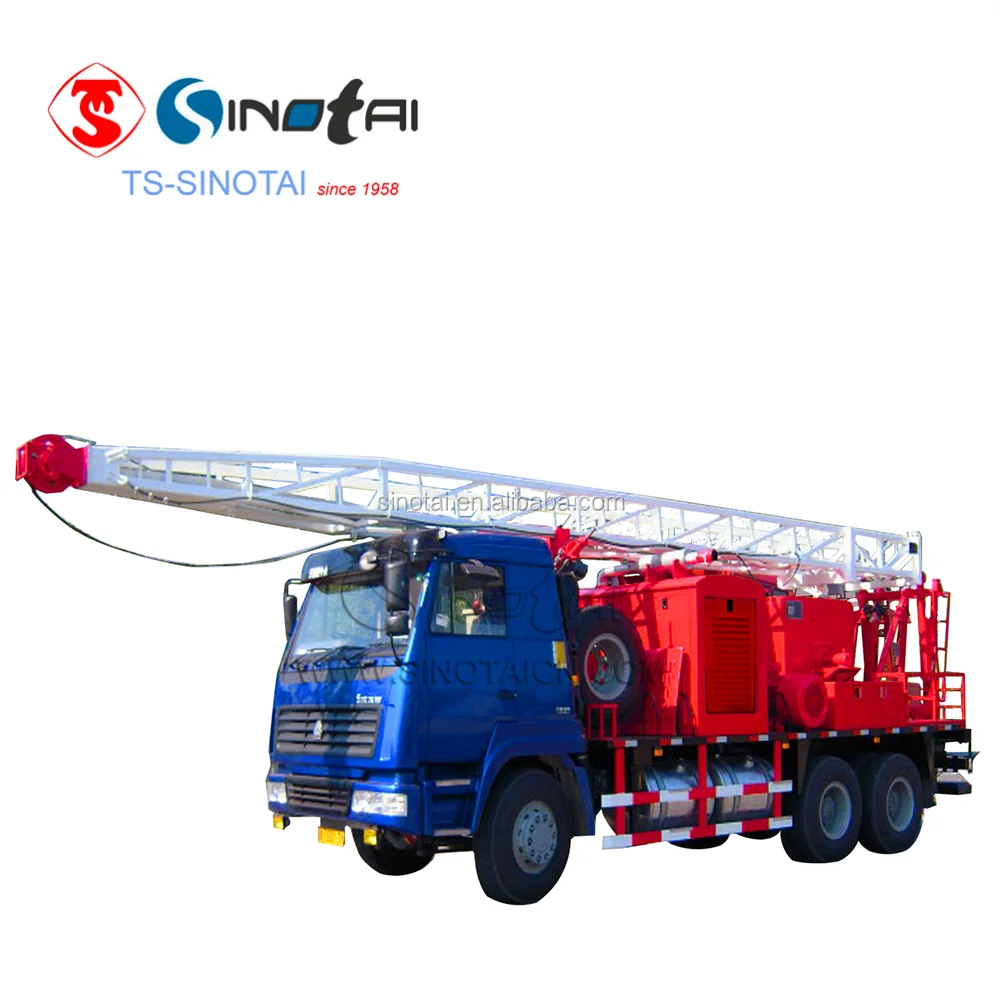

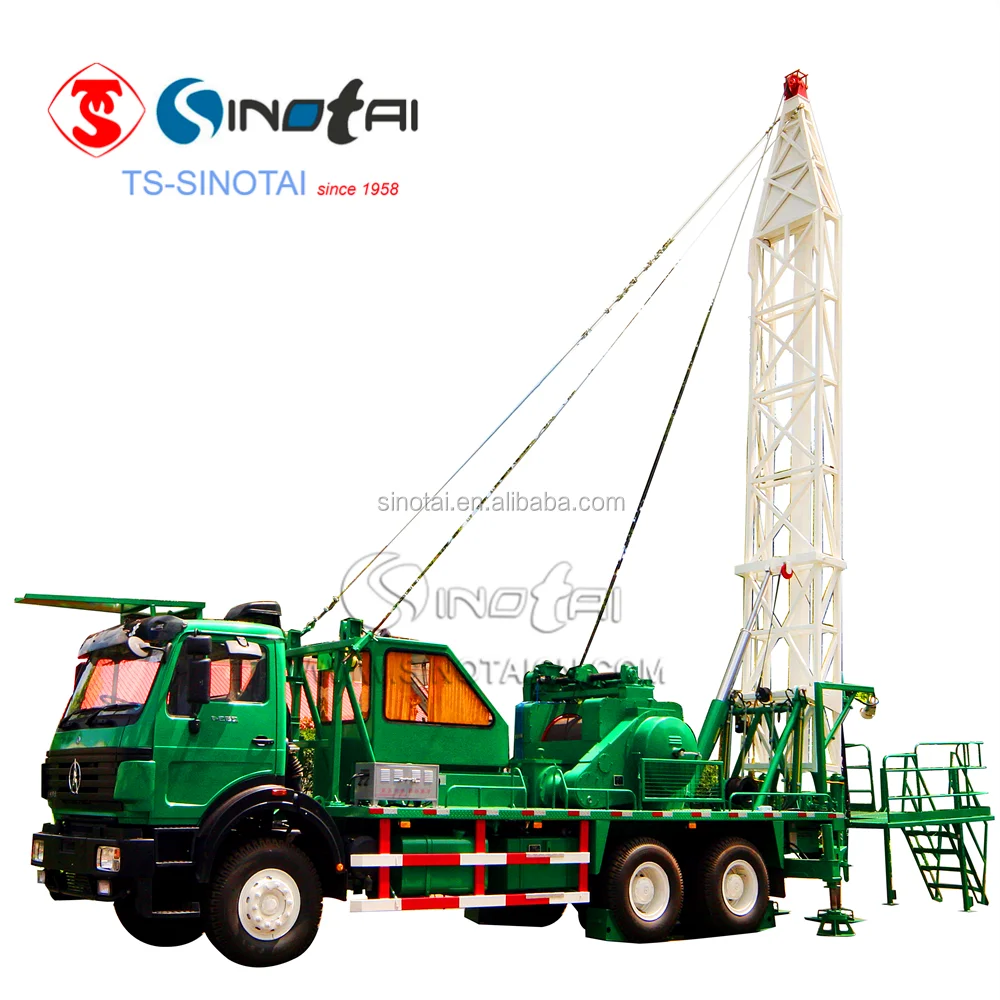

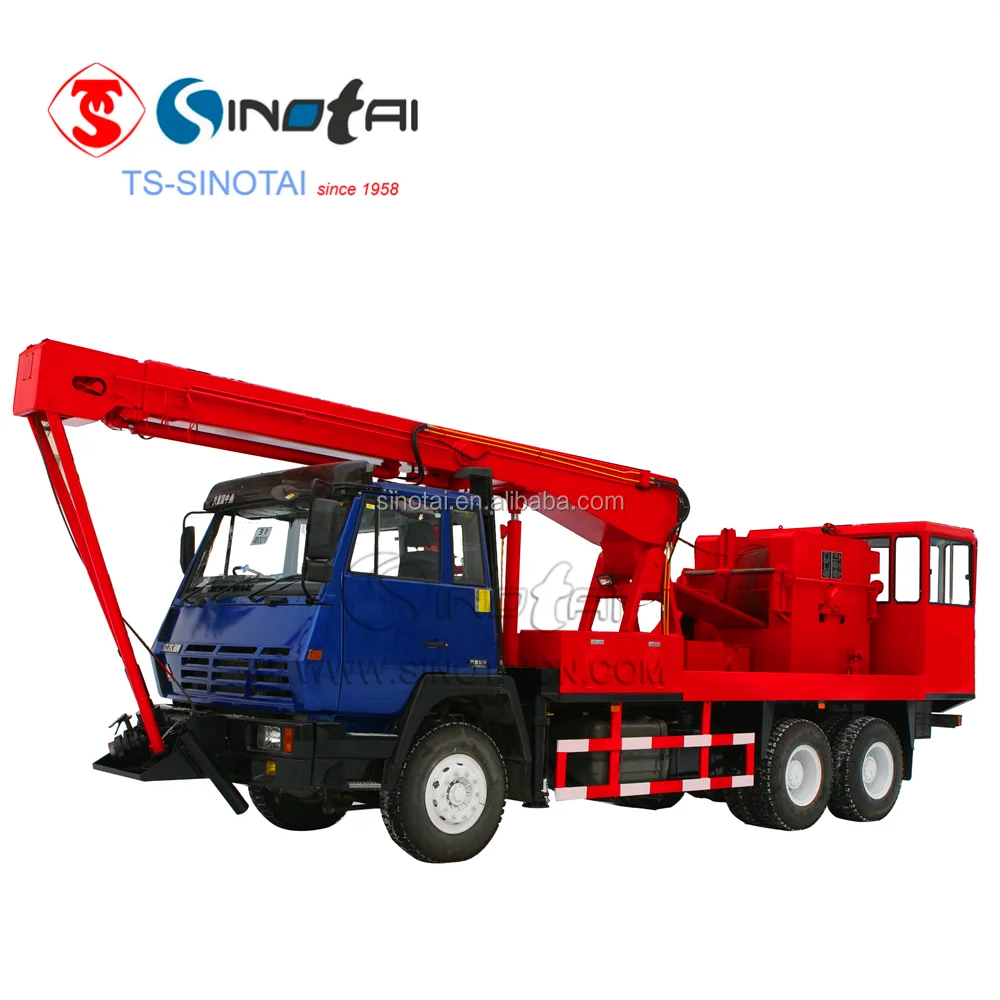

Swabbing Unit

The swabbing &workover rig is a special equipment which merge with swabbing and workover. There are multi function such as swabbing, workover, and standing derrick truck.

Feature:

Adopt three axis second type chassis, easily to move, good cross country ability, easily to aim at wellhead

Multi-purpose, simple structure, easy operation, meanwhile it can reduce the well site equipments ,save the operating cost and improve efficiency

Angle transmission gearbox adopt the oil immersed fiction clutch, it can shift from air to hydraulic control without cutting power, fast action and convenient

Main Parameter:

Model				XJ700(40T)
Workover depth	Service depth	73mm(2 7/8”) EUE tubing	m	3200
Rated hook load			kN	400
Max. hook load			kN	600
Draw works power			kW	216
Mast height			m	18
Wire dia. of lifting cylinder			mm	22
Wire dia. of swabbing			mm	16
Max. swabbing depth			m	2000
Swabbing lifting rated load			kN	80
Swabbing lifting max. load			kN	100
Overall size(LWH)			M	14.92.54.2
Total weight			Kg	25000
Type of chassis				Steyr
