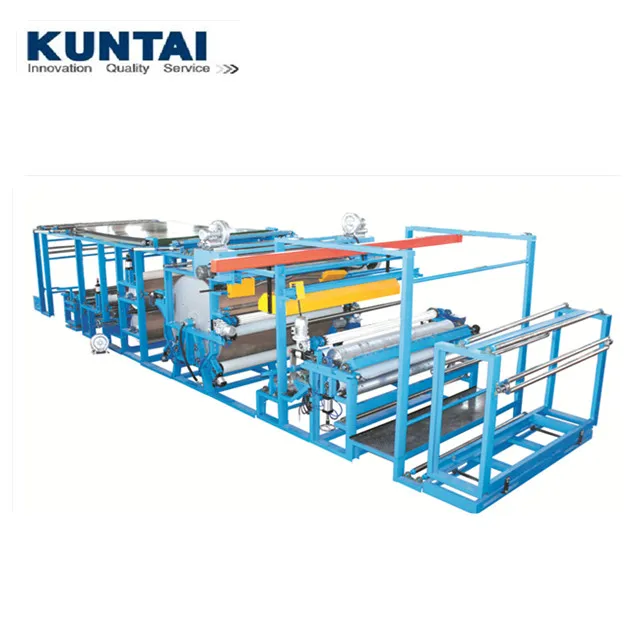

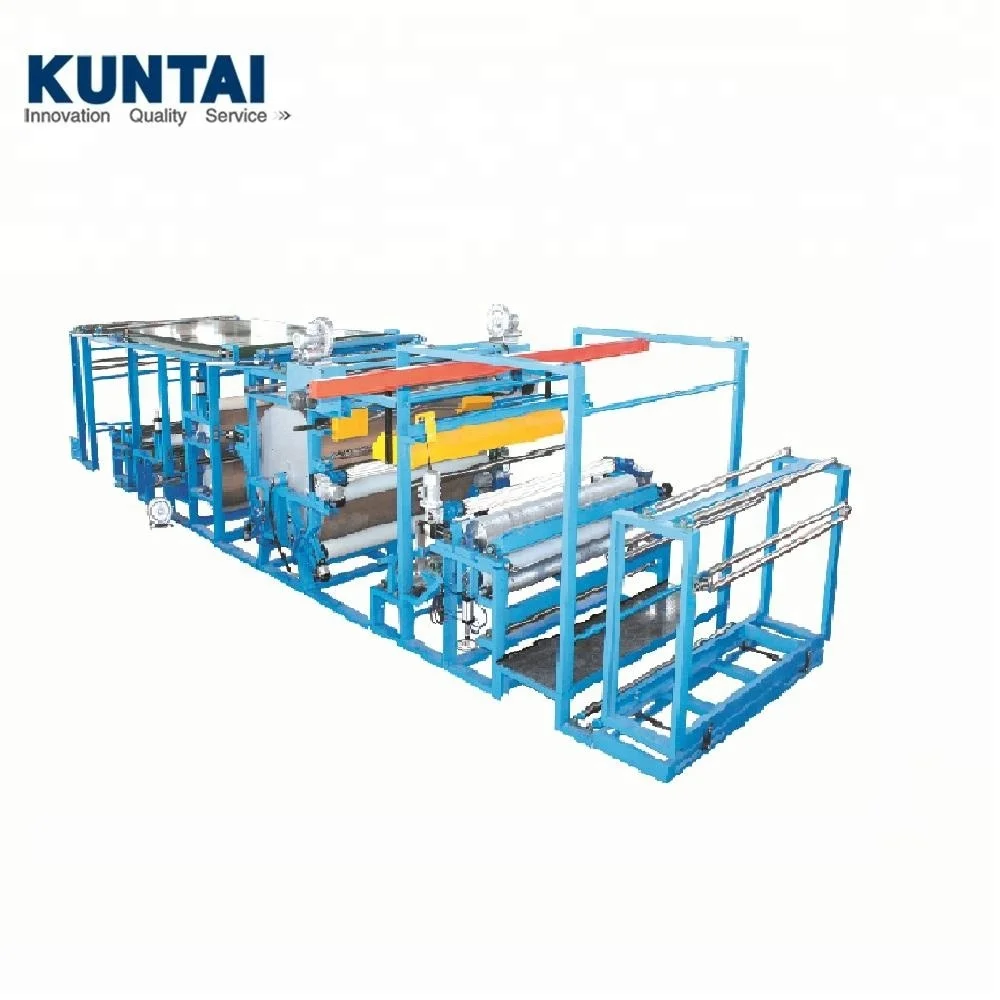

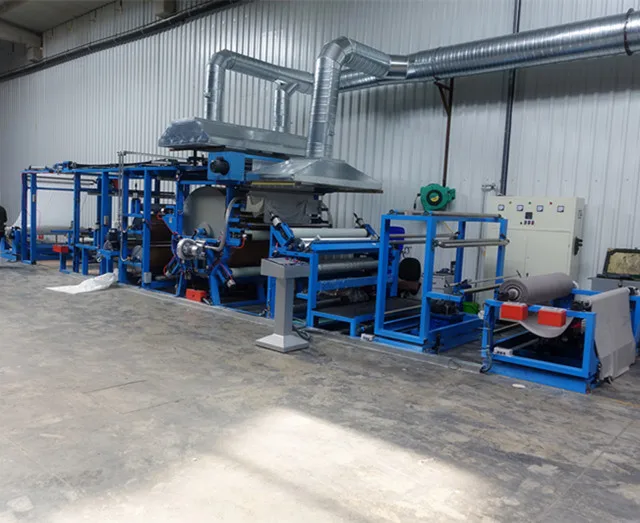

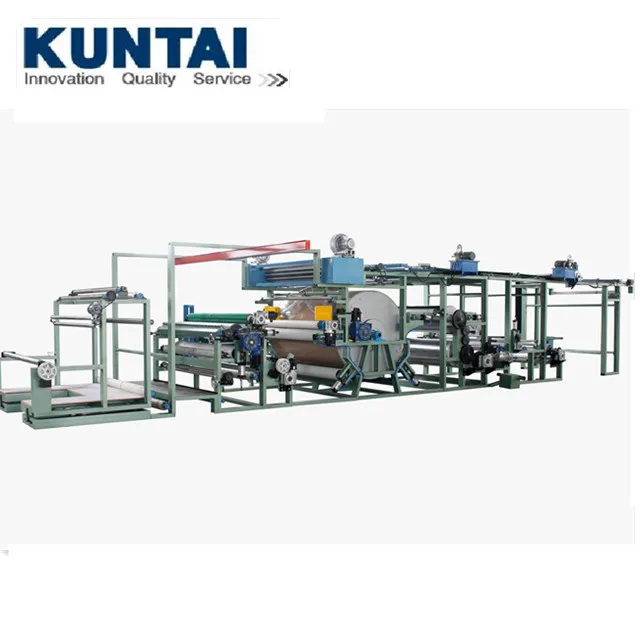

China Automatic Film Laminating Machine

This kind of Lamination Machine is used for laminating fabric, film and other materials, such as:
    Fabric+ Fabric
    Fabric+ Nonwoven...
    Fabric+ Film (Membrane) such as PU film, TPU film, PTFE film, PE film, OPP film, BOPP film, OPP film, PVC film, etc.
    Luggage materials, such as EVA, PVC...
    Diving Material, such as SBR, CR...

Model:	KT-JF/B
Material Width:	1800mm, 2000mm, According to The Maximum Material Width
Drying Roller Diameter:	1500mm
Drying Roller Width:	1800mm, 2000mm, According to The Maximum Material Width
Heating Tube Inside Drying Roller:	30 PCS x 1.5KW
Running speed:	20-40 m/min



It is widely used in garments, bag/luggage, shoe materials, sports products, medical products, dive equipment industry, and other industries.

2. Oil glue is transferred evenly to material surface via engraved roller in dot shape.

3.Special film unwinding device and film lining reclaimer are installed on the upper plate, facilitating operation as well as saving space.

4. Advanced edge alignment and scothing devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.

5. With PU glue or solvent based glue, the laminated products have good adhesive property and touch well. They are washable and dry-cleanable. Due to the glue is in the point form when laminating, the laminated products are breathable.

6. Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate

7. Efficient cooling device enhances the lamination effect.

8.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added.

9. The solvent based glue laminating machine has counting unit.

1,Historical precipitation technological innovation.
32 years of rich experience for various industries to provide composite cutting equipment, fabric stamping equipment and other industry solutions.

2,Globalization after sales
Covering 5 continents with over 60 countries complete after sales service, no matter where you are, kuntai's service time is at your side?

3,Industry-specific customization
A strong team of engineers will make the best one-to-one customization for your product requirements to maximize the advantages of your product equipment.

4,Strong technical support.
The technical support of southeast university, the practice training of German engineers, and the team of dozens of experts are the technical guarantee for you to purchase the machine in kuntai.

5,High quality standards.
The IOS system certification, the eu CE certification and the us UL certification are the quality assurance for us. CTPM refined management is our guideline for high quality standards.
