ZX7045 Китай 45 мм металлическая зубчатая головка сверлильный и фрезерный

ZX7045 Китай 45 мм металлическая зубчатая головка сверлильный и фрезерный

Категория: Manual Mills >>>
Поставщик: Yancheng,C&J,Machinery,Co.,Ltd.

Цена:2 200,00 $ - 2 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	2618.36 $*	2749.15 $*
Aug-15-2025	2596.18 $*	2726.23 $*
Jul-15-2025	2178.26 $*	2287.94 $*
Jun-15-2025	2552.73 $*	2680.18 $*
May-15-2025	2222.44 $*	2333.83 $*
Apr-15-2025	2508.69 $*	2633.0 $*
Mar-15-2025	2486.59 $*	2610.15 $*
Feb-15-2025	2464.94 $*	2587.16 $*
Jan-15-2025	2442.8 $*	2564.15 $*

Характеристики

Product Description

ZX7045 Square column gear-head drilling and milling machine

ZX7045 not the same as ZX45 ,except that ZX7045 is equipped with:Worktable power feed(longitudinal),Lifting motor with Big Electrical box, 2step motor with 12 steps speed.iron casting foot stand and oil pan which can improve the machining accuracy and producing efficiency. • Milling drilling, tapping, boring, reaming

• Head swivels 360°
• Micro feed precision
•Superhigh column,Wide and big table,Gear drive, lower noise.
•Heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table

Item	Parameter
Max.drilling capacity(iron/steel)	31.5/45mm
Max.mill capacity(face/end)	80/32mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	800×240mm
Worktable travelX/Y	570/230mm
Head tilt left right	90°
Spindle travel	130mm
Spindle nose to worktable	470mm
Spindle center to column surface	285mm
Spindle speeds range(2 steps)	12steps:75-3200r/min
motor	0.85/1.1kw
N.W/G.W	300/350KG
Packing size(L×W×H)	1140×960×2240mm
20’Container	12 sets

Standard Accessories	Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun	Cooling system,Working light,Spindle power down feeder,DRO,depth indicator,spring collet,vices,milling collet ,milling clamp.

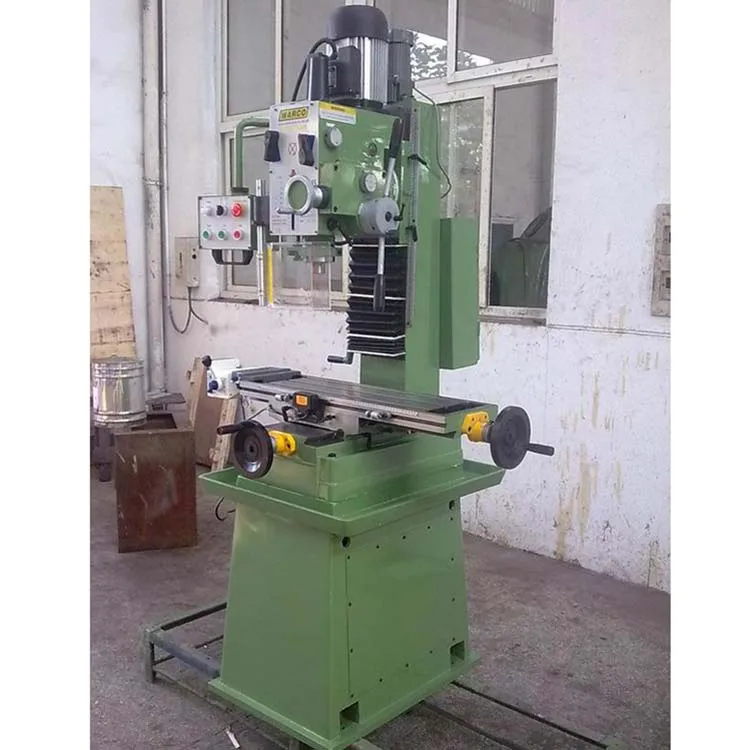

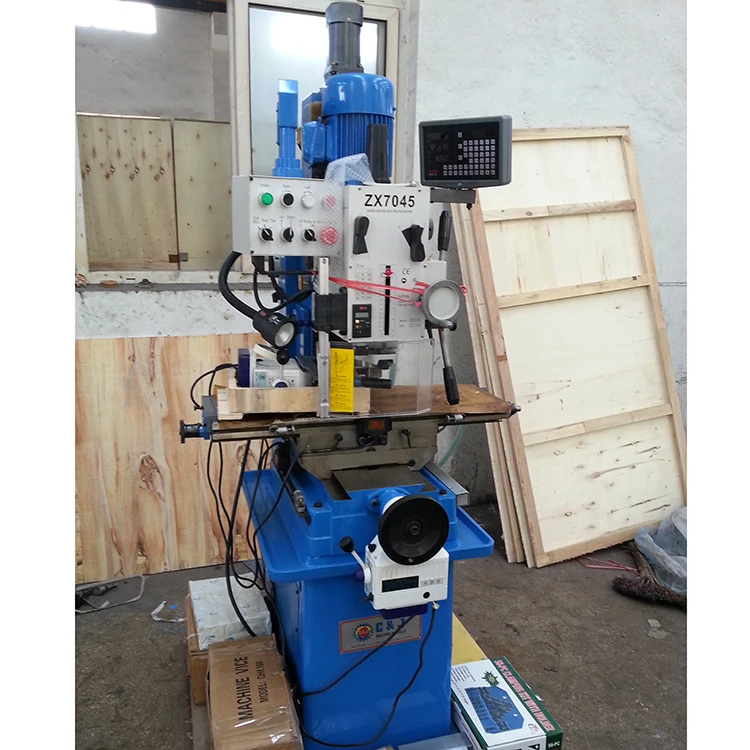

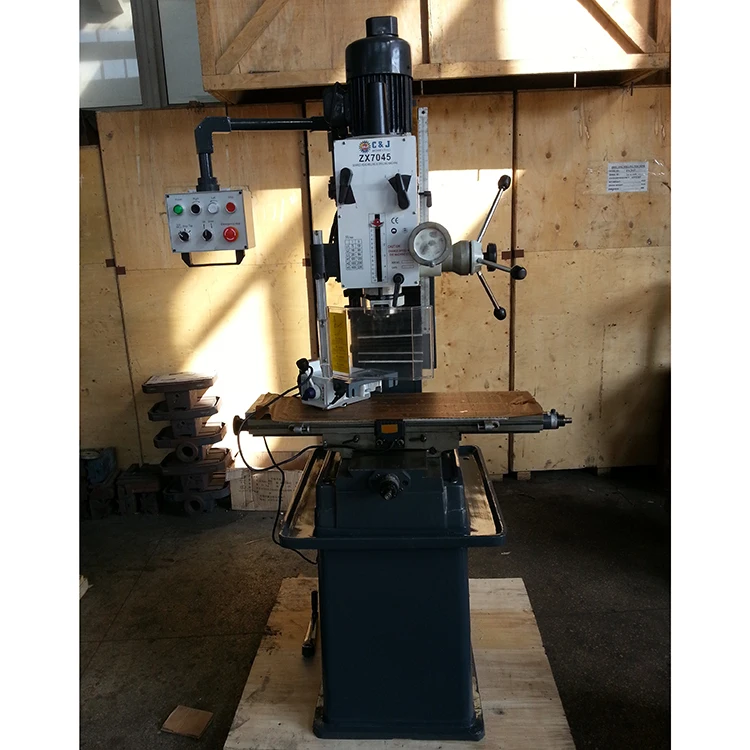

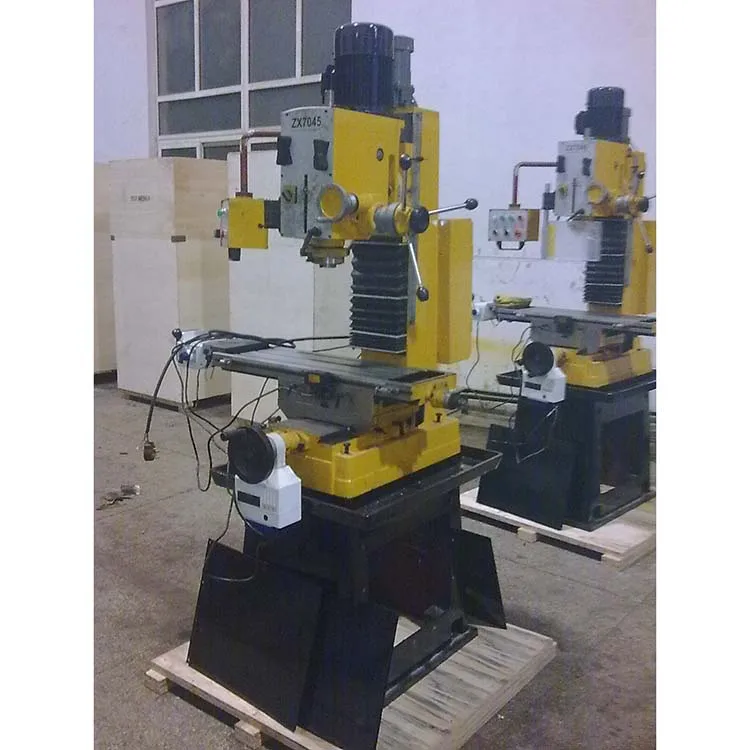

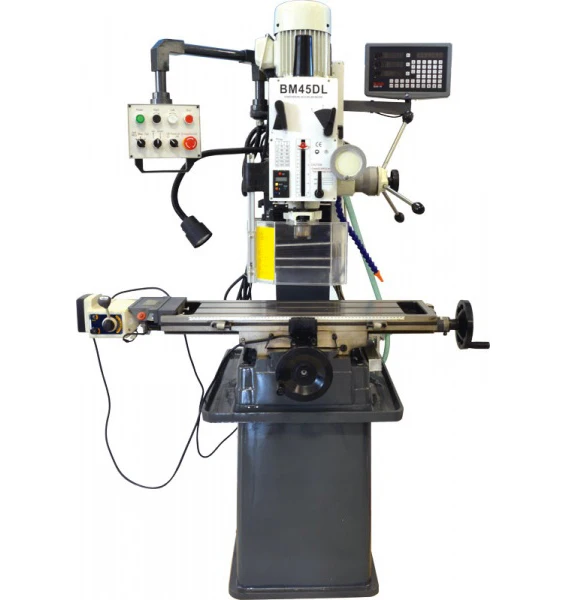

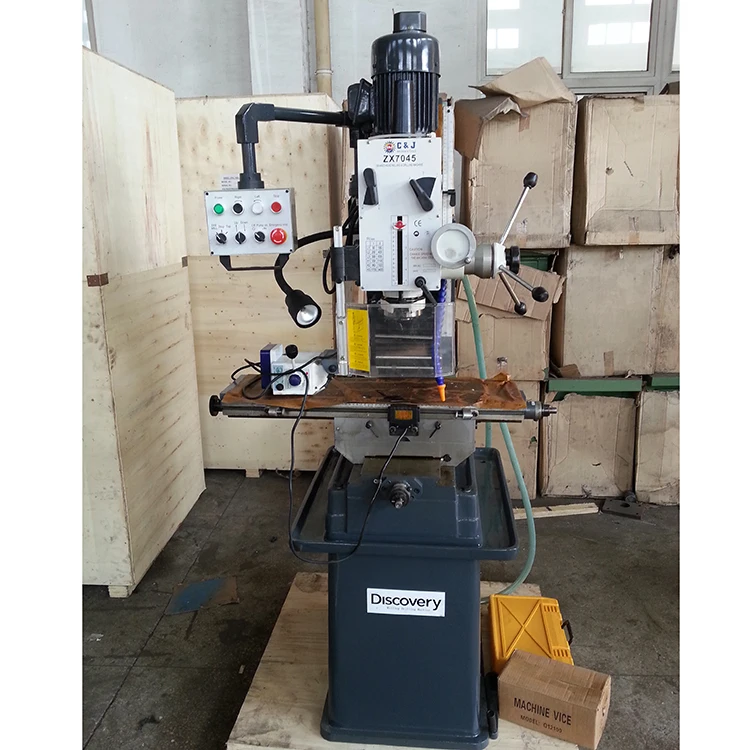

Machine photo:

Packaging & Shipping

Certifications

More customer

More Credit to customer, More customer, More and More Business Cooperation!


more product


Company Information

As a growing factory located in Dafeng city, Jiangsu province, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of surface grinders machine , shot blast cleaning machines , all kinds of lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement for many years.With high quality and competitive price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina, Poland, Turkey and so on.In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.Also quality assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warranty to our customers around the world as well as professional technical support and services.


Quality Inspection:

*Each machine will be inspected well before leaving the factory.

Negotiation with customer:

* Inquiry and consulting support within 35 minutes .
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas

Guarantee:

*one year guarantee under the normal working condition ( not including th wearing spare parts)

*we can give you technology support within 24hours by call,e-mail/whatsapp/Wechat during the guarantee time.

- Because the Cast iron and steel plate material cost is all rising, the Human cost, Chinese Foreign Exchange Rate is not Fixed, all the above price is just for you reference.If you want the correct and the best price, pls contact me Imm. through the above contacting methods (WeChat / Whatsapp/facebook:0086-13851005559 <mobile number>) !

- When you place the TRADE ASSURANCE ORDERS or “BUY NOW” order through alibaba system, you need small parts (not more than 10kgs), you can select the shipment by post, other trade assurance order parts ( more than 10KGS) or machines, pls secelect by sea shipment or by air shipment.and pls let me know your destination port, so that we can calculate the according sea cost/air cost, and finish the order finally for you.

- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer’s greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
