Случайная башня упаковка нержавеющая сталь 304 316l материалы 25 мм Металлические

Product Description

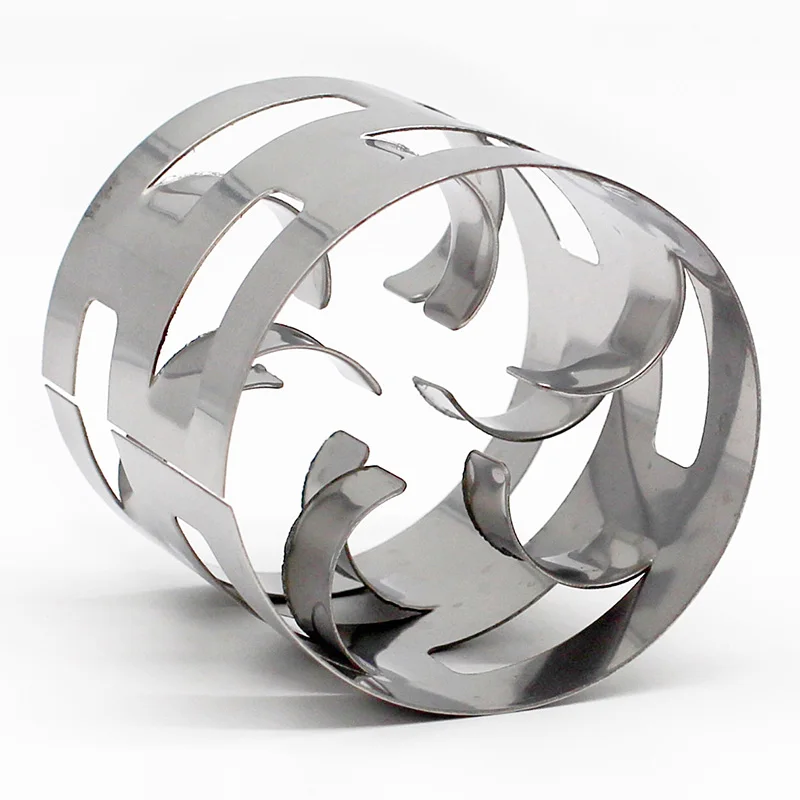

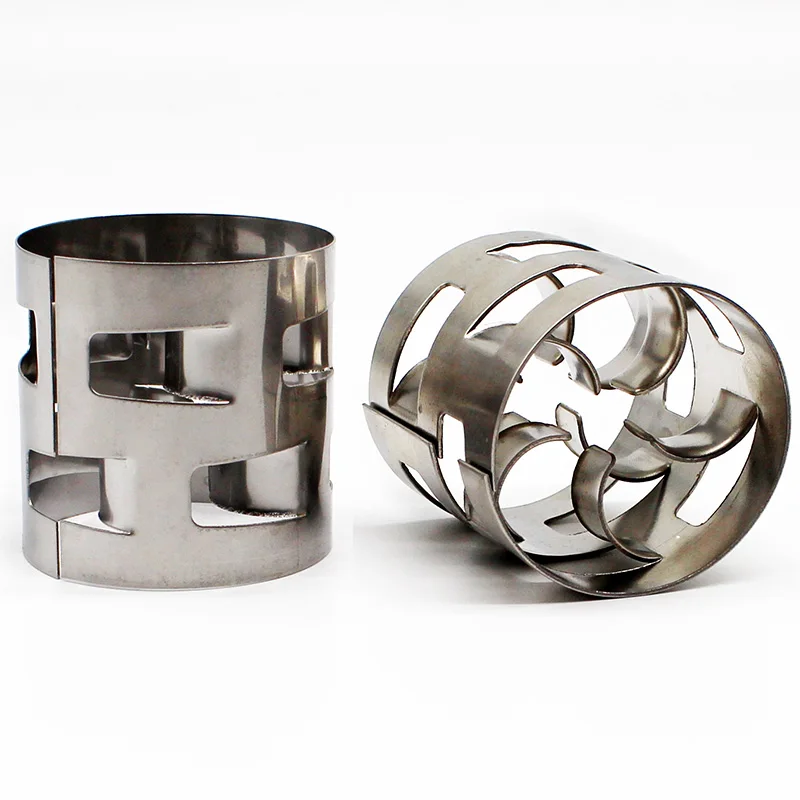

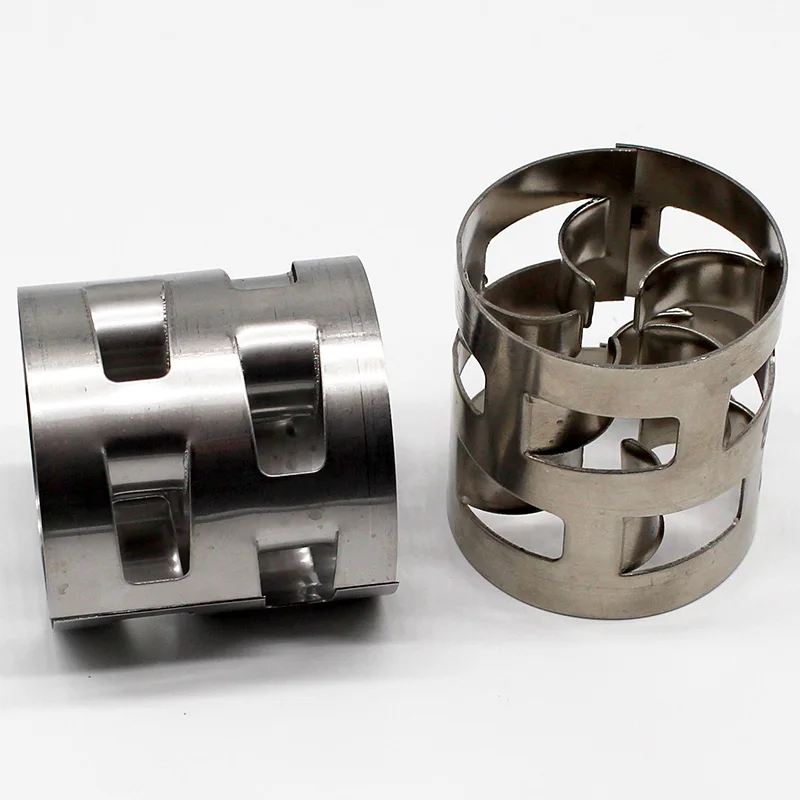

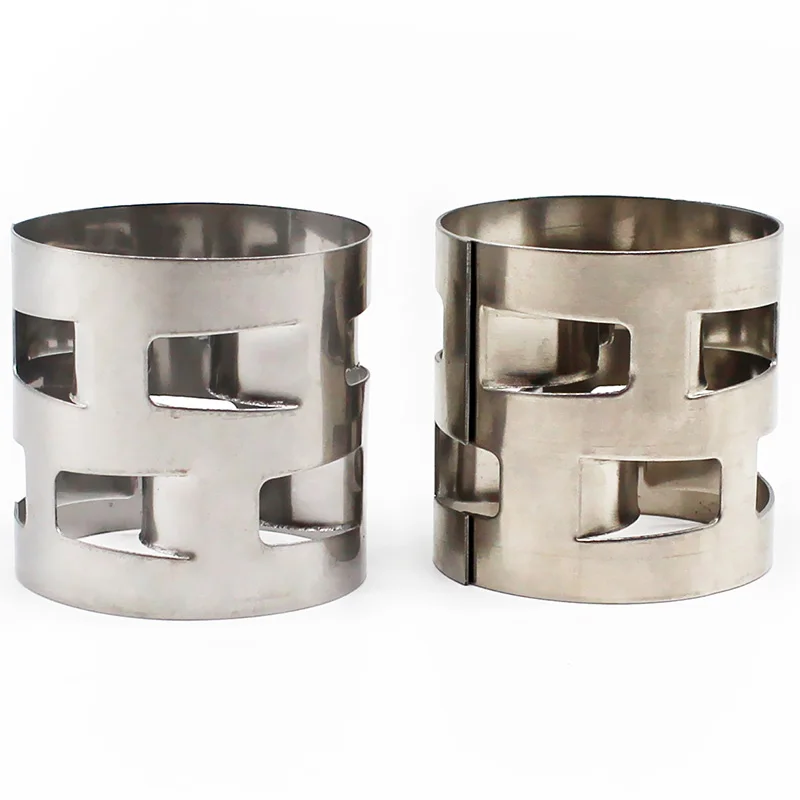

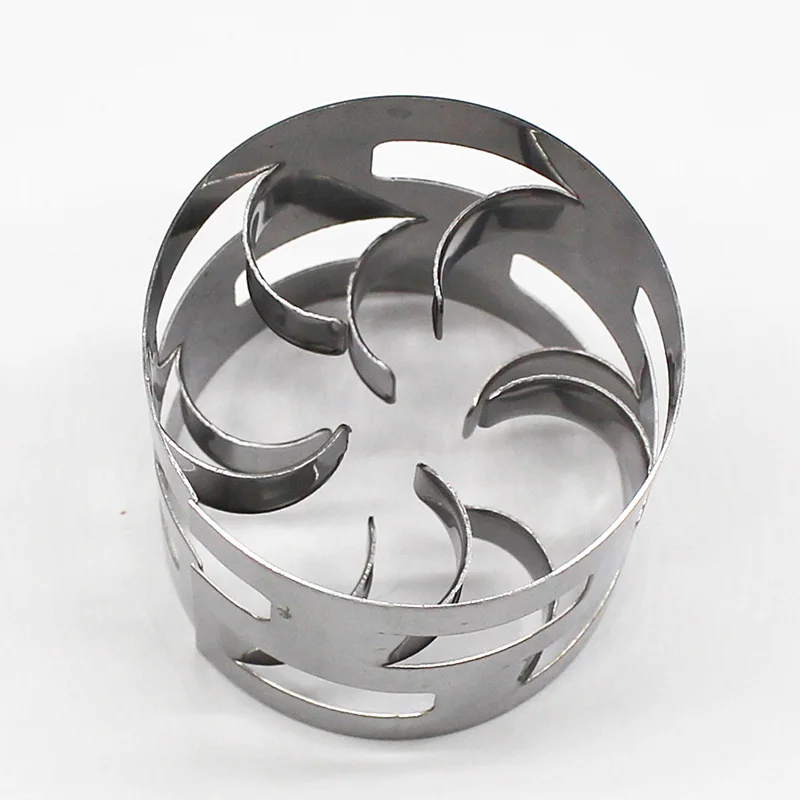

Metal Pall Ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc. The structure of Pall Ring improves distribution of gas-liquid. Compared with Raschig Ring, it has half of pressure drop , Its efficiency can be improved 50%.

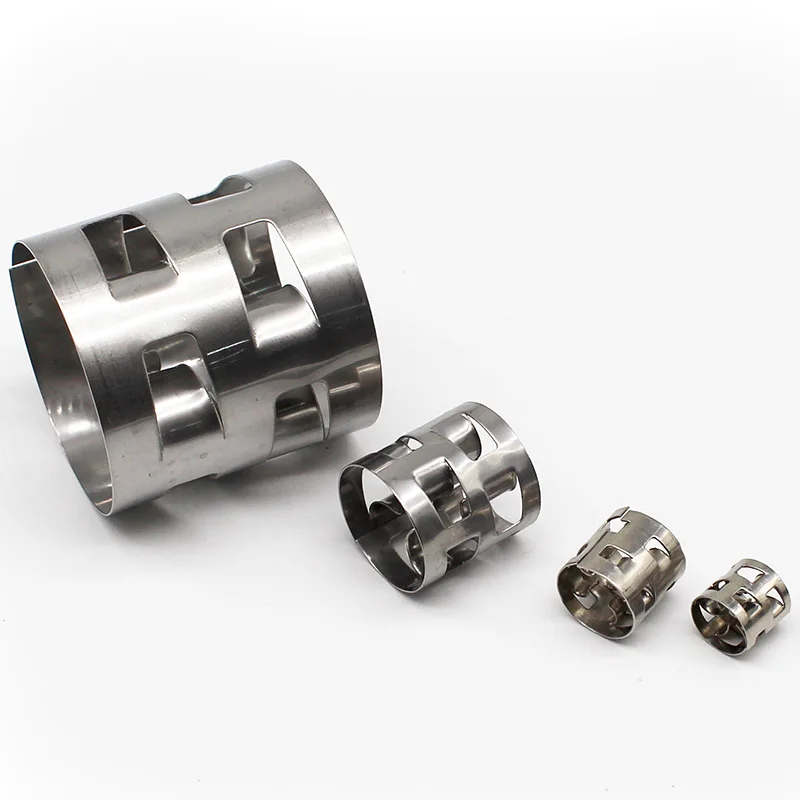

Size: 16mm 25mm 38mm 50mm 76mm

1) Lower presure drop.

2) Huge flux.

3) High efficiency.

The following table data is reference to material stainless steel (AISI304) in the material thickness shown.

Other wall thicknesses are available on request.
