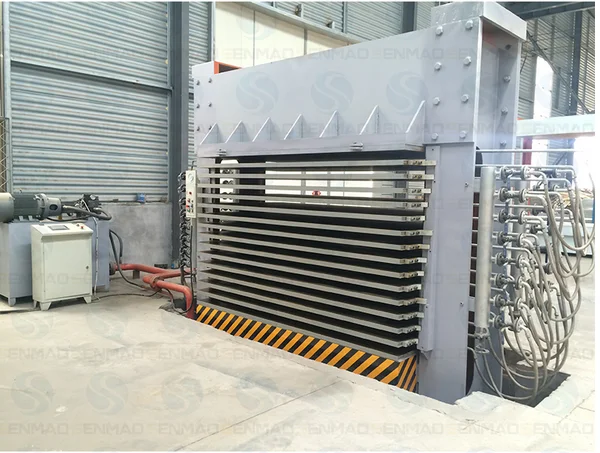

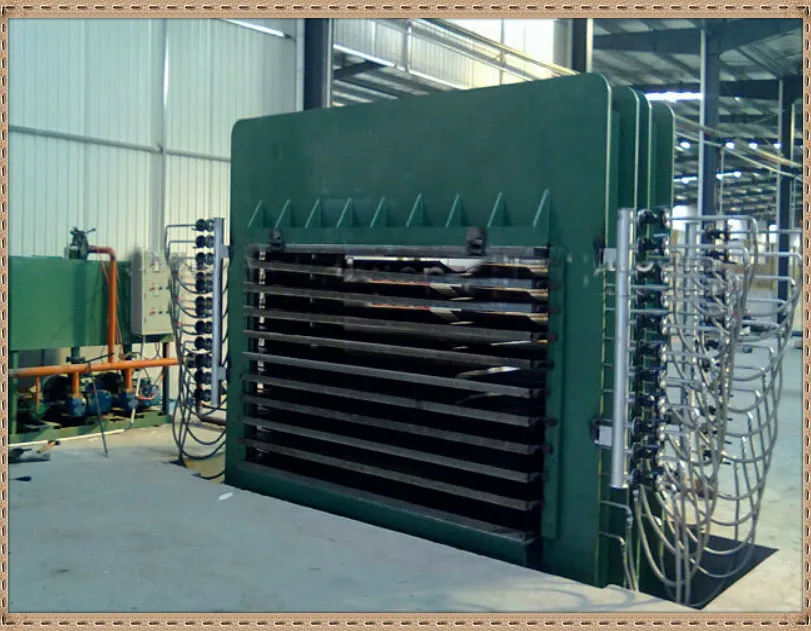

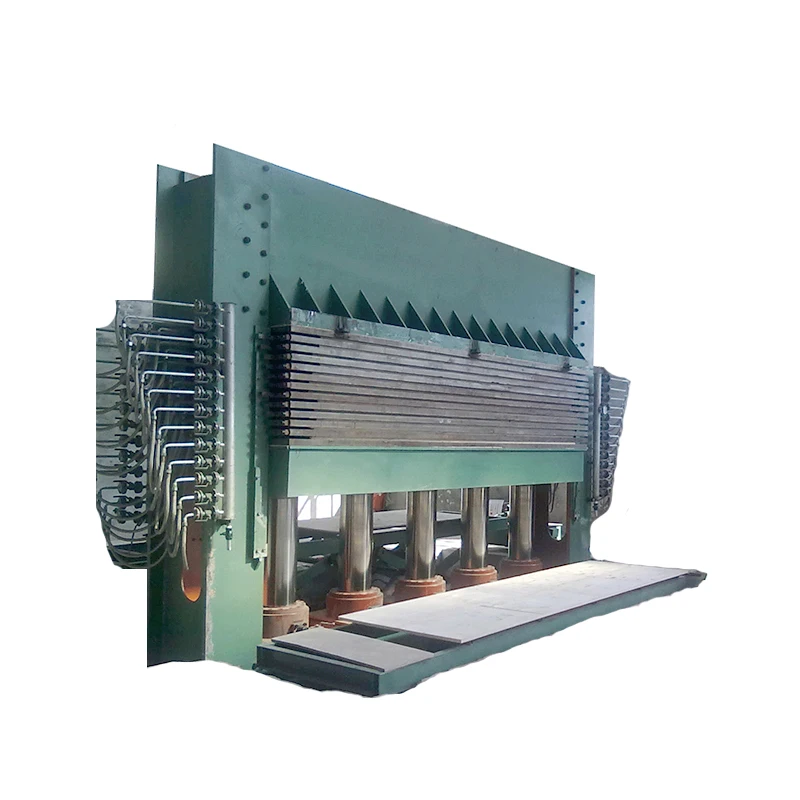

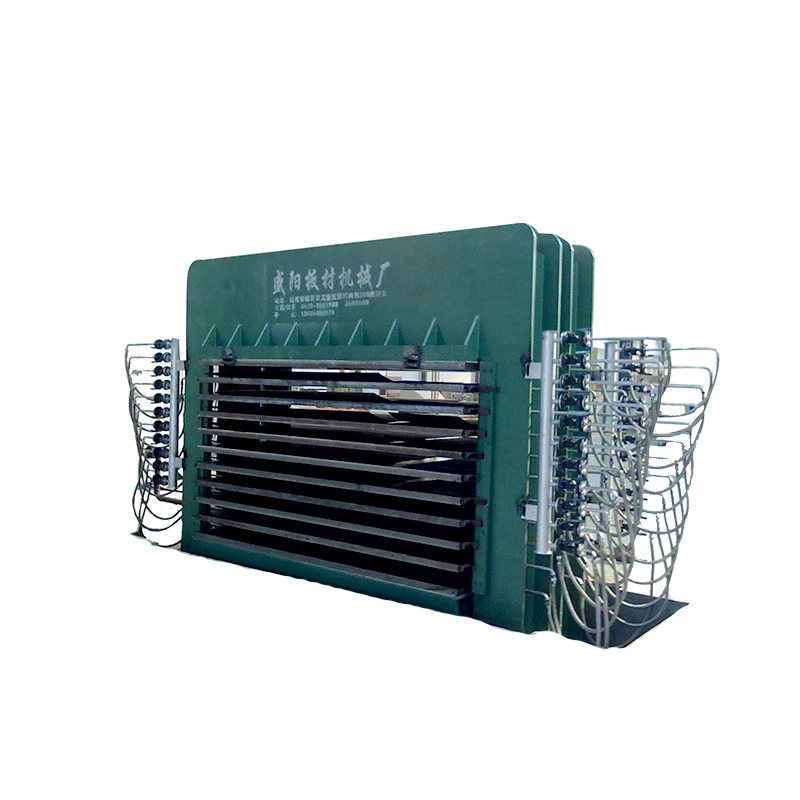

Многослойная машина для горячего прессования ламината

Многослойная машина для горячего прессования ламината

Категория: Press >>>
Поставщик: Linyi,Shengyang,Wood-Based,Panel,Machinery,Factory

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.70 $*	0.32 $*
Aug-16-2025	0.36 $*	0.38 $*
Jul-16-2025	0.83 $*	0.68 $*
Jun-16-2025	0.96 $*	0.30 $*
May-16-2025	0.10 $*	0.84 $*
Apr-16-2025	0.61 $*	0.42 $*
Mar-16-2025	0.4 $*	0.95 $*
Feb-16-2025	0.61 $*	0.26 $*
Jan-16-2025	0.97 $*	0.50 $*

Характеристики

multi layer plywood laminate hot press machine

Product Description

Plywood hot press machine can also be used for laminating melamine paper on finished plywood .Plywood is the ideal product widely used in all kinds of furniture,office supplies,

combination speaker , packaging exhibition and other industries. Main sections of plywood

production line include peeling section, veneer drying section,gluing section,prepress section,hot

press section, saw edge section, sanding section.....etc. The thickness range of plywood is generally the 8-18mm, board width is generally 915-1220mm. We can design and manufacture any

size according to users’ requirements.

Technical parameters, 600ton for example

Nominal pressure(T)	600T
Into the board direction	Transverse
Number of layers(layer)	15 layers
Layer spacing(mm)	70mm
Number of hot plates	16 pieces
hot plates size(mm)	1370270052(double in double out)
Number of cylinder	2 pieces
Diameter(mm)	400
Working Stroke(mm)	1050
Pressure(Mpa)	≤25
No-load closing time(S)	15
Low-pressure pump flow	250*2(L/min)
Allowable pressure(Mpa)	≤3
ower (Kw) High-pressure pump flow	11*2 25(L/min)
Allowable pressure(Mpa)	≤25
Power(Kw)	7.5
Pressure relief valva	500
Overall dimensions(mm)	LWH360013704500
Control mode	Automatic and Manually
Electric	Schneider
Gauge	Delta
Hydraulic valve	Delta
Framework form	Gantry Framework
the plate thickness of main part framework(mm)	43
Column Width(mm)	400
Total weight(T)	40T
