Новая китайская продукция заводская цена машина для переработки бумаги и картона легкая работа маленькие старые
- Категория: Машины для обработки отходов >>>
- Поставщик: Jiangyin,Unitetop,Heavy,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7735.3 $* | 8122.35 $* |
| Aug-20-2025 | 7670.65 $* | 8054.11 $* |
| Jul-20-2025 | 6435.67 $* | 6757.48 $* |
| Jun-20-2025 | 7540.8 $* | 7917.3 $* |
| May-20-2025 | 6565.69 $* | 6893.97 $* |
| Apr-20-2025 | 7410.96 $* | 7781.16 $* |
| Mar-20-2025 | 7345.65 $* | 7712.95 $* |
| Feb-20-2025 | 7280.81 $* | 7644.99 $* |
| Jan-20-2025 | 7215.40 $* | 7576.31 $* |
Характеристики
RELATED PRODUCTS
PRODUCT DESCRIPTION
New China products factory price paper and carton recycling machine easy operating small old tyre
No. | Parameter name | Parameter content | |
1 | Main pressure cylinder | Model number | YG160/100-1200 |
Nominal thrust | 250KN | ||
Process | 1200mm | ||
2 | Push plate cylinder | Model number | YG80/50-700 |
Engineering thrust | 60KN | ||
Process | 700mm | ||
3 | Container size (L×W×H) | 1100×480mm | |
4 | Block size (L×W) | 1100×480mm(Highly customizable) | |
5 | Hydraulic system working pressure | 12.5MPa | |
6 | Pack weight | 100~125kg | |
7 | Motor | Model number | Y180M-6 |
Power | 15KW | ||
Rotating speed | 970r/min | ||
8 | Oil pump | Model number | 63YCY14-1B |
Displacement | 63r/min | ||
Nominal pressure | 31.5MPa | ||
9 | Cycle Time | About 15s | |
10 | Fuel tank capacity | 1.2L | |
11 | Operation method | PLC control, manual strapping | |
12 | Machine weight | About 2.5 tons | |
1).Applications:

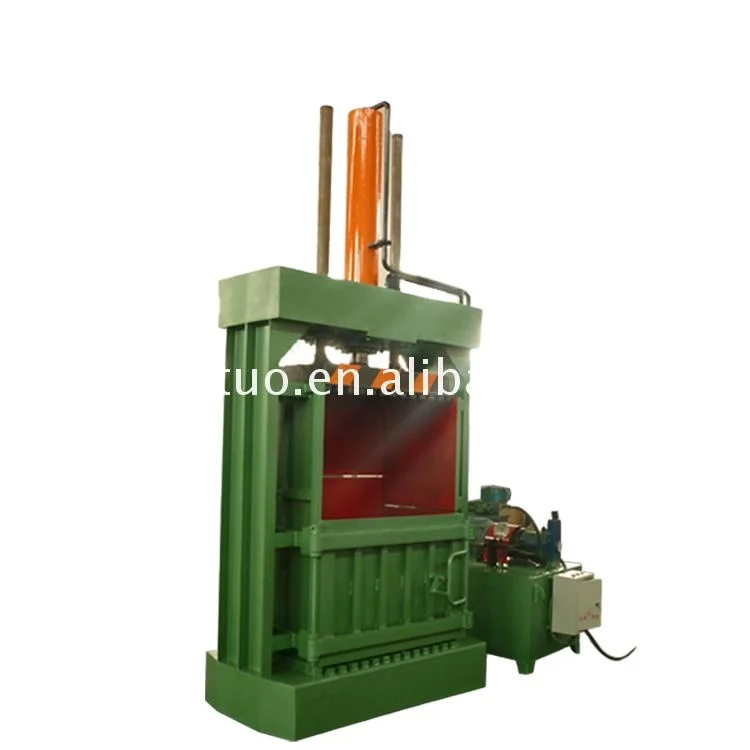

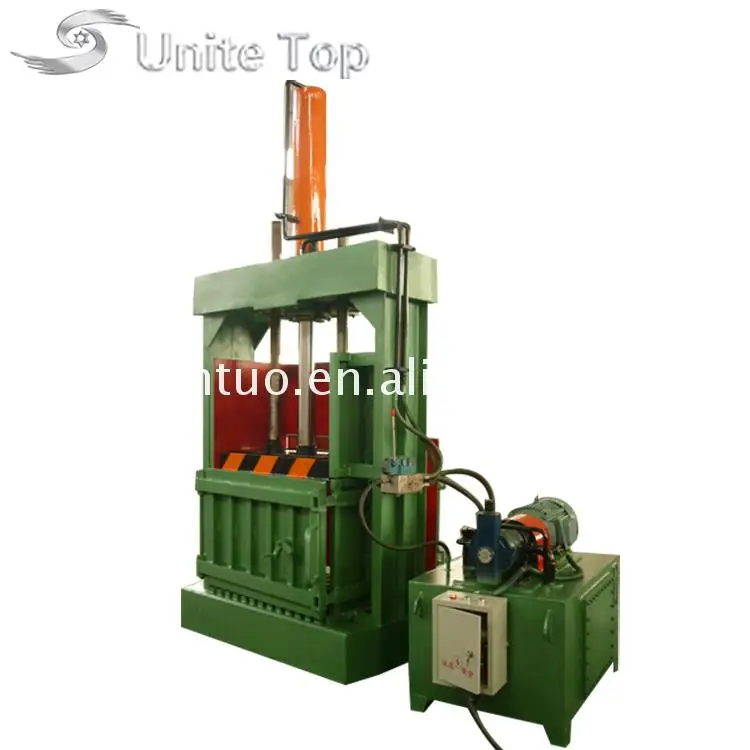

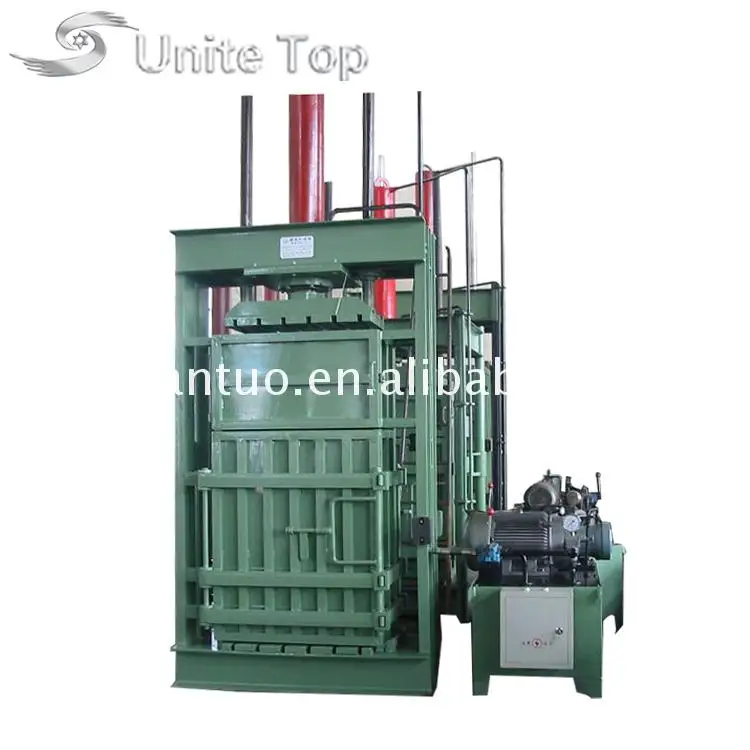

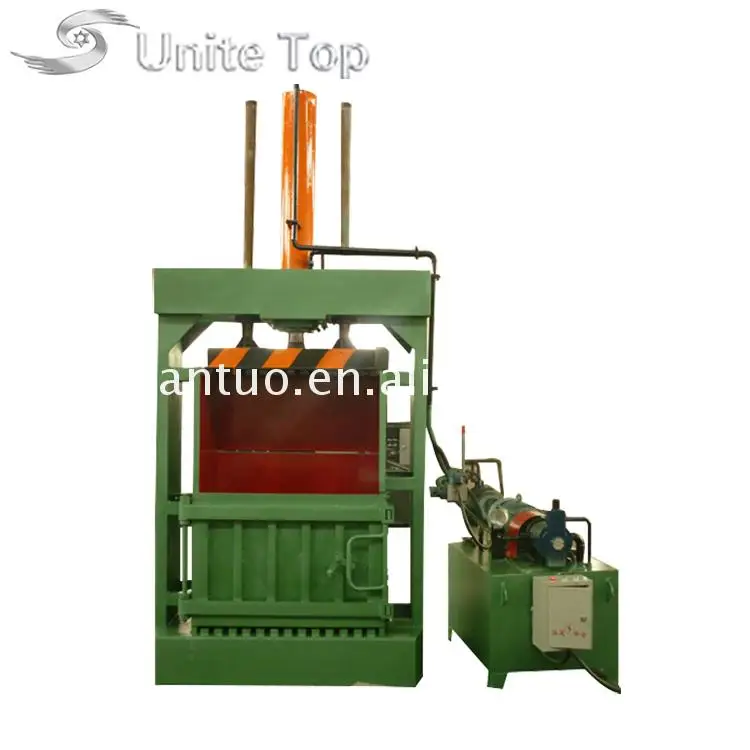

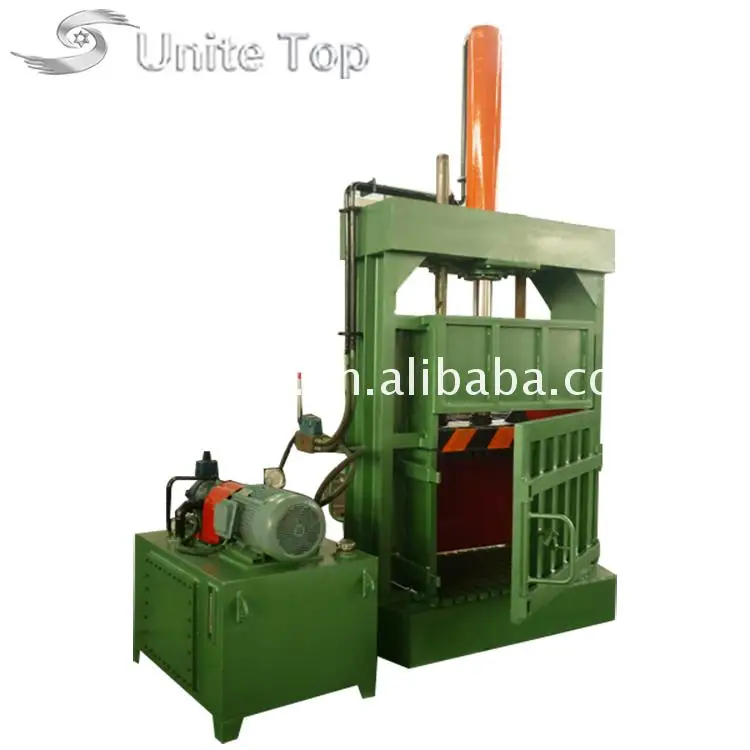

Y82 series nonmetal hydraulic baler widely used to compressing and packing the relaxed goods such as cotton, yarn, cloth, hemp, wool and other products.
The compressed package block has the uniform outer dimension and the large density and proportion, which is suitable for container transportation.
2).Features:
1. Packing pressure from 25 tons to 200 tons.
2.This series adopts the upper oil cylinder without the requirements of underground foundation.
Technial Specifications for some models of Y82 series non-metal hydraulic baler
