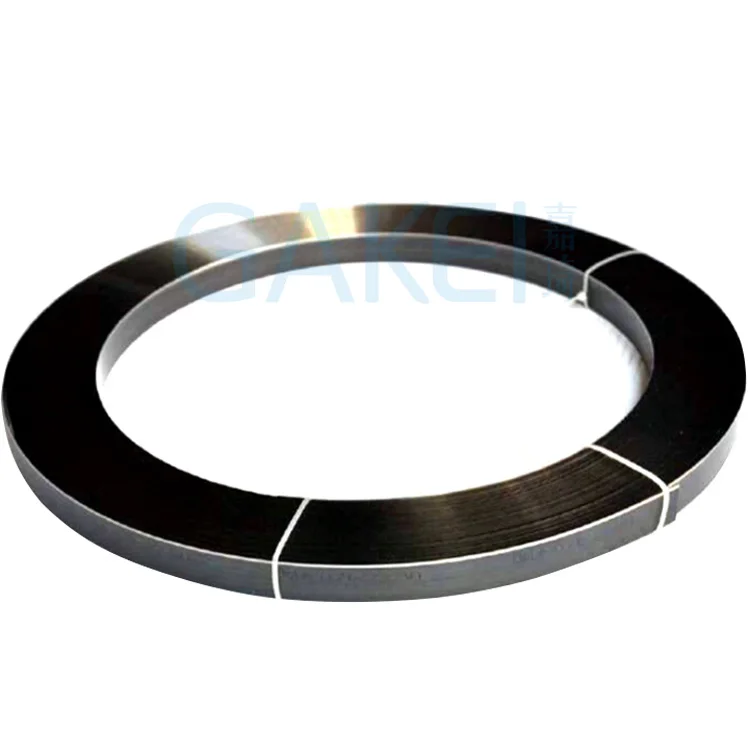

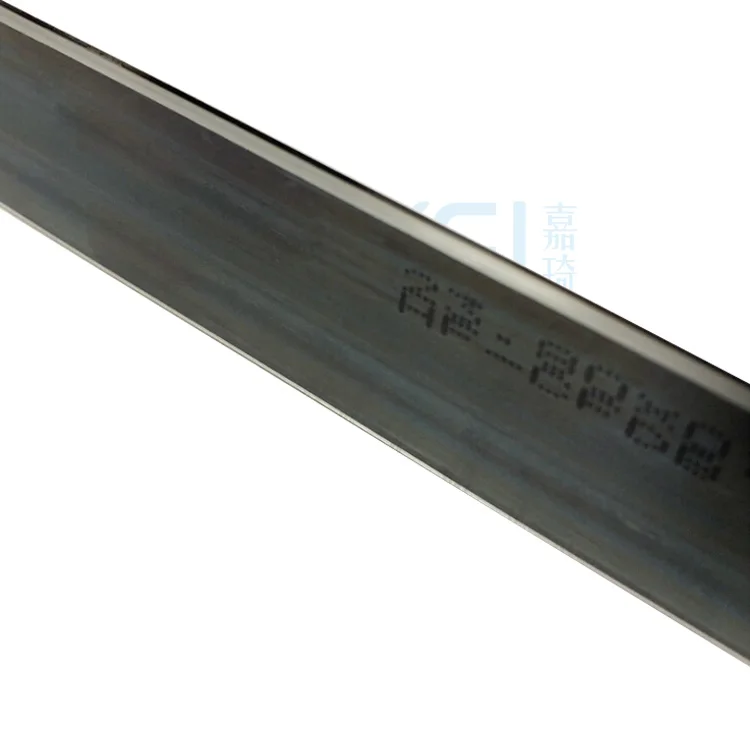

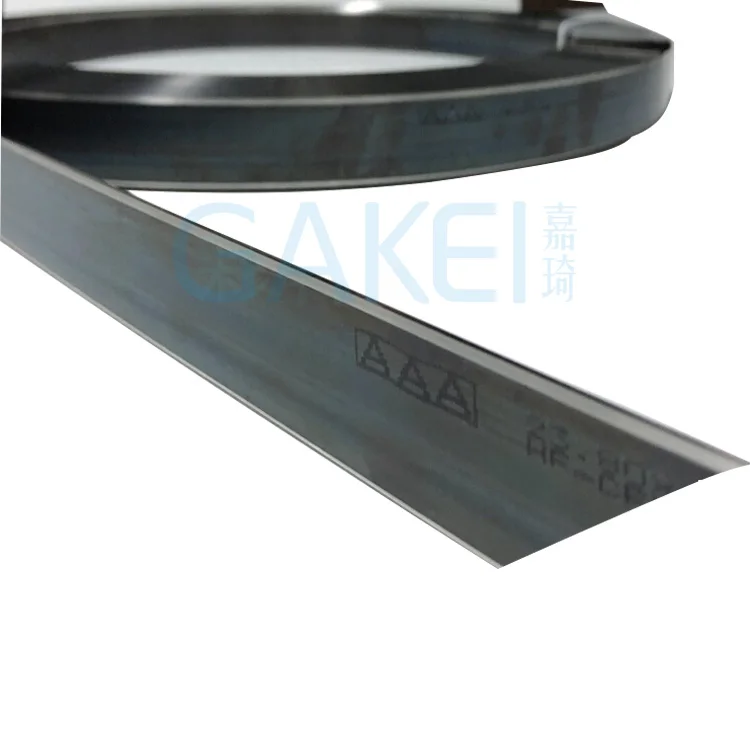

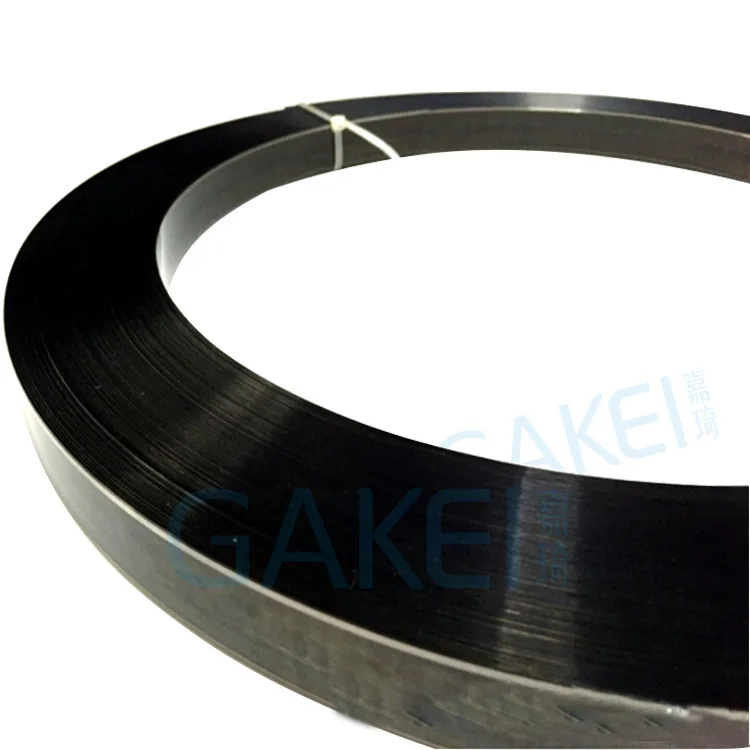

Steel Die-Cutting Rules For Die Making Creasing Rule
Product Description
Feature:
1.Selected quality material--The steel has a tight molecular structure, a flexible blade, no rebound after bending, and a tight connection between the molecular structure.
2.Super surface annealing--The more brittle carbon molecules are removed from the surface of the die cutter so that the blade is not brittle when it is bent, and is more convenient for bending.
3.Excellent heat treatment--Customers can use the die cutter to modulate different hardness without requiring that the knife body be adjusted to soft and easy to bend, so that the blade can be hardened to make it durable.
4.High precision--The higher the precision of the die cutting tool is, the shorter the time to adjust the die cutting machine is, the lower the mechanical wear is, the faster the production speed is, the better the die cutting effect.

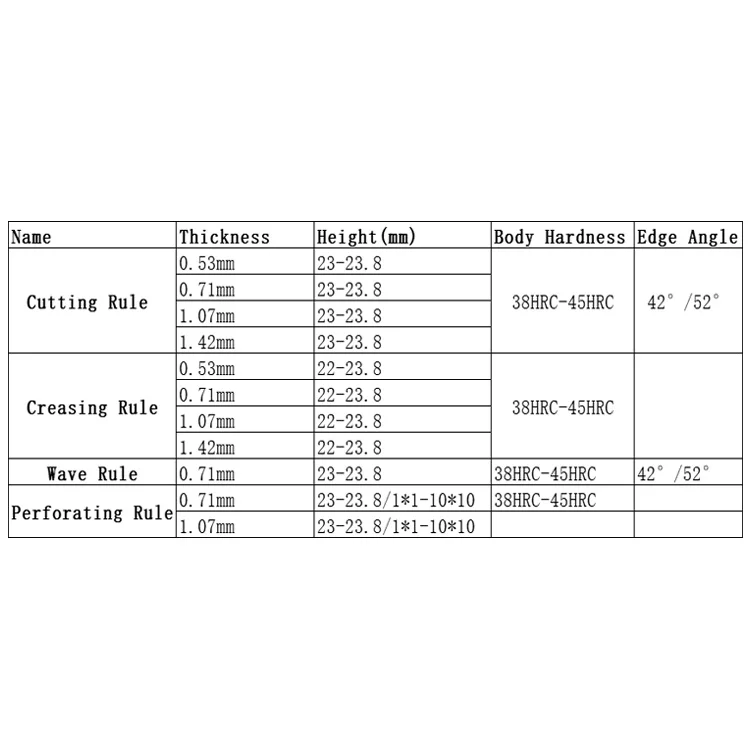

Specification:
Brand
PIKE
Products Name
Steel Die-Cutting Rules For Die Making Creasing Rule
Color
As the picture
Material
Steel
Size
23.8*0.71mm(2PT)/1.07mm(3PT)
OEM&ODM
OEM
Thickness
0.71mm(2PT)/1.07(3PT)/1.42(4PT)
Height
23.8mm/30mm/50mm/60mm/80mm
Hardness
Body(38-45HRC)Edge Angle(42/52)
Shape
center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB,LSB)
