Easy to Integrate This Visual Presenter has camera, image system process (ISP) and power all in one. It can be used to display a wide range of materials by connecting to a proper display device.
Excellent Image Quality This product is equipped with 5.0 Mega pixels CMOS camera lens that enhances the quality of the image.
Easy To Use When this Visual Presenter is not connected with power source, the signal received from the “COMPUTER IN” can be outputted in “COMPUTER OUT”. This means the Visual Presenter can be operated even when disconnected from computer.
Easy to Adjust The Focus/Iris/White Balance are automatically adjusted. These functions can also be adjusted manually to best fit user’s needs.
Fast Auto-Focus Images will be auto-focused in only 1~2 seconds.
22X Optical Camera Zoom 22X Optical camera zoom enlarge the shooting zone.
Image Freeze Make the images become still on the screen.
Multi-Scene Display The multi-scene feature allows multiple images to be shown at the same time.
Image Rotation The displayed image can be rotated by 180°.

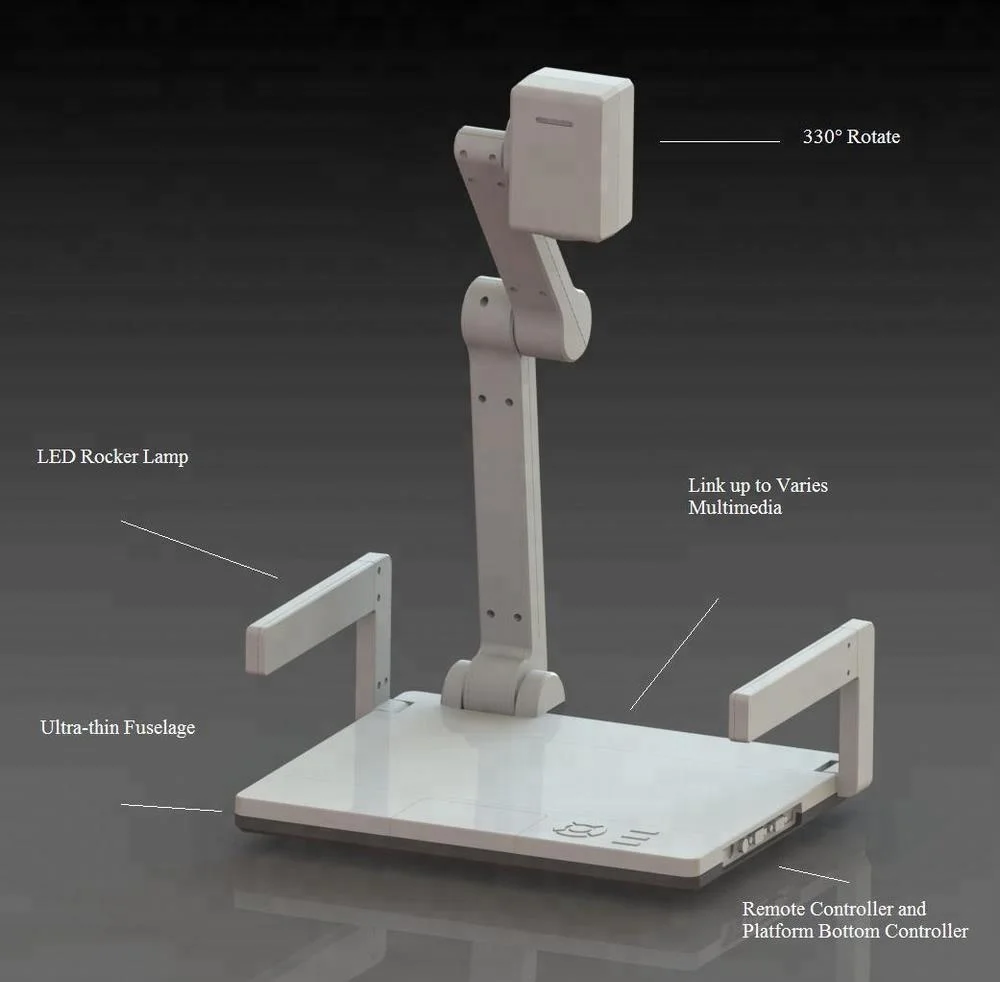

Flexible Mechanical Structure The camera stand has multiple joints and is highly versatile. When the camera stand is positioned vertically, the camera head can rotate 330° (upward and downward).
Display of Various Materials This Visual Presenter can display text, film, 3D objects and a wide range of other materials in fined details. It can also show negative film by turning on the base light and pressing the “NEG” button.
LED Lamps as Auxiliary Light Source LED lamps which have longer rated life and lower energy consumption are installed inside the two arms of this Visual Presenter.
Built-in Backlight System (Optional) Built-in LED backlight system provides uniform illumination and produces better image effect for slide and negative film.
Image Storage and Retrieval Images can be stored in the Visual Presenter for review at a later time.
Computer Control System The Visual Presenter can be connected to a computer using a RS232 cable. After installing the CD-ROM provided on your computer, you can control the operation of the Visual Presenter on the computer.
Built-in Image Switch
The built-in image switch allows easy swap between the Visual Presenter and the other image device input.
External Microphone Plug the microphone cord into the microphone inlet on the Side Connection Plate to amplify the sound during presentation. The user’s presentation sound can be blended with the background sound, e.g. music from computer.
Remote Control
What's the Specifications?
Model
WS-1005H
Image Sensor
CMOS 5.0 Mega Pixels
Powered Zoom
22X Optical Zoom,10X Digital Zoom
Focus/ Iris
Auto/ Manual
White Balance
Auto
Frame Rate
15fps
Digital Imaging Functions
Title screen, Rotate, Negatives, Freeze, Split, Mirror, Black, Text
Imaging Save/Recall
32 images(max)
Image Scroll
Vertical 330° motorized camera head

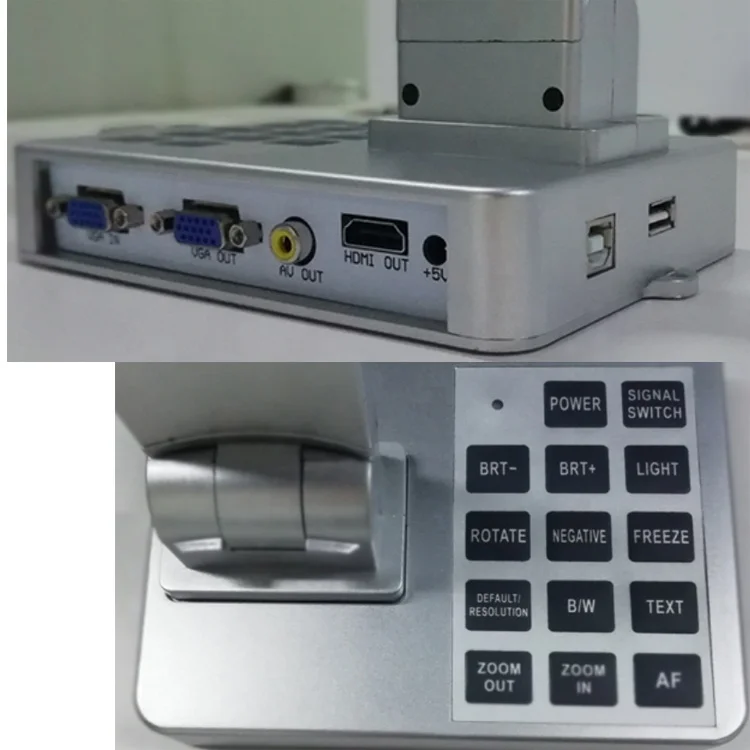

RGB Input
DB15FLC ×2
RGB Output Resolution
XGA,SXGA ,720P,WXGA,1920*1080
RGB Output
DB15FLC ×1
Audio Input
Mini jack ×2
MIC Input
1/4 inch Jack ×1
Video Input
RCA ×1
Video Output
RCA ×1
Audio Output
Mini jack ×1
USB Port*
USB2.0
HD-MI port
Yes
Power Input
5V
Operating System
Windows XP/Win7
Computer Hardware
Over CPU 2.4GHz
Arm Light
2× 1W LED
Back Light*
Built-in LED light Box (Optional)
Color Adjustment
Yes
Brightness Adjustment
Yes
MIC Volume Adjustment
Electronic tele-control
Operating Temperature
0ºC~40ºC
Power
AC100~240V,50/60Hz
Power Consumption
8W(Max)
Dimensions
Setup: 390x340x518mm
Folded: 360x331x91mm
Weight
About 2.35Kg
CE, ROHS Certificate
Applications:
1. Perfectly use in multi-media classrooms
Share books, 3D objects, and detailed demonstrations or experiments with your entire class using the easy-to use document cameras.
2. Record and share lessons
Record lessons for viewing at a later time, and give your students a more interactive learning experience.
Display content from your iPad, record lessons for viewing at a later time, and give your students a more interactive learning experience.

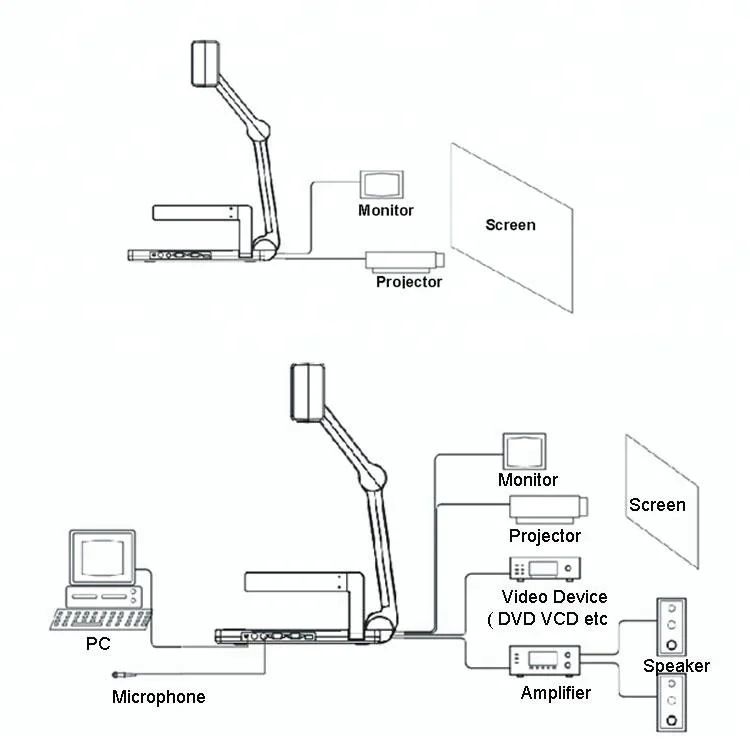

3. Live Video Presentation
Conference and Training: Present documents / 3D Objects to large screen by working with projector;
Vivid Presentation with Electronical Whiteboard for Education.
