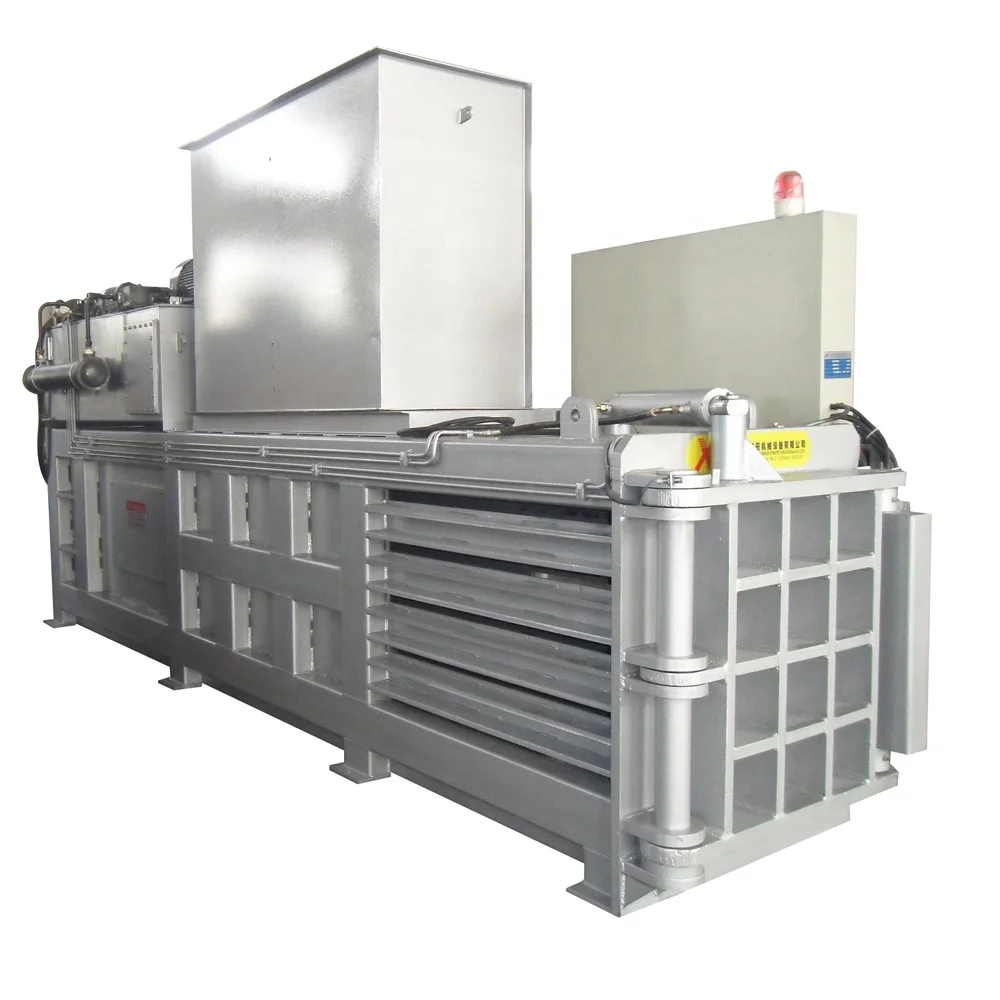

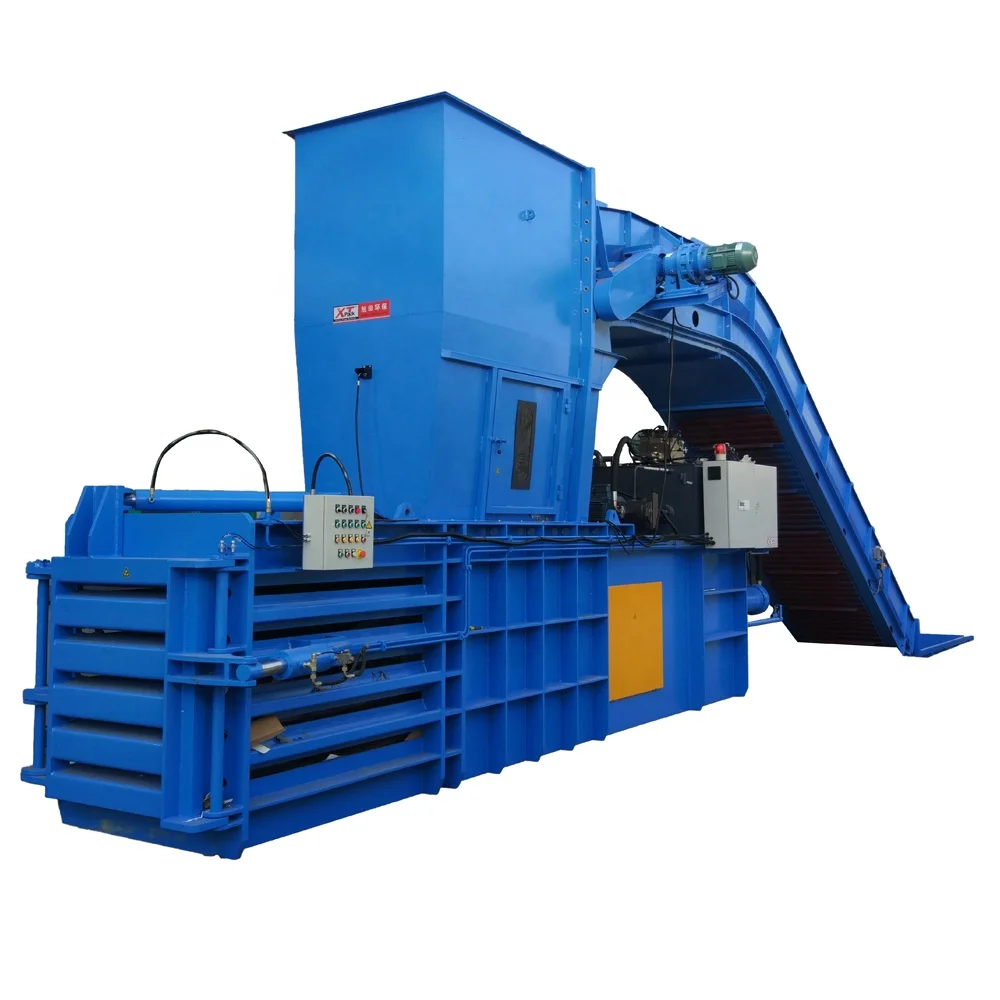

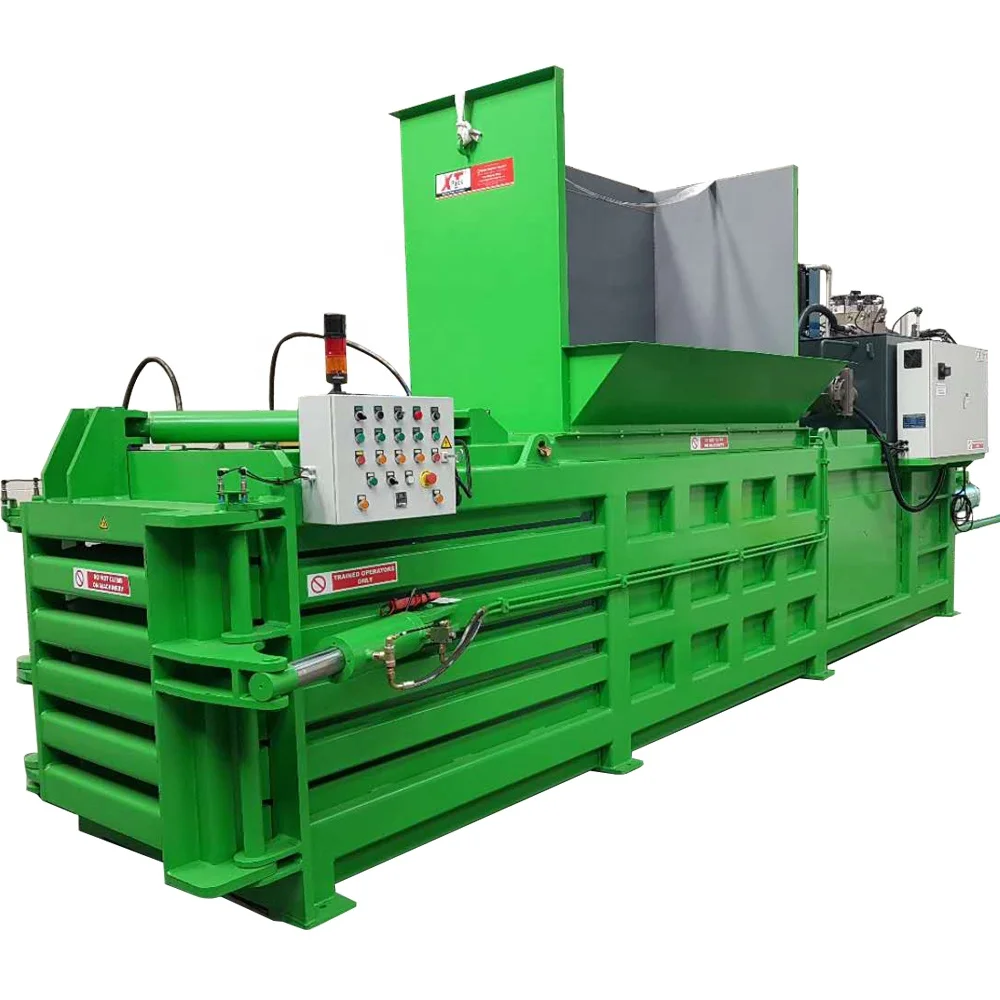

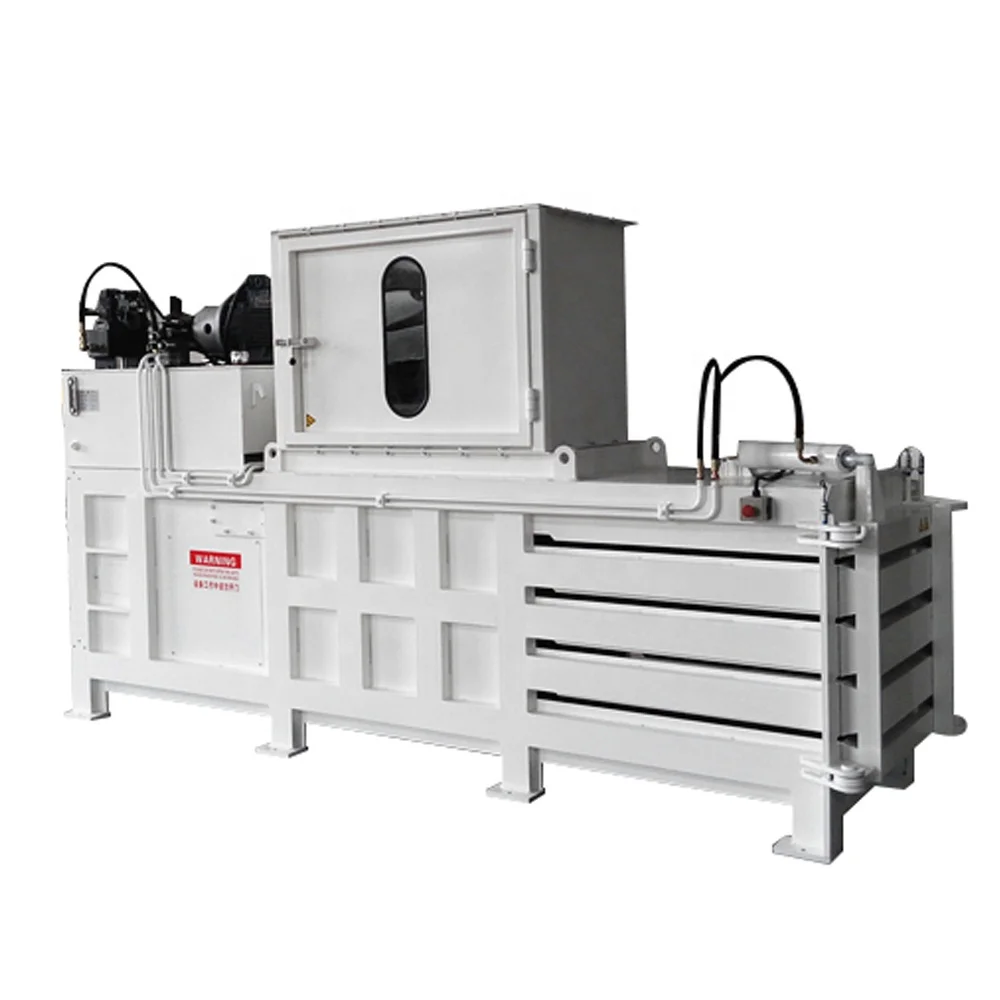

Прямая продажа с завода пресс-подборщик для алюминиевых

Model

XTY-300WB7070

XTY-400WB7280

XTY-600WB10080

XTY-1000WB11085

XTY-1000WB110110

Pressure

30tons

40tons

60tons

100tons

100tons

Main Motor Power

11kw

11kw

15kw

30kw

30kw

Cooling System

N/A

air cooler/water cooler

air cooler/water cooler

air cooler/water cooler

air cooler/water cooler

Cycle Time (unload)

27s

19s

23s

36s

42s

Oil Reservoir

240L

240L

380L

1460L

1600L

Number of Belting

3lines

4lines

4lines

4lines

5lines

Wire Size

Ø2.4-2.7

Ø2.4-2.7

Ø2.7-3.0

Ø3.0-3.2

Ø3.0-3.2

Feed Opening Size (L*W)

700*690mm

1000*700mm

1200*980mm

1400*1050mm

1800*1050mm

Chamber Size (L*W*H)

1700*690*690mm

2200*700*780mm

2400*980*780mm

3000*1050*830mm

3700*1050*1050mm

Bale Size (L*W*H)

900*700*700mm

1000*720*800mm

1000*1000*800mm

1300*1100*850mm

1600*1100*1100mm

Bale Density (OCC)

400-500kgs/m3

400-500kgs/m3

450-550kgs/m3

500-600kgs/m3

500-600kgs/m3

Throughput (approx./ depend on the raw material density and the skill of the operators)

0.5-1ton/h

0.5-1ton/h

1-2tons/h

1.5-3tons/h

2-6tons/h

Machine Weight

4tons

4tons

5.2tons

12tons

18tons

Machine Overall Dimension

4200*1100*1900mm

5500*1100*2000mm

6100*1400*2000mm

7450*1600*2300mm

8200*1600*3500mm

Feeding Device

cyclone / beltconveyor

cyclone /beltconveyor

cyclone /ironconveyor

conveyor

conveyor

Feeding Width

600mm

1000mm

1000mm

1300mm

2000mm

Speed

12m/min

12m/min

12m/min

12m/min

12m/min

Power

2.2kw

5.5kw

5.5kw

7.5kw

7.5kw

Weight

1tons

1.2tons

5tons

7tons

10tons

Overall Dimension

4500*800*2000mm

5000*1200*2500mm

9000*1300*3800mm

10500*1900*4700mm

10500*2200*4700mm
